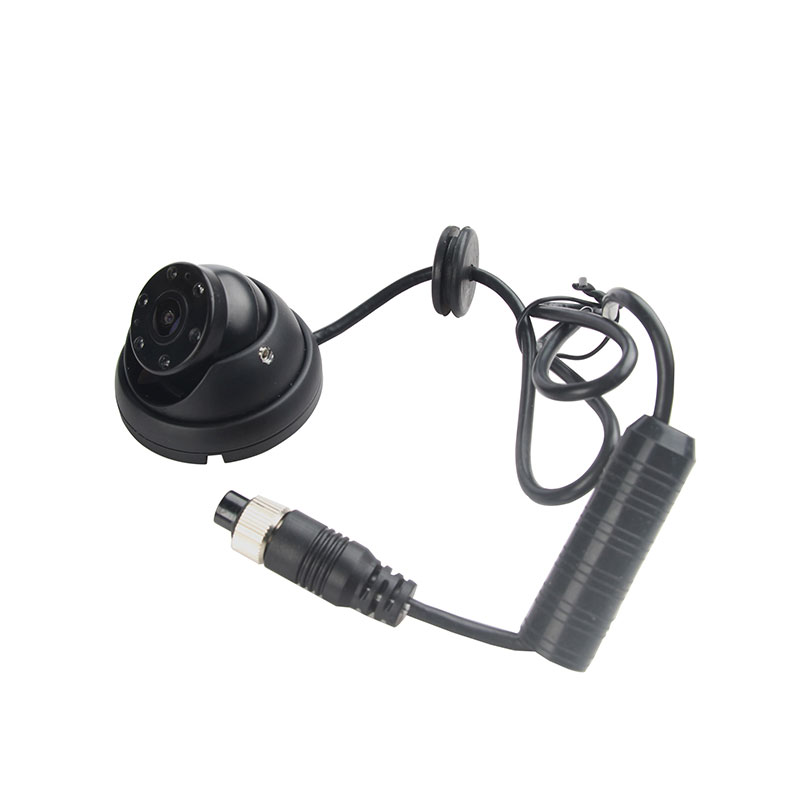

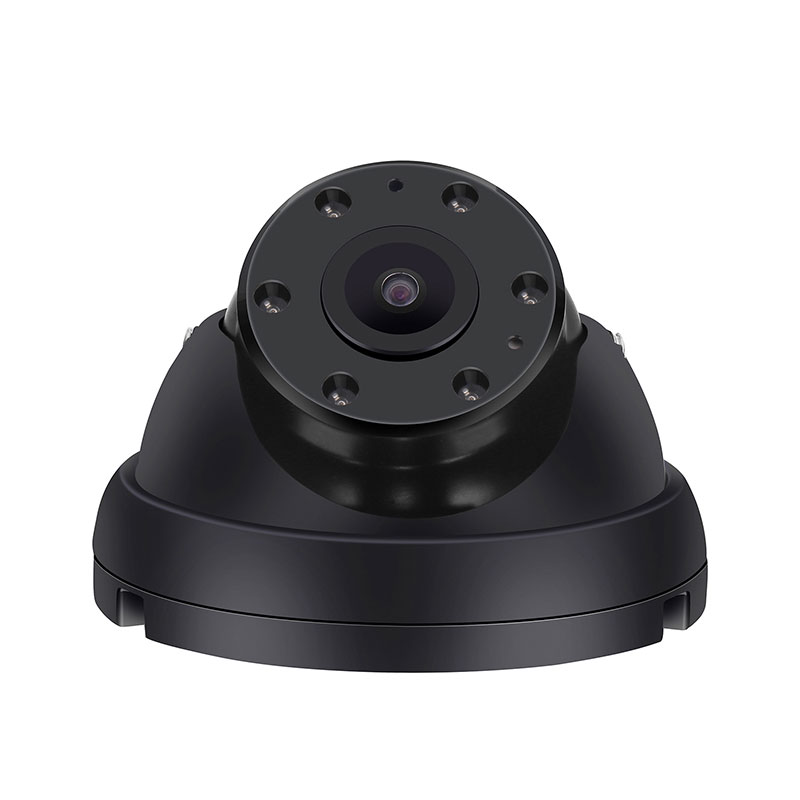

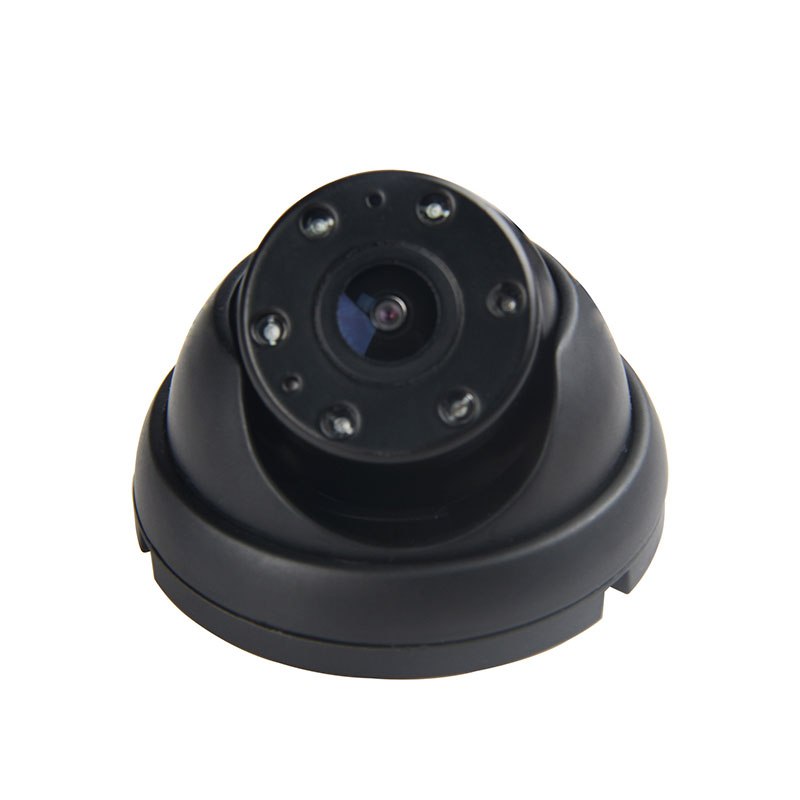

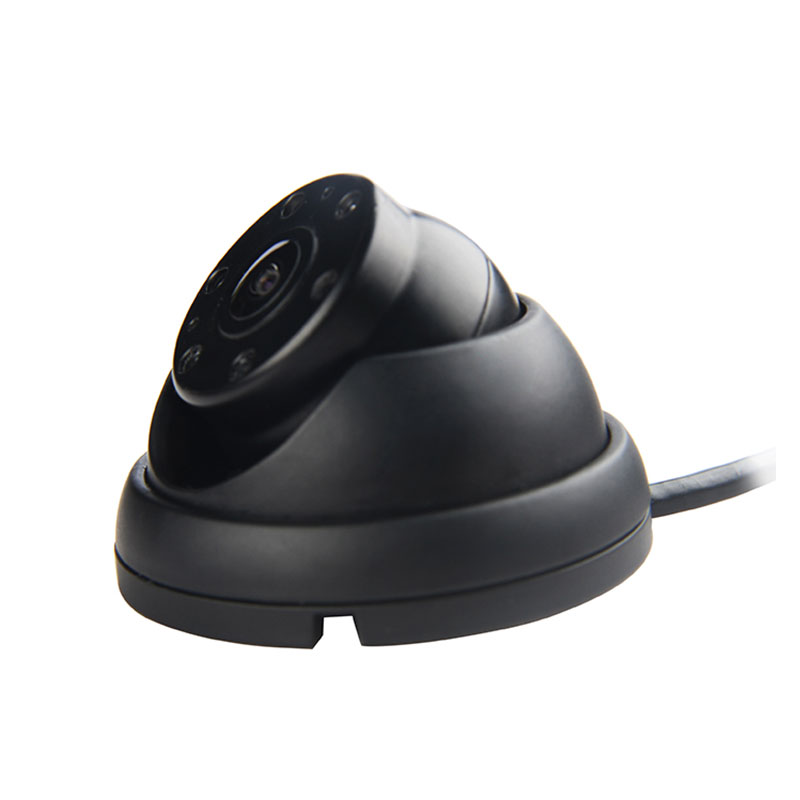

IP69K AHD Vehicle Security Camera With 1080P Auto Day Night Switch

For low-light applications, the 0.01 Lux sensitivity and 5 LED lights help improve visibility at night. The built-in IR cut day and night switch automatically changes the camera between daytime and nighttime operation. The IP69K vehicle camera housing is designed for demanding mobile applications, making it suitable for bus cameras, truck cameras, fleet vehicles and commercial vehicle monitoring systems.

Features:

1.Supports CVBS / AHD 720P / AHD 1080P optional video input.

2. 0.01 Lux low-light sensitivity improves image performance in dark environments.

3. Automatic IR cut day/night switching adjusts the camera according to ambient lighting.

4. IP69K waterproof vehicle camera is suitable for harsh commercial vehicle environments.

5. Supports mirror and non-mirror image options for different mounting positions.

6. PAL/NTSC optional provides compatibility with different vehicle video systems.

Parameter:

Product Type: Vehicle Dome Camera

Image Sensor: 1/2.7" / 1/3"

Video Input: CVBS / AHD 720P / AHD 1080P Optional

Power Supply: DC12V (Standard), 24V (Optional)

Mirror Image: Optional

Non-Mirror Image: Optional

Minimum Illumination: 0.01 Lux (5 LED)

Lens: 2.8mm

Day/Night Function: IR Cut Day and Night Switch Automatically

System: PAL/NTSC Optional

View Angle: 120°

Waterproof Rating: IP69K

Built-in Mic: Optional

Operating Temperature: -20°C to +75°C (RH95% Max.)

Storage Temperature: -30°C to +85°C (RH95% Max.)

Application Scenarios

• Bus & Coach Monitoring

Used as an in-vehicle camera for monitoring passenger areas and vehicle interiors.

• Truck & Commercial Vehicle

The truck camera can be integrated with an MDVR for continuous video recording.

• Fleet Management

Suitable for fleet surveillance systems, helping fleet operators monitor vehicles remotely.

• Vehicle Security

Can be used as a vehicle security camera for recording driving and operational conditions.

• Transportation Monitoring

Suitable for logistics vehicles, passenger transportation and other commercial fleet applications.

FAQ

Q1: What video formats are available?

CVBS, AHD 720P and AHD 1080P are available as optional configurations.

Q2: Does this vehicle camera support night vision?

Yes. It has 5 LED lights, 0.01 Lux sensitivity and automatic IR cut day/night switching.

Q3: What is the lens angle?

The camera uses a 2.8mm lens with a 120° viewing angle.

Q4: Is the camera waterproof?

Yes. The housing is rated IP69K.

Q5: Can the image be mirrored?

Yes. Both mirror and non-mirror image options are available.
