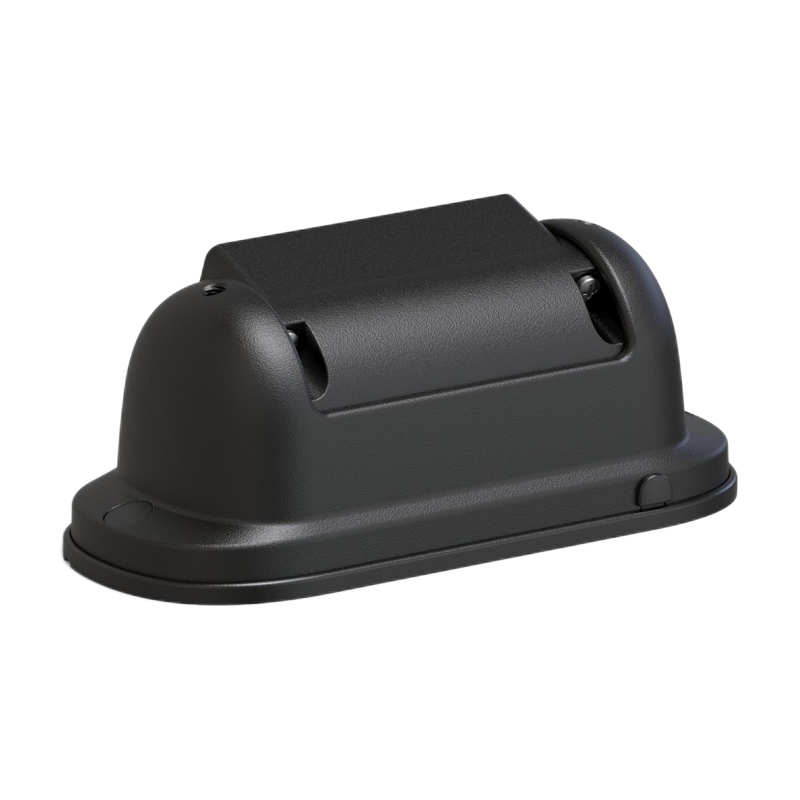

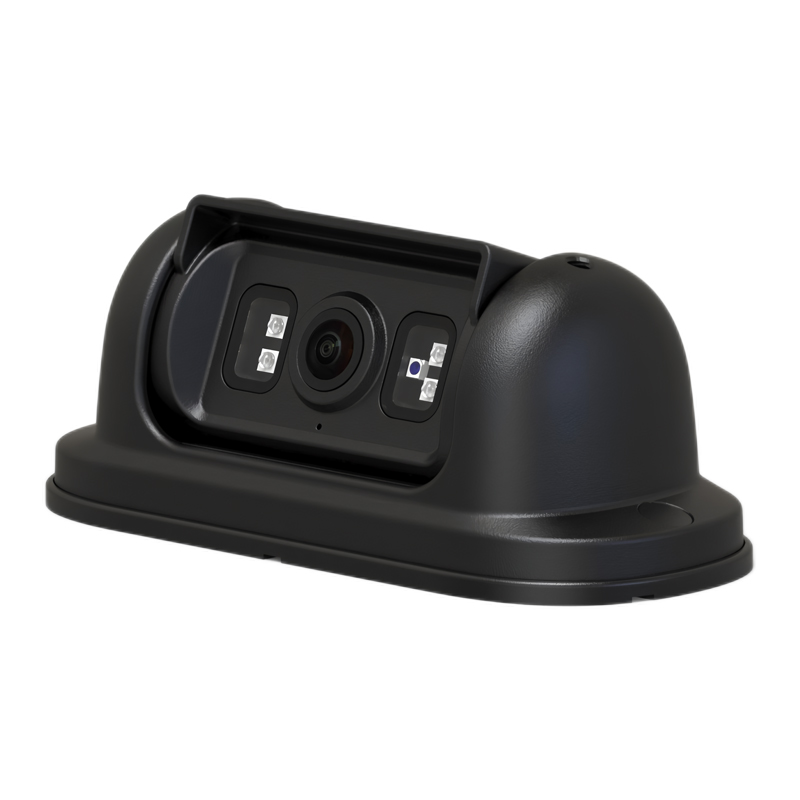

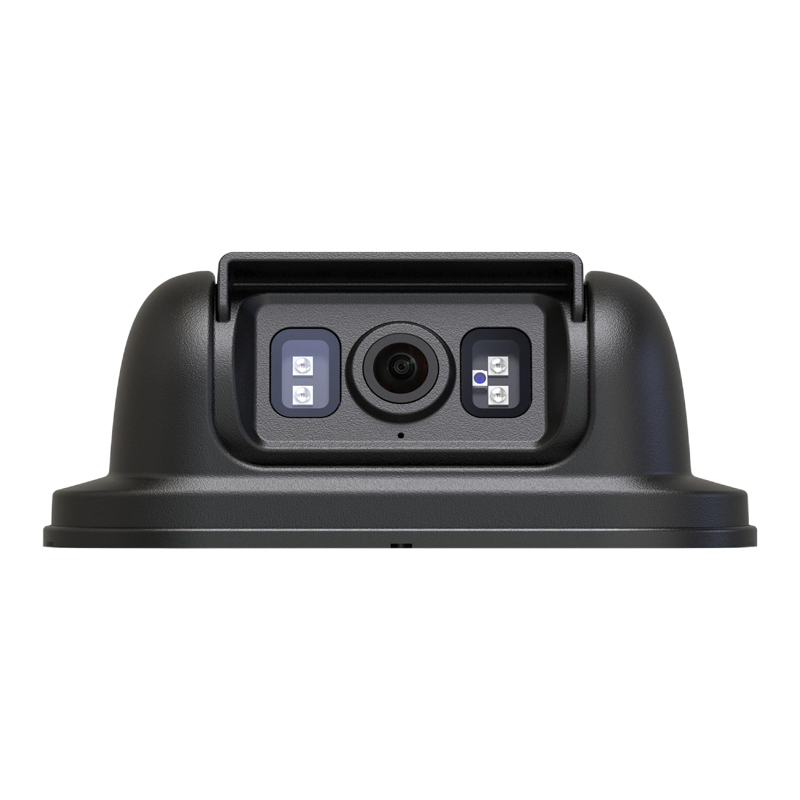

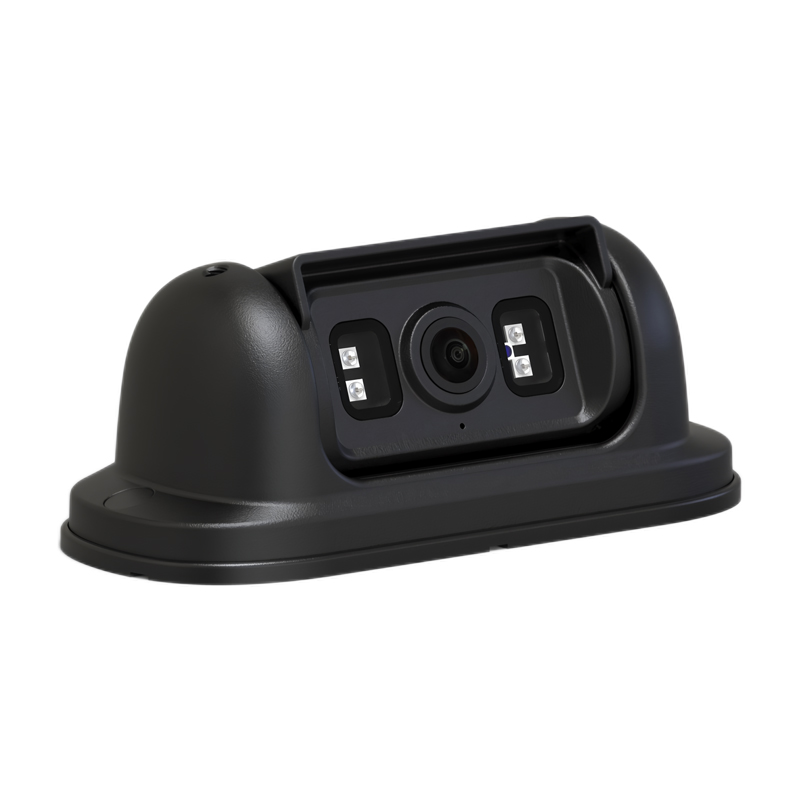

IP69K Commercial Vehicle Rear View Camera with 4PIN Aviation Connector

The Automatic Day Night Rear View Camera focuses on one of the key challenges in vehicle surveillance: maintaining usable rear-view images when lighting conditions change from bright daylight to darkness. Instead of relying only on infrared LEDs, this camera combines a CDS light sensor with automatic IR-Cut switching to adapt the imaging mode according to ambient light. The camera is available with CVBS, AHD720P or AHD1080P video configurations and can be supplied with either a 130° standard lens angle or a wider 150° option. Its zinc alloy housing and IP69K protection make it suitable for commercial vehicle applications where durability and environmental protection are important.

Product Advantages

1.Automatic Day/Night Operation — The built-in CDS sensor detects ambient light and works with the IR-Cut system to automatically switch between day and night imaging modes.

2.Low-Light 0.01 LUX Performance — Designed to maintain usable image performance in low-light environments, supported by 4 infrared LEDs for nighttime monitoring.

3.130° Standard Wide-Angle Coverage — Provides broad rear-view coverage for trucks, buses, trailers and other commercial vehicles.

4.Multiple Video Signal Options — CVBS, AHD720P and AHD1080P versions are available, making the camera suitable for different vehicle video systems.

5.Built for Rear Vehicle Monitoring — Designed specifically for rear-view applications where reliable visibility is required during driving, reversing, parking and loading operations.

6.Zinc Alloy Housing — The zinc alloy construction provides a robust camera enclosure for demanding commercial vehicle environments.

7.IP69K Protection — Suitable for exterior vehicle installation where the camera may be exposed to water, dust and harsh environmental conditions.

Product Parameters

Product Type: Automatic Day Night Rear View Camera

Image Sensor: 1/2.7" & 1/3"

Video Input: CVBS / AHD720P / AHD1080P Optional

Power Supply: DC12V Standard, 24V Optional

Image: Mirror / Non-Mirrored Optional

Minimum Illumination: 0.01 LUX

IR LED: 4 LEDs

Day/Night System: Built-in CDS Sensor + Automatic IR-Cut Switching

Lens: 2.8mm

View Angle: 130° Standard, 150° Maximum

Material: Zinc Alloy

Connector: 4PIN Aviation Connector

Built-in Microphone: Optional

Video System: PAL / NTSC Optional

Waterproof Rating: IP69K

Operating Temperature: -20~+75°C, RH95% Max.

Storage Temperature: -30~+85°C, RH95% Max.

Application Scenarios

1.Truck Rear View Monitoring

Provides a wide rear view for trucks and heavy commercial vehicles, helping drivers monitor the area behind the vehicle.

2.Trailer & Semi-Trailer Camera

Suitable for trailer rear monitoring and applications where a durable exterior camera is required.

3.Bus Rear Camera

Can be integrated into bus surveillance systems for rear-view and reversing applications.

4.Commercial Van Camera

Suitable for vans and other commercial vehicles requiring additional rear visibility.

5.Fleet Vehicle Surveillance

Can be integrated with compatible vehicle DVR or MDVR systems for fleet monitoring projects.

6.Loading & Reversing Areas

The wide-angle and low-light capabilities make the camera suitable for vehicle loading zones, warehouses, parking areas and nighttime reversing.

Quality Control

Depending on the final configuration and project requirements, relevant inspections can include:

• Image quality inspection
• Low-light image performance inspection
• Infrared LED function testing
• CDS sensor function inspection
• Automatic IR-Cut switching inspection
• Viewing angle verification
• CVBS/AHD video signal inspection
• 4PIN aviation connector inspection
• Power supply and electrical function testing
• Waterproof and sealing inspection
• Housing and assembly inspection
• Operating temperature verification
• Final appearance inspection

FAQ

Q1. What is an automatic day night rear view camera?

A1. It is a vehicle rear camera that automatically switches between day and night imaging modes according to surrounding light conditions.

Q2. How does the camera automatically switch between day and night?

A2. The built-in CDS sensor detects ambient light and works with the automatic IR-Cut system to switch between day and night modes.

Q3. What is the minimum illumination of the camera?

A3. The specified minimum illumination is 0.01 LUX, with 4 infrared LEDs for nighttime monitoring.

Q4. What is the standard viewing angle?

A4. The standard viewing angle is 130°, with a 150° maximum option.

Q5. Does the camera support AHD1080P?

A5. Yes. CVBS, AHD720P and AHD1080P configurations are available.

Q6. Can the camera work with a vehicle MDVR?

A6. Yes. The appropriate CVBS or AHD version can be integrated with a compatible vehicle DVR or MDVR system.

Q7. Is the camera suitable for exterior installation?

A7. Yes. It has an IP69K protection rating and a zinc alloy housing for commercial vehicle applications.

Q8. Does it support 24V vehicles?

A8. Yes. DC12V is standard and 24V is available as an option.

Q9. Can I choose a mirrored image?

A9. Yes. Mirror image and non-mirrored image configurations are available.

Q10. What connector does the camera use?

A10. It uses a 4PIN aviation connector.

Q11. Can the camera have a microphone?

A11. Yes. A built-in microphone is available as an optional configuration.

Q12. Which vehicles can use this rear view camera?

A12. It is suitable for trucks, buses, trailers, vans and other commercial vehicles.
