Vehicle Monitor & Camera Manufacturer New Products

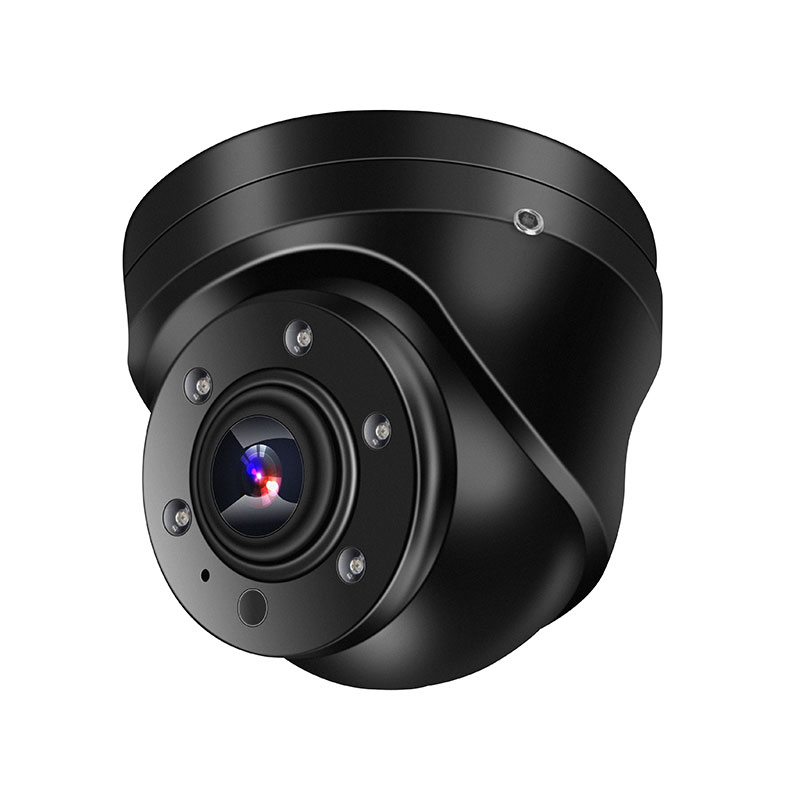

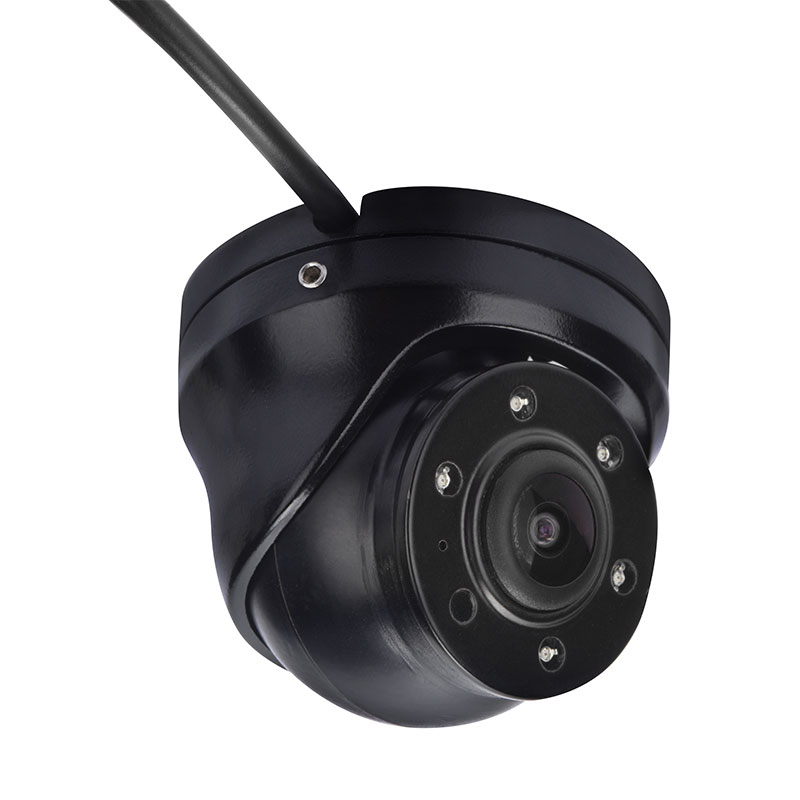

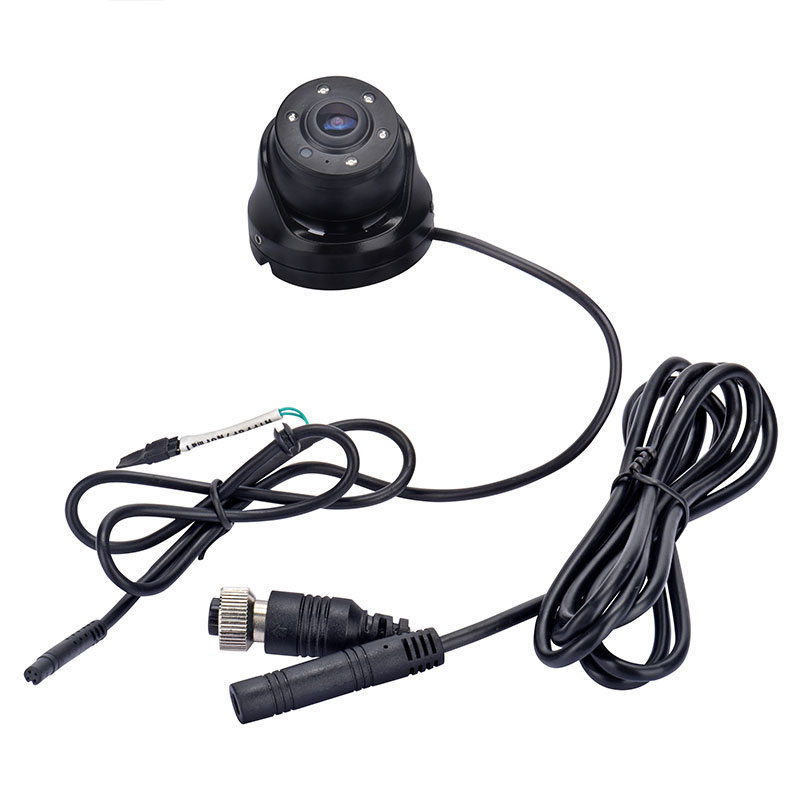

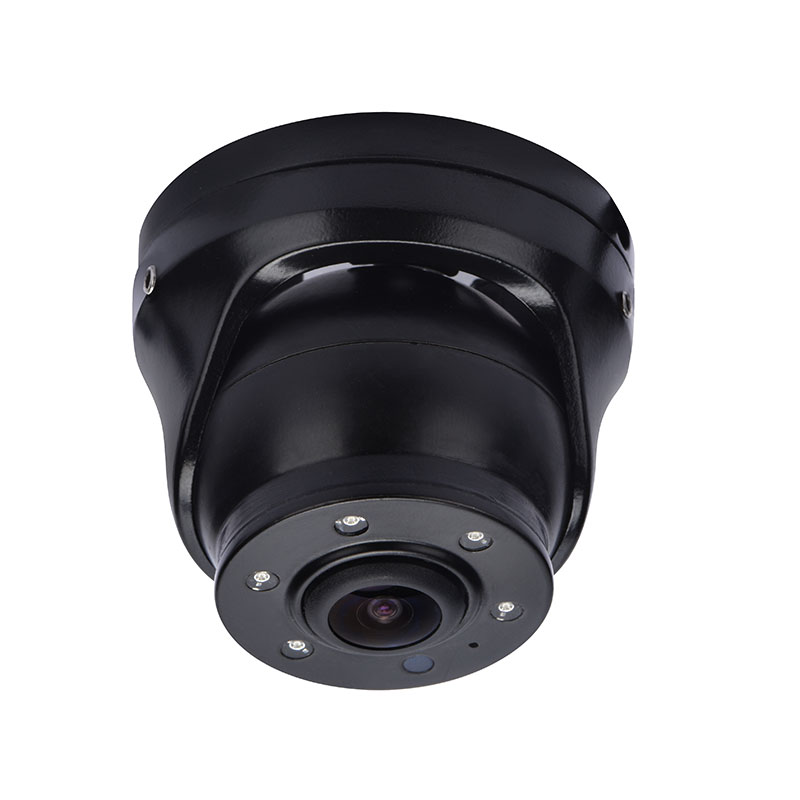

IP69K Dome Camera With 5 LED Night Vision AHD 1080P Vehicle Camera
Carleader IP69K Dome Camera With 5 LED Night Vision AHD 1080P Vehicle Camera is designed for commercial vehicle video surveillance, fleet monitoring and vehicle security systems. This vehicle dome camera supports CVBS, AHD 720P and AHD 1080P optional video output, with a 2.8mm lens and 120° viewing angle. The AHD vehicle camera provides reliable image monitoring in both daytime and low-light environments. Its IP69K waterproof housing makes this car dome camera suitable for buses, trucks and other commercial vehicles.
Model:CL-816
Send Inquiry
Product Description
Carleader IP69K Dome Camera With 5 LED Night Vision AHD 1080P Vehicle Camera which is designed for professional in-vehicle video monitoring applications such as buses, trucks, commercial vehicles and fleet management systems. The camera supports CVBS, AHD 720P and AHD 1080P optional video output, allowing integration with different vehicle monitors. For night monitoring, this night vision vehicle camera features 0.01 Lux low-light performance and 5 LED lights. The automatic IR Cut day and night switch adjusts the image mode according to lighting conditions. With IP69K waterproof protection, this AHD dome camera is designed for commercial vehicle applications where resistance to water, dust and harsh environments is required.
Features:
1. AHD Vehicle Dome Camera designed for bus, truck and commercial vehicle video surveillance.
2. Supports CVBS, AHD 720P and AHD 1080P optional video output.
3. 0.01 Lux low-light performance helps maintain clear images in dark environments.
4. Automatic IR Cut day/night switch automatically adapts the camera to changing light conditions.
5. 2.8mm lens with 120° viewing angle, with 140° optional, provides wide-area vehicle monitoring.
6. IP69K waterproof dome camera design provides protection against water and dust in demanding vehicle environments.
7. PAL/NTSC optional system provides flexible compatibility with different vehicle video equipment.
Parameter:
Product Type: Vehicle Dome Camera
Video Input: CVBS / AHD 720P / AHD 1080P Optional
Power Supply: DC12V (Standard), 24V (Optional)
Mirror Image: Optional
Non-Mirror Image: Optional
Minimum Illumination: 0.01 Lux (5 LED)
Lens: 2.8mm
Day/Night Function: IR Cut Day and Night Switch Automatically
System: PAL/NTSC Optional
View Angle: 120° Default, 140° Optional
Waterproof Rating: IP69K
Built-in Mic: Optional
Operating Temperature: -20°C to +75°C (RH95% Max.)
Storage Temperature: -30°C to +85°C (RH95% Max.)
Application
This car dome camera can be used for:
- Bus Camera
- Truck Camera
- Commercial Vehicle Camera
- Fleet Management Camera
- Vehicle Security Camera
- In-Vehicle Surveillance Camera
- Vehicle Monitoring System
- MDVR Camera System
- Public Transportation Monitoring
- Commercial Fleet Video Surveillance
The vehicle dome camera can be integrated with an MDVR and vehicle monitor to provide continuous video monitoring for fleet vehicles. Similar vehicle dome cameras are commonly positioned as solutions for buses, trucks and commercial fleet applications.
FAQ
Q1: What vehicles can use this vehicle dome camera?
The camera is designed for bus, truck, commercial vehicle and fleet monitoring applications.
Q2: Does this AHD dome camera support 1080P?
Yes. CVBS, AHD 720P and AHD 1080P are available as optional video output formats.
Q3: Does the camera support night vision?
Yes. The camera provides 0.01 Lux low-light performance with 5 LED lights and automatic day/night switching.
Q4: What is the viewing angle?
The standard viewing angle is 120°, with 140° optional.
Q5: Is this vehicle camera waterproof?
Yes. The housing is rated IP69K, making it suitable for demanding commercial vehicle environments.
Q6: Can the image be mirrored?
Yes. Mirror and non-mirror image options are available.
Q7: What power supply does the car dome camera use?
The standard power supply is DC12V, with 24V optional.
