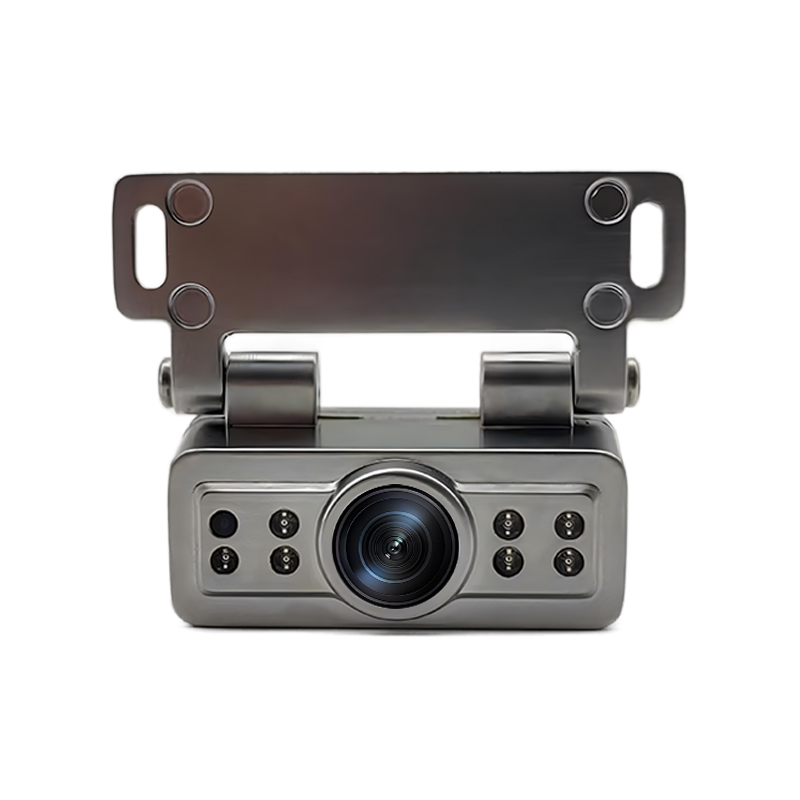

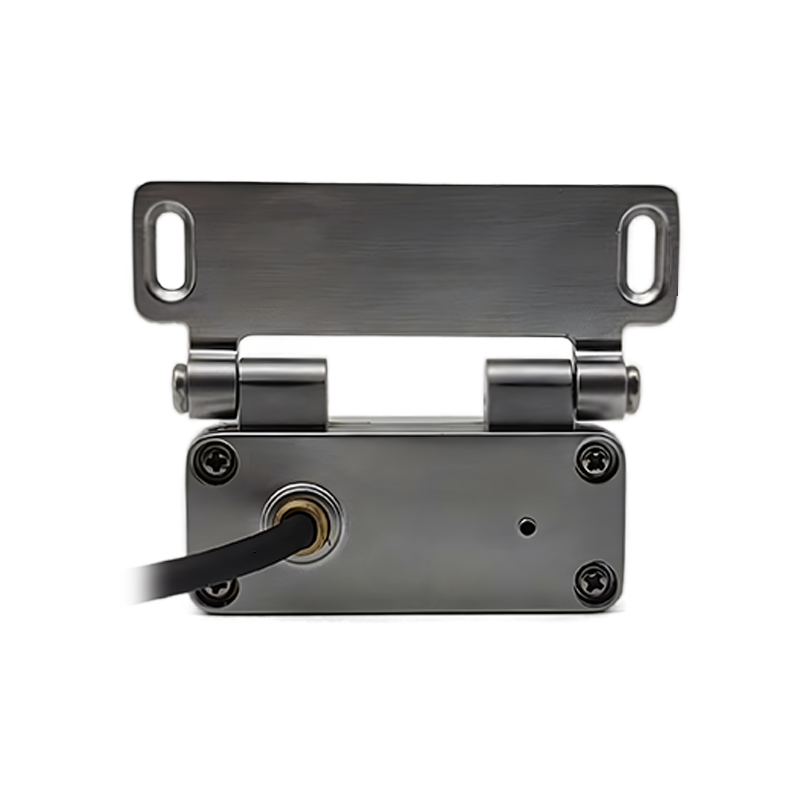

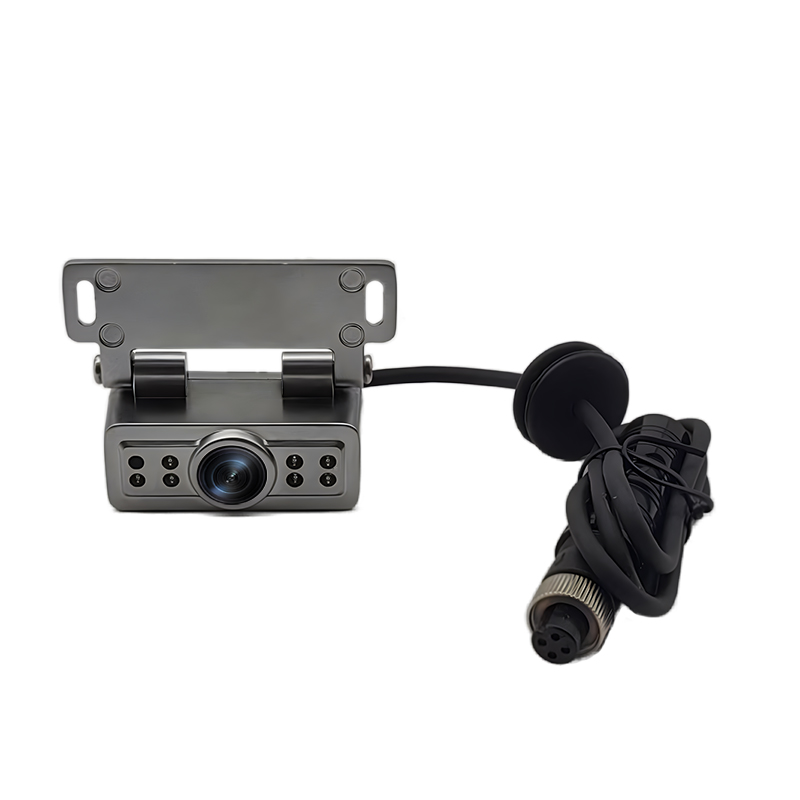

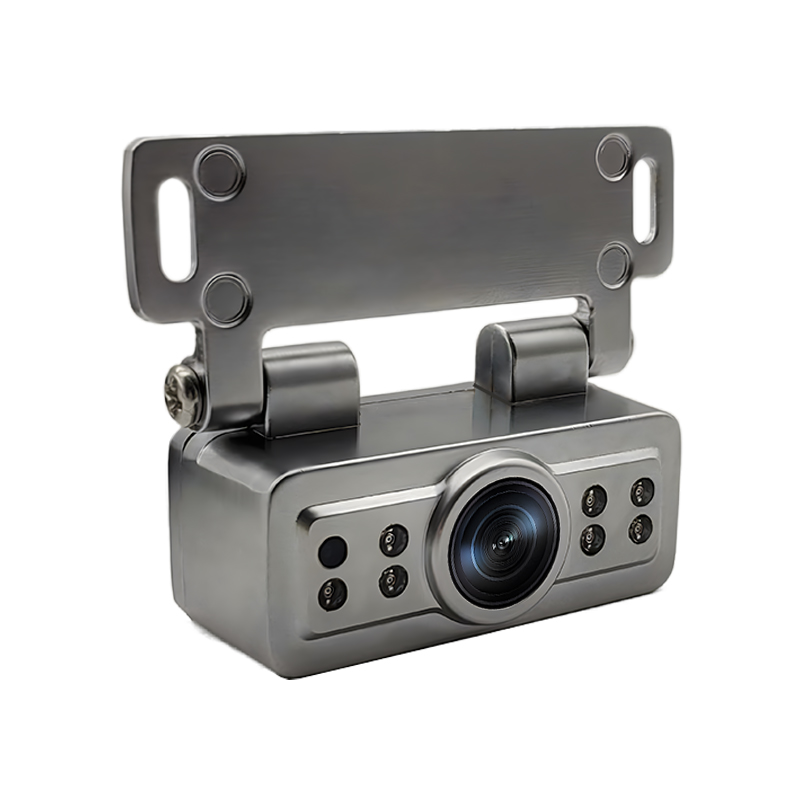

IP69K Wide Angle AHD Vehicle Camera for Side and Rear View with IR Night Vision

Key Features

1. Wide-Angle Vehicle Monitoring – 130° viewing angle with up to 150° available for broader side and rear coverage.

2. Infrared Night Vision – 7 IR LEDs support nighttime and low-light monitoring.

3. IP69K Protection – suitable for demanding outdoor vehicle environments.

4. Zinc Alloy Housing – durable metal construction with silver electroplating.

5. Multiple Video Formats – CVBS, AHD 720P and AHD 1080P options.

6. Mirror / Non-Mirror Image – suitable for different mounting positions.

7. Optional Built-in Microphone – available according to application requirements.

Parameters

Product Type: Wide Angle AHD Vehicle Camera

Main Application: Side View / Rear View

Housing Material Zinc Alloy with Silver Electroplating

Video Format CVBS / AHD 720P / AHD 1080P Optional

Lens 2.1mm

Horizontal Viewing Angle 130° / 150° Max.

Video Output 1.0Vp-p, 75Ω

Night Vision Infrared Night Vision

IR LEDs 7 LEDs

Image Type Mirror / Non-Mirror Optional

Video System PAL / NTSC Optional

Power Supply DC12V Standard / 24V Optional

Waterproof Rating IP69K

S/N Ratio ≥50dB

Electronic Shutter 1/65 (NTSC), 1/60 (PAL) – 1/10,000

Built-in Microphone Optional

Operating Temperature -20°C to +75°C, RH95% Max.

Storage Temperature -30°C to +85°C, RH95% Max.

Applications

This Wide Angle AHD Vehicle Camera is suitable for:

• Truck side-view monitoring
• Truck rear-view monitoring
• Bus and coach camera systems
• Trailer monitoring
• Commercial vehicle surveillance
• Fleet vehicle camera systems
• Construction and special-purpose vehicles
• Vehicle DVR / MDVR systems
• AHD vehicle monitor systems
• Blind-spot and side-area monitoring

FAQ

Q1: What is this AHD vehicle camera designed for?

A: This camera is designed for side-view and rear-view monitoring on trucks, buses, trailers, commercial vehicles and other heavy-duty vehicles.

Q2: What viewing angle does the camera provide?

A: The standard viewing angle is 130°, while a wide-angle version with up to 150° is available for applications requiring broader coverage.

Q3: Does the camera support night vision?

A: Yes. The camera is equipped with 7 infrared LEDs for nighttime and low-light vehicle monitoring.

Q4: Is this camera suitable for truck side-view applications?

A: Yes. Its 2.1mm wide-angle lens and 130° viewing angle make it suitable for truck side-view, rear-view and blind-area monitoring.

Q5: Does the camera support AHD 1080P?

A: Yes. AHD 1080P is available, as well as AHD 720P and CVBS options.

Q6: Is the camera waterproof?

A: Yes. The camera has an IP69K waterproof rating and is designed for demanding outdoor vehicle applications.

Q7: Can this camera be used on 24V commercial vehicles?

A: Yes. DC12V is the standard power supply, and a 24V option is available for trucks, buses and other commercial vehicles.

Q8: What vehicles can use this wide-angle camera?

A: It can be used on trucks, buses, coaches, trailers, commercial vehicles, construction vehicles and other special-purpose vehicles.

Q9: What is the difference between the 130° and 150° versions?

A: The 130° version provides a standard wide viewing area, while the 150° version covers a wider area and can be considered when broader side or rear visibility is required.
