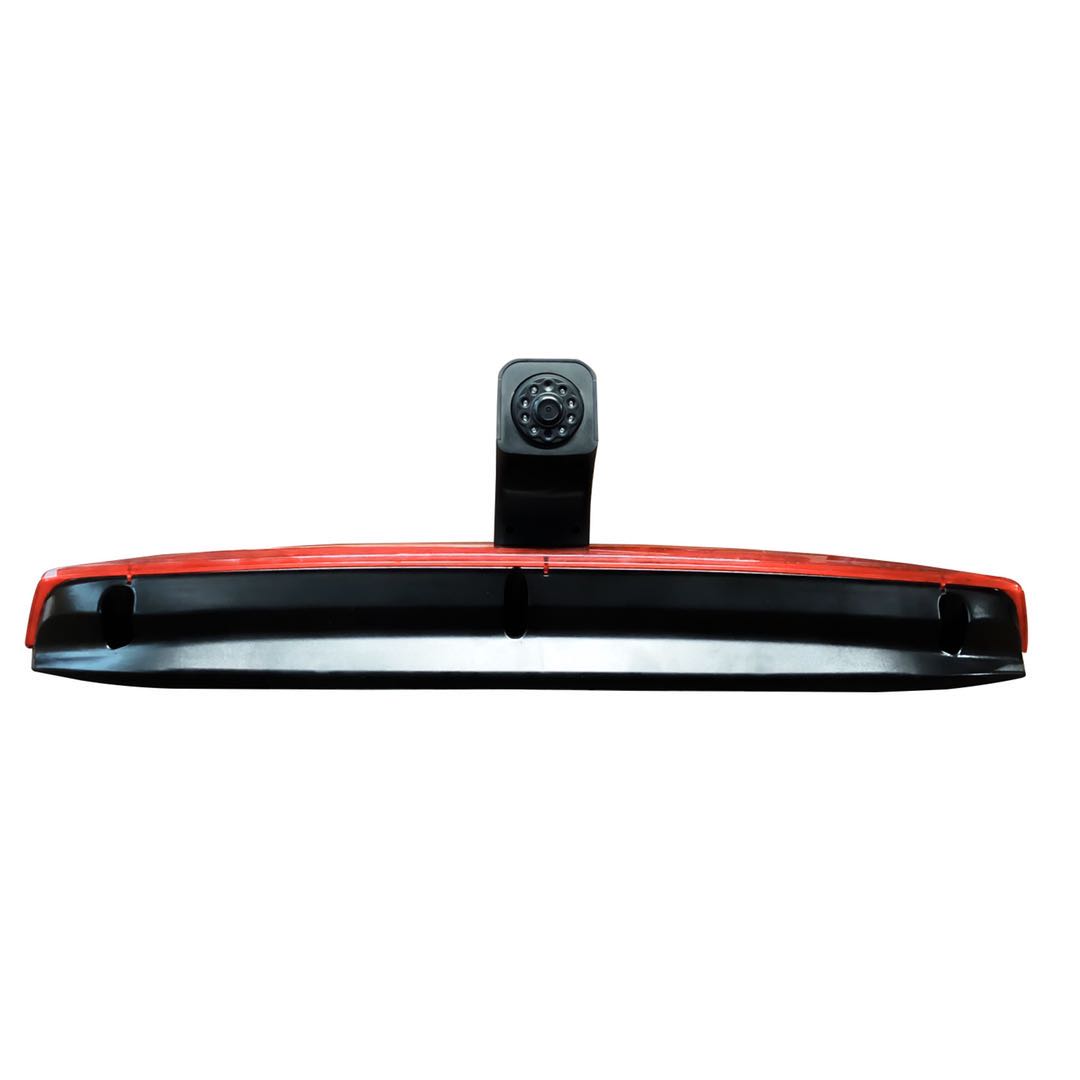

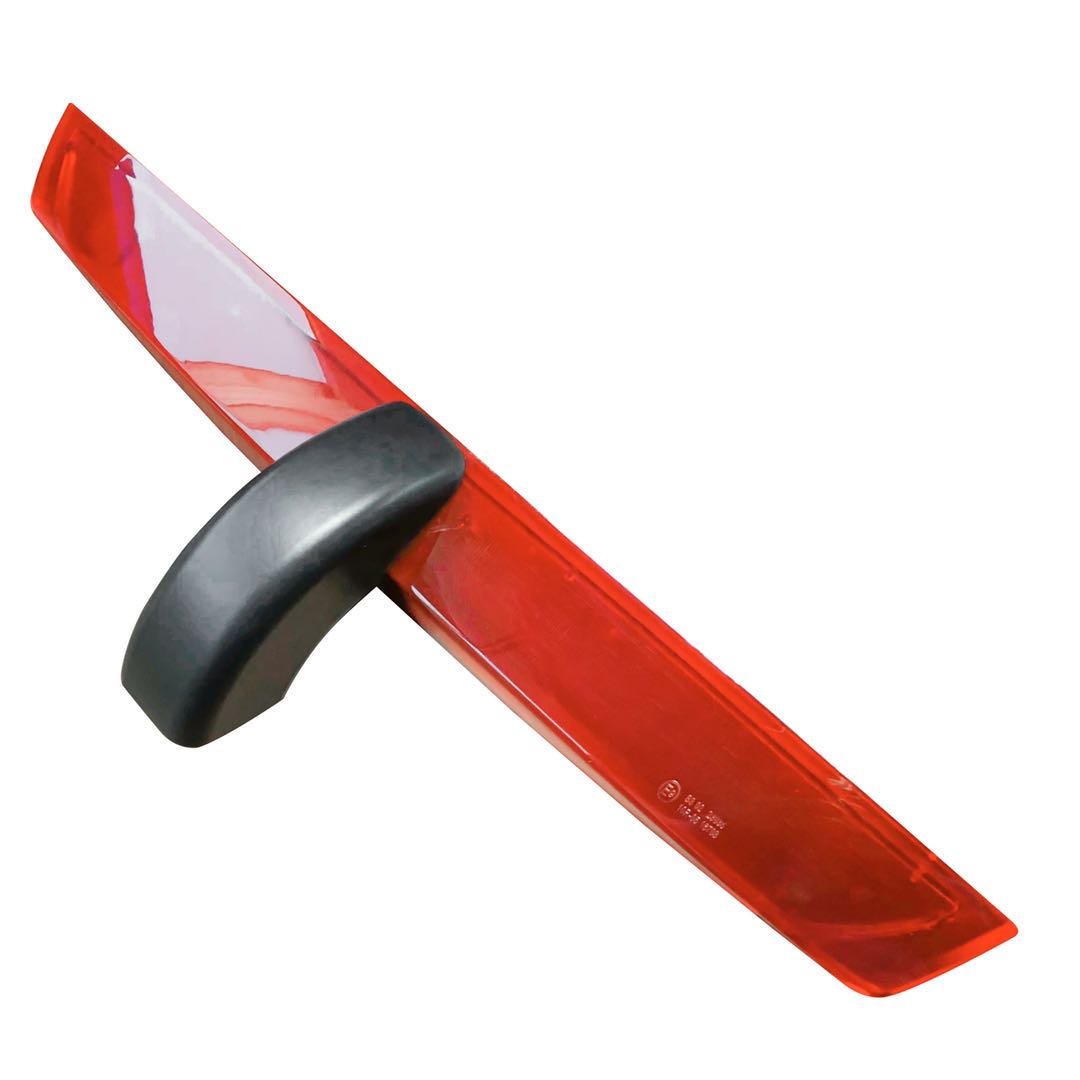

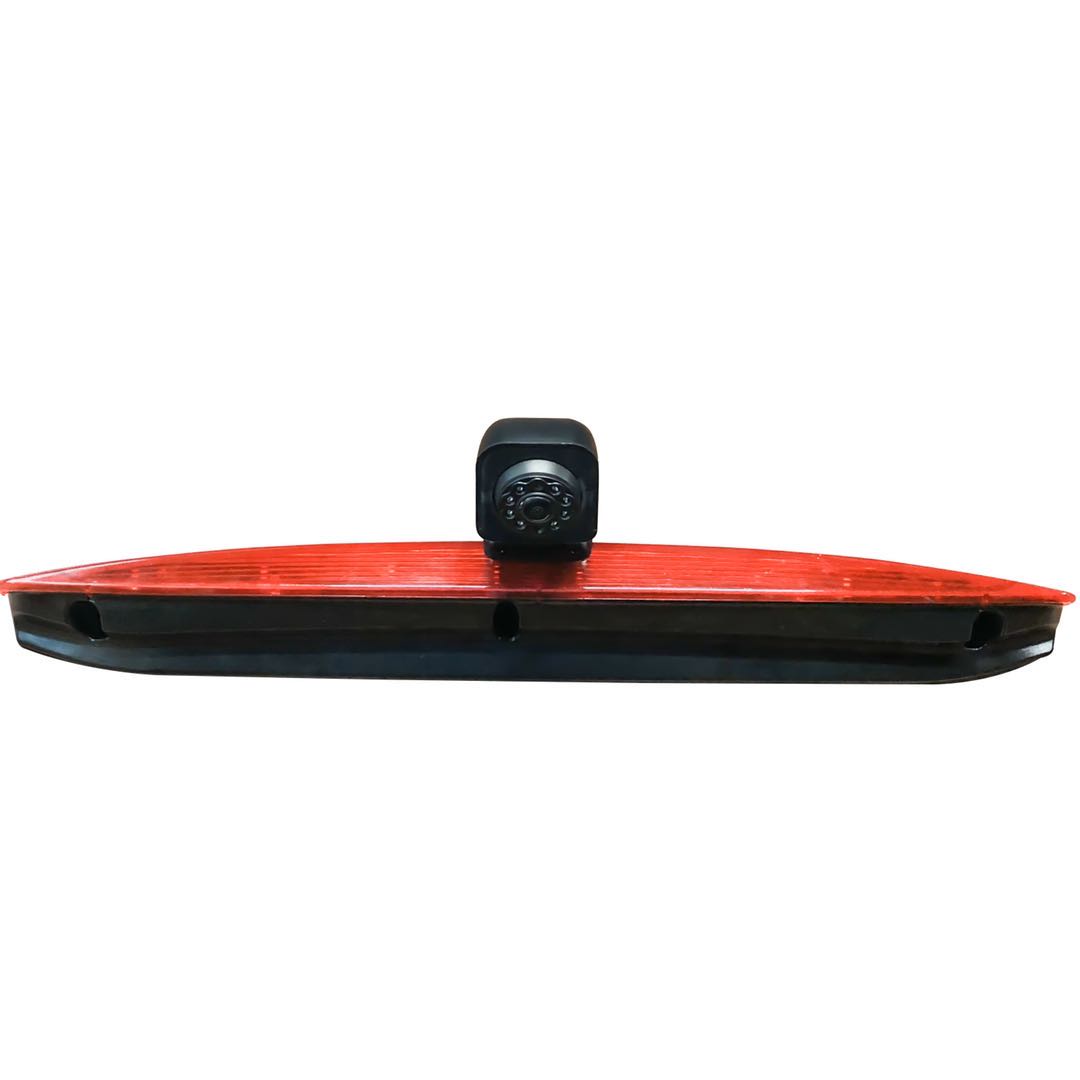

LED Brake Light Replacement Camera For Mercedes-Benz Vito 2016 Van Backup Camera

is designed to replace the original third brake light position and provide rear monitoring capability.

The integrated design combines brake light replacement and rear view camera functions, helping drivers reduce blind spots and improve safety when reversing or parking.

With FH8536+2399 image sensor, CVBS/720P/1080P optional resolution and 120°-140° viewing angle, this Van Backup Camera provides clear rear images in different driving conditions.

The camera features LED brake light design, IP69K waterproof protection and 4PIN Aviation Connector with RCA Adapter, ensuring reliable operation and easy installation.

Features:

1. 2.8mm lens with 120°-140° wide viewing angle helps reduce rear blind spots.

2. 0.1Lux low illumination performance supports reliable monitoring in low-light environments.

3. 4PIN Aviation Connector with RCA  Adapter ensures stable connection and easy installation.

4. IP69K waterproof protection supports commercial vehicle operation in harsh environments.

5. AHD Rear View Camera suppotrs AHD/CVBS and PAL/NTSC Switch Cutting Line Optional.

Parameter:

Product Type: Brake Light Camera

Suitable Model: Mercedes-Benz Vito 2016 Van Two Doors

Effective Pixels: CVBS / 720P / 1080P Optional

Lens: 2.8mm

Video Input Format: CVBS / 720P / 1080P HD25/30fps PAL/NTSC

View Angle: 120°-140°

Connector: 4PIN Aviation Connector

Power Supply: DC12V (Standard), 24V (Optional)

Minimum Illumination: 0.1Lux (LED ON)

White Balance: Auto

IR LED: 8 pcs

Audio: N/A

Bracket: With LED Light

IP Rating: IP69K

AHD/CVBS Switch Cutting Line Optional

PAL/NTSC Switch Cutting Line Optional

Application Scenarios

Suitable for:

• Mercedes-Benz Vito 2016 Van
• Commercial vans
• Cargo vans
• Delivery vehicles
• Fleet vehicles

Applications:

• Reverse assistance
• Parking monitoring
• Rear blind spot monitoring
• Fleet vehicle safety management

FAQ

Q1: Which vehicle does this Brake Light Camera fit?

A: It is designed for Mercedes-Benz Vito 2016 Van Two Doors.

Q2: Does it replace the original brake light?

A: Yes, it combines the third brake light and rear camera functions.

Q3: Does it support 1080P resolution?

A: Yes, CVBS/720P/1080P optional video output is available.

Q4: Is it waterproof?

A: Yes, it features IP69K waterproof protection.

Q5: How does it connect to the monitor?

A: It uses a 4PIN Aviation Connector with RCA Adapter for stable connection and easy installation.
