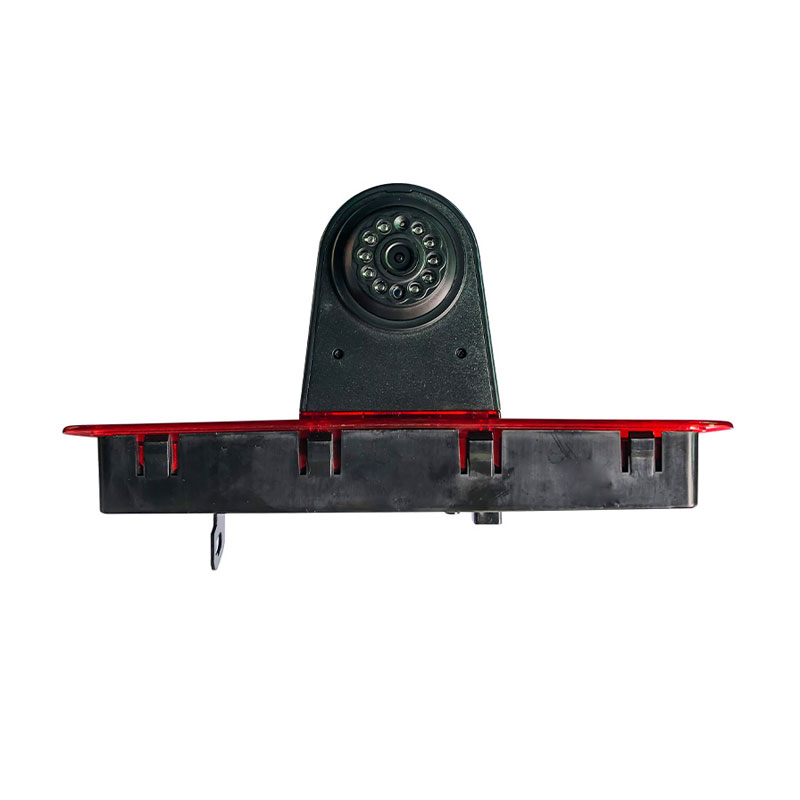

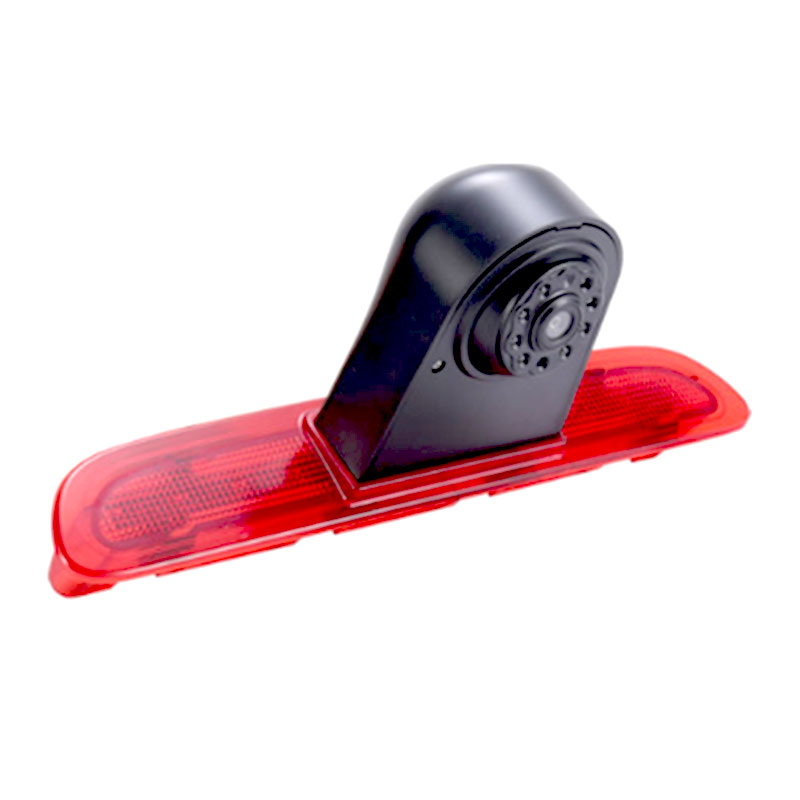

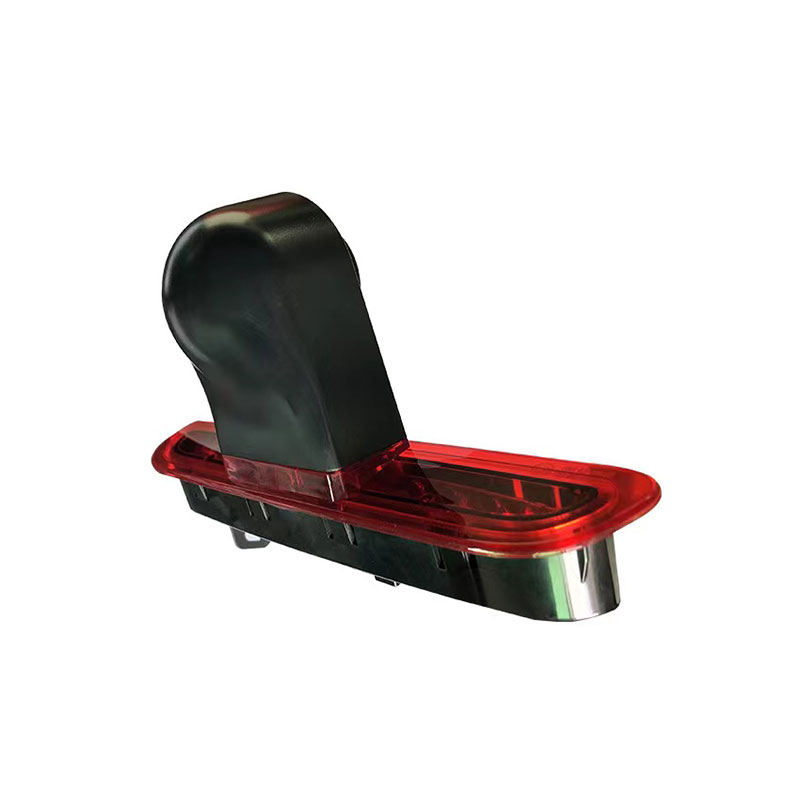

LED Third Brake Light Camera For Toyota Hiace 2005-2018 Van Rear View Backup Camera

Carleader LED Third Brake Light Camera For Toyota Hiace 2005-2018 Van Rear View Backup Camera is designed to replace the original third brake light position and add rear view monitoring functionality. The camera supports CVBS, 720P and 1080P HD video output options, compatible with different vehicle monitor systems. Equipped with 10pcs IR LEDs and 0.1Lux low illumination performance (LED ON), this camera provides enhanced night vision capability for safer reversing in low-light environments.

Parameter:

Compatible Vehicle: Toyota Hiace 2005-2018

Effective Pixels: CVBS / 720P / 1080P Optional

Lens: 2.8mm

Video Input Format: CVBS / 720P / 1080P HD25/30fps PAL/NTSC

View Angle: 120°-140°

Connector: 4PIN Aviation Connector

Power Supply: DC12V (Standard), DC24V (Optional)

Minimum Illumination: 0.1Lux (LED ON)

White Balance: Auto

IR LED: 10 pcs

Audio: N/A

Bracket: With LED Light

IP Rating: IP69K

AHD/CVBS Switch Cutting Line Optional

PAL/NTSC Switch Cutting Line Optional

Features:

1. 2.8mm lens with 120°-140° wide viewing angle provides wider rear visibility.

2. 10pcs IR LEDs enhance night vision performance in dark environments.

3. 0.1Lux low illumination ensures reliable image quality at night.

4. 4PIN Aviation Connector provides stable signal transmission and durable connection.

5. IP69K waterproof protection supports harsh commercial vehicle environments.

Application Scenarios

Suitable for:

• Toyota Hiace 2005-2018 Van
• Passenger vans
• Cargo vans
• Delivery vehicles
• Commercial vehicles
• Fleet vehicles

Applications:

• Reverse assistance
• Parking monitoring
• Rear blind spot monitoring
• Fleet safety management
• Commercial vehicle operation

FAQ

Q1: Which vehicle does this Brake Light Camera fit?

A: This camera is designed for Toyota Hiace 2005-2018 Van.

Q2: Does it replace the original third brake light?

A: Yes, this product replaces the original brake light position and integrates rear camera functionality.

Q3: Does this camera include LED brake light function?

A: Yes, it features an integrated LED brake light design.

Q4: Does it support 1080P resolution?

A: Yes, CVBS/720P/1080P optional video output is available.

Q5: Does it support night vision?

A: Yes, the camera is equipped with 10pcs IR LEDs and supports 0.1Lux low illumination performance when LED is ON.

Q6: Is this camera waterproof?

A: Yes, the camera features IP69K waterproof protection, suitable for commercial vehicles and outdoor environments.
