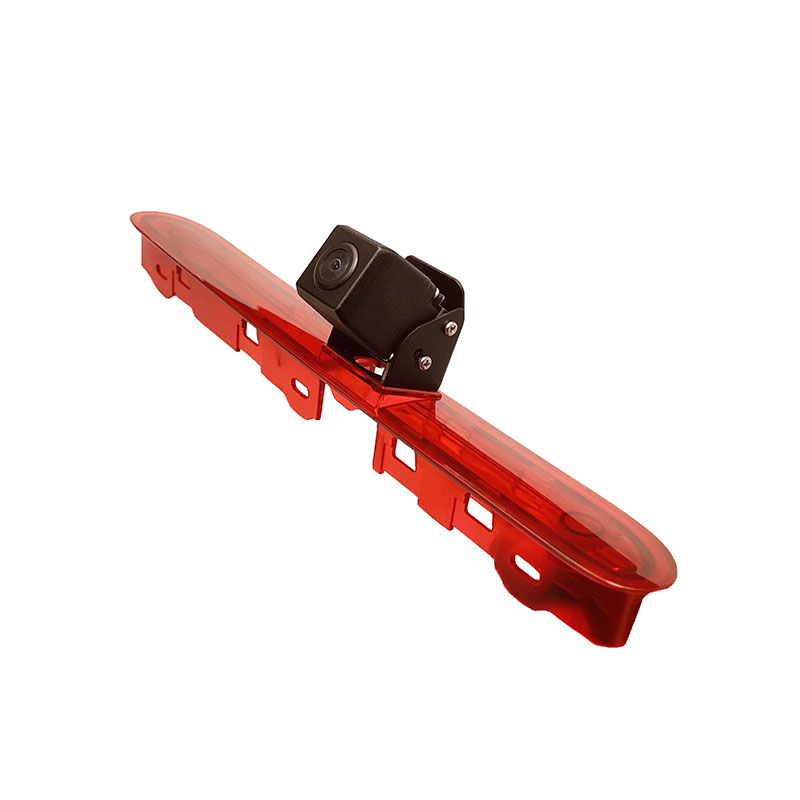

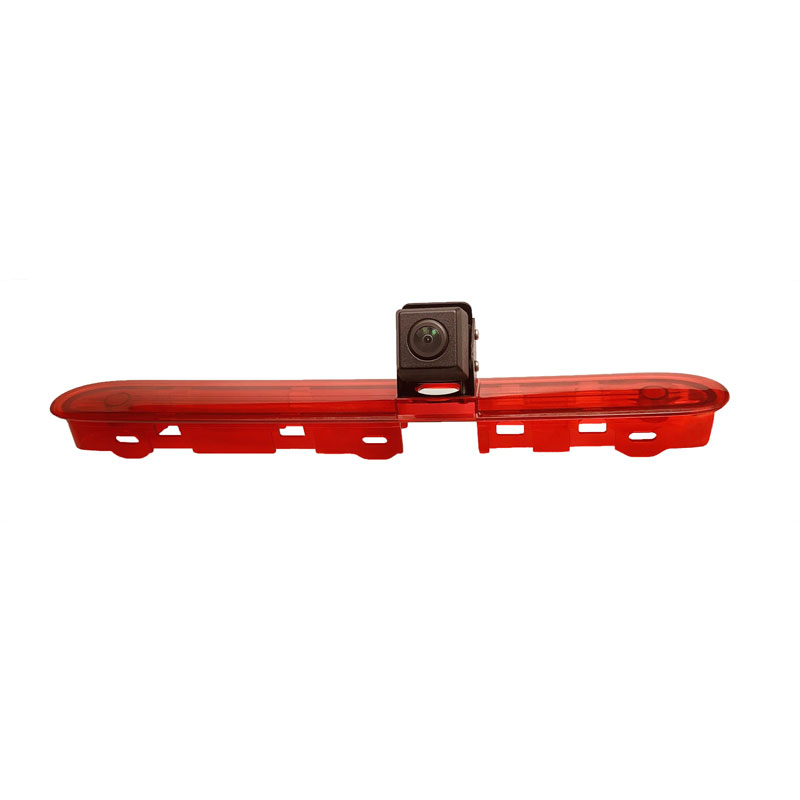

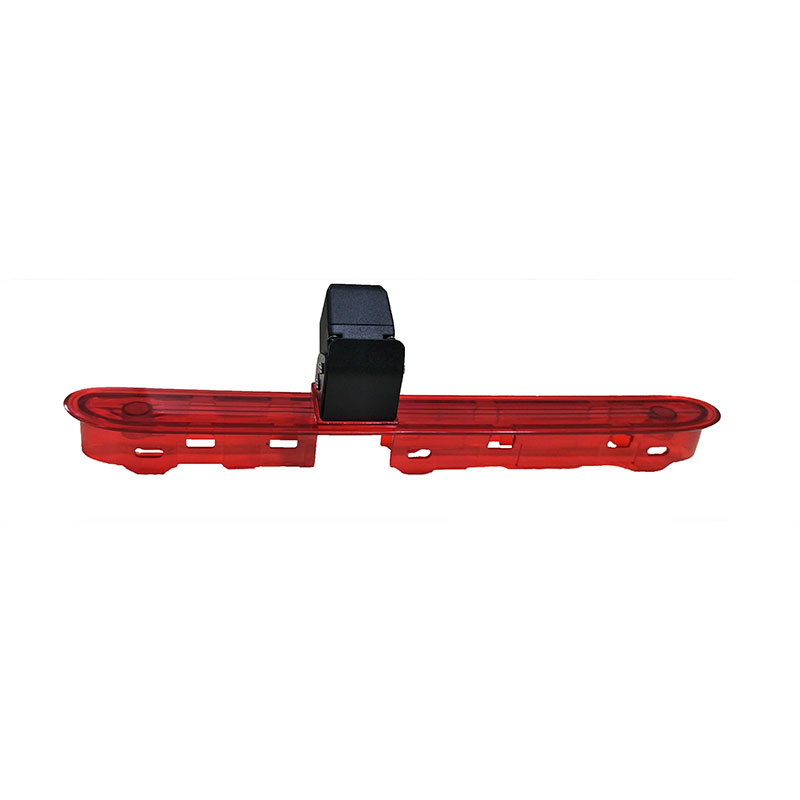

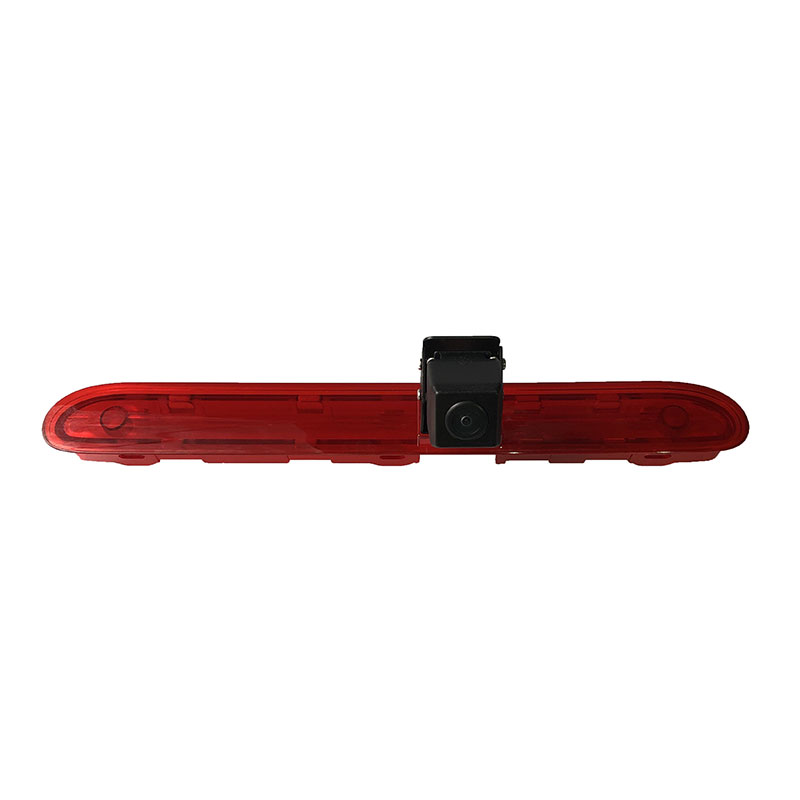

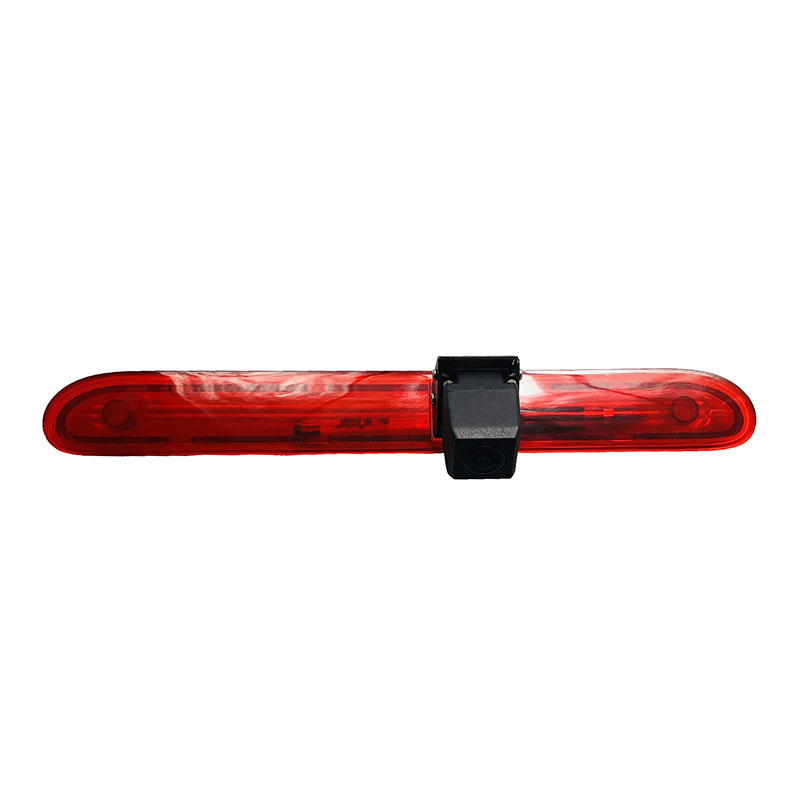

Mercedes Benz Vito Viano Brake Light Replacement Camera Rear View System

Features:

1. Mercedes Vito Backup Camera provides 120°-140° wide rear viewing coverage for safer reversing.

2. This Brake Light Camera supports CVBS/720P/1080P optional video output.

3. 0Lux low illumination performance provides reliable visibility in low-light environments.

4. IP69K waterproof Rear View Camera ensures stable operation in outdoor conditions.

5. 4PIN Aviation Connector with RCA Adapter ensures easy connection and installation for vehicle camera systems.

Parameter:

Suitable Model: Mercedes Benz V-Klasse / Vito / Viano(2014-current)

Effective Pixels: CVBS / 720P / 1080P Optional

Lens: 1.7mm

Video Input Format: CVBS / 720P / 1080P HD25/30fps PAL/NTSC

View Angle: 120°-140°

Connector: 4PIN Aviation Connector

Power Supply: DC12V (Standard), 24V (Optional)

Minimum Illumination: 0Lux

White Balance: Auto

IR LED: N/A

Audio: N/A

Bracket: With LED Light

IP Rating: IP69K

AHD/CVBS Switch Cutting Line Optional

PAL/NTSC Switch Cutting Line Optional

Application Scenarios

Suitable for:

• Mercedes Benz Vito vans(2014-current)
• Mercedes V-Class vehicles(2014-current)
• Mercedes Viano vehicles(2014-current)
• Passenger vans
• Shuttle vehicles
• Delivery vehicles
• Fleet vehicles

Applications:

• Reverse assistance
• Parking monitoring
• Rear blind spot monitoring
• Fleet safety management

FAQ

Q1: Which vehicles does this Brake Light Camera fit?

A: It fits Mercedes Benz V-Class, Vito and Viano models from 2014-current.

Q2: Does it replace the original brake light?

A: Yes, it is designed to install at the original third brake light position.

Q3: Does it support 1080P?

A: Yes, CVBS/720P/1080P optional video output is available.

Q4: Is it waterproof?

A: Yes, the camera features IP69K waterproof protection.

Q5: How does it connect to the monitor?

A: It uses a 4PIN Aviation Connector with RCA Adapter for easy installation.
