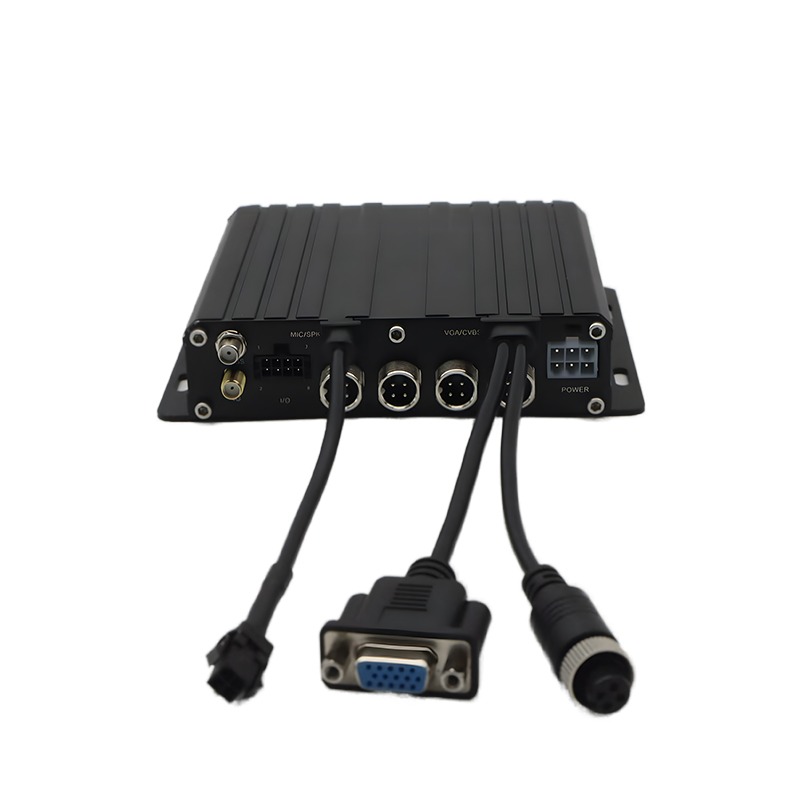

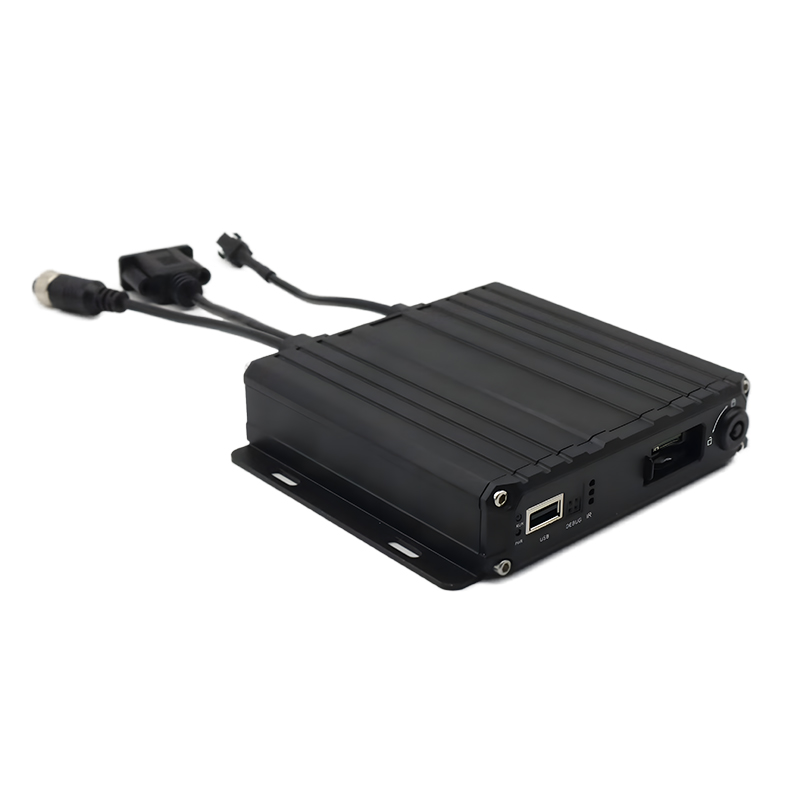

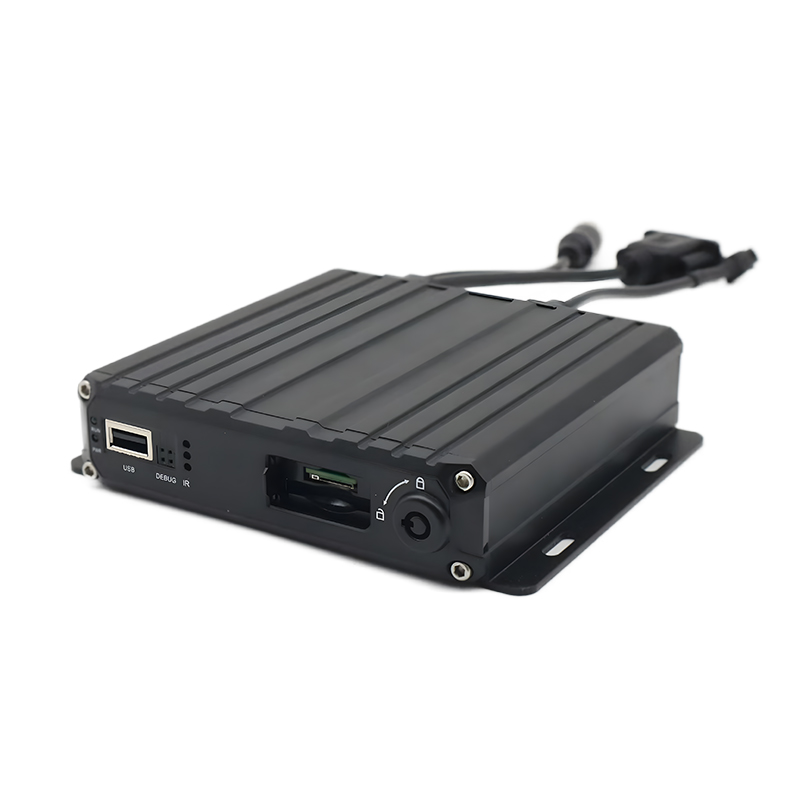

Mini 4CH SD Card Mobile DVR
Carleader new Mini 4CH SD Card Mobile DVR with 4G + GPS Module.Built-in G-Sensor for real-time monitoring of vehicle driving behaviour.Welcome to ask for more details
Model:CL-MR9504EC
Send Inquiry
Product Description
Mini 4CH SD Card Mobile DVR, a Cost-effective small size car vehicle video recorder monitoring system for bus taxi truck.etc. Also built-in G-Sensor for real-time monitoring of vehicle driving behaviour.
Features：
- Built-in SigmaStar high-performance image processing chip
- H.265 encoding, high compression ratio, clear image;
- Support 4-channel 1080P HD real-time local video recording;
- 1CH video and audio synchronous output, 1CH VGA output (optional)
- AHD/TVI/CVI/CVBS four video inputs
- Built-in G-Sensor for real-time monitoring of vehicle driving behaviour
- Support reversing camera range assist
- Support image horizontal and vertical mirror adjustment
- Special GNSS drift suppression algorithm
Product Specification:
|
Main processor |
SSR910Q |
|
Operating system |
Embedded Linux operating system |
|
Operating language |
Chinese/English |
|
User interface |
Graphical menu interface, support mouse operation |
|
Password security |
User passwords and administrator passwords |
|
Video input |
4CH 1080P AHD/TVI/CVI/CVBS |
|
Video output |
CVBS+VGA（Optional） |
|
Compression standard |
H.265 |
|
Audio and video inputs |
4-way aviation header interface |
|
Audio output |
1CH analogue output |
|
Video format |
PAL/NTSC |
|
Recording resolution |
1080P/720P/960H/D1/CIF |
|
Storage Methods |
proprietary file system |
|
Video Search |
Search by channel, video type, alarm type |
|
Video playback |
Local 4 CH |
|
Local Backup |
Support SD card、USB stick |
|
Upgrade mode |
Manual upgrade, automatic upgrade, remote upgrade |
|
Upgrade method |
USB port, wireless network |
|
Alarm input |
4 digital inputs (positive/negative trigger assignable, 4-way support AD input) |
|
Alarm output |
Supports 1 open-drain output and IO output multiplexing |
|
Serial port |
1 x 232 serial port |
|
SD card |
1 x SD card port |
|
Ignition Input |
1 x ACC signal |
|
USB interface |
1 x USB 2.0(Support full mouse operation, USB delayed self-test) |
New 4CH AHD mobile DVR built-in GPS/BD/GLONASS module, high sensitivity, fast positioning. also buit-in 4G module. 4CH 4G GPS vehicle MDVR support SD card, maximum 512G. 9-32V DC wide voltage input design. Various protection circuits such as under-voltage, short-circuit, reverse connection, etc., applicable to various models. 4G GPS AHD MDVR support intelligent power management identification, low power automatic shutdown, low power consumption off the flame.
