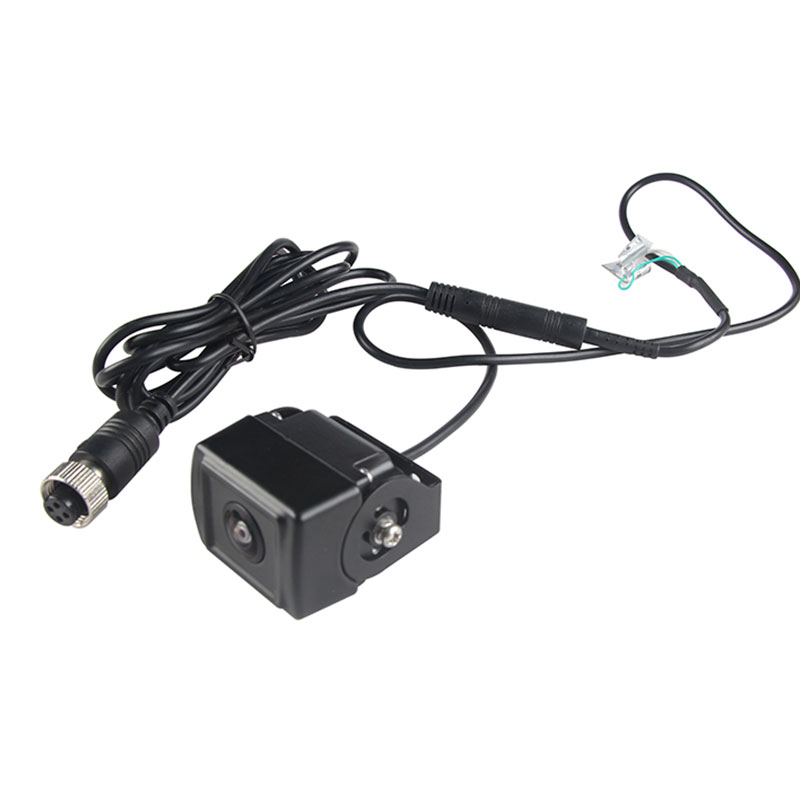

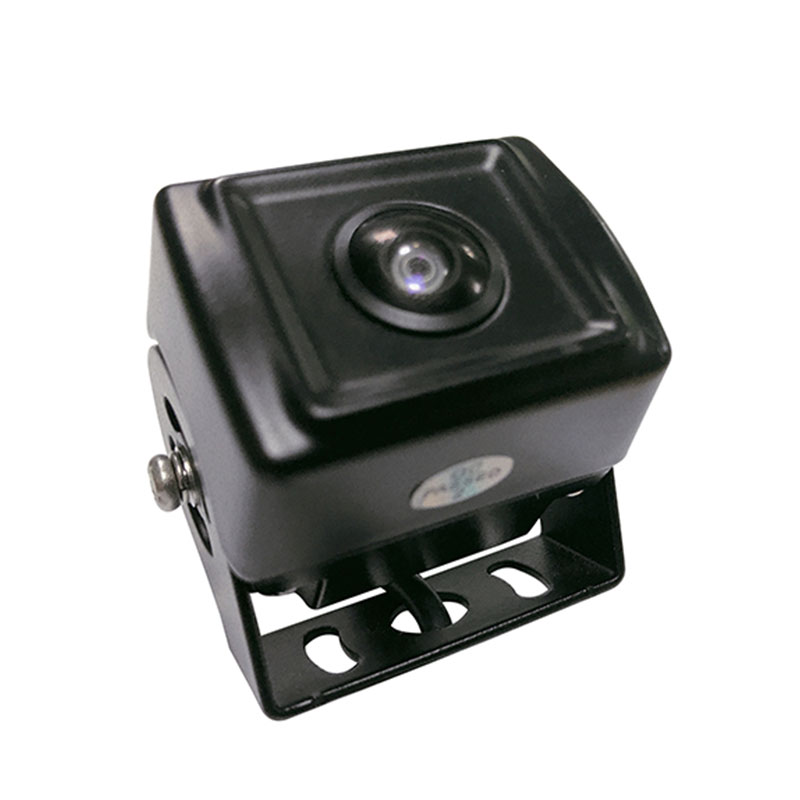

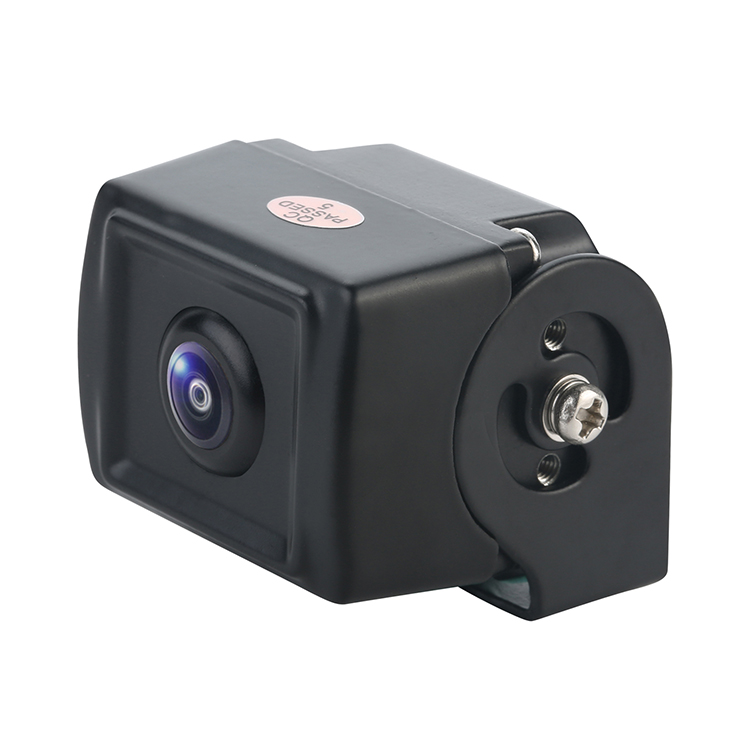

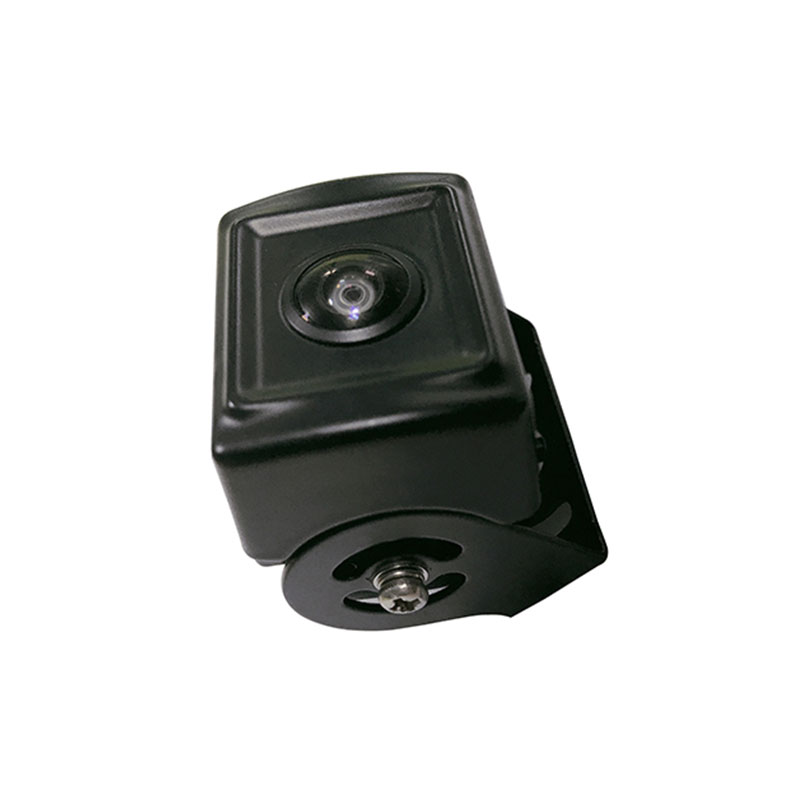

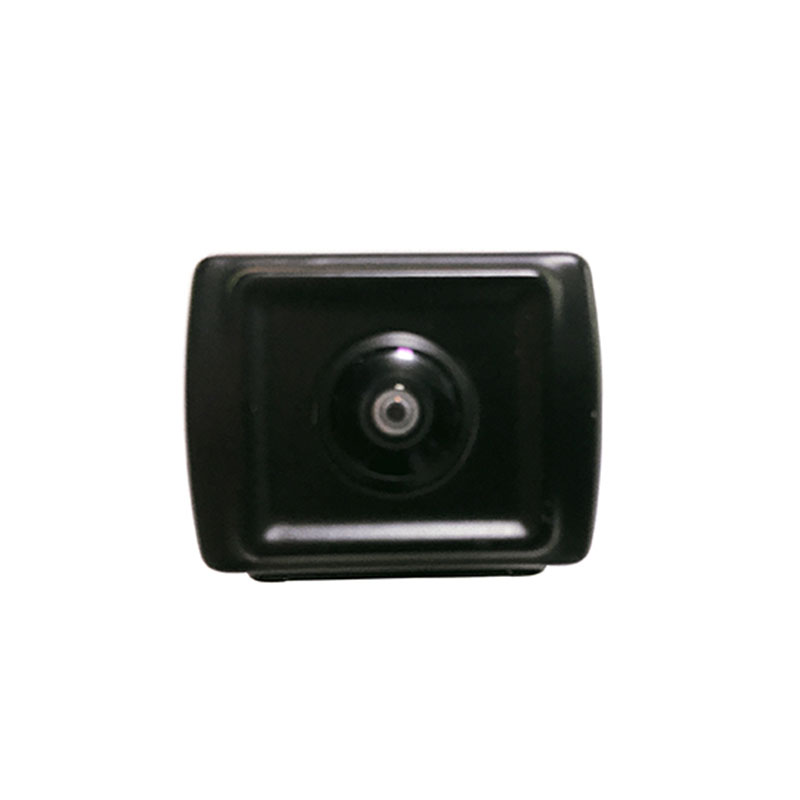

Mini Vehicle Camera with 160 Degree Wide Viewing Angle and IP69K

Carleader Mini Camera is a compact camera solution for vehicle monitoring systems where installation space is limited. Its small 36 × 32 × 28 mm housing makes it suitable for selected automotive and commercial vehicle installations.

The camera offers optional CVBS, AHD 720P, and AHD 1080P video formats to meet different system requirements. With a 160-degree viewing angle and an IP69K waterproof rating, it is designed for demanding vehicle environments where a compact form factor and environmental protection are important. The standard power supply is DC 12V, with a 24V option available. Mirror and non-mirror image configurations, along with PAL/NTSC system options, provide additional flexibility for different display and installation setups.

Product Features

1. Compact Mini Design: Small housing measuring 36 × 32 × 28 mm for installations with limited space.

2. 160-Degree Wide Viewing Angle: Provides a wide viewing area for supported vehicle monitoring applications.

3. Multiple Video Options: CVBS, AHD 720P, and AHD 1080P versions available.

4. IP69K Waterproof Rating: Designed for demanding vehicle environments requiring a high level of water and dust protection.

6. Flexible Image Configuration: Mirror and non-mirror image options for different installation requirements.

7. PAL/NTSC Options: Supports different video system configurations.

Application Scenarios

1. Commercial Vehicles

Suitable for selected commercial vehicle camera installations where compact size and waterproof protection are required.

2. Trucks and Heavy Duty Vehicles

Can be considered for truck camera systems, subject to the required camera position and system configuration.

3. Automotive Camera Systems

Designed for integration into compatible automotive video monitoring systems.

4. Vehicle Monitoring Equipment

Suitable for equipment manufacturers and installers seeking a compact camera with multiple video output options.

5. Special Vehicle Installations

Can be considered for selected special vehicle projects where the dimensions, viewing angle, voltage, and video format meet the application requirements.

Product Parameters

Product Name: Mini Camera

Image Sensor: 1/3 Inch

Video Output Options: CVBS / AHD 720P / AHD 1080P

Standard Power Supply: DC 12V

Optional Power Supply: 24V

Image Mode: Mirror / Non-Mirror Optional

Minimum Illumination: 0 Lux (as specified)

Lens: 1.96 mm

Effective Pixels: 668 × 576

Signal-to-Noise Ratio: ≥48 dB

Video System: PAL / NTSC Optional

Viewing Angle: 160°

Waterproof Rating: IP69K

Dimensions: 36 mm (L) × 32 mm (W) × 28 mm (H)

Operating Temperature: -20°C to +75°C

Maximum Relative Humidity During Operation: 95%

Storage Temperature: -30°C to +85°C

Maximum Relative Humidity During Storage: 95%

Quality Control

• Appearance Inspection

Check the camera housing, lens, and external finish.

• Video Output Testing

Verify the selected CVBS or AHD video configuration.

• Image Function Testing

Check image display and the selected mirror or non-mirror setting.

• Power Supply Testing

Verify operation according to the ordered voltage configuration.

• Waterproof Protection

Check product compliance with the specified IP69K rating according to the applicable testing procedure.

• Environmental Specification Review

Confirm the specified operating and storage temperature ranges.

Frequently Asked Questions

Q1: What is a mini vehicle camera?

A1: A mini vehicle camera is a compact camera designed for integration into vehicle monitoring systems where installation space may be limited.

Q2: Does this mini camera support HD video?

A2: Yes. CVBS, AHD 720P, and AHD 1080P versions are available. The required version should be confirmed when ordering.

Q3: Is the camera waterproof?

A3: The camera is specified with an IP69K waterproof rating for demanding vehicle environments.

Q4: Does it support 12V and 24V power?

A4: DC 12V is standard, while 24V is available as an option. Please confirm the required voltage before ordering.

Q5: Can I choose mirror or non-mirror images?

A5: Yes. Mirror and non-mirror image configurations are optional.

Q6: What is the viewing angle?

A6: The specified viewing angle is 160 degrees.

Q7: What video systems are available?

A7: PAL and NTSC options are available.

Q8: What are the camera dimensions?

A8: The camera measures 36 mm long, 32 mm wide, and 28 mm high.

Q9: What is the operating temperature range?

A9: The specified operating temperature range is -20°C to +75°C.

Q10: Can this camera be used with any vehicle monitor?

A10: Compatibility depends on the selected video format, voltage, and the monitor's supported inputs. Please confirm these specifications before installation.
