Can You Add AI Detection to Existing Vehicle Cameras?

Upgrade Existing Vehicle Cameras Instead of Replacing the Entire SystemFor many fleet operators and commercial vehicle equipment suppliers, introducing AI safety functions raises an important purchasing question: Is it necessary to replace the existing cameras to add pedestrian and vehicle detection? Replacing an entire camera system can involve new cameras, additional wiring, installation labor and compatibility checks. When a vehicle already uses compatible CVBS or AHD cameras, an AI converter may offer another upgrade path. Carleader’s AI Camera Converter for CVBS AHD Cameras with Pedestrian and Vehicle Detection is designed to add AI processing to supported existing camera systems. Rather than functioning as a standalone camera, the CL-818AI processes the incoming video signal and supports pedestrian and vehicle detection. This approach allows buyers to evaluate an AI upgrade based on their current camera signals, monitor compatibility, wiring and installation requirements before deciding whether a complete system replacement is necessary.

What Can an AI Camera Converter Detect?

In commercial vehicle environments, the ability to distinguish pedestrians and vehicles can support safety monitoring around trucks and other working vehicles. The CL-818AI supports three configurable detection modes:Pedestrian and vehicle detection: Detects both categories.Pedestrian-only detection: Configures the system to focus on pedestrians.Vehicle-only detection: Configures the system to focus on vehicles.These options allow system integrators to select a detection mode according to the monitoring objective. For example, a side-mounted camera may be configured for a blind-spot monitoring application, while a rear-facing camera may be used for monitoring the area behind a vehicle. The converter supports AI applications for front, rear, left and right camera positions. The appropriate detection mode and zone need to be configured for the actual installation.

Can It Work with Existing CVBS and AHD Cameras?

Compatibility is often a key concern when purchasing an AI Vehicle Camera Converter. Buyers may already have different camera models, video resolutions and monitor systems installed across their fleets. The CL-818AI supports CVBS, 720P and 1080P camera inputs, with PAL and NTSC video system support. Its output is AHD1080P in PAL format by default, while other supported output resolutions and video systems can be selected through settings.

This flexibility can help integrators evaluate the converter for different vehicle camera configurations. However, existing cameras and monitors should be checked before ordering, because compatibility depends on the input signal, output format, wiring and equipment specifications. For distributors supplying AHD cameras, CVBS vehicle cameras and commercial vehicle monitoring systems, this makes signal compatibility an important part of the purchasing discussion.

Why Adjustable AI Detection Zones Matter

Different camera positions show different areas around a vehicle. A front camera, rear camera and side camera will not necessarily need the same detection zone. The CL-818AI allows users to adjust the position and shape of the detection area. Mirror and flip settings are also available to match the camera's mounting orientation. For example, a vehicle safety integrator can configure the detection zone according to the intended monitoring area rather than applying one fixed layout to every camera position. Correct calibration is important to help the system focus on the relevant area around the vehicle. This feature makes the converter relevant to projects involving AI blind-spot monitoring, pedestrian detection, vehicle detection and commercial vehicle safety upgrades.

The CL-818AI is intended for integration into compatible vehicle camera systems, rather than for one specific vehicle model. Its potential applications include:

• Truck safety systems: Add AI detection processing to compatible existing cameras.
• Fleet camera upgrades: Evaluate AI functionality without automatically replacing every camera.
• Side blind-spot monitoring: Configure detection zones for left- or right-side cameras.
• Rear monitoring: Add pedestrian and vehicle detection processing to compatible rear-view systems.
• Front camera monitoring: Configure the system for supported front-facing camera installations.
• Special-purpose vehicles: Integrate AI detection into suitable commercial vehicle monitoring projects.

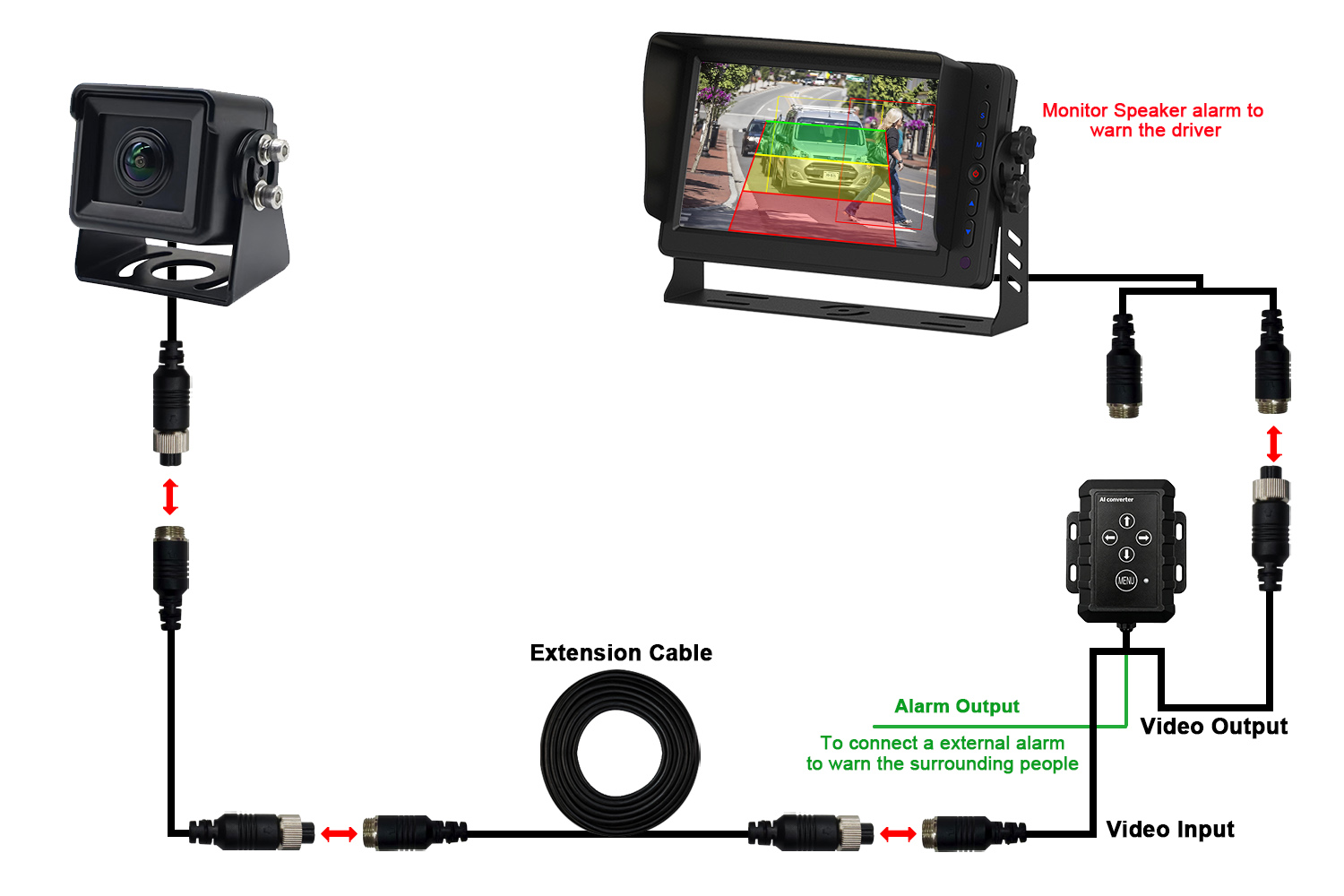

For OEMs, vehicle camera distributors and fleet system integrators, the practical starting point is to identify the existing camera signal, monitor input, desired detection mode, installation position and alarm requirements. These details help determine whether the converter is suitable for the intended system.

The AI Camera Converter for CVBS AHD Cameras with Pedestrian and Vehicle Detection addresses a practical purchasing challenge: how to introduce AI detection into an existing vehicle camera system without automatically replacing every camera. With support for CVBS, 720P and 1080P inputs, three detection modes, adjustable detection zones, configurable video output and an external alarm interface, the Carleader CL-818AI offers a flexible option for compatible commercial vehicle safety projects. For vehicle camera distributors, fleet operators, OEMs and system integrators, the key is to verify the existing camera and monitor compatibility before selecting a configuration. When the system requirements match, an AI Camera Converter can provide another route to adding pedestrian and vehicle detection to commercial vehicle monitoring applications.
