Carleader Highlights IP69K Commercial Vehicle Rear View Camera with 4PIN Aviation Connector for Fleet Safety

Improving Rear Visibility in Commercial Vehicle OperationsLarge vehicles have different visibility challenges from passenger cars. A truck body, trailer or bus can obstruct the driver's view of the area immediately behind the vehicle, particularly when reversing, parking or approaching loading zones. A dependable Commercial Vehicle Rear View Camera adds a visual monitoring point at the rear of the vehicle. When connected to a compatible vehicle monitor, DVR or MDVR, it can help drivers observe areas that are difficult to see directly and provide video for fleet monitoring. Carleader's IP69K Commercial Vehicle Rear View Camera with 4PIN Aviation Connector is designed for these practical applications. Its focus on rear-view monitoring, outdoor protection and system integration makes it suitable for commercial transportation and vehicle surveillance projects.

IP69K Protection for Demanding Vehicle Environments

Commercial vehicles often operate in environments where cameras are exposed to road spray, dust, rain and regular vehicle washing. For exterior camera installations, environmental protection is an important consideration alongside image quality. The camera features an IP69K protection rating and a zinc alloy housing, making it suitable for demanding exterior vehicle applications. This design is relevant to trucks, buses, trailers and vans that operate outdoors and encounter changing weather and road conditions. For fleet operators and vehicle equipment installers, choosing an appropriately protected Waterproof Truck Camera can help meet the practical requirements of an exterior camera installation. The complete system should still be installed with suitable connectors, cable routing and sealing practices.

4PIN Aviation Connector for Vehicle Camera Integration

A vehicle camera is only one part of a larger monitoring system. The connection between the camera, display and recording equipment is also important when selecting a replacement camera or designing a new installation.

The Carleader camera uses a 4PIN Aviation Connector, supporting integration into compatible vehicle camera wiring systems. For installers, distributors and fleet system integrators, connector compatibility can help simplify product selection when upgrading an existing Truck Camera System or incorporating a rear camera into a multi-camera configuration. Before ordering, it is important to confirm the connector pinout and compatibility with the intended monitor or DVR. A matching connector shape alone does not guarantee that different camera systems use the same wiring arrangement.

Automatic Day and Night Monitoring

Commercial vehicles may work early in the morning, during daylight, after sunset and in poorly illuminated loading areas. A camera designed for these changing conditions can offer greater flexibility for continuous vehicle operation.

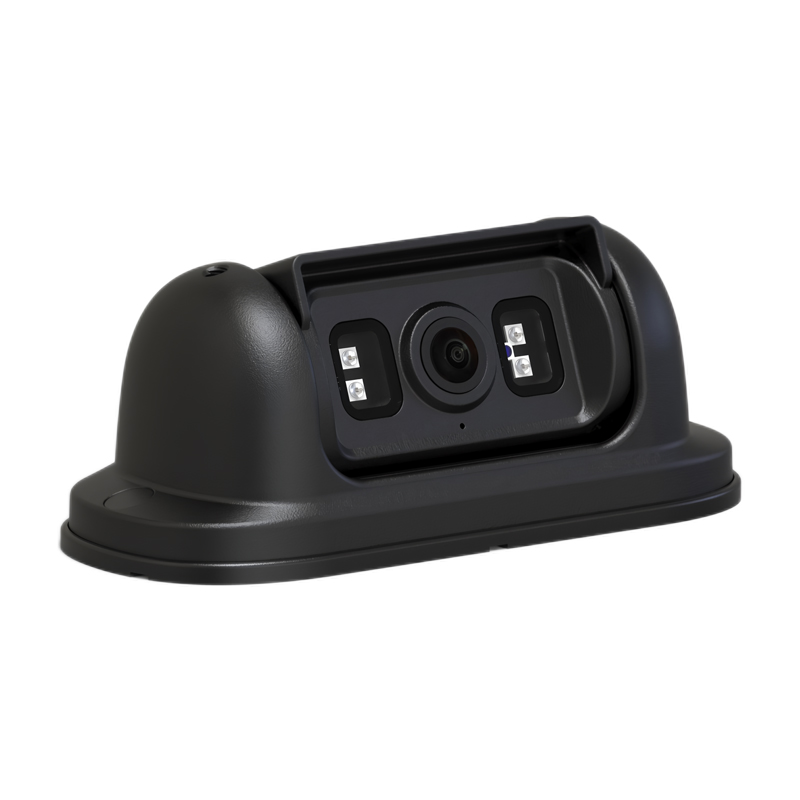

The camera incorporates a CDS light sensor and automatic IR-Cut switching. The sensor responds to ambient light levels, allowing the camera to switch automatically between daytime and nighttime imaging modes.

Its specified low-light performance is 0.01 LUX, supported by four infrared LEDs for nighttime monitoring. This combination is designed to support rear visibility when available light decreases, making the camera relevant to nighttime reversing, parking and commercial vehicle surveillance.

Wide-Angle Coverage for Reversing and Rear Monitoring

A rear camera should provide a field of view suited to the vehicle's size and intended installation position. A truck, van and trailer may have different rear-view requirements depending on their body dimensions and operating environment. The camera offers a 130° standard viewing angle, with a 150° option. This wide-angle design can provide broad rear-area coverage for vehicle maneuvering and reversing applications. For fleet operators, a rear camera can also form part of a wider Vehicle Monitoring System, working alongside side-view cameras or front-facing cameras to provide additional views around a commercial vehicle. The appropriate viewing angle and mounting position should be selected according to the vehicle layout and the coverage required.

Flexible Video Options for Existing Monitor and MDVR Systems

Vehicle fleets often contain equipment from different generations. Some systems use conventional CVBS video, while others use high-definition AHD cameras and displays. The Carleader rear view camera is available in CVBS, AHD720P and AHD1080P configurations. This gives distributors and installers options when matching the camera to compatible vehicle monitors, DVRs and MDVRs. Mirror and non-mirrored image configurations are also available, helping installers select the appropriate image orientation for the camera's intended position. A 12V power configuration is standard, with a 24V option for suitable vehicle electrical systems. For Fleet Camera Systems, this configuration flexibility can be useful when planning replacement cameras, upgrading video equipment or building a multi-channel commercial vehicle monitoring solution. The selected video format, voltage and image orientation should be confirmed before installation.

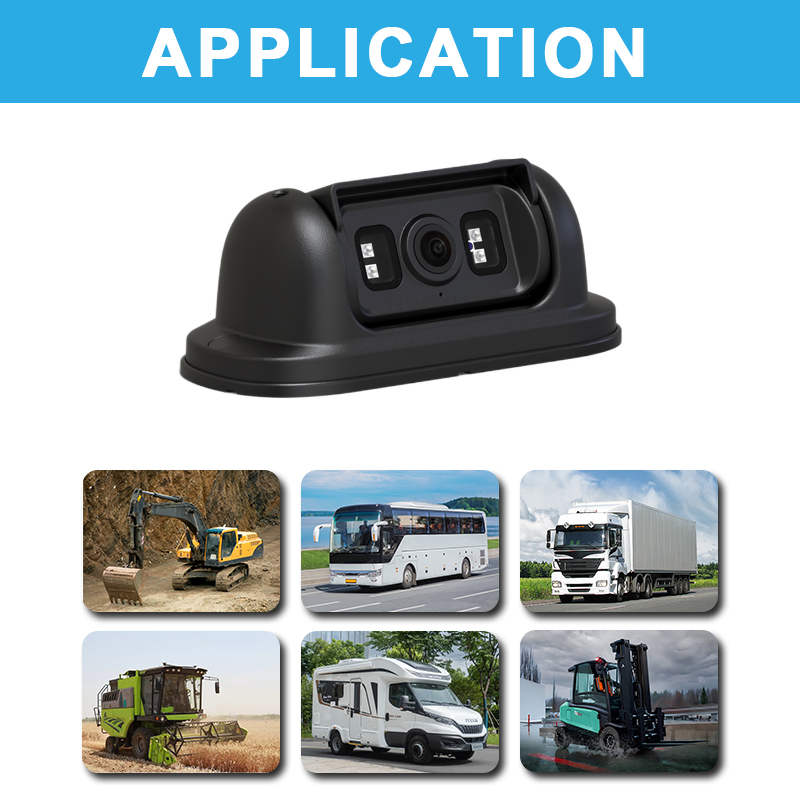

The camera is designed for rear-view monitoring in a range of commercial transportation environments.Truck Rear View Camera: Supports rear-area monitoring during driving, reversing and maneuvering.Trailer and Semi-Trailer Camera: Provides an exterior camera option for trailer rear-view applications. Bus and Coach Camera: Can be integrated into compatible bus rear-view and surveillance systems.Commercial Van Camera: Adds a rear monitoring view for delivery and service vehicles.Fleet Monitoring Camera: Can connect to compatible DVR or MDVR equipment as part of a broader fleet video system.Loading and Reversing Camera: Provides a view of the rear area during loading, unloading and vehicle positioning.These applications make the product relevant to vehicle camera distributors, commercial vehicle equipment suppliers, fleet integrators and professional installation companies. Carleader

The IP69K Commercial Vehicle Rear View Camera with 4PIN Aviation Connector combines exterior protection, automatic day/night operation, infrared illumination and flexible video configurations for commercial vehicle monitoring. Its 130° standard viewing angle, optional 150° coverage and compatibility options make it suitable for a variety of truck, bus, van and trailer applications. For fleet operators and vehicle system integrators, the key consideration is how the camera fits into the complete monitoring system. With a compatible monitor or MDVR, correct wiring and a suitable mounting position, it can serve as a practical Commercial Vehicle Camera for rear visibility, reversing assistance and fleet surveillance. Carleader continues to provide vehicle camera solutions for commercial transportation, including rear view cameras, truck cameras, side view cameras and other components for integrated vehicle monitoring systems.
