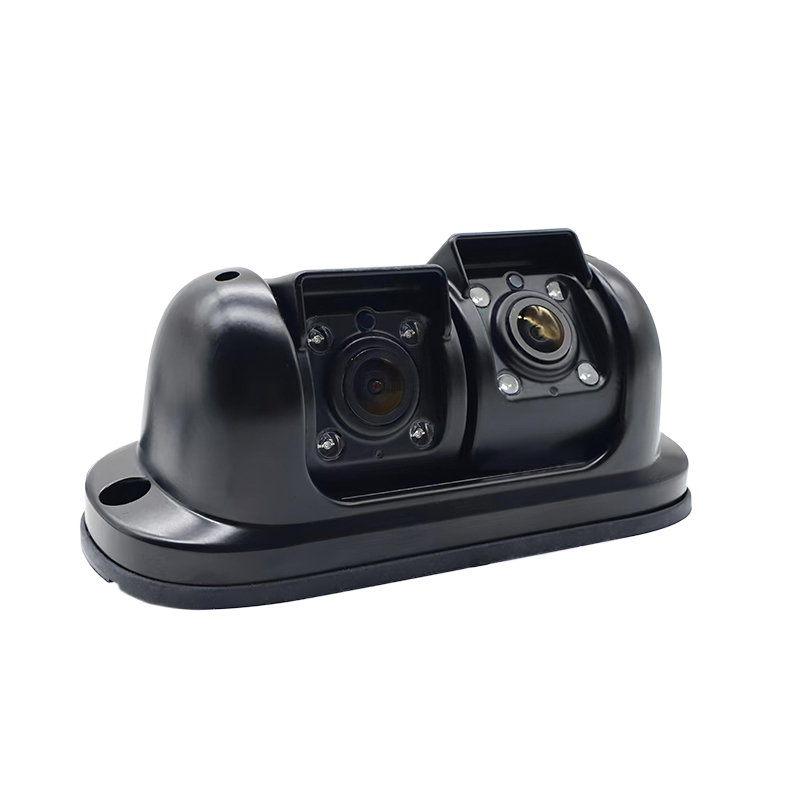

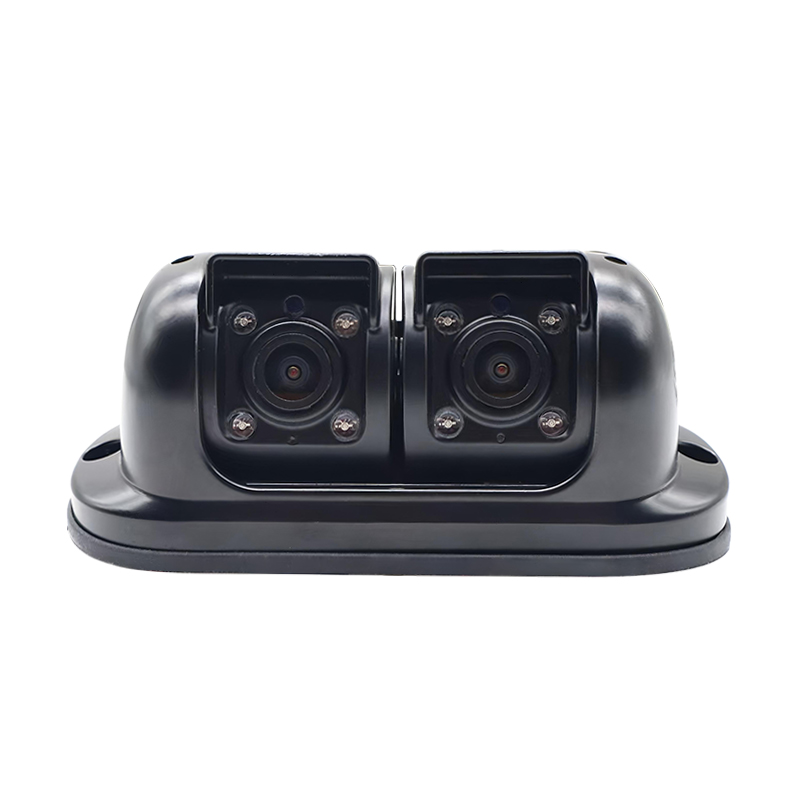

Carleader AHD Waterproof IR Night Vision Dual Lens Reversing Camera

Carleader AHD Waterproof IR Night Vision Dual Lens Reversing Camera is a high-performance, industrial-grade infrared dual lens rear view camera, engineered to deliver exceptional visibility and reliable safety for all types of vehicles. Designed for both commercial and passenger vehicle applications, this camera combines advanced imaging technology, flexible dual lens configuration, and robust environmental resistance to meet the most demanding on-road and off-road requirements.

Core Features & Advantages

1. High-Definition Dual Lens Imaging System

At the heart of this camera is a premium 1/2.1 inch image sensor paired with dual 2.1mm focal length lenses, delivering crisp, clear imaging in all driving conditions. The camera supports CVBS/AHD720P/AHD1080P optional video input, with PAL/NTSC system compatibility and mirror/non-mirror image switching, making it adaptable to a wide range of display and vehicle setups.

2. Flexible & Adjustable Viewing Angles

This dual lens camera offers unparalleled flexibility with its 90° & 135° (default) viewing angles, and each lens can be adjusted independently to suit your specific vehicle size and blind spot coverage needs. Whether you need a wide field of view for a large commercial vehicle or a focused view for a passenger car, this camera delivers customizable coverage to eliminate blind spots and enhance reversing safety.

3. Superior Infrared Night Vision Performance

Equipped with 4 high-power infrared LEDs for each lens, this camera delivers exceptional low-light performance with a minimum illumination of just 0.1 LUX. The advanced infrared night vision function ensures clear, detailed imaging even in complete darkness, while the electronic shutter (1/65(NTSC)/1/60(PAL)-1/10,000) automatically adapts to changing light conditions to eliminate overexposure and underexposure.

4. Stable & Reliable Performance

This camera is built for consistent, long-term operation with a high signal-to-noise ratio of ≥50dB, ensuring clean, interference-free video output. It supports audio function through one of the lenses, adding an extra layer of safety by allowing you to hear surrounding sounds while reversing. The camera delivers a standard 1.0vp-p, 75Ω video output, compatible with most vehicle monitors and infotainment systems.

5. Robust & Durable Construction

Designed to withstand harsh automotive environments, this camera features a rugged aluminum alloy housing that provides excellent heat dissipation and impact resistance. It comes with a secure 4Pin aviation connector for stable, vibration-resistant connection, and boasts an industry-leading IP69K waterproof and dustproof rating, making it fully protected against high-pressure water jets, dust, and other outdoor elements.

6. Wide Environmental Adaptability

this camera operates reliably in extreme temperature conditions, with an operating temperature range of -20°C to +75°C (max 95% RH) and a storage temperature range of -30°C to +85°C (max 95% RH). It supports a standard DC12V power supply, with 24V optional for heavy-duty commercial vehicles, ensuring compatibility with almost all vehicle electrical systems.

Ideal Applications

Carleader AHD Waterproof IR Night Vision Dual Lens Reversing Camera is the perfect backup camera solution for a wide range of vehicles, including:

Passenger cars, SUVs, and pickup trucks

Commercial vans, trucks, and buses

Construction vehicles, agricultural machinery, and off-road vehicles

Fleet vehicles and logistics transportation vehicles

With its advanced features, robust construction, and reliable performance, Carleader AHD Waterproof IR Night Vision Dual Lens Reversing Camera delivers the safety and visibility you need for every drive.
