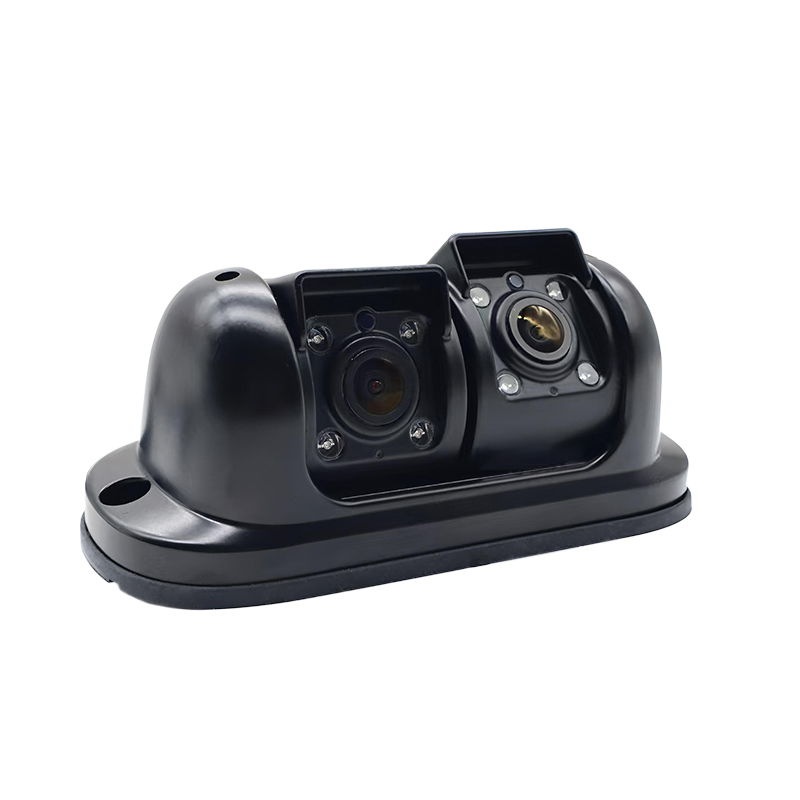

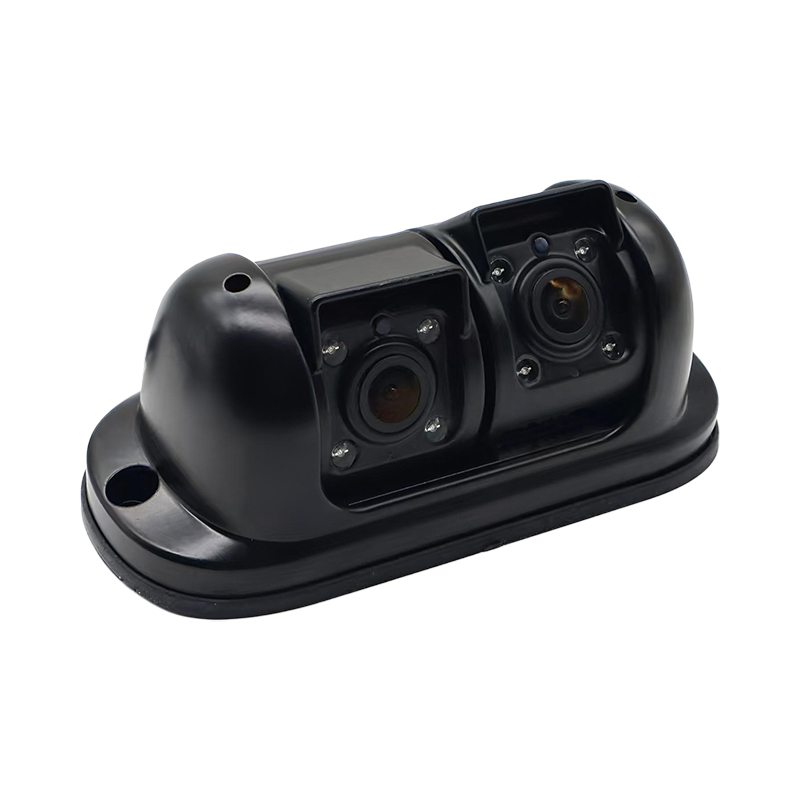

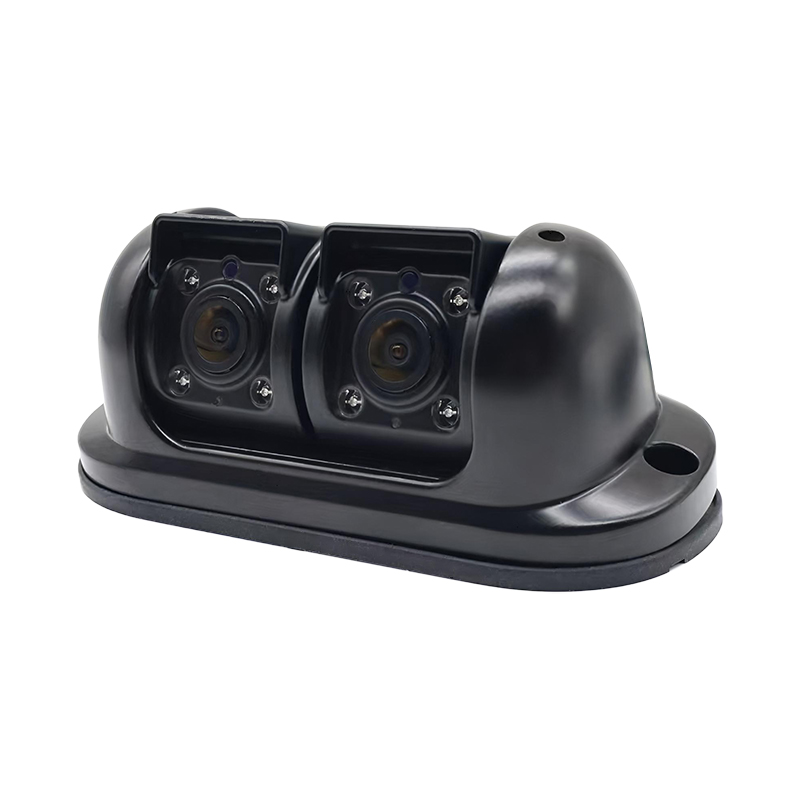

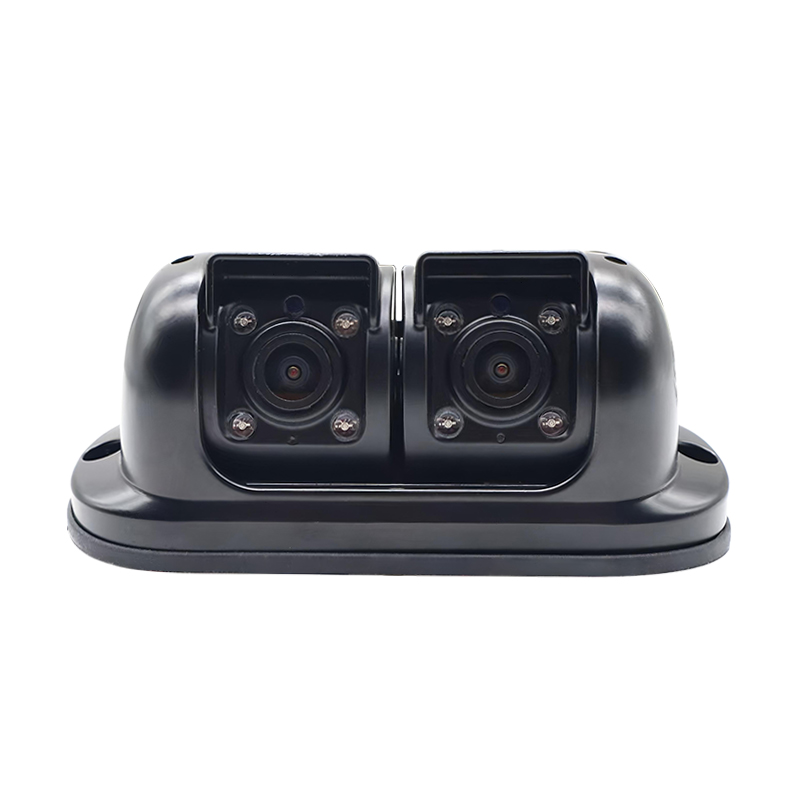

AHD Waterproof IR Night Vision Dual Lens Reversing Camera

Carleader AHD Waterproof IR Night Vision Dual Lens Reversing Camera a private tooling 2 in 1 rear view camera which support Adjustable Lens angle separately. Each lens has 4 IR LEDs. The default lens viewing angle is 90 degree and 135 degrees (Default), view angle also support customization.

Parameter:

Images Sensors: 1/2.1

Power supply: DC12V(standard). 24V (optional)

Video Input: CVBS/AHD720P/AHD1080P optional

Mirror image & non-mirrored image (optional)

Electronic Shutter: 1/65(NTSC)/1/60(PAL)-1/10,000

Lux:0.1 LUX (4 IR LED for each Lens)

Support Infrared Night Vision Function

Lens:2.1mm

Only Support One of Lens with audio function

S/N ratio: ≥50dB

System: PAL/NTSC optional

View Angle: 90° & 135° (Default)

Lens angle can be adjusted separately

Video Output: 1.0vp-p,750hm

Housing Material: Aluminum Alloy

Camera Connector: 4Pin Aviation Connector

IP Rating: IP69K

Operating Temperature(Deg. C): -20~+75(RH95% Max.)

Storage Temperature(Deg. C): -30~+85(RH95% Max.)
