Protect Your RV / Motothome with Carleader 7 Inch Dual Lens Split View MIrror Monitor System

Carleader 7 Inch Dual Lens Split View MIrror Monitor System, a whole set of 1x 7 Inch two splits display rear view mirror monitor and 1x dual lens cameras, perfect for vehicle vision system. Dual lens camera with two lens, one for rear view at far distance, and another one for parking and see surronding view at the rear of the vehicle. Grear for RV and motorhome.

Features:

Mirror Monitor:

Crisp Visuals: Equipped with a 7-inch high-definition digital panel (16:9 aspect ratio) and a resolution of 1024 x RGB x 600, delivering sharp, vibrant imagery. Supports PAL/NTSC systems auto switch for universal compatibility.

Enhanced Usability: Features 450 cd/m² brightness and 500:1 contrast ratio for clear visibility in diverse lighting conditions. Wide viewing angles (L/R: 70°, Up: 50°, Down: 70°) ensure minimal distortion.

Splits Display: Two splits display to check both lens images at the same time.

Versatile Connectivity: 2CH 4-pin aviation video inputs for seamless integration with cameras. Includes trigger wires on AHD2 for reversing.

User-Friendly Controls: Multilingual OSD menu and remote control for effortless operation.

Durable & Flexible: Wide voltage input (DC 9~32V) ensures compatibility with most vehicles. Touch button functionality adds modern convenience.

Easy Installation: Designed to replace original rearview mirrors using a stalk bracket (optional fan feet bracket available). Compact dimensions (24.5x10.5x2.5cm) ensure a streamlined fit.

Exceptional Low-Light Performance (Starlight Night Vision): Captures clear color images in  dark environment (0 Lux), No IR LED needed.

Dual Lens Flexibility: Dual lens offers a separated view with 90° & 135° viewing angles (Default, customizable if you need other view angles). Lens angles can be adjusted up and down separately for your specific vehicle and needs.

Robust Construction & Environmental Protection: Rugged Housing: Made from durable Aluminum Alloy. Extreme Weatherproofing: Rated IP69K waterproof, work perfectly in any harsh weather condition

Housing Color Optional: Default Black, white color optional.

Carleader will offers two different wiring solution for 7 Inch Dual Lens Split View MIrror Monitor System, to fit different wiring need:

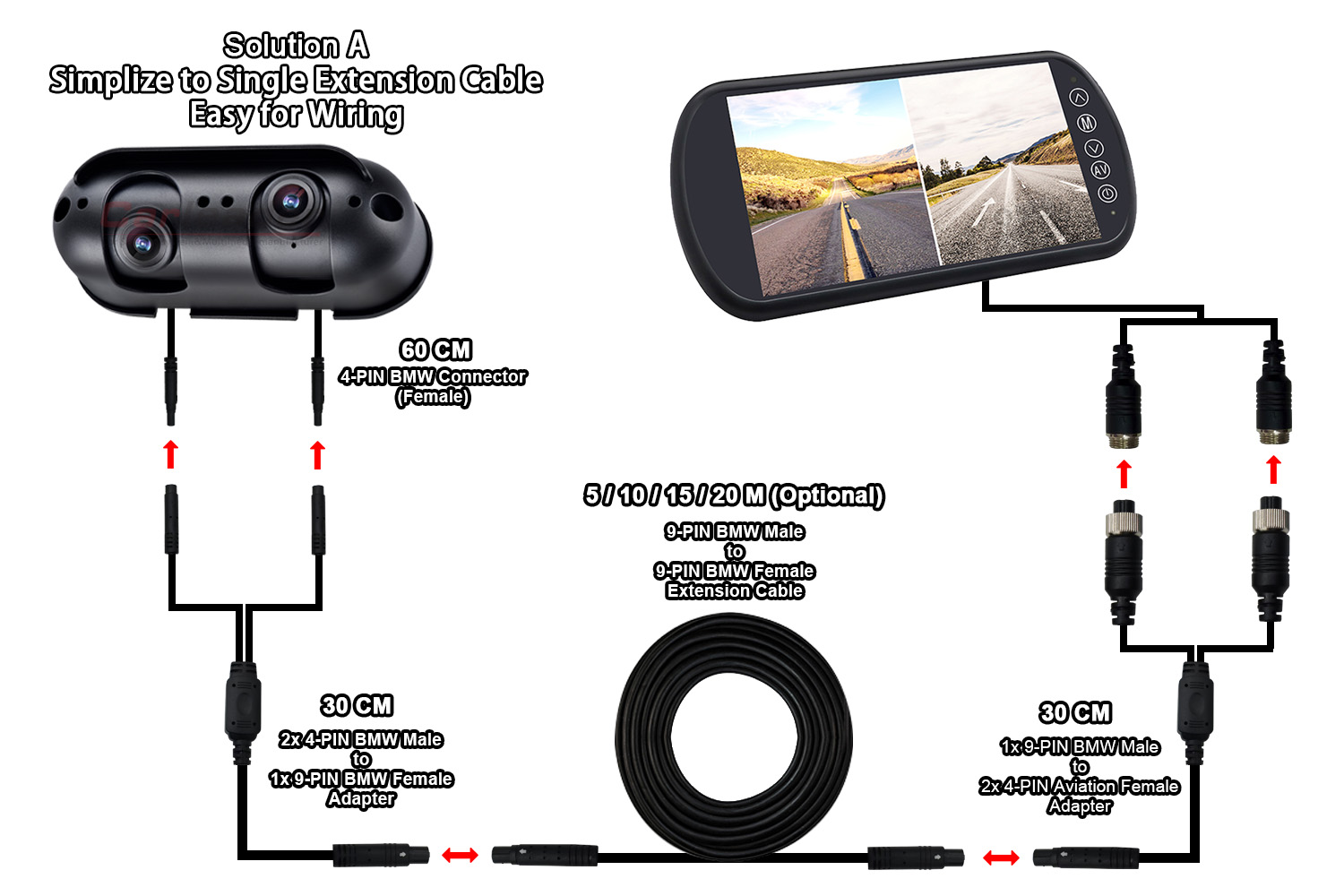

The first solution only use one extension cable (9-PIN BMW connector), 1 to 2 split cable for both end to connect camera and monitor. Because this solution only us on extension cable, which makes the wiring process easier and more convenient.

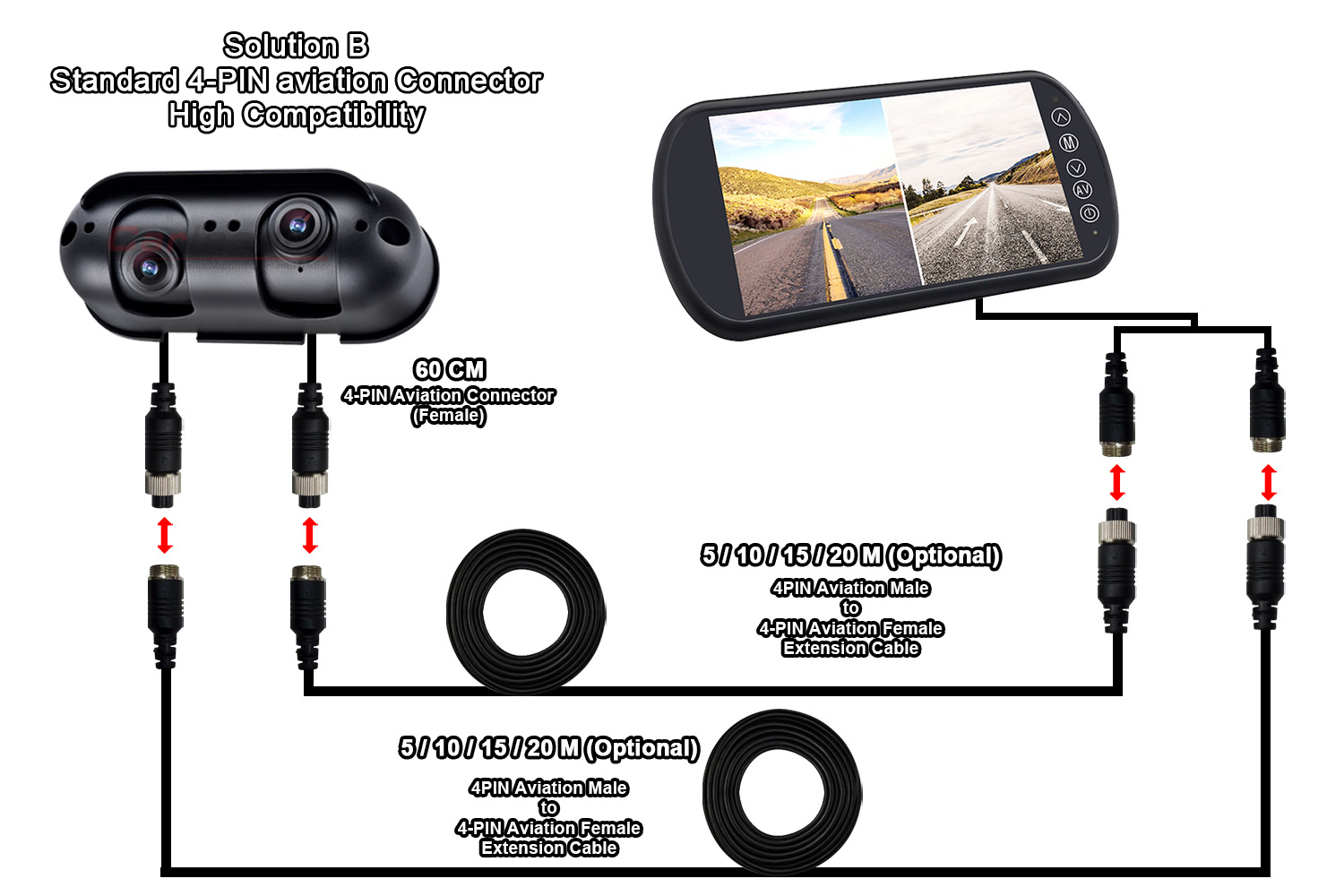

The second solution will two extension cables, but the camera definition is standard 4-PIN aviation connector, as long as your extension cable is standard 4-PIN aviation connector, it will be compatible for your extension cable.
