Carleader AI Detection Algorithm Converter Built-in Calibration Fit for CVBS/AHD Camera

Carleader Newly Launched AI Detection Algorithm Converter Built-in Calibration Fit for CVBS/AHD Camera, a AI converter integrates an ordinary camera video signal overlay algorithm to achieve AI functions, Support CVBS/720P/1080P camera, support PAL/NTSC system.This converter integrating 0.5T NPU, and efficiently supports intelligent algorithms such as pedestrian detection and vehicle detection. It has professional ISP image quality and is equipped with 1 Gb DDR; it supports fast startup and image output.

Features:

* Video Input: Support CVBS/720P/1080P camera, support NTSC / PAL system

* AI recognition algorithm: built-in algorithm 0.5TOPS

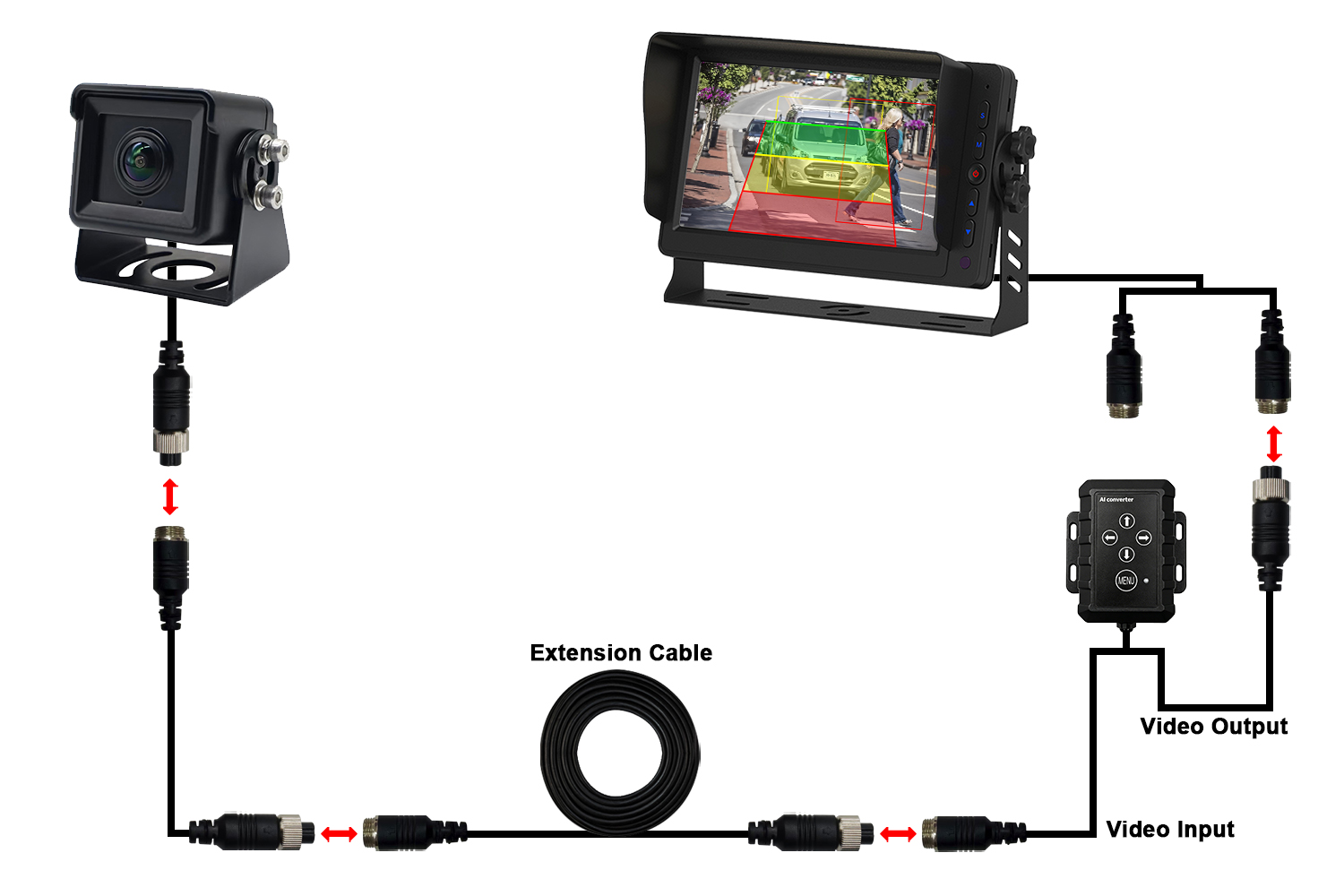

* Installation: support installing position of front, rear, left and right (different detection zone), set to the corresponding detection mode according installing position

* Video Output: AHD1080P, PAL system as default (1080P/720P/CVBS，NTSC/PAL, can be changed by setting）

* Mirror Image: Can be set as Mirror / Normal image as needed.

* Flip Image: Can be set as Flip / Normal image as needed

* Alarm: Can be set as Pedestrian & Vehicle Detection, Pedestrian Detection, Vehicle Detection

* Calibration: Can adjust the side and shape of detection area

* Connector: Standard 4PIN aviation male and female connectors, female connector include audio output and 12~24V power supply input (can be customized to external power supply), male connector include video input and 12V power supply to camera, green wire is trigger wire.

Parameter:

* Working Voltage: DC 12-24V

* Working Current: 12V 150mA

* Power: ＜2W

* Installation Part: 4pcs fixed installation hole

* Housing Material: Aluminum Alloy

* Housing Color: Black

* Dimension: 98 * 86 * 25 mm

* Working Temp.: (-20℃ to +70℃)

* Storage Temp.: (-30℃ to +80℃)
