Carleader Expands Vehicle Camera Solutions with IP69K Wide Angle AHD Camera for Side and Rear View

One Vehicle Camera for Side and Rear Monitoring. Commercial vehicles often require cameras at several different positions. A truck may need a camera to monitor the side blind area, while the rear of a trailer or bus may require additional visibility during reversing and maneuvering. Instead of limiting a camera to a single installation position, Carleader's Wide Angle AHD Vehicle Camera is designed for both side-view and rear-view monitoring. The same camera platform can therefore be considered for truck side monitoring, rear monitoring, blind-spot applications and multi-camera vehicle systems. This makes the IP69K Wide Angle AHD Vehicle Camera for Side and Rear View with IR Night Vision particularly relevant to commercial vehicle installers and fleet equipment suppliers looking for a flexible Vehicle Camera rather than a camera designed for only one specific position.

130° Wide Angle with 150° Option for Broader Vehicle Coverage

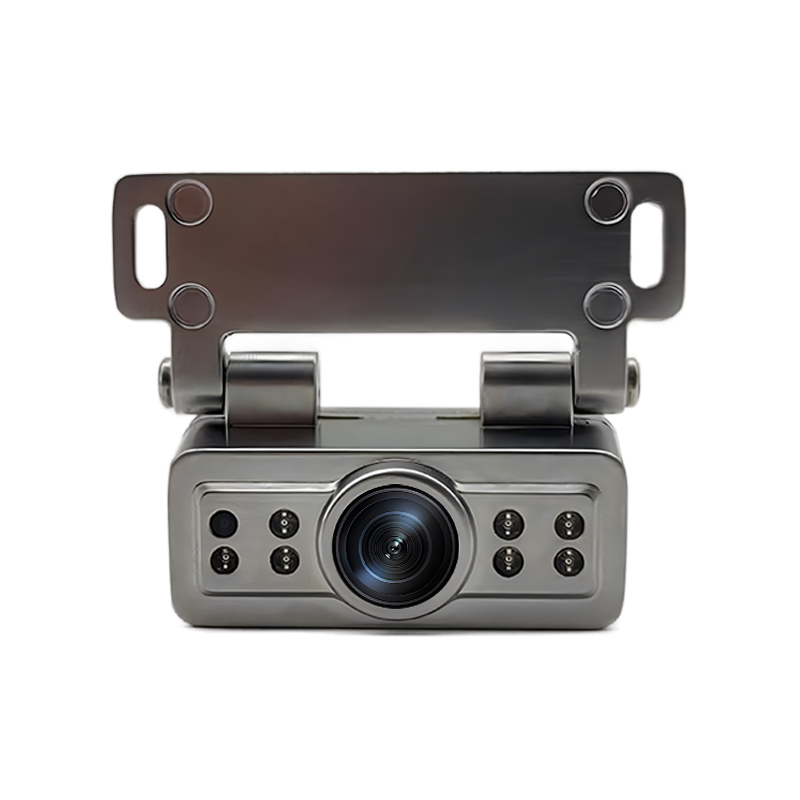

Visibility around a large vehicle is often limited by vehicle dimensions, body structure and camera installation position. A wider viewing angle can help cover more of the area beside or behind the vehicle. The CL-821AHD uses a 2.1mm wide-angle lens, providing a 130° horizontal viewing angle as standard, with a version available up to 150°. The 130° configuration provides broad coverage for general side and rear monitoring, while the 150° option can be considered when a wider field of view is required.

This makes the camera suitable for applications such as:

• Truck Side View Camera
• Truck Rear View Camera
• Commercial Vehicle Camera
• Trailer Camera
• Bus Camera
• Blind Spot Camera
• Fleet Monitoring Camera
• Heavy-Duty Vehicle Camera

The wide-angle design also gives system integrators more flexibility when positioning cameras around a vehicle.

AHD1080P Compatibility for Vehicle Monitoring Systems

As vehicle monitoring systems become more capable, compatibility between the camera, monitor and recording equipment is an important consideration. The CL-821AHD supports CVBS, AHD 720P and AHD 1080P video formats. This allows the camera to be integrated into different AHD Vehicle Camera Systems, vehicle monitors, DVR systems and MDVR systems. For example, an installer can use the camera as part of a truck's side-view system, while additional cameras can be connected to the same MDVR or multi-camera monitoring platform. For distributors, this multi-format compatibility can also make the camera suitable for different vehicle projects without restricting the product to a single video standard.

Infrared Night Vision for Day and Night Vehicle Monitoring

Side and rear monitoring is required not only during daytime driving. Commercial fleets may operate during the night, early morning or in poorly illuminated loading and parking areas. The CL-821AHD uses 7 infrared LEDs for nighttime and low-light monitoring. This allows the Vehicle Camera to provide visibility in darker environments while maintaining its role as a side-view or rear-view camera. For fleet operators, this can be useful for nighttime transportation, logistics vehicles, buses, trailers and other commercial vehicles that require continuous visual monitoring. The combination of wide-angle coverage and infrared illumination makes the camera suitable for both Day Night Vehicle Camera and Night Vision Truck Camera applications.

IP69K Protection for Trucks and Heavy-Duty Vehicles

Exterior vehicle cameras operate in considerably more demanding conditions than indoor surveillance cameras. They may be exposed to rain, road spray, dust, dirt and regular vehicle washing. The CL-821AHD features IP69K protection and a zinc alloy housing with silver electroplating, providing a durable enclosure for exterior vehicle installation. The camera is specified for operation from -20°C to +75°C with RH95% maximum, while its storage temperature range is -30°C to +85°C. This makes the camera suitable for demanding applications involving trucks, buses, trailers, construction vehicles and special-purpose vehicles.

Built for Commercial Vehicle and Fleet Camera Systems

The camera's combination of wide-angle coverage, multiple video formats, infrared night vision and IP69K protection allows it to be used across a wide range of vehicle monitoring projects.

Typical applications include:

• Truck Side Monitoring

Used as a side-view camera to monitor areas alongside heavy-duty vehicles.

• Truck Rear Monitoring

Provides additional visibility behind trucks during reversing and maneuvering.

• Trailer Monitoring

The wide viewing angle can help monitor the side or rear area of trailers.

• Bus and Coach Camera Systems

Can be integrated into exterior camera systems for buses and coaches.

• Fleet Vehicle Camera Systems

Can work with DVR or MDVR equipment as part of a larger fleet monitoring solution.

• Construction and Special-Purpose Vehicles

The rugged housing and IP69K protection make it suitable for demanding outdoor vehicle applications.

Flexible Image Configuration for Different Mounting Positions

A camera mounted on the side of a vehicle does not always require the same image orientation as a camera mounted at the rear. The CL-821AHD supports mirror and non-mirror image configurations, allowing installers to select the appropriate image presentation according to the mounting position. An optional built-in microphone is also available for applications where audio is required as part of the vehicle monitoring configuration.

A Practical Option for Vehicle Camera Manufacturers, Distributors and Installers. The increasing use of camera-based monitoring on commercial vehicles has created demand for Vehicle Cameras that can cover multiple positions while remaining compatible with existing vehicle electronics. The IP69K Wide Angle AHD Vehicle Camera for Side and Rear View with IR Night Vision combines several requirements in one platform: 130° wide-angle coverage, optional 150° viewing, infrared night vision, CVBS/AHD video compatibility, mirror/non-mirror image options and IP69K protection. For companies sourcing Commercial Vehicle Cameras, Truck Side View Cameras, Truck Rear View Cameras, AHD Vehicle Cameras, Fleet Cameras or IP69K Vehicle Cameras, the CL-821AHD can be considered for OEM projects, fleet installations, vehicle monitoring systems and aftermarket applications.
