Rear Camera For Partner II / Berlingo / Partner Van Backup Camera

Features:

1. The Rear Camera supports CVBS/720P/1080P optional video output.

2. 1.7mm lens with 120°-140° wide viewing angle improves rear visibility.

3. 0Lux low illumination performance supports clear monitoring in dark environments.

4. 4PIN Aviation Connector with RCA Adapter ensures stable connection and easy installation.

5. IP69K waterproof protection supports harsh outdoor vehicle environments.

Parameter:

Product Type: Brake Light Camera

Suitable Model: Berlingo,Partner II,Citroen Berlingo Peugeot Partner （2008-2016）

Effective Pixels: CVBS / 720P / 1080P Optional

Lens: 1.7mm

Video Input Format: CVBS / 720P / 1080P HD25/30fps PAL/NTSC

View Angle: 120°-140°

Connector: 4PIN Aviation Connector

Power Supply: DC12V (Standard), 24V (Optional)

Minimum Illumination: 0Lux

White Balance: Auto

IR LED: N/A

Audio: N/A

Bracket: With LED Light

IP Rating: IP69K

AHD/CVBS Switch Cutting Line Optional

PAL/NTSC Switch Cutting Line Optional

Product Details & Quality Inspection

Product Details

Recommended to display:

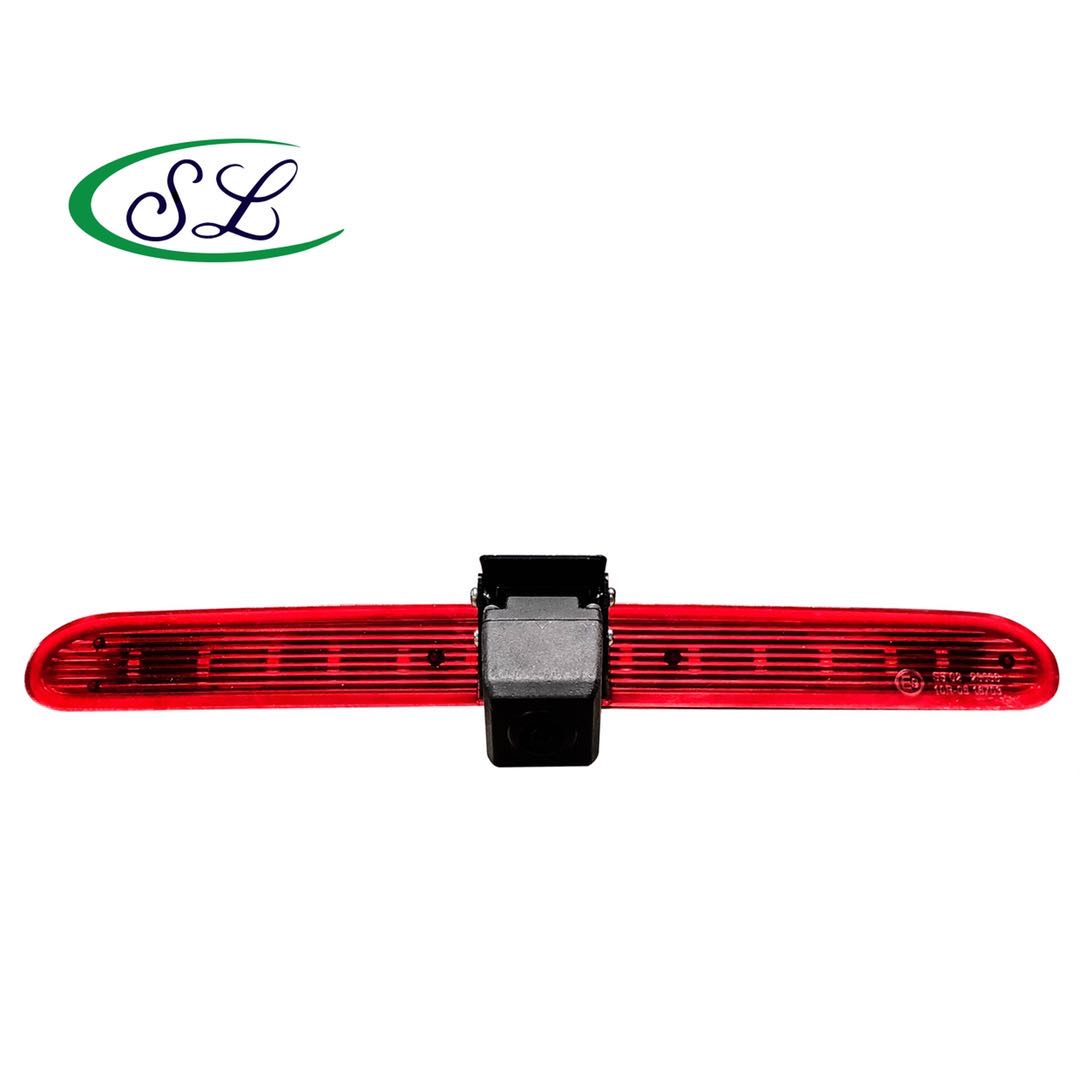

• Front product image

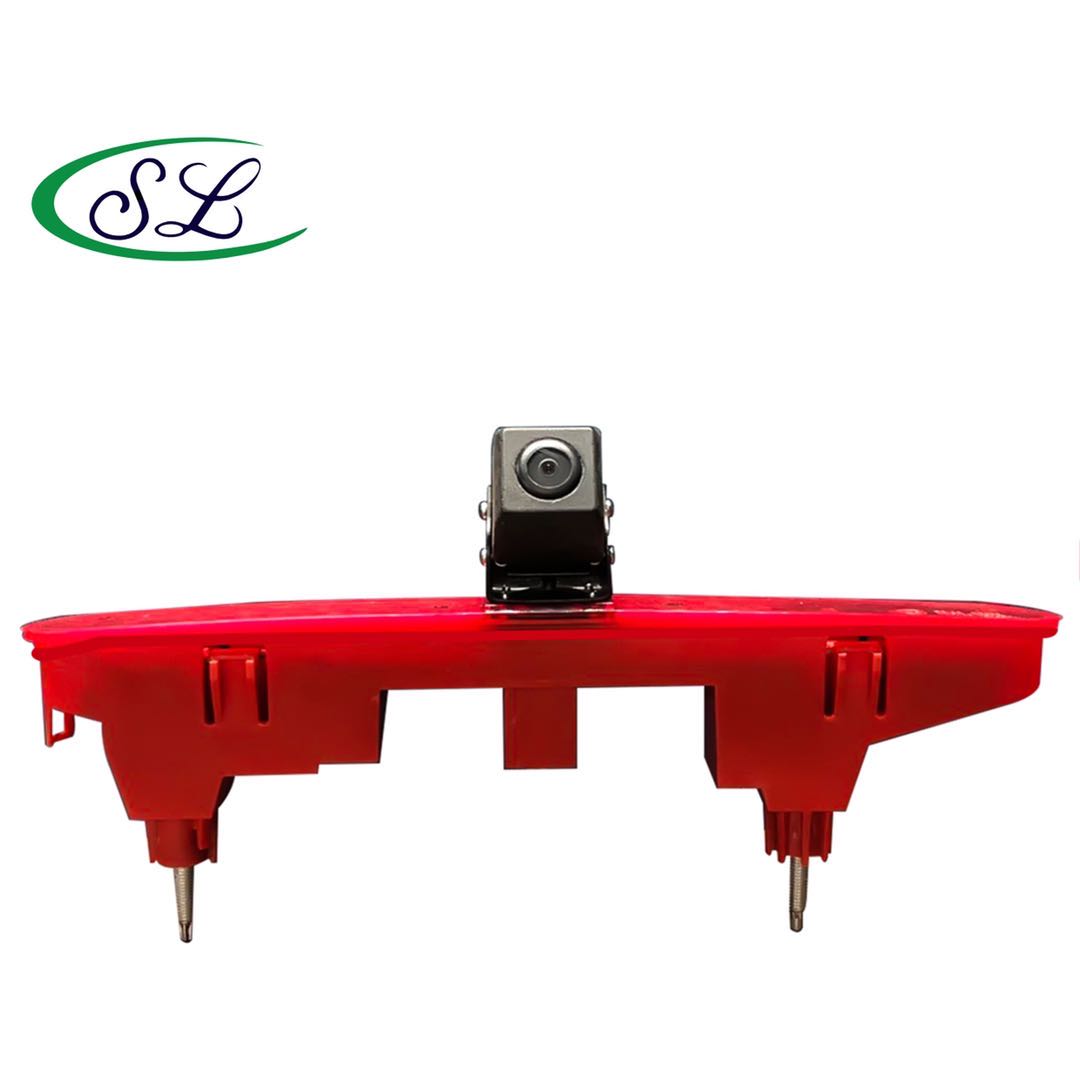

• Rear connector image

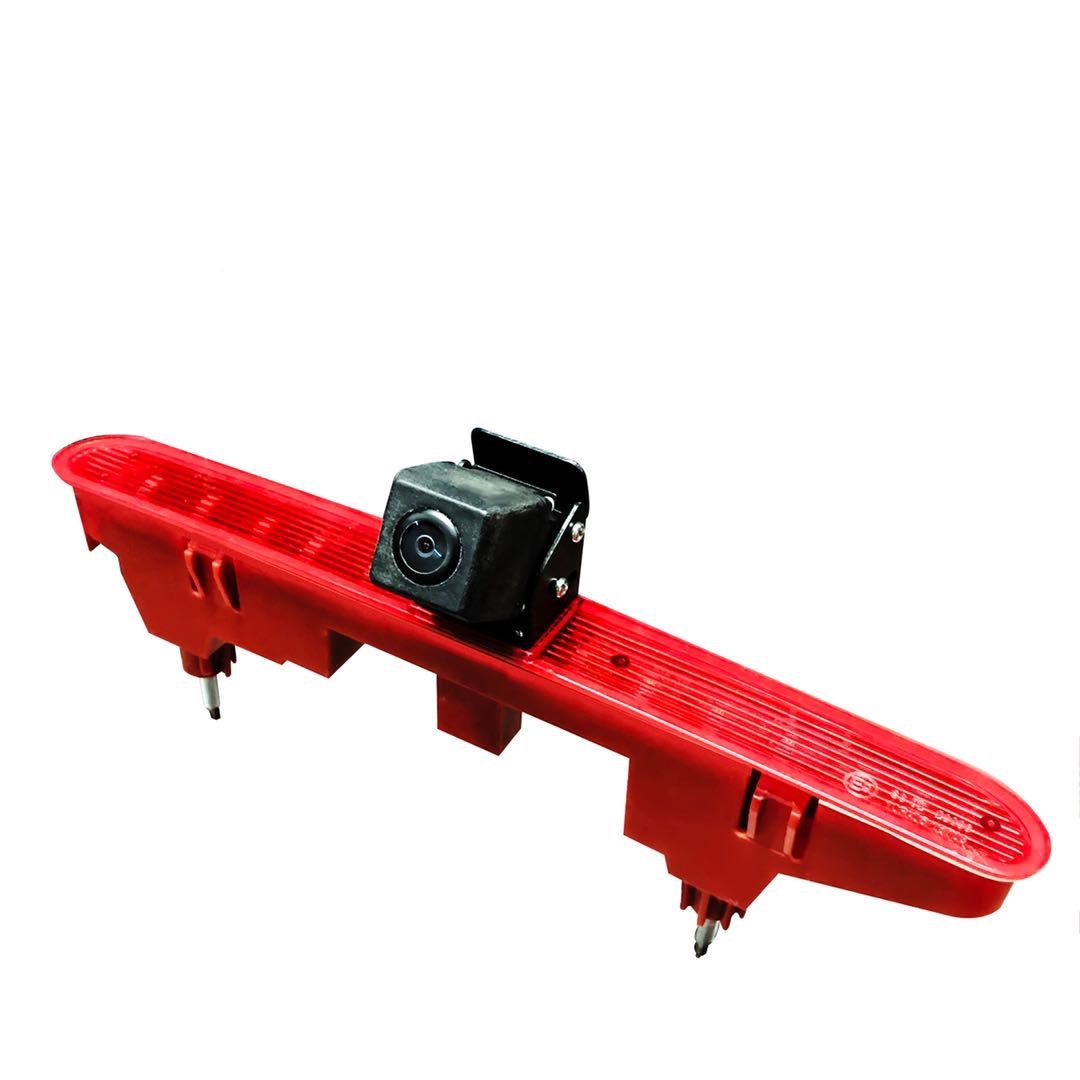

• Camera lens close-up
• Installation position image
• Vehicle installation effect image

Testing Process

Each Brake Light Camera is tested before shipment:

• Camera image and signal test
• Waterproof and dust resistance test
• Power supply test
• Connector durability test

FAQ

Q1: Which vehicles does this Brake Light Camera fit?

A: It is designed for Berlingo, Partner II, Citroen Berlingo and Peugeot Partner (2008-2016).

Q2: Does this camera replace the original brake light?

A: Yes. It combines the original third brake light and rear view camera functions.

Q3: Does it support 1080P?

A: Yes. CVBS/720P/1080P optional video output is available.

Q4: Is this camera waterproof?

A: Yes. The camera uses IP69K waterproof protection for commercial vehicle applications.

Q5: How is the installation?

A: The camera uses the original brake light installation position and comes with a 4PIN Aviation Connector with RCA Adapter for stable connection.
