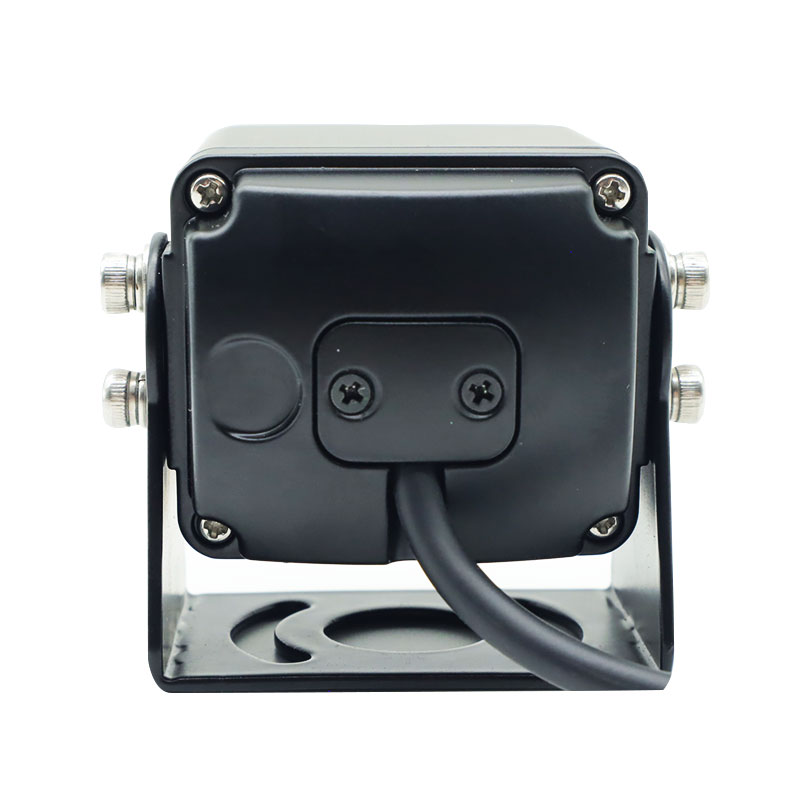

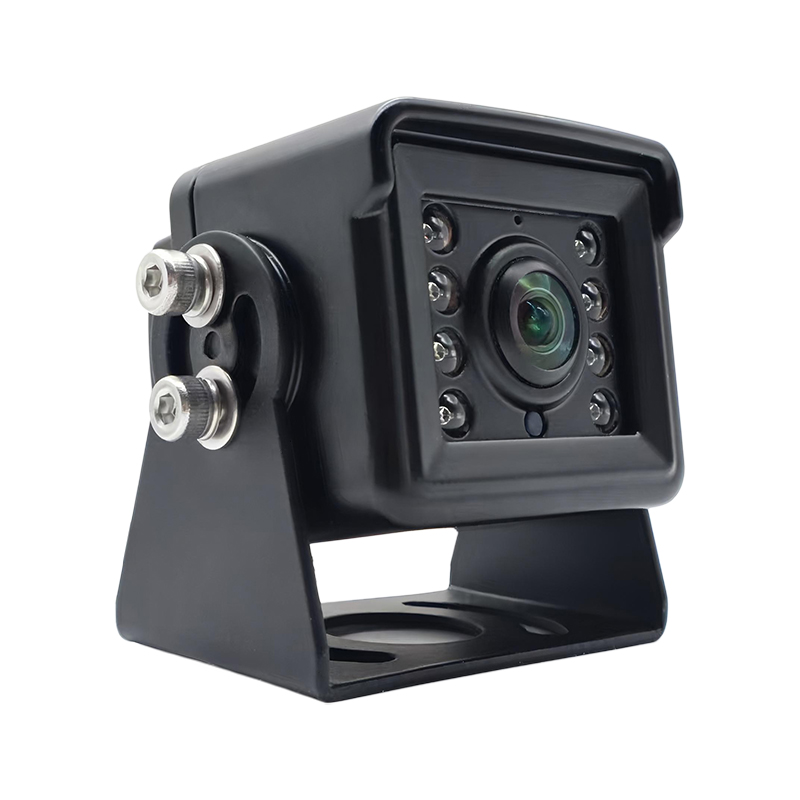

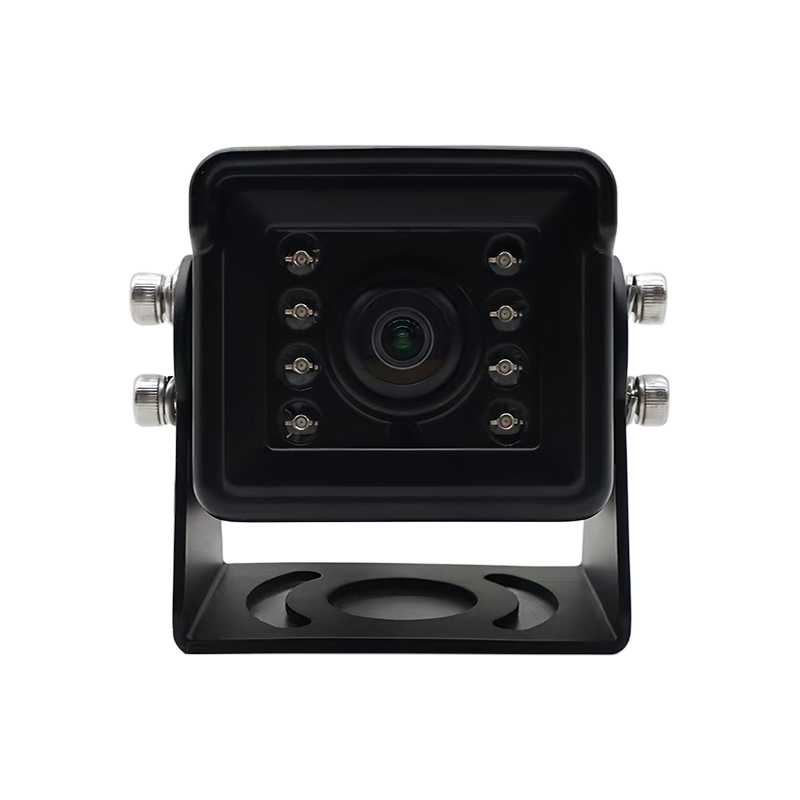

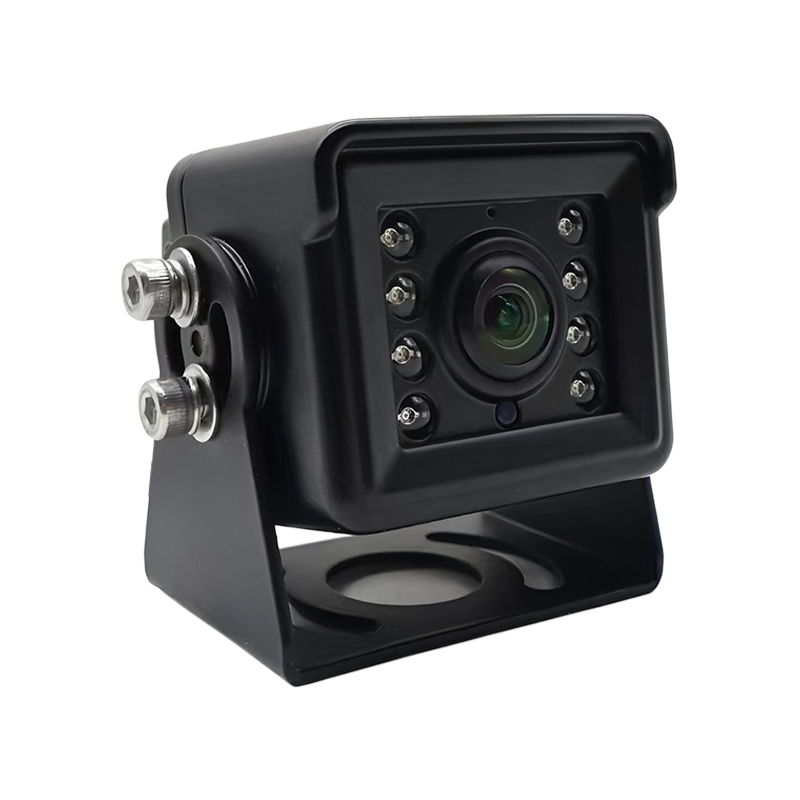

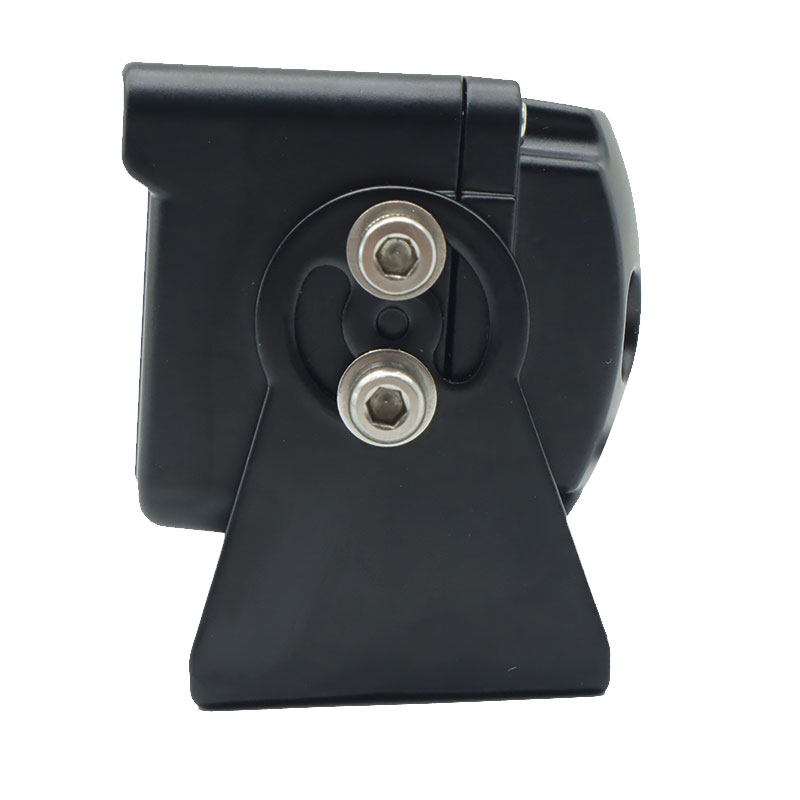

Rear View AI Camera with Pedestrian and Vehicle Detection, 150 degree Wide Angle and IP69K

Carleader Rear View AI Camera with Pedestrian and Vehicle Detection, 150 degree Wide Angle and IP69K. The Rear View AI Camera combines rear-view video monitoring with AI-based object recognition to help drivers identify potential hazards behind their vehicles. Unlike a conventional rear view camera that primarily provides images, this model supports pedestrian, vehicle and cyclist detection, together with selectable audio warning modes. It is designed for commercial vehicles that require additional rear-area awareness during reversing, maneuvering and operation in busy working environments.

Product Advantages

1. AI-Assisted Rear Hazard Awareness

The camera supports recognition of pedestrians, vehicles and cyclists behind the vehicle. This provides an additional layer of awareness beyond image monitoring alone and makes the product suitable for applications where rear-area safety is a priority.

2. Detection Range of 10–15 Meters

The specified detection range helps buyers evaluate the camera for their intended vehicle and working environment. It can be considered for reversing, loading areas and other low-speed operations where rear hazards need attention.

3. Flexible Audio Alarm Selection

Three alarm modes—silent, repetitive “Di Di Di” and caution-style voice warning—allow the warning behavior to be adapted to different operational needs. This flexibility is useful for projects with different driver preferences or site requirements.

4. Wide-Angle Rear Monitoring

With a maximum viewing angle of 150°, the camera can cover a broad rear field of view. Mirror and non-mirrored image options help accommodate different display requirements.

5. Improved Low-Light Monitoring

The 8 infrared LEDs and automatic IR-Cut day/night switching support monitoring in changing light conditions. This is particularly relevant for vehicles operating early in the morning, at night or in dimly lit work areas.

6. Rugged Vehicle Camera Design

The IP69K protection rating and specified operating temperature range make the camera suitable for evaluation in demanding commercial vehicle applications. Installation suitability should still be assessed against the actual vehicle and environmental conditions.

Product Parameters

Product Name: Rear View AI Camera

Image Sensors: 1/2.7" & 1/3"

Power Supply: DC 12V standard, 24V optional

Video Input: 720P

AI Detection: Pedestrians, vehicles and cyclists

Audio Alarm Modes: No Alarm / Di Di Di / Caution

Image: Mirror / Non-mirrored optional

Minimum Illumination: 0.01 LUX

Infrared LEDs: 8 LEDs

Lens: 2.5mm

Day/Night Function: Automatic IR-Cut switching

Video System: PAL/NTSC optional

Viewing Angle: Maximum 150°

Detection Range: Approximately 10–15m

Waterproof Rating: IP69K

Operating Temperature: -20°C to +75°C, RH 95% MAX

Storage Temperature: -30°C to +85°C, RH 95% MAX

 Application Scenarios

Trucks and heavy-duty vehicles: Rear-area monitoring and AI-assisted hazard awareness.

Commercial vans: Assistance with rear visibility during reversing and maneuvering.

Construction vehicles: Monitoring pedestrians and vehicles around rear operating areas.

Logistics and delivery fleets: Supporting safer movement in loading bays and busy depots.

Buses and fleet vehicles: Additional rear-view monitoring for fleet safety projects.

Industrial and special-purpose vehicles: Applications requiring AI recognition and configurable audio warnings.

FAQ

Q1: What can this AI rear view camera detect?

A1: It supports AI recognition of pedestrians, vehicles and cyclists.

Q2: What is the detection range?

A2: The specified detection range is approximately 10–15 meters. Actual performance may vary with installation and environmental conditions.

Q3: Does the camera support audio warnings?

A3: Yes. It offers three selectable modes: No Alarm, Di Di Di and Caution.

Q4: Does this camera support night vision?

A4: Yes. It features 8 infrared LEDs and automatic IR-Cut day/night switching.

Q5: What is the maximum viewing angle?

A5: The maximum specified viewing angle is 150°.

Q6: Is the camera suitable for 24V vehicles?

A6: DC 12V is standard, and a 24V option is available. Please confirm the required voltage when ordering.

Q7: Can the camera work with an existing vehicle monitor?

A7: Compatibility should be confirmed based on the monitor's supported video signal, connector and power configuration. Please provide these details before ordering.

Q8: Is the camera waterproof?

A8: The camera has an IP69K-rated protection specification for demanding vehicle applications.

Q9: Can the image be mirrored or non-mirrored?

A9: Yes. Mirror and non-mirrored image configurations are optional.

Q10: Can Carleader supply customized configurations?

A10: Please contact Carleader with your required voltage, image orientation, alarm mode and monitor compatibility details to confirm the available configuration for your project.
