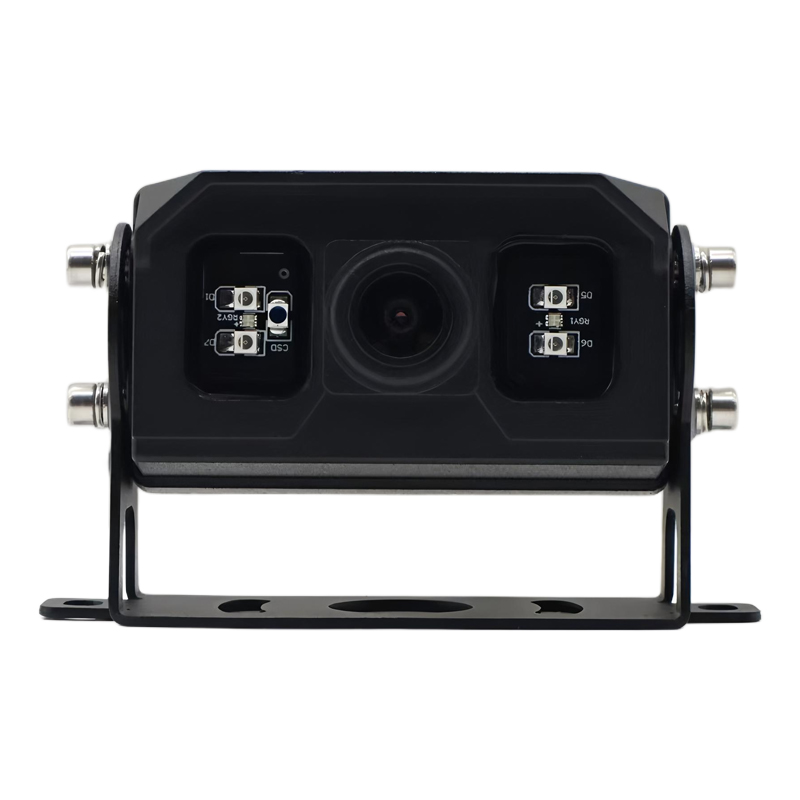

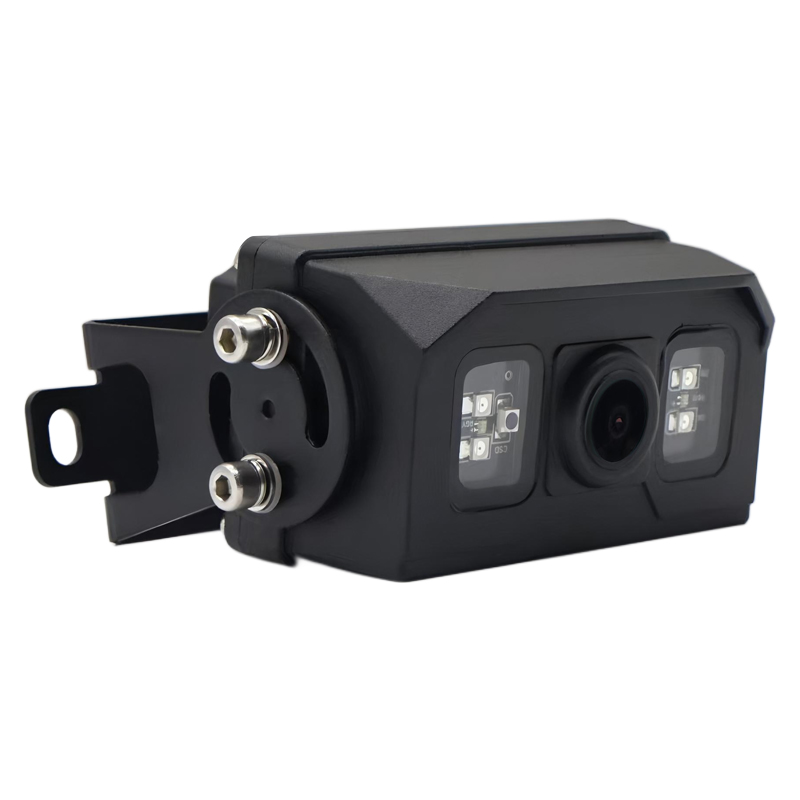

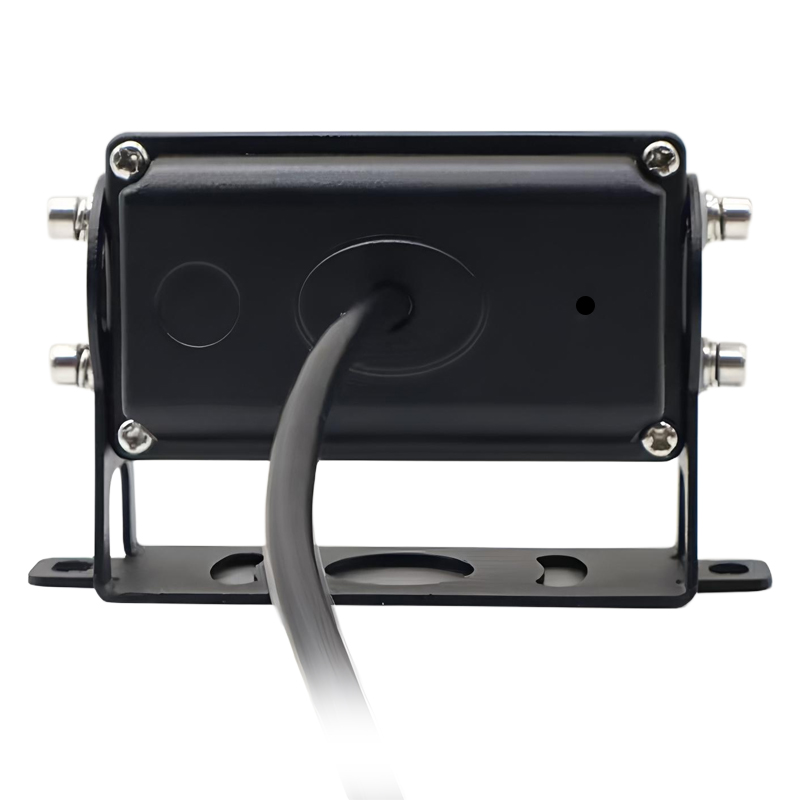

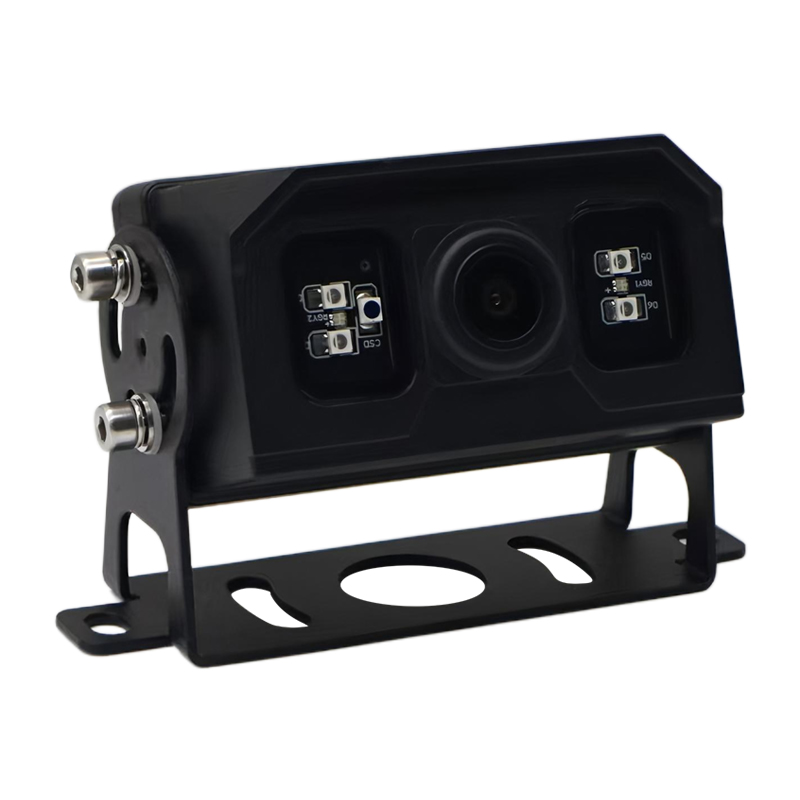

Rear View AI Camera with Pedestrian Vehicle and Biker Detection

Carleader Rear View AI Camera with Pedestrian Vehicle and Biker Detection is designed to help drivers identify vulnerable road users and potential hazards around commercial vehicles. It detects pedestrians, vehicles, bikers and other supported objects within a specified detection area, providing visual and audible warnings to help drivers respond more quickly. The camera features a built-in warning light with red, yellow and green color-changing alerts when an object enters the corresponding detection area. Drivers can choose between three audio alarm settings: no alarm, “Di Di Di” or “Caution,” depending on the installation requirements. With a 130° viewing angle, a specified detection range of 10–15 meters and an IP69K waterproof rating, this rear view AI camera is suitable for demanding outdoor vehicle applications. It can operate independently or be used with a compatible Carleader AI monitor to configure AI calibration.

Key Features

1. AI Object Detection: Detects pedestrians, vehicles, bikers and other supported objects to help improve driver awareness.

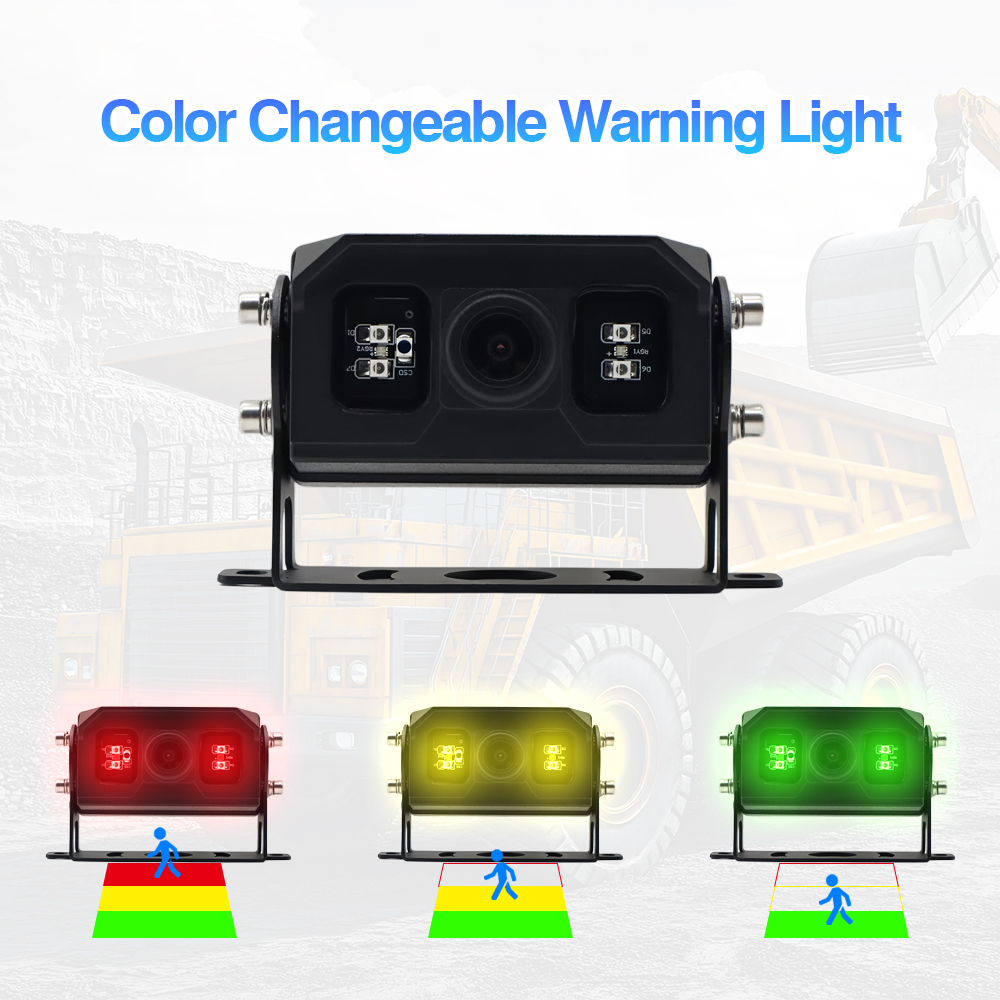

2. Three-Color Warning Light: Red, yellow and green warning colors change according to the corresponding detection area.

3. Built-In Audio Alarm: Offers three audio alarm settings: No Alarm, Di Di Di and Caution.

4. 130° Wide Viewing Angle: Helps monitor a wider area around the vehicle.

5. 10–15 m Detection Range: Supports hazard detection within the specified range, depending on installation and operating conditions.

6. IP69K Waterproof Protection: Designed for demanding vehicle environments exposed to water and cleaning.

7. Flexible Installation: Can be used independently or with a compatible AI monitor for AI calibration.

8. 12V Standard, 24V Optional: Supports different vehicle power configurations when correctly specified.

10. PAL/NTSC Options: Supports different video system requirements.

Product Parameters

Product Type: Rear View AI Camera

Image Sensor: 1/2.7″ & 1/3″

Power Supply: DC 12V (24V optional)

Video Input: 720P

AI Detection: Pedestrians, vehicles, bikers, etc.

Detection Range: 10–15 m

Viewing Angle: 130°

Lens: 2.1 mm

Warning System: Built-in warning light and audio alarm

Audio Alarm Options: No Alarm / Di Di Di / Caution

Warning Light: Red, yellow and green color-changing function

Image Mode: Mirror / Non-mirrored optional

Video System: PAL / NTSC optional

Waterproof Rating: IP69K

Installation: Standalone camera or compatible AI monitor for AI calibration

Operating Temperature: -20°C to +75°C (RH 95% max.)

Storage Temperature: -30°C to +85°C (RH 95% max.)

1. Commercial Trucks and Heavy-Duty Vehicles

2. Buses and Coaches

3. Construction and Industrial Vehicles

4. Forklifts and Material-Handling Vehicles, subject to installation suitability

5. Fleet Safety and Rear-View Monitoring Systems

6. Commercial Vehicle Blind-Spot Monitoring

7. Vehicle Camera and AI Safety System Integration Projects

8. Heavy-Duty Vehicle Rear-View Assistance

FAQ

Q1: What objects can this rear view AI camera detect?

A1: It supports pedestrian, vehicle and biker detection, along with other supported objects depending on the system configuration.

Q2: Does the camera have both visual and audible alerts?

A2: Yes. It has a built-in warning light with red, yellow and green color-changing alerts, plus selectable audio alarm settings.

Q3: Can the camera work without an AI monitor?

A3: Yes, it can be used alone. A compatible AI monitor can also be used to set up AI calibration.

Q4: Is this camera suitable for 24V vehicles?

A4: The standard power supply is 12V, and a 24V version is optional. Please confirm the required voltage when ordering.

Q5: Is the camera waterproof?

A5: It has an IP69K waterproof rating for demanding vehicle applications.

Q6: Can the image be mirrored?

A6: Yes. Mirror and non-mirrored image versions are optional.

Q7: What is the detection distance?

A7: The specified detection range is 10–15 meters. Actual detection performance can vary with mounting position, target size, weather and calibration.
