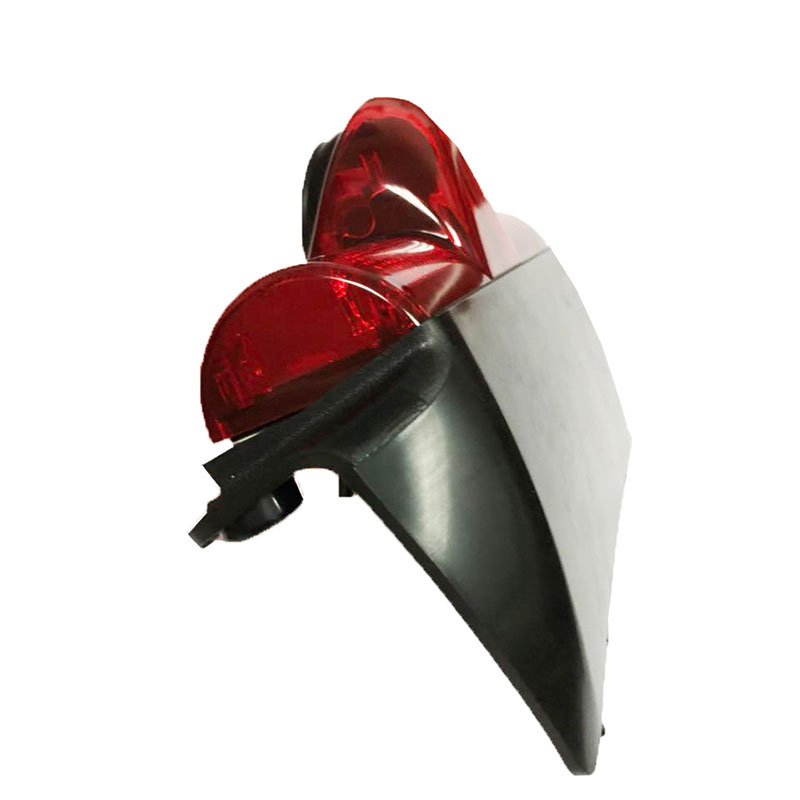

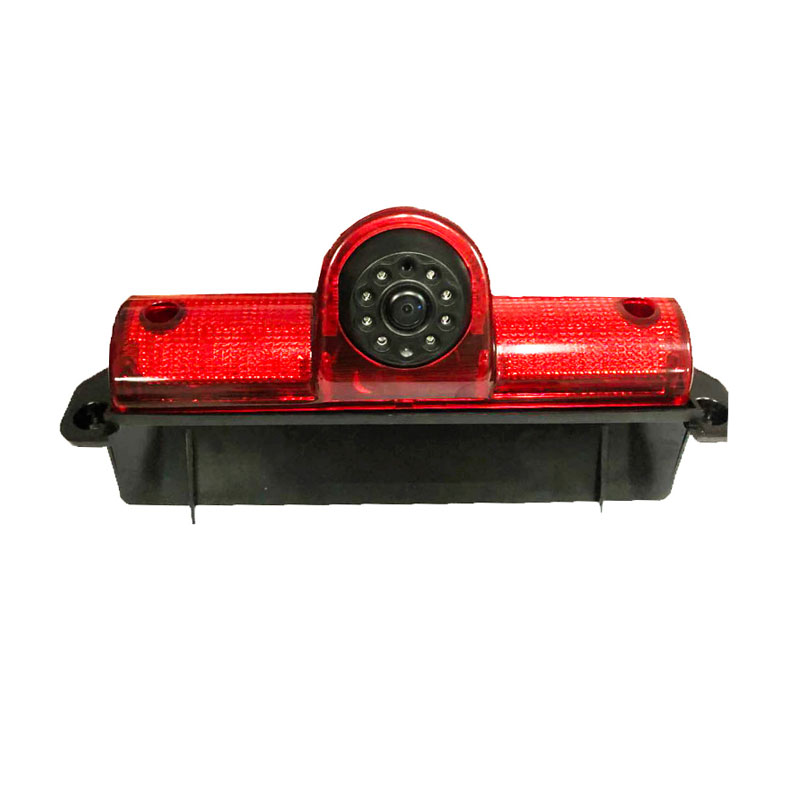

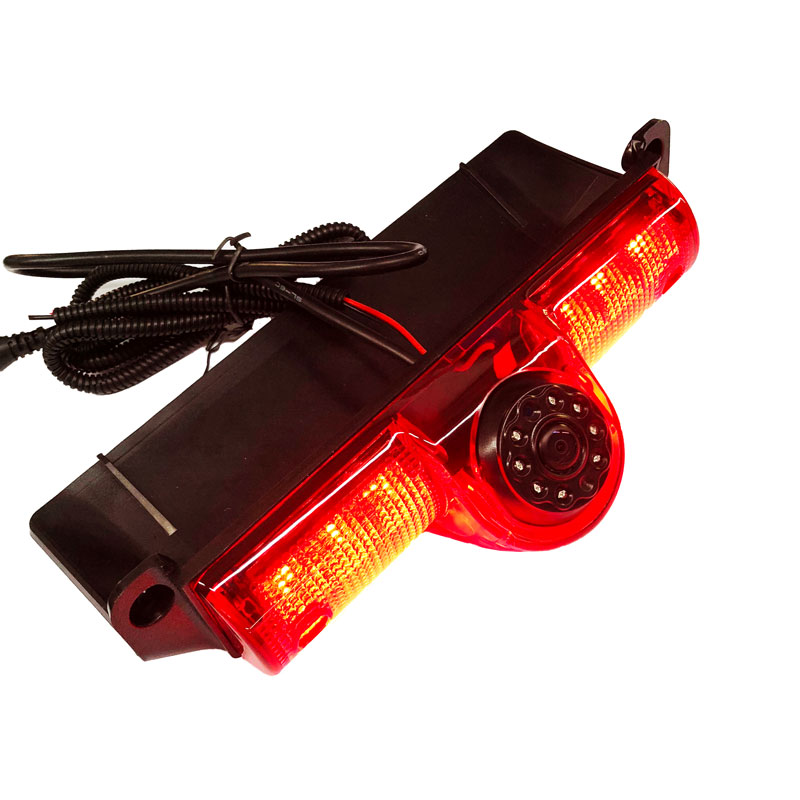

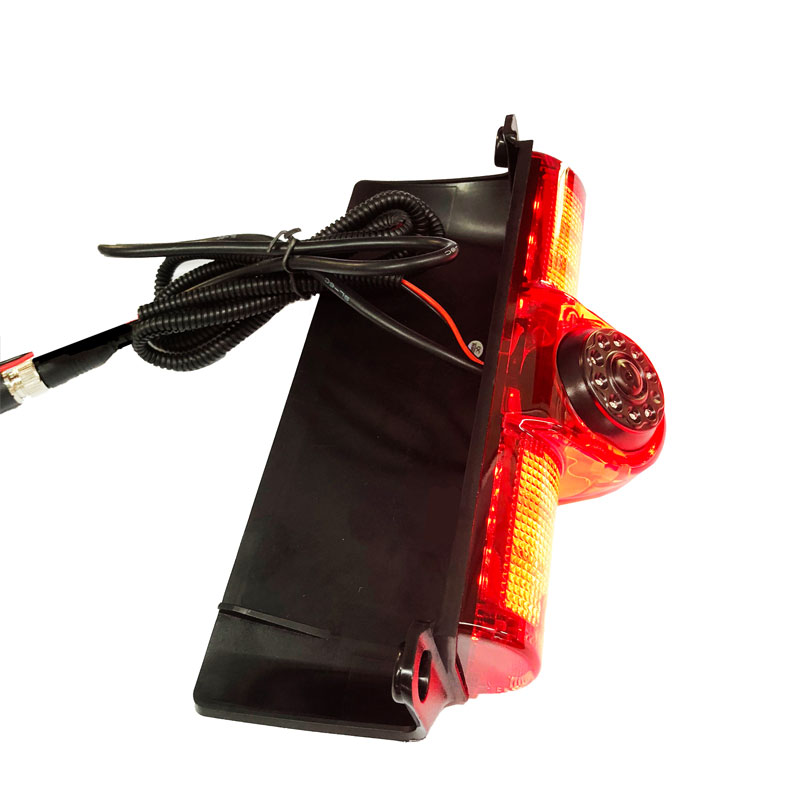

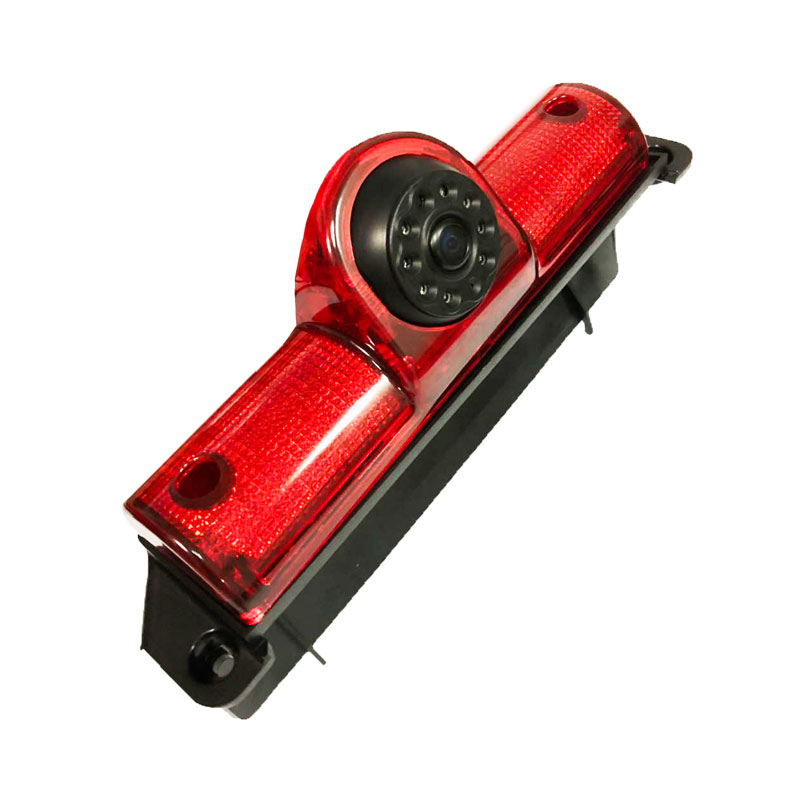

Savana Van / Express Van / Explorer Vans (2003-2016) Brake Rear Light Camera with LED Light

Carleader Savana Van / Express Van / Explorer Vans (2003-2016) Brake Rear Light Camera with LED Light,which can replace brake light camera for commercial vans, this rear view camera integrates brake light design with vehicle reversing assistance, which is with AHD/CVBS optional output, 120°-140° viewing angle and IP69K waterproof protection, it provides reliable rear monitoring performance for GMC Savana Van and Chevy Express.

Model:CL-SL806

Send Inquiry

Product Description

Carleader Savana Van / Express Van / Explorer Vans (2003-2016) Brake Rear Light Camera with LED Light, which is a professional vehicle rear view camera with CVBS/720P/1080P optional resolution, IP69K waterproof protection and optional AHD/CVBS switching function. This Brake Light Camera combines original brake light replacement design with rear view camera function, providing a practical reversing solution for commercial vehicles.

Features:

1. AHD Brake Rear Light Camera designed for GMC Savana Van / Chevy Express / Explorer Vans (2003-2016).

2. AHD Rear View Camera supports CVBS/720P/1080P optional resolution for clear vehicle rear monitoring.

3. This commercial Vehicle Camera features 120°-140° viewing angle to provide wider rear visibility.

4. 8pcs IR LEDs with 0.1Lux low-light performance improve night vision capability in dark environments.

5. 4PIN Aviation Connector with RCA Adapter for Easy Connection and Installation.

Parameter:

Suitable Model: GMC Savana Van / Chevy Express / Explorer Vans (2003-2016)

Effective Pixels: CVBS / 720P / 1080P Optional

Lens: 2.8mm

Video Input Format: CVBS / 720P / 1080P HD25/30fps PAL/NTSC

View Angle: 120°-140°

Connector: 4PIN Aviation Connector

Power Supply: DC12V (Standard), 24V (Optional)

Minimum Illumination: 0.1Lux (LED ON)

White Balance: Auto

IR LED: 8 pcs

Audio: N/A

Bracket: With LED Light

IP Rating: IP69K

AHD/CVBS Switch Cutting Line: Optional

PAL/NTSC Switch Cutting Line: Optional
