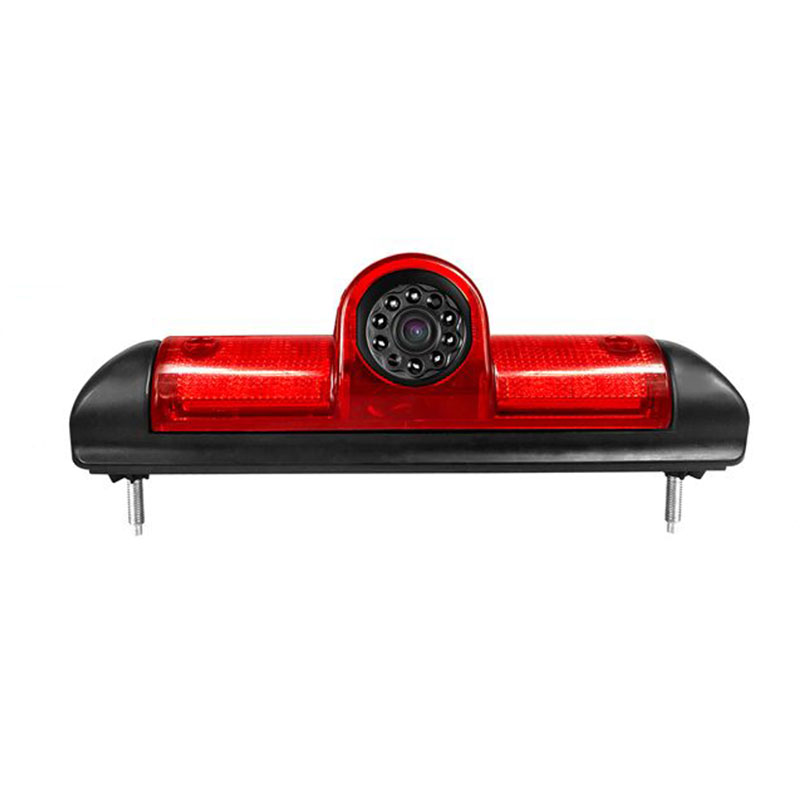

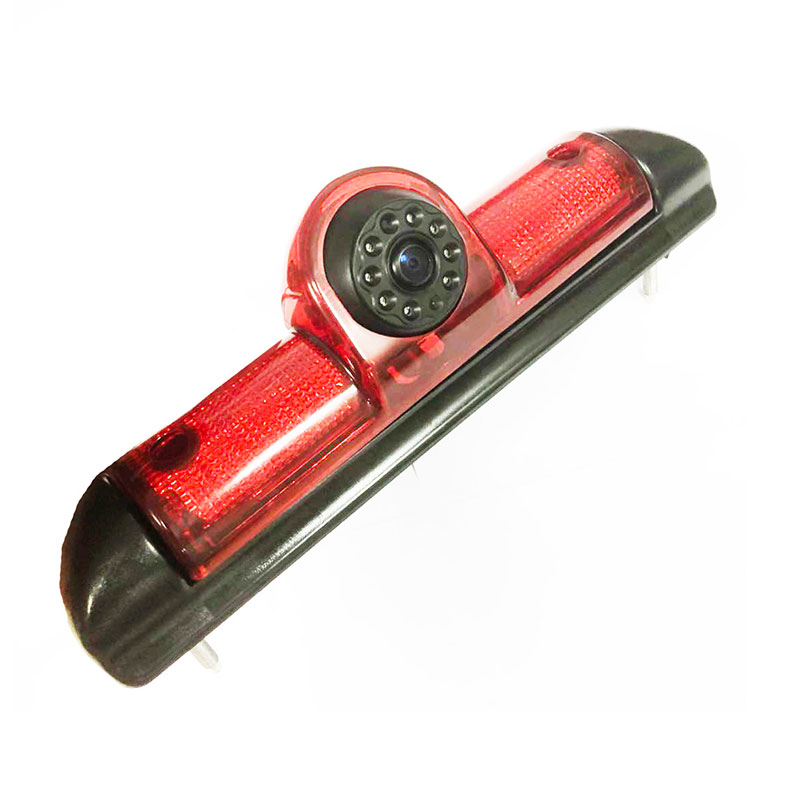

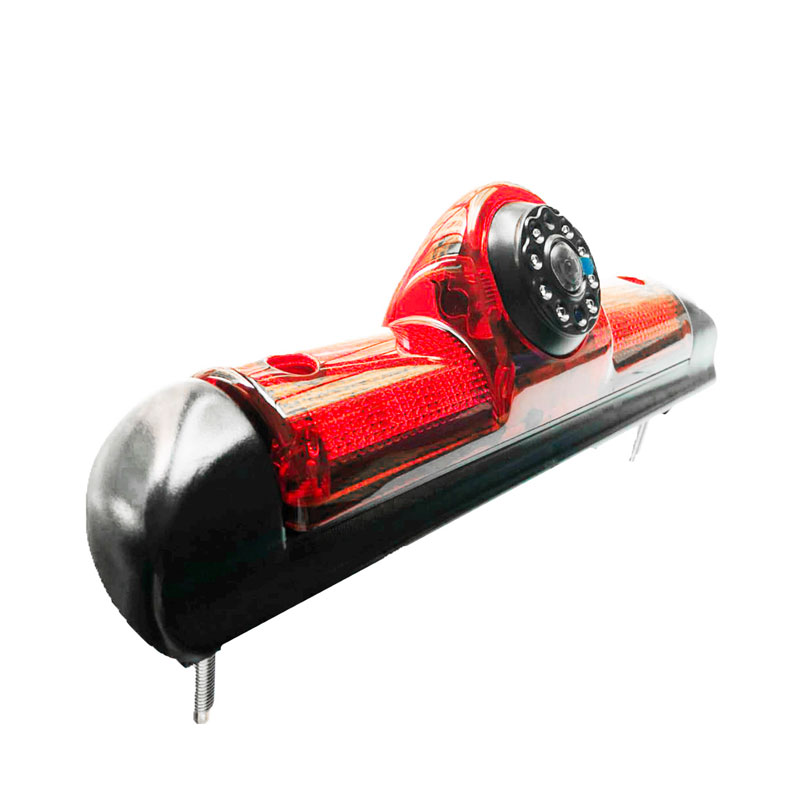

Screw Mounted Brake Light Camera Replacement For Ducato / Boxer / Jumper Van with LED Light

Carleader Screw Mounted Brake Light Camera Replacement For Ducato / Boxer / Jumper Van with LED Light,with CVBS/720P/1080P optional resolution, 120°-140° wide viewing angle and 8pcs IR LEDs, which is designed for commercial van rear view applications. The LED brake light rear camera integrates brake light replacement and reversing camera functions.

Model:CL-SL808

Send Inquiry

Product Description

Careleader Screw Mounted Brake Light Camera Replacement For Ducato / Boxer / Jumper Van with LED Light, which is adopts a screw mounted installation design. This Brake Light Camera integrates the third brake light and rear view camera functions, providing a clean replacement solution for Fiat Ducato, Peugeot Boxer and Citroen Jumper vans.The AHD rear view camera with 2.8mm lens, 120°-140° wide viewing angle, CVBS/720P/1080P optional video output and IP69K waterproof protection. The integrated LED brake light design maintains the original vehicle appearance, while the screw mounted structure provides a durable and secure installation method.

Features:

1. AHD Brake Light Camera designed for Fiat Ducato, Peugeot Boxer and Citroen Jumper vans provides integrated rear monitoring.

2. AHD Rear View Camera supports CVBS/720P/1080P optional resolution for clear reversing images.

3. 8pcs IR LEDs provide enhanced night vision performance with 0.1Lux low illumination.

4. 4PIN Aviation Connector provides stable connection and easy installation for vehicle camera systems.

5. AHD/CVBS Switch Function supports flexible compatibility with different vehicle monitors.

Parameter:

Product Type: Brake Light Camera

Suitable Model: Fiat Ducato / Peugeot Boxer / Citroen Jumper Van (2006-2018)

Image Sensor: FH8536+2399

Effective Pixels: CVBS / 720P / 1080P Optional

Lens: 2.8mm

Video Input Format: CVBS / 720P / 1080P HD25/30fps PAL/NTSC

View Angle: 120°-140°

Connector: 4PIN Aviation Connector

Power Supply: DC12V (Standard), 24V (Optional)

Minimum Illumination: 0.1Lux (LED ON)

White Balance: Auto

IR LED: 8 pcs

Audio: N/A

Bracket: With LED Light

IP Rating: IP69K

AHD/CVBS Switch Cutting Line: Optional

PAL/NTSC Switch Cutting Line: Optional
