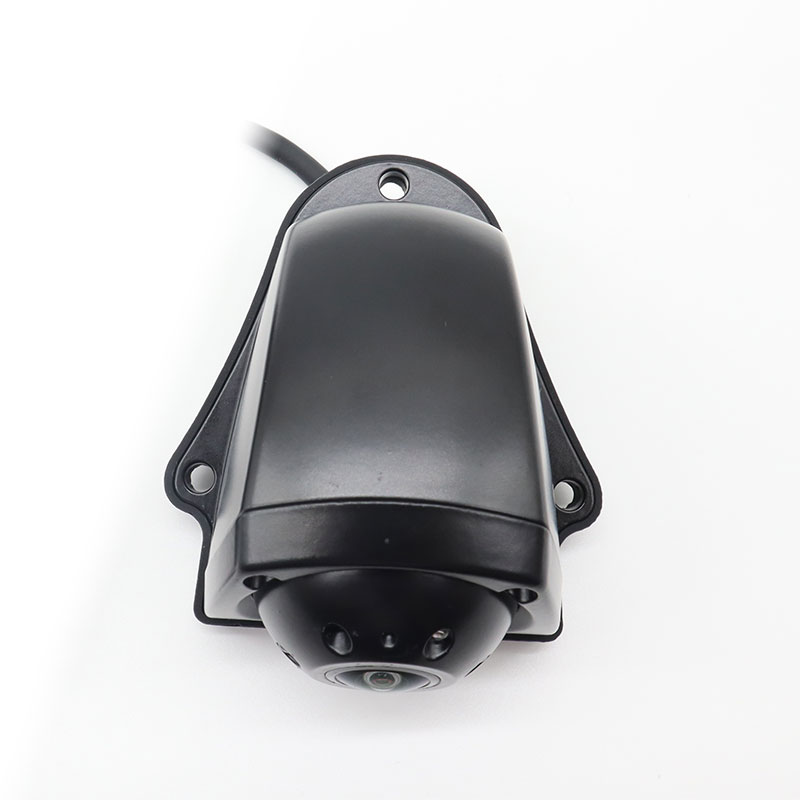

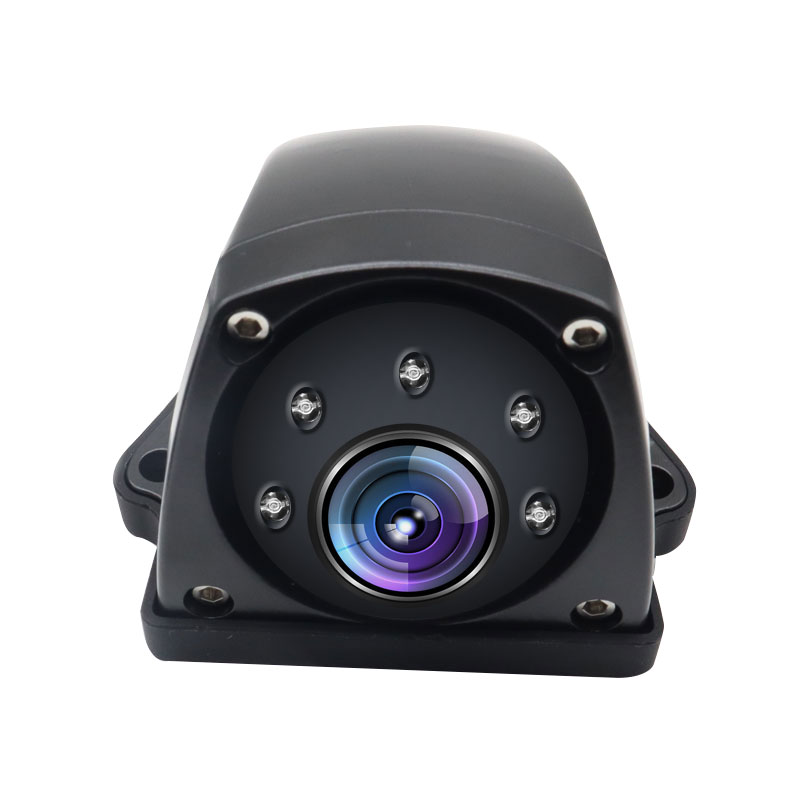

Side View AI Camera 720P with 130 degree Viewing Angle and IP69K Waterproof Rating

The Side View AI Camera is developed for commercial vehicles that require side-view monitoring and integration with compatible AI safety equipment. Its 720P imaging, 130° viewing angle, and robust waterproof design make it a practical option for vehicle camera systems operating in outdoor and challenging environments. With selectable mirror or non-mirror images and optional 24V power support, the camera can be configured to meet different installation requirements. The alarm channel is reserved for alarm functionality rather than audio transmission, making it suitable for compatible AI-assisted vehicle safety applications.

Product Advantages

1. AI Side-Monitoring Application

Designed for integration into compatible AI-assisted vehicle safety systems, supporting side-view monitoring applications. Specific AI detection functions depend on the connected system and configuration.

2. 720P HD Video Output

The 1280 × 720 effective pixel resolution provides a clear side-view image for compatible vehicle monitors and processing equipment.

3. 130° Viewing Angle

The wide viewing angle helps cover a substantial area beside the vehicle, making the camera suitable for commercial vehicle side-monitoring installations.

4. IP69K Waterproof Rating

Designed for demanding outdoor vehicle environments, including installations that require a high level of water and dust protection.

5. Automatic Image Adjustment

Automatic gain control (AGC), automatic white balance, and automatic backlight compensation help the camera adapt to different lighting conditions.

6. Mirror and Non-Mirror Options

Buyers can select the required image orientation according to camera position and display requirements.

7. Alarm Channel Integration

The audio channel is occupied by the alarm function. The camera is therefore intended for compatible alarm-based safety setups rather than audio recording or audio transmission.

• Commercial trucks: Side-view monitoring as part of a multi-camera safety system.
• Buses and coaches: Additional side visibility for compatible vehicle monitoring systems.
• Vans and delivery vehicles: Side-camera integration for fleet operations.
• Heavy-duty vehicles: Camera installation for demanding outdoor operating environments.
• Fleet safety systems: Integration with compatible AI processors, monitors, and alarm equipment.
• Vehicle electronics distributors and installers: Side-view camera solutions for customized commercial vehicle systems.

Product Parameters

Product Name: Side View AI Camera

Image Sensor: 1/3" CVBS (as specified)

Video System: PAL/NTSC

Frame Rate: 25/30 FPS

Effective Pixels: 1280 (H) × 720 (V)

Pixel Size: 3.75 μm × 3.75 μm

Image Type: Mirror / Non-Mirror Optional

Video Input: 720P (as specified)

Video Output: 1.0 Vp-p, 75 Ohm

Gamma: 0.45

AGC: Auto

Dynamic Range: 83 dB

White Balance: Auto

Electronic Shutter: 1/25–1/50,000 Seconds

Backlight Compensation (BLC): Auto

Power Supply: DC 12V Standard, 24V Optional

Waterproof Rating: IP69K

Viewing Angle: 130°

Audio: No audio function; channel reserved for alarm

Operating Temperature: -20°C to 70°C, RH 95% Max.

Storage Temperature: -40°C to 80°C, RH 95% Max.

Frequently Asked Questions

Q1: What is a Side View AI Camera used for?

A1: It is designed for side-view monitoring and integration with compatible AI-assisted vehicle safety systems. Specific detection functions depend on the connected AI system.

Q2: Does this camera support 720P video?

A2: Yes. The listed effective resolution is 1280 × 720, and the specified video input format is 720P.

Q3: What is the viewing angle?

A3: The camera has a 130° viewing angle.

Q4: Is the camera waterproof?

A4: It is specified with an IP69K waterproof rating, making it suitable for demanding vehicle installations. Confirm the installation and connector requirements for your application.

Q5: Does the camera support 24V vehicles?

A5: DC 12V is standard, and a 24V configuration is optional. Please specify the required voltage when requesting a quotation.

Q6: Can I choose mirror or non-mirror images?

A6: Yes. Mirror and non-mirror image configurations are available. Select the required orientation according to the camera position and monitor setup.

Q7: Does the camera record or transmit audio?

A7: No. According to the product specification, the audio channel is occupied by the alarm function.

Q8: Can this camera work with any vehicle monitor?

A8: Compatibility depends on the monitor's supported video format, resolution, and connection interface. Please confirm these details before ordering.
