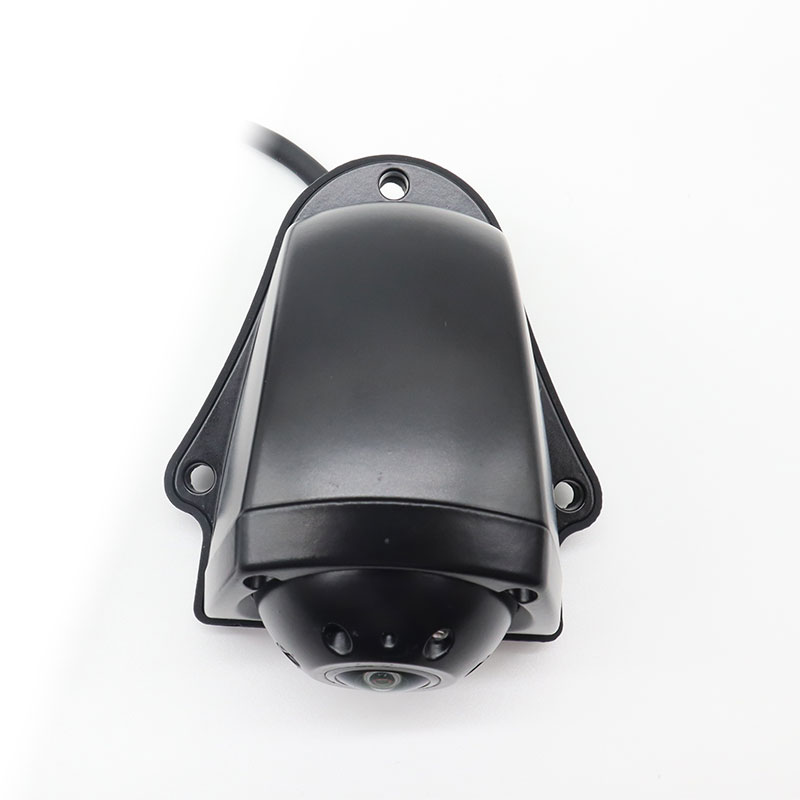

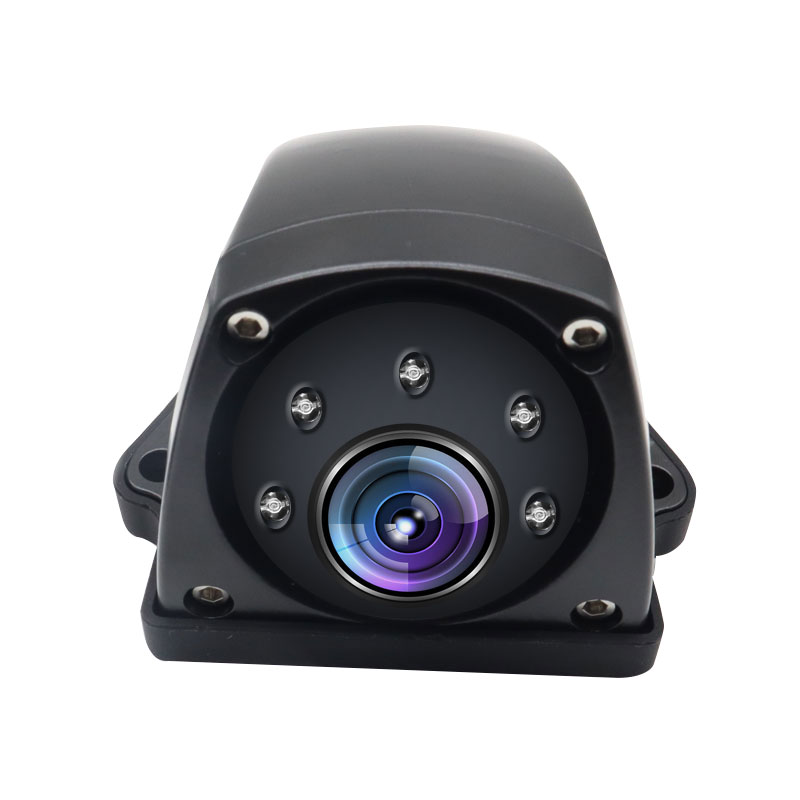

Side View AI Camera with 720P HD Video for Commercial Vehicles

Carleader Side View AI Camera is designed for vehicle side monitoring applications, helping improve driver awareness of surrounding areas during vehicle operation. The camera features 720P video output with 1280 × 720 effective pixels and a 130° viewing angle, providing a wide field of view for commercial vehicle installations. Its image adjustment functions include automatic gain control, automatic white balance and automatic backlight compensation to help maintain image quality under changing lighting conditions. The camera supports mirror and non-mirrored image options and operates with PAL/NTSC video systems at 25/30 FPS. Its IP69K waterproof rating makes it suitable for demanding vehicle environments. The AI side camera uses an alarm channel for audio alerts rather than a conventional audio pickup channel. It does not include a built-in microphone. DC 12V is standard, with DC 24V available as an option.

Key Features

1. AI Side View Camera: Designed for AI-assisted vehicle side monitoring applications.

2. 720P HD Video: Provides 1280 × 720 effective pixels for vehicle monitoring.

3. 130° Wide Viewing Angle: Helps cover a broad area alongside the vehicle.

4. IP69K Waterproof Protection: Designed for demanding commercial vehicle environments.

5. Automatic Gain Control: Automatically adjusts image gain according to lighting conditions.

6. Automatic White Balance: Helps maintain consistent image color.

7. Automatic Backlight Compensation: Helps improve image visibility in backlit environments.

8. Wide Dynamic Range: Features a specified dynamic range of 83dB.

9. Mirror and Non-Mirrored Image Options: Supports different installation requirements.

10. PAL/NTSC Compatibility: Supports PAL/NTSC video systems at 25/30 FPS.

11. AI Alarm Channel: Audio channel is allocated for alarm output rather than microphone audio.

Product Parameters

Product Name: Side View AI Camera

Camera Type: AI Side View Camera

Image Sensor: 1/3-inch CVBS sensor specification

Effective Pixels: 1280 (H) × 720 (V)

Pixel Size: 3.75 μm × 3.75 μm

Video Input: 720P

Video System: PAL/NTSC

Frame Rate: 25/30 FPS

Video Output: 1.0 Vp-p, 75Ω

Dynamic Range: 83dB

Gamma: 0.45

AGC: Automatic

White Balance: Automatic

Electronic Shutter: 1/25–1/50,000 seconds

Backlight Compensation: Automatic

Image Mode: Mirror / Non-mirrored optional

Power Supply: DC 12V standard

Optional Power Supply: DC 24V

Waterproof Rating: IP69K

Viewing Angle: 130°

Audio: No built-in microphone; audio channel allocated for alarm

Operating Temperature: -20°C to +70°C (RH 95% maximum)

Storage Temperature: -40°C to +80°C (RH 95% maximum)

ApplicationsCommercial

• Truck Side Monitoring
• Bus Side View Monitoring Systems
• Heavy-Duty Vehicle Safety Systems
• Commercial Vehicle Camera Systems
• Truck Blind-Spot Monitoring Applications
• Fleet Vehicle Monitoring Solutions
• Construction Vehicle Monitoring
• Industrial Vehicle Camera Installations
• Vehicle AI Safety Monitoring Projects

Quality Control and Testing

• Appearance and Housing Inspection
• Power Supply Function Test
• 720P Video Output Verification
• Image Quality Inspection
• Viewing Angle Verification
• Automatic Gain Control Test
• White Balance Function Test
• Backlight Compensation Test
• Mirror and Non-Mirrored Image Verification
• AI Alarm Function Test
• Waterproof Specification Verification
• Operating Temperature Specification Review

FAQ

Q1: What is a side view AI camera?

A1: A side view AI camera is designed for vehicle side monitoring applications and can be integrated into compatible AI vehicle safety systems.

Q2: What resolution does this AI side camera support?

A2: The camera supports 720P video with 1280 × 720 effective pixels.

Q3: What is the viewing angle of this side view camera?

A3: The specified viewing angle is 130°, helping cover a wide area alongside the vehicle.

Q4: Does this camera support 24V vehicles?

A4: Yes. DC 12V is standard, and a DC 24V version is available as an option.

Q5: Is the side view AI camera waterproof?

A5: Yes. The camera has an IP69K waterproof rating for demanding commercial vehicle applications.

Q6: Does the camera have a built-in microphone?

A6: No. The audio channel is allocated for alarm functionality rather than microphone audio pickup.

Q7: Does this camera support mirror image adjustment?

A7: Yes. Mirror and non-mirrored image versions are optional.

Q8: Can this camera be used for truck blind-spot monitoring?

A8: It is designed for vehicle side monitoring and can be used in compatible side-view safety systems. The actual blind-spot detection and alarm functions depend on the complete AI system configuration.

Q9: What video system does the camera support?

A9: It supports PAL/NTSC video systems at 25/30 FPS.
