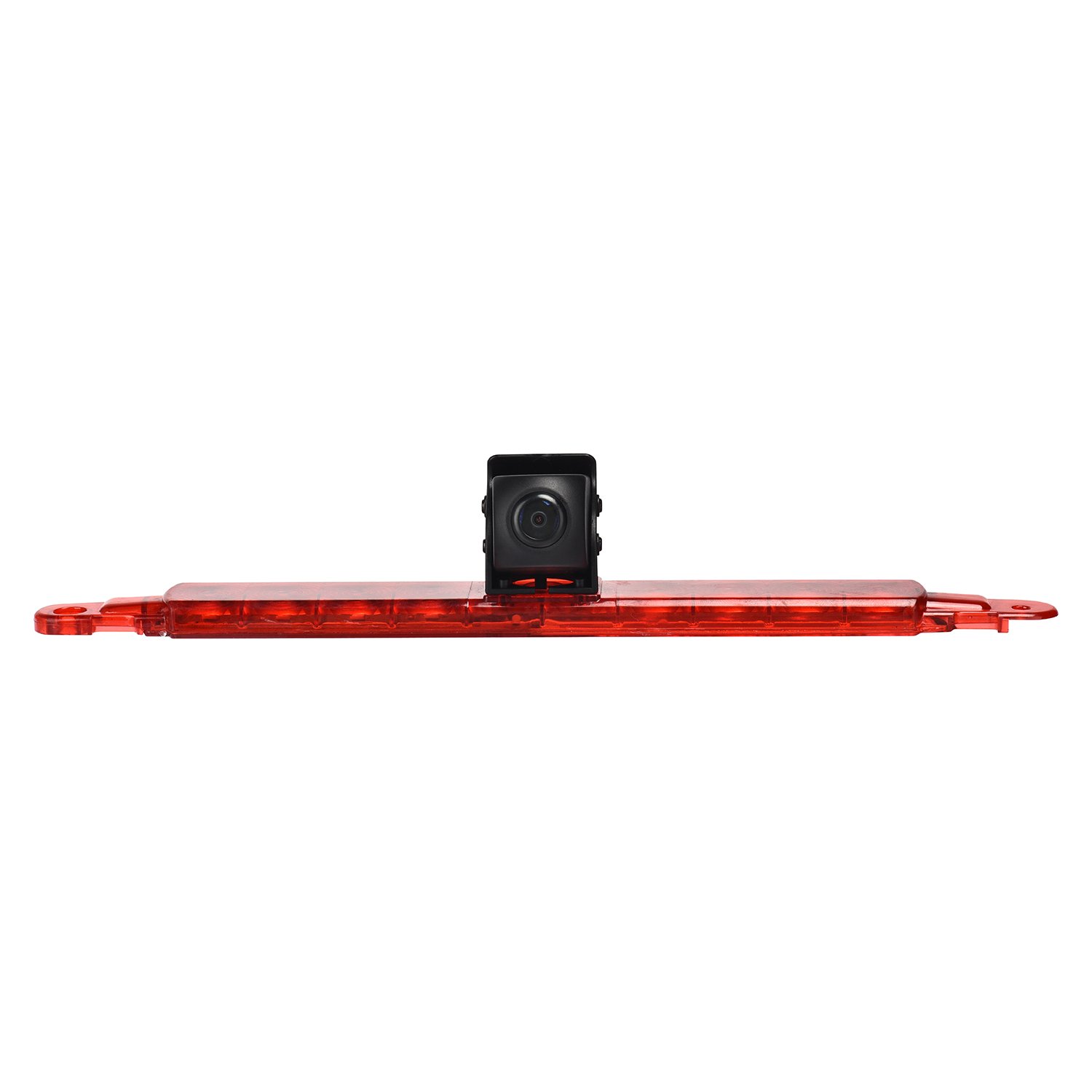

Slim Universal Brake Light Camera With Flat Back Housing Third Brake Light Replacement

The slim housing design allows flexible installation on different vehicle models while maintaining a professional appearance. Compared with traditional external backup cameras, this design combines the third brake light replacement and rear view camera functions into one compact unit, helping drivers improve rear visibility and reduce blind spots. The camera supports CVBS/720P/1080P optional video output and uses a 4PIN Aviation Connector with RCA Adapter for stable signal transmission and easy connection.

Features:

1. Universal design suitable for vans, commercial vehicles, RVs and fleet applications.

2. The rear view camera for car supports CVBS/720P/1080P optional video output.

3. 1.7mm lens provides 120°-140° wide viewing angle for better rear visibility.

4. 0Lux low illumination performance supports clear rear monitoring in dark environments.

5. IP69K waterproof protection ensures reliable operation in harsh weather conditions.

Parameter:

Design: Slim & Flat Back Housing

Effective Pixels: CVBS / 720P / 1080P Optional

Lens: 1.7mm

Video Input Format: CVBS / 720P / 1080P HD25/30fps PAL/NTSC

View Angle: 120°-140°

Connector: 4PIN Aviation Connector

Power Supply: DC12V (Standard), 24V (Optional)

Minimum Illumination: 0Lux

White Balance: Auto

IR LED: N/A

Audio: N/A

Bracket: With LED Light

IP Rating: IP69K

AHD/CVBS Switch Cutting Line Optional

PAL/NTSC Switch Cutting Line Optional

Application Scenarios & Testing

Suitable for:

• Vans
• Cargo vans
• Commercial vehicles
• RV vehicles
• Fleet vehicles
• Delivery vehicles
• Special vehicles

Applications:

• Third brake light replacement
• Reverse assistance
• Parking monitoring
• Rear blind spot detection
• Fleet safety management

Testing Process

Each Brake Light Camera is tested before shipment:

• Camera image quality test
• Video signal transmission test
• Waterproof and dust resistance test
• Power supply stability test
• Connector durability test
• Aging test

FAQ

Q1: Is this Brake Light Camera vehicle-specific?

A: No. This is a universal slim brake light camera designed for flexible installation on different vehicles.

Q2: Can it replace the original third brake light?

A: Yes. It can replace the existing third brake light and provide rear camera functionality.

Q3: Does it support 1080P resolution?

A: Yes. CVBS/720P/1080P optional video output is available.

Q4: Is the camera waterproof?

A: Yes. The camera features IP69K waterproof protection for outdoor vehicle applications.

Q5: How is the camera connected?

A: It uses a 4PIN Aviation Connector with RCA Adapter for stable connection and easy installation.
