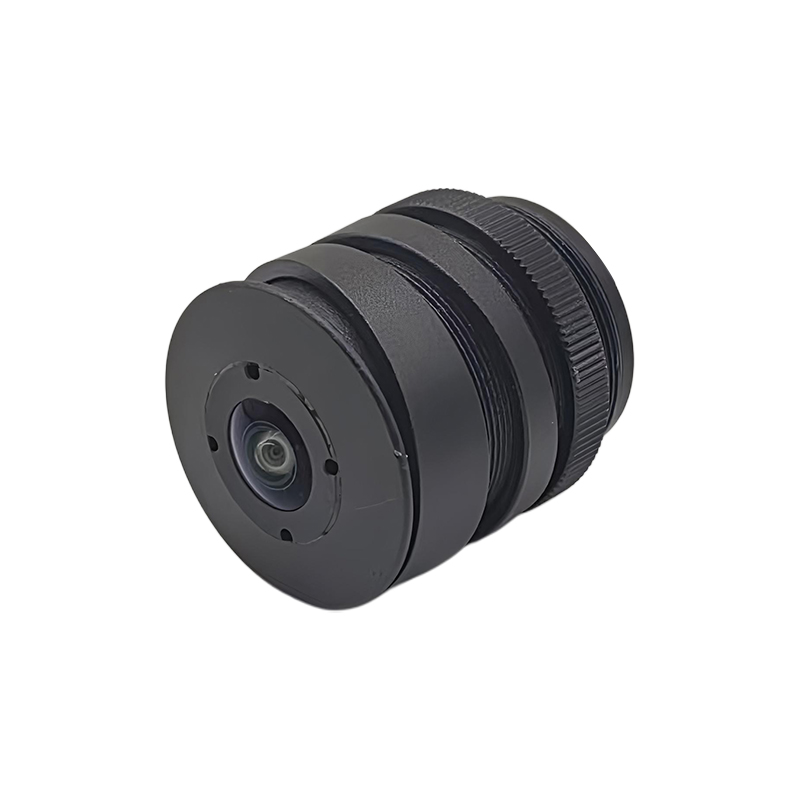

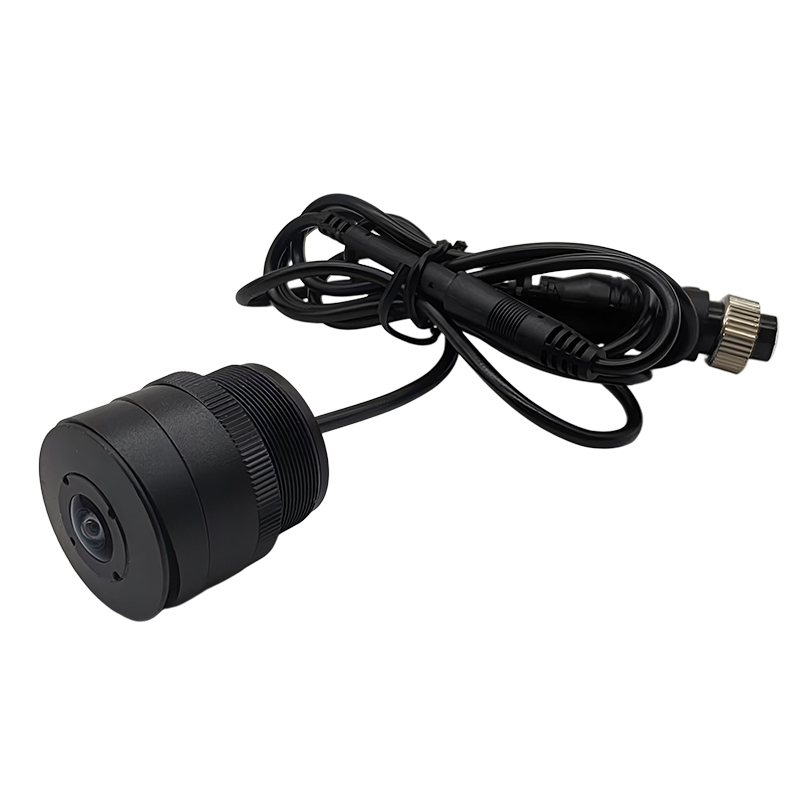

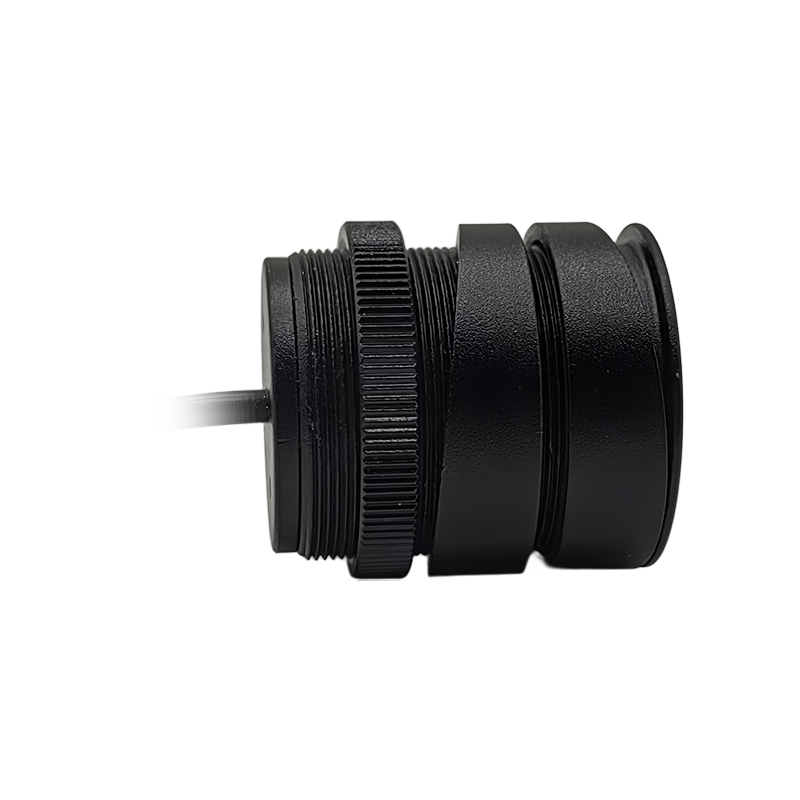

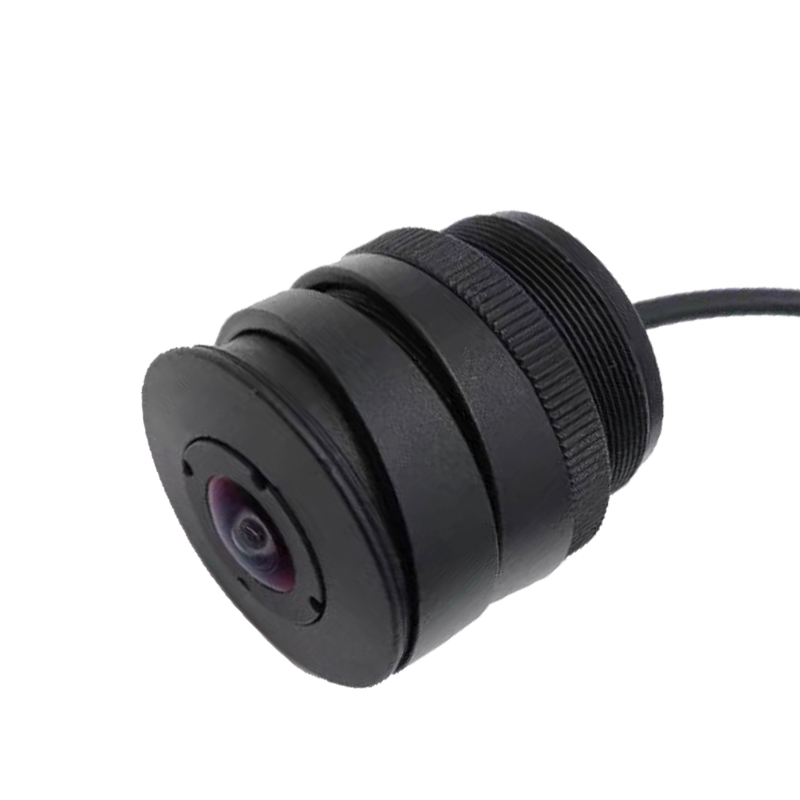

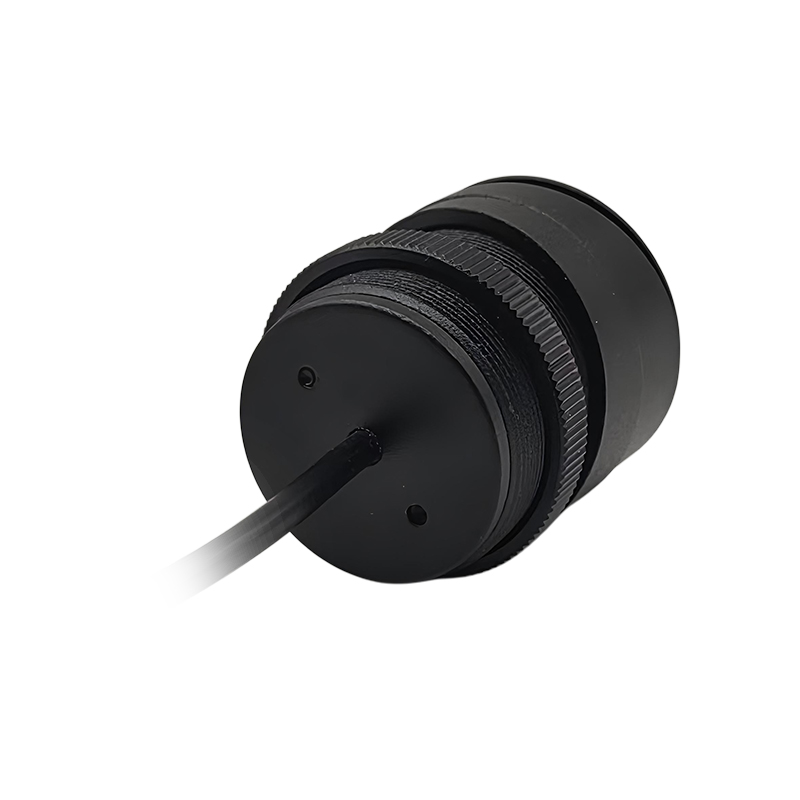

Starlight Front Rear Camera with 150° Wide Angle from Factory

The Starlight Night Vision function provides color image performance in low-light environments. Combined with a wide viewing angle of up to 150°, the camera can help drivers monitor the area in front of or behind the vehicle. With mirror and non-mirrored image options, this compact camera can be configured as a front view bumper camera, rear bumper camera, reversing camera or parking assistance camera.

Parameters

Product Type: Front / Rear View Bumper Camera

Video Input: CVBS / AHD720P / AHD1080P Optional

Power Supply: DC12V (Standard), 24V (Optional)

Mirror Image: Optional

Non-Mirrored Image: Optional

Lux: 0.5 Lux

Lens: 2.0mm

Night Vision: Starlight Night Vision (Color Image)

View Angle: 135° / CVBS, 135° / AHD720P, 150° / AHD1080P

Camera Diameter: 28mm

White Balance: Auto

System: PAL/NTSC Optional

Built-in Mic: No

Waterproof Rating: IP69K

Operating Temperature: -20℃~+75℃ (RH95% Max.)

Storage Temperature: -30℃~+85℃ (RH95% Max.)

Key Features

1. The compact housing is designed for applications where a traditional large vehicle camera is not suitable. The 28mm bumper camera can be integrated into different vehicle installation positions.

2. Mirror and non-mirrored image options allow flexible use as a front bumper camera or rear bumper camera.

3. The camera supports Starlight Night Vision, helping provide color images in low-light driving and parking environments.

4. Different viewing angles are available according to the video format, with up to 150° for the 1080P version, helping provide wider vehicle surroundings coverage.

5. CVBS, AHD720P and AHD1080P options are available for compatibility with different vehicle monitors and video systems.

6. The camera is designed for exterior vehicle applications and features an IP69K waterproof rating.

Application

This vehicle bumper camera is suitable for:

• Front bumper monitoring
• Rear bumper monitoring
• Vehicle blind spot monitoring
• Truck front view systems
• Van rear view systems
• Parking assistance
• Commercial vehicle camera systems
• Fleet vehicle monitoring
• Truck and bus surveillance
• Outdoor vehicle camera installations

FAQ

Q1: Can this camera be installed on both the front and rear bumper?

Yes. Mirror and non-mirrored image options allow the camera to be used for both front and rear vehicle monitoring.

Q2: What is the camera size?

The camera has a compact 28mm diameter, making it suitable for installations with limited mounting space.

Q3: What is the maximum viewing angle?

The AHD1080P version can provide up to a 150° viewing angle.

Q4: Does this bumper camera support night vision?

Yes. It features Starlight Night Vision with color image.

Q5: Can I choose AHD1080P?

Yes. CVBS, AHD720P and AHD1080P are available as optional video configurations.
