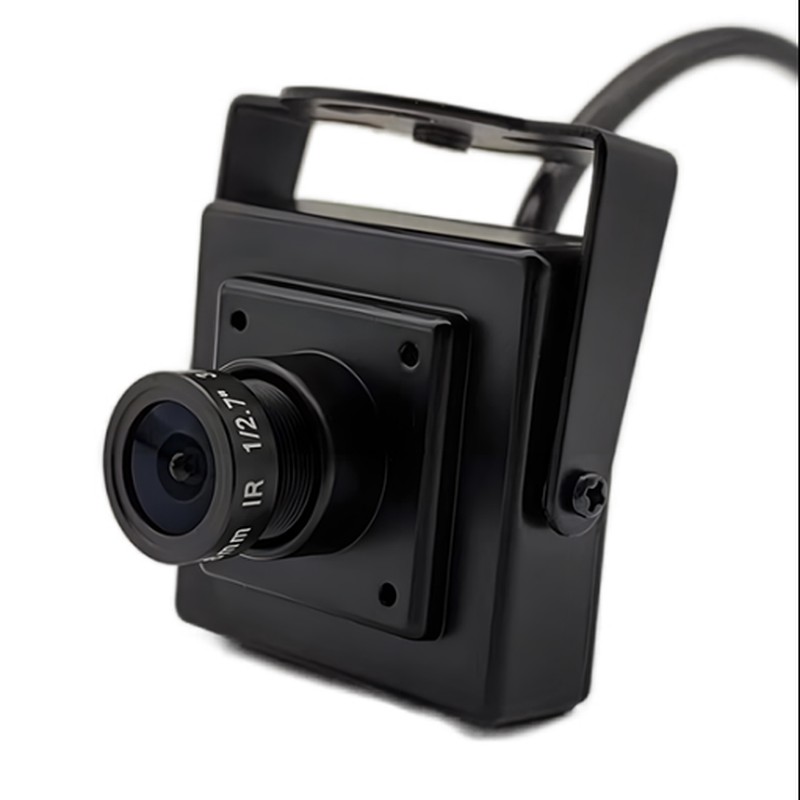

Starlight Front View Camera with Color Night Vision and IP69K for Commercial Vehicles

The Starlight Front View Camera is built around a specific requirement in commercial vehicle monitoring: maintaining a useful color image when ambient light becomes very low. Unlike conventional infrared vehicle cameras that switch to black-and-white night vision, this Starlight camera is designed to provide color night vision under low-light conditions. This makes it particularly suitable for front-view applications where image detail and color information can be useful for monitoring the road and surrounding environment. With a compact 2.8mm lens, 110° viewing angle, multiple video signal options and IP69K protection, the camera can be integrated into different commercial vehicle camera systems.

Product Advantages

1. Starlight Color Night Vision — The key feature of the camera, designed to provide color images in suitable low-light conditions rather than relying solely on conventional infrared black-and-white night vision.

2. 0.1 LUX Low-Light Sensitivity — Suitable for front monitoring applications where ambient illumination may be limited, such as early morning, evening, parking areas and other low-light environments.

3. Dedicated Front View Design — Optimized as a forward-facing vehicle camera for trucks, buses, vans and commercial vehicle monitoring systems.

4. 110° Viewing Angle — Provides a practical forward field of view without making the viewing angle excessively wide.

5. AHD1080P Support — AHD1080P configuration is available for applications requiring higher-resolution front monitoring.

Product Parameters

Product Type: Starlight Front View Camera

Image Sensor: 1/2.7" & 1/1.9"

Video Input: CVBS / AHD720P / AHD1080P Optional

Power Supply: DC12V Standard, 24V Optional

Image: Mirror / Non-Mirrored Optional

Lens: 2.8mm

Minimum Illumination: 0.1 LUX

Night Vision: Starlight Night Vision, Color Image

View Angle: 110°

S/N Ratio: ≥48dB

Video System: PAL / NTSC Optional

Waterproof Rating: IP69K

Operating Temperature: -20~+75°C, RH95% Max.

Storage Temperature: -30~+85°C, RH95% Max.

Application Scenarios

1. Truck Front Monitoring

Provides forward-facing video for trucks and heavy commercial vehicles, especially where low-light visibility is important.

2. Bus Front Camera

Can be installed at the front of buses for forward-area monitoring and integration with onboard surveillance systems.

3. Fleet Vehicle Monitoring

The AHD/CVBS configurations can be connected to compatible fleet DVR or MDVR systems.

4. Commercial Van Camera

Suitable for vans and other commercial vehicles that require a compact front-facing camera.

5. Low-Light Vehicle Monitoring

The Starlight color imaging capability makes the camera suitable for early morning, evening and other low-light operating conditions.

6. Vehicle Safety Camera System

Can serve as the front-facing camera within a larger commercial vehicle camera and monitoring system.

Quality Control & Testing

Depending on the final configuration and project requirements, relevant inspections can include:

• Image quality inspection
• Low-light image performance inspection
• Starlight color image function inspection
• Viewing angle verification
• CVBS/AHD video signal inspection
• PAL/NTSC system inspection
• Mirror/non-mirrored image inspection
• Power supply and electrical function testing
• Waterproof and sealing inspection
• Housing and assembly inspection
• Operating temperature verification
• Final appearance inspection

FAQ

Q1. What is a Starlight front view camera?

A1. It is a vehicle front camera designed to provide color image output in suitable low-light conditions using Starlight night vision technology.

Q2. Does the camera provide color night vision?

A2. Yes. The specified Starlight Night Vision function provides a color image in suitable low-light environments.

Q3. What is the minimum illumination?

A3. The specified minimum illumination is 0.1 LUX.

Q4. What is the viewing angle?

A4. The camera uses a 2.8mm lens with a 110° viewing angle.

Q5. Does it support AHD1080P?

A5. Yes. CVBS, AHD720P and AHD1080P configurations are available.

Q6. Can this camera be connected to an MDVR?

A6. Yes. The appropriate CVBS or AHD version can be integrated with a compatible vehicle DVR or MDVR.

Q7. Is the camera suitable for exterior installation?

A7. Yes. The camera has an IP69K waterproof rating and is designed for commercial vehicle applications.

Q8. Can it be used on 24V trucks?

A8. Yes. DC12V is standard and a 24V version is available as an option.

Q9. Can I choose a mirrored image?

A9. Yes. Mirror and non-mirrored image configurations are optional.

Q10. Is this camera mainly designed for front-view monitoring?

A10. Yes. The product is specifically positioned as a front view camera for commercial vehicle applications.

Q11. What types of vehicles can use this camera?

A11. It can be used on trucks, buses, vans and other commercial vehicles requiring front monitoring.

Q12. What is the advantage of Starlight compared with conventional infrared night vision?

A12. Starlight technology is designed to maintain a color image in suitable low-light conditions, whereas conventional infrared night vision commonly uses infrared illumination for nighttime imaging.
