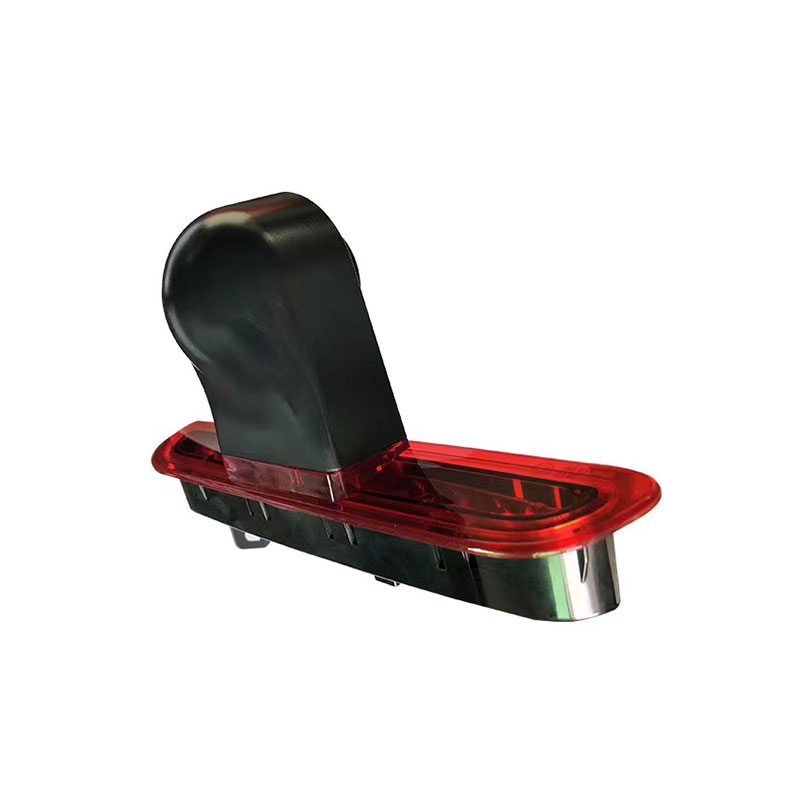

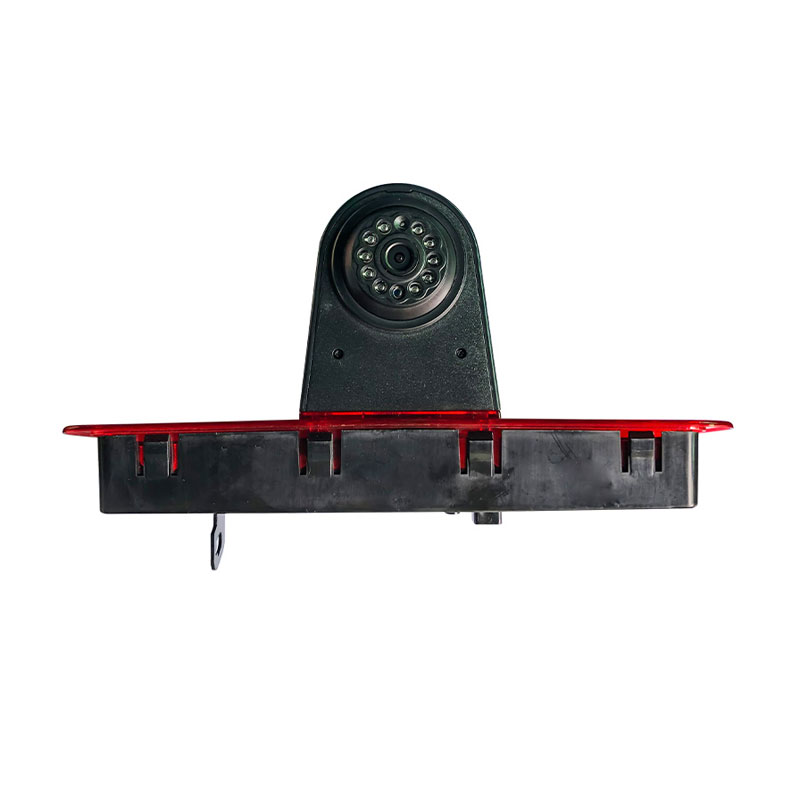

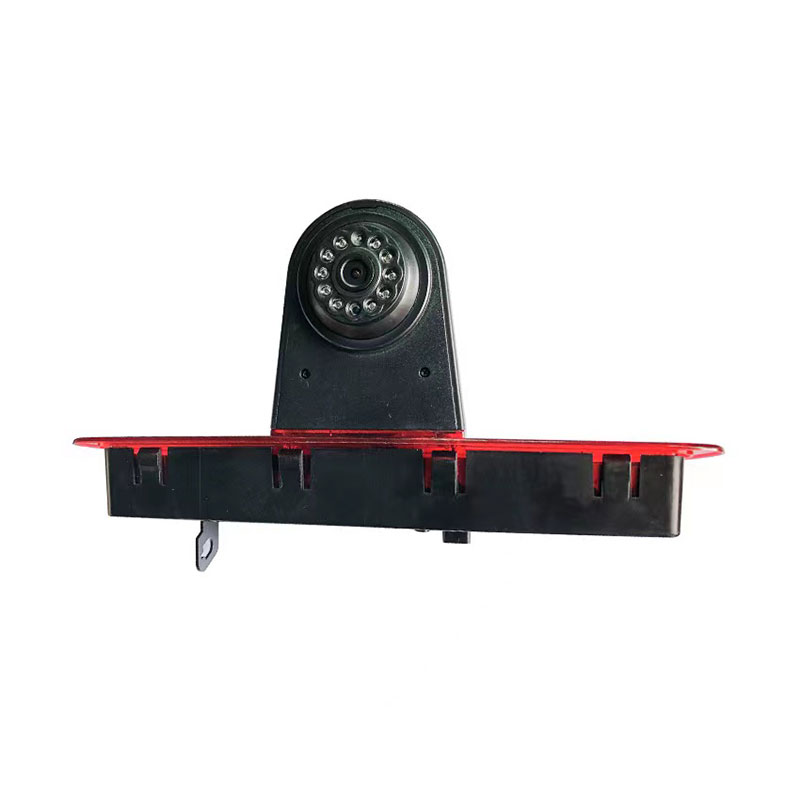

Toyota Hiace 2005-2018 LED Brake Light Replacement Camera For Van Reverse View System

Features:

1. 2.8mm lens with 120°-140° wide viewing angle provides better rear visibility.

2. 10pcs IR LEDs support enhanced night vision performance in dark environments.

3. 0.1Lux low illumination ensures reliable image performance at night.

4. 4PIN Aviation Connector with RCA Adapter provides stable connection.

5. IP69K waterproof protection supports harsh commercial vehicle environments.

Parameter:

Compatible Vehicle: Toyota Hiace(2005-2018)

Effective Pixels: CVBS / 720P / 1080P Optional

Lens: 2.8mm

Video Input Format: CVBS / 720P / 1080P HD25/30fps PAL/NTSC

View Angle: 120°-140°

Connector: 4PIN Aviation Connector

Power Supply: DC12V (Standard), 24V (Optional)

Minimum Illumination: 0.1Lux (LED ON)

White Balance: Auto

IR LED: 10 pcs

Audio: N/A

Bracket: With LED Light

IP Rating: IP69K

AHD/CVBS Switch Cutting Line Optional

PAL/NTSC Switch Cutting Line Optional

Application Scenarios

Suitable for:

• Toyota Hiace Van
• Passenger vans
• Cargo vans
• Delivery vehicles
• Commercial vehicles
• Fleet vehicles

Applications:

• Reverse assistance
• Parking monitoring
• Rear blind spot monitoring
• Fleet safety management
• Commercial vehicle operation

FAQ

Q1: Which vehicle does this Brake Light Camera fit?

A: This camera is designed for Toyota Hiace 2005-2018 Van.

Q2: Does it replace the original third brake light?

A: Yes, it replaces the original brake light position and integrates rear camera functionality.

Q3: Does this model have LED brake light function?

A: Yes, this model includes an LED brake light design.

Q4: Does it support 1080P resolution?

A: Yes, CVBS/720P/1080P optional video output is available.

Q5: Is it suitable for commercial vehicles?

A: Yes, with IP69K waterproof protection, it is suitable for vans, fleet vehicles and commercial applications.
