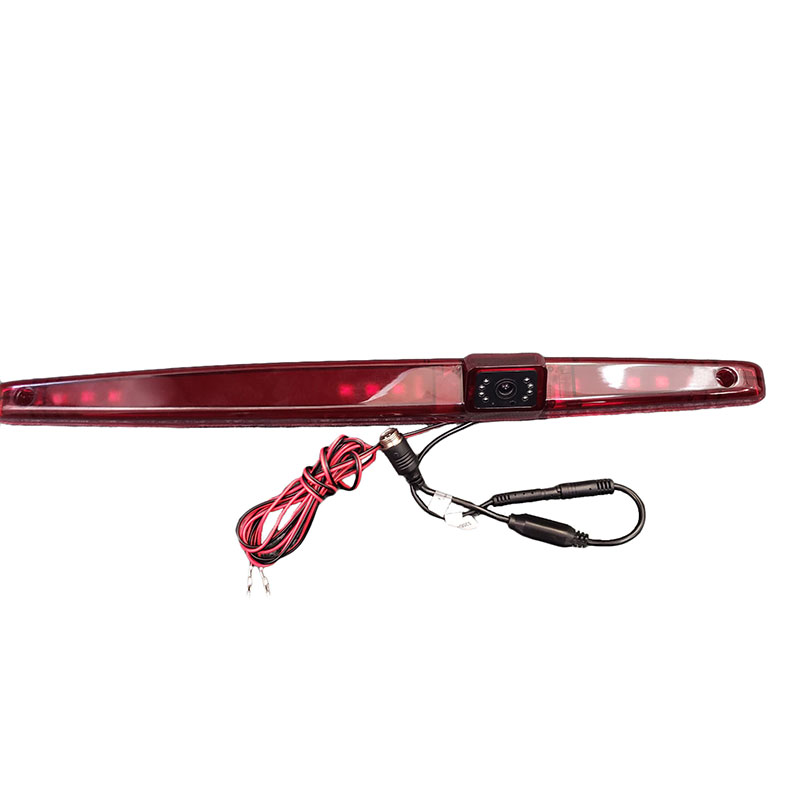

Universal Clearance Light Backup Camera With LED Light For RV Truck Van Rear View Camera

Carleader Universal Clearance Light Backup Camera With LED Light For RV Truck Van Rear View Camera,  which combines vehicle clearance light function with rear view monitoring capability. Designed with a universal mounting structure, this Backup Camera can be installed on flat surfaces at the rear of different vehicles, making it suitable for RVs, trucks, trailers, vans and commercial vehicles. The integrated LED clearance light design improves vehicle visibility while providing additional reversing assistance through the built-in rear view camera.

Application Scenarios

Suitable for:

• RV vehicles
• Trucks
• Trailers
• Cargo vans
• Commercial vehicles
• Fleet vehicles

Applications:

• Reverse assistance
• Parking monitoring
• Rear blind spot monitoring
• Vehicle safety improvement

Features:

1. Universal Clearance Light Backup Camera combines LED clearance light and rear view camera functions for multiple vehicle applications.

2. Universal Rear View Camera design allows installation on flat rear surfaces of RVs, trucks, trailers and vans.

3. AHD Backup Camera supports CVBS/720P/1080P optional resolution for clear rear monitoring.

4. 120°-140° wide angle Backup Camera helps reduce rear blind spots during parking and reversing.

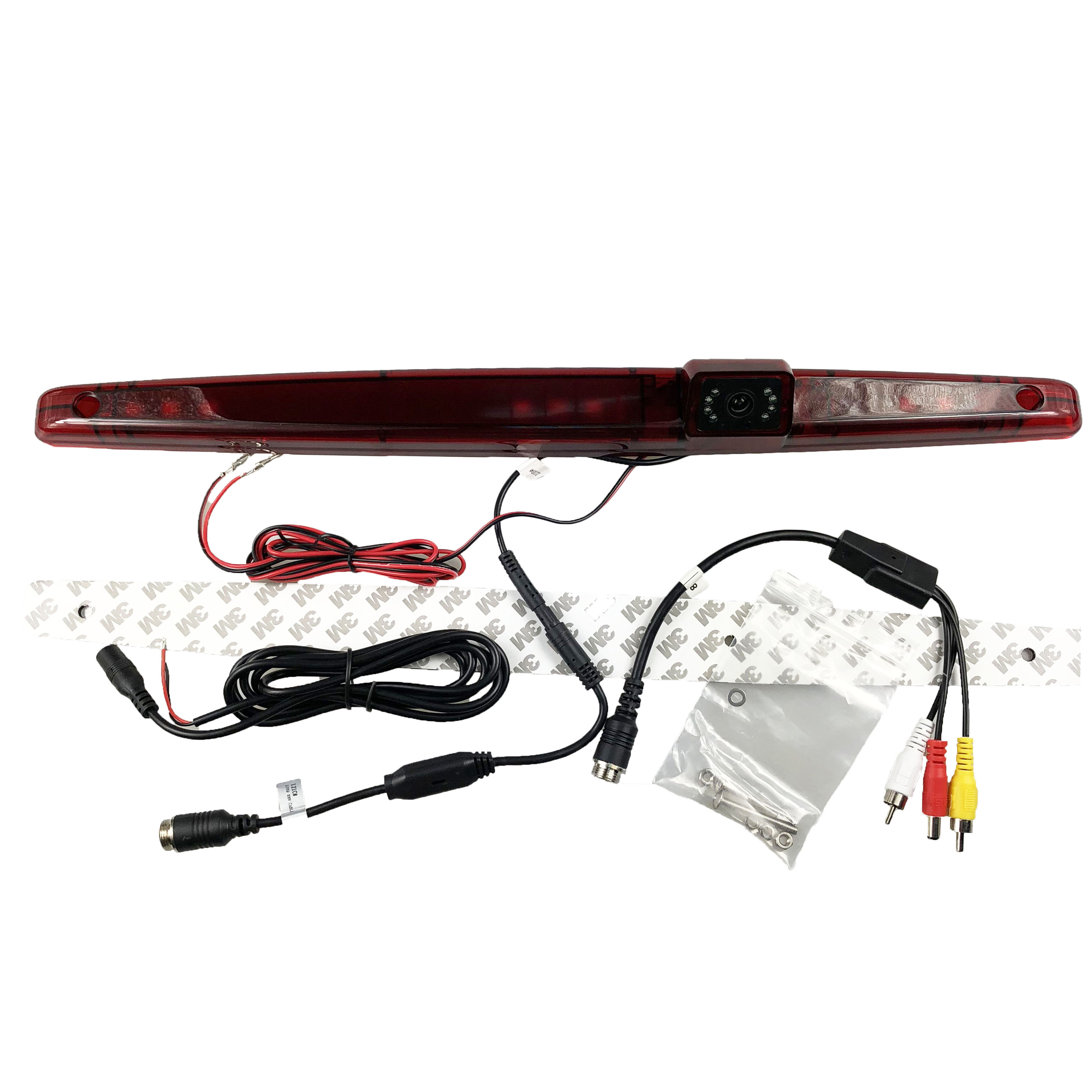

5. 4PIN Aviation Connector with RCA  Adapter ensures easy connection and installation for vehicle camera systems.

6. IP69K waterproof Commercial Vehicle Camera provides reliable performance in outdoor environments.

Parameter:

Product Type: Universal Clearance Light Backup Camera

Application: RV / Truck / Trailer / Van / Commercial Vehicle

Effective Pixels: CVBS / 720P / 1080P Optional

Lens: 1.7mm

Video Input Format: CVBS / 720P / 1080P HD25/30fps PAL/NTSC

View Angle: 120°-140°

Connector: 4PIN Aviation Connector

Power Supply: DC12V (Standard), 24V (Optional)

Minimum Illumination: 0.1Lux (LED ON)

White Balance: Auto

IR LED: 8 pcs

Audio: N/A

Bracket: With LED Light

IP Rating: IP69K

AHD/CVBS Switch Cutting Line: Optional

PAL/NTSC Switch Cutting Line: Optional

FAQ

Q1: Is this camera vehicle-specific?

A: No. This is a universal model designed for different vehicles with flat rear installation surfaces.

Q2: Where can this camera be installed?

A: It can be mounted on the rear flat surface of RVs, trucks, trailers, vans and commercial vehicles.

Q3: Does it include LED light function?

A: Yes, it integrates clearance light and backup camera functions.

Q4: Does it support 1080P?

A: Yes, CVBS/720P/1080P optional video output is available.

Q5: How does it connect?

A: It uses a 4PIN Aviation Connector with RCA Adapter for easy installation.
