Universal Front Side Rear View Camera for Trucks and Commercial Vehicles

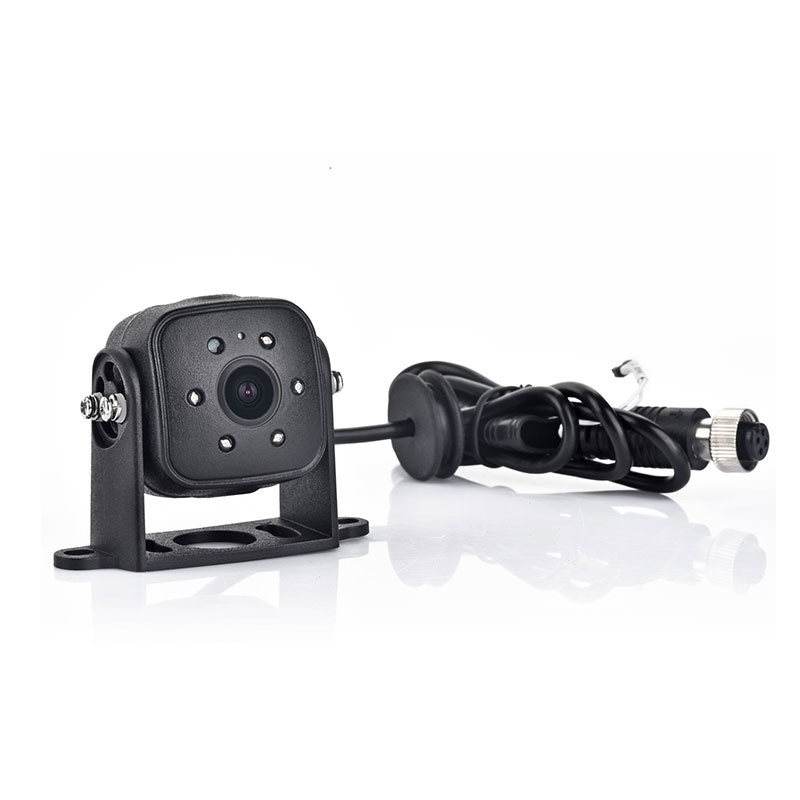

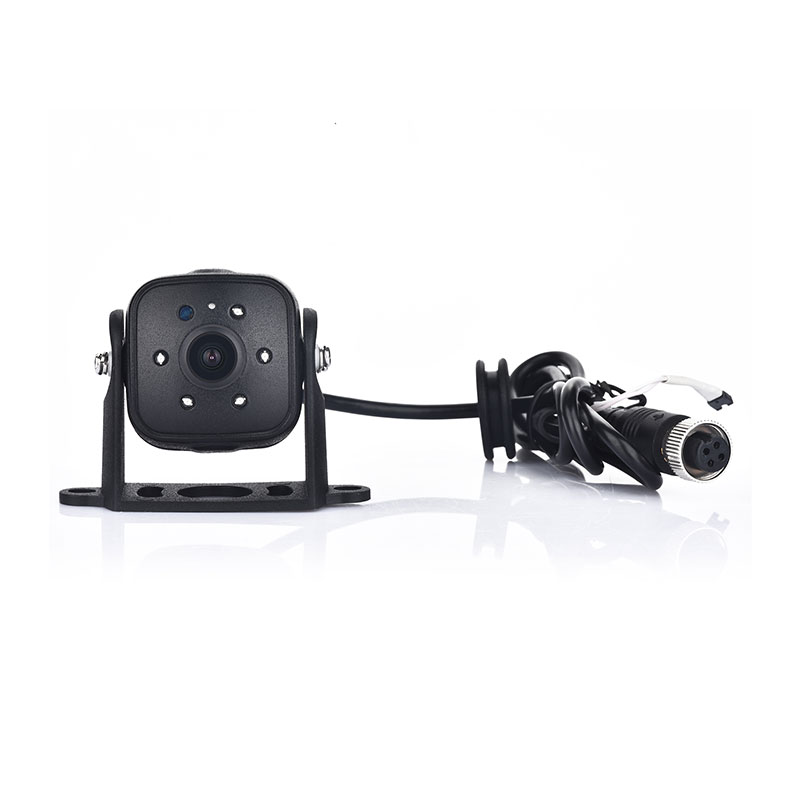

Carleader Universal Front Side Rear View Camera for Trucks and Commercial Vehicles. The Front/Side/Rear View Camera is a versatile vehicle camera designed for trucks, buses, vans, trailers and other commercial vehicles. It can be used for front, side or rear monitoring according to different installation requirements. Supporting CVBS, AHD720P and AHD1080P, the camera can connect with compatible vehicle monitors, DVRs and MDVR systems. Its 2.0mm lens, 130°/150° wide-angle options, 90° horizontal and vertical adjustment, low-light illumination and IP69K protection make it suitable for various vehicle monitoring, truck camera and fleet surveillance applications.

Product Advantages

1. One Camera for Three Installation Positions

The biggest advantage is installation flexibility. Instead of developing or stocking completely different cameras for front, side and rear applications, this model can be configured according to the installation position. It can be used as a: Front camera, Side camera, Rear camera, Truck camera, Commercial vehicle camera and Fleet monitoring camera. This gives distributors more flexibility when serving different vehicle camera projects.

2. 90° Horizontal & Vertical Adjustment

The camera angle can be rotated 90° horizontally and vertically. This allows installers to adjust the viewing direction after positioning the camera, making it easier to optimize the image for different mounting locations.For example: Front installation → adjust toward the road ahead, Side installation → adjust toward the vehicle side, Rear installation → adjust toward the rear monitoring area. This is especially useful for vehicle manufacturers, installers and fleet camera system integrators working with different vehicle body structures.

3. 130° Standard / 150° Wide-Angle Option

The camera offers a 130° standard viewing angle, with a 150° option for applications requiring broader coverage. A wider viewing angle can be useful for: Truck side monitoring, Blind spot observation, Rear-area monitoring, Vehicle maneuvering, Reversing, Loading areas and Fleet surveillance. Wide-angle vehicle cameras are commonly used in multi-camera commercial vehicle systems to expand front, side and rear coverage.

4. AHD1080P for HD Vehicle Monitoring

The camera supports: CVBS, AHD720P, AHD1080P. The AHD1080P option provides an HD configuration for compatible vehicle monitors and recording systems. This makes the camera suitable for different levels of vehicle camera system, truck DVR, MDVR and fleet monitoring projects.

5. IP69K Protection for Outdoor Vehicle Use

The camera is rated IP69K, making it suitable for demanding exterior vehicle applications. It can be used on vehicles exposed to: Rain, Road spray, Dust, Mud and Vehicle washing. This makes the camera suitable for trucks, trailers, buses, construction vehicles and other commercial vehicles.

6. Suitable for Blind Spot Monitoring Applications

When installed on the side of a truck or commercial vehicle, the camera can provide an additional view of areas that may be difficult to observe through conventional mirrors. This makes it suitable for: Truck Blind Spot Camera, Commercial Vehicle Blind Spot Camera, Side View Camera, Wide Angle Truck Camera, Fleet Safety Camera. Singapore's LTA specifically recognizes camera monitor systems as one type of device used to cover blind-spot areas on qualifying heavy vehicles, illustrating the relevance of camera-based visibility solutions in commercial vehicle applications.

Parameters

Product Type: Front / Side / Rear View Camera

Image Sensor: 1/2.7" & 1/1.9"

Video Input: CVBS / AHD720P / AHD1080P Optional

Power Supply: DC12V (Standard), 24V (Optional)

Image: Mirror Image & Non-Mirrored Image Optional

Angle Adjustment: Rotatable 90° (Horizontal / Vertical)

View Angle: 130° Standard, 150° Optional

Minimum Illumination: 0.1 LUX (5 LED)

Lens: 2.0mm

S/N Ratio: ≥48dB

System: PAL/NTSC Optional

Built-in Microphone: Optional

Waterproof Rating: IP69K

Operating Temperature: -20℃~+75℃ (RH95% Max.)

Storage Temperature: -30℃~+85℃ (RH95% Max.)

Application Scenarios

• Truck Camera System

Use multiple cameras to cover the truck's front, sides and rear.

• Commercial Fleet Monitoring

Combine the camera with an MDVR and other cameras for fleet video monitoring.

• Bus & Coach Camera System

Use the camera for front, side or rear monitoring depending on installation requirements.

• Construction Vehicle Monitoring

Suitable for trucks and work vehicles operating in outdoor environments.

• Logistics & Delivery Vehicles

Useful for front, side and rear monitoring on delivery vehicles.

• Trailer & Heavy-Duty Vehicle Monitoring

Can be used for rear and side monitoring applications where wider vehicle coverage is required.

Multi-Camera Configuration Examples

• Configuration A — Basic Vehicle Monitoring

1 × Front Camera + 1 × Rear View Camera

Suitable for basic front and rear visibility.

• Configuration B — Truck Side Monitoring

1 × Front Camera + 2 × Side Cameras + 1 × Rear Camera

Provides wider coverage around a commercial vehicle.

• Configuration C — Fleet Surveillance

Front + Left Side + Right Side + Rear + MDVR

Suitable for fleet operators requiring multi-angle video recording.

FAQ

Q1: Can this camera be used for front, side and rear applications?

Yes. The camera is designed for flexible front, side and rear vehicle monitoring applications.

Q2: Can the camera angle be adjusted?

Yes. The camera supports 90° horizontal and vertical rotation for flexible installation.

Q3: What viewing angles are available?

The standard viewing angle is 130°, with 150° optional.

Q4: Does it support AHD1080P?

Yes. CVBS, AHD720P and AHD1080P are optional.

Q5: Can it be used as a truck blind spot camera?

Yes. When installed on the side of a truck or commercial vehicle, it can provide additional side visibility for blind spot monitoring applications.

Q6: Can it work with an MDVR?

Yes. It can be integrated into compatible vehicle DVR/MDVR and multi-camera systems.

Q7: Is the camera suitable for outdoor installation?

Yes. The camera has an IP69K waterproof rating and is designed for exterior vehicle applications.

Q8: Can the image be mirrored?

Yes. Mirror and non-mirrored image configurations are optional.
