Vehicle Side View Camera with Rotatable Lens and IP69K Waterproof Rating

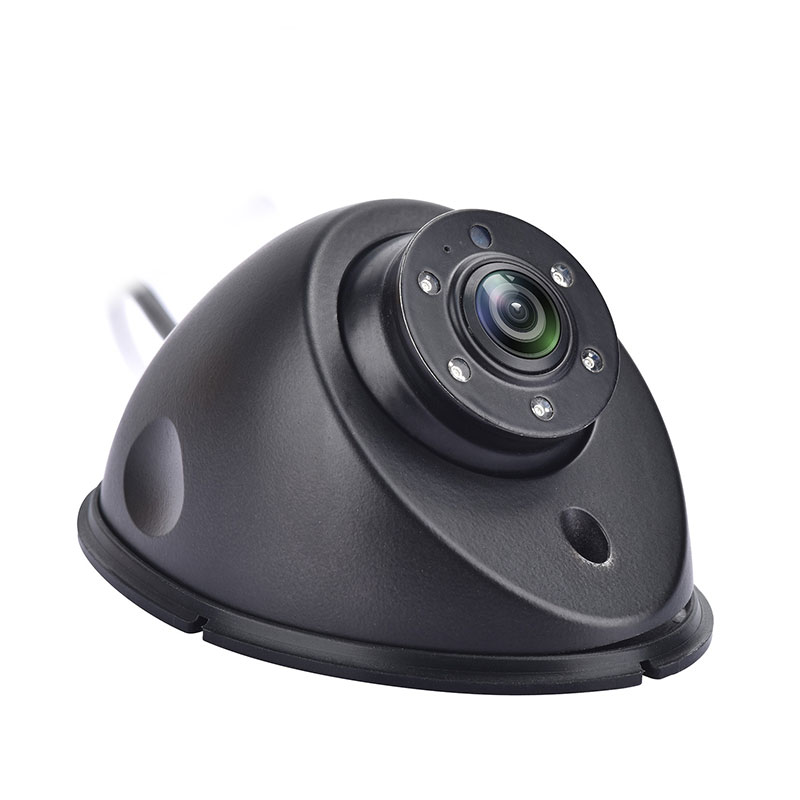

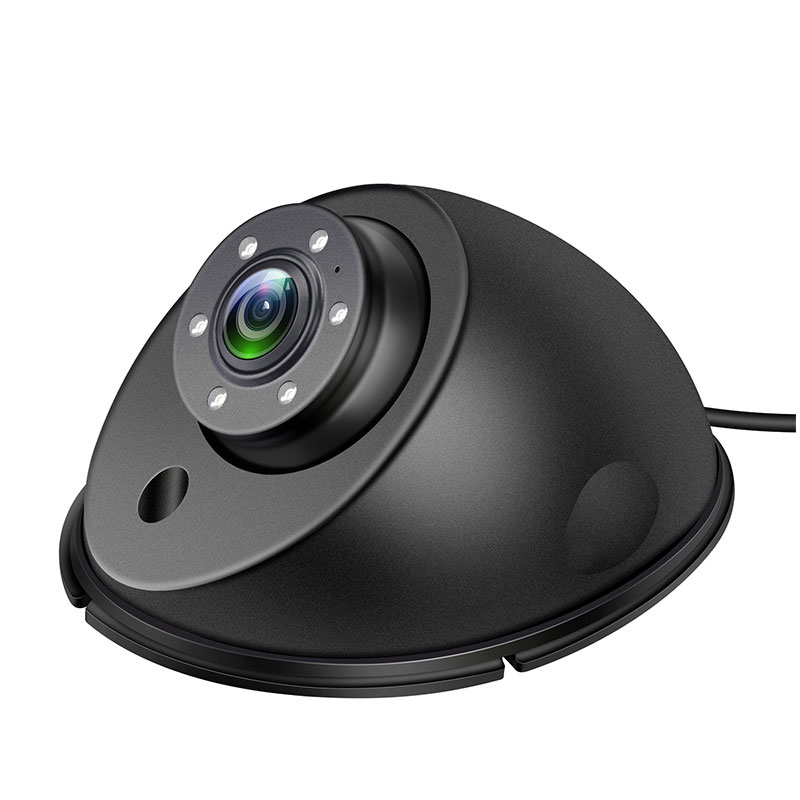

Carleader Side Camera is a vehicle monitoring camera designed for applications that require side-view visibility and flexible camera positioning. Its rotatable lens helps installers adjust the camera orientation to suit different mounting positions. The camera supports CVBS, AHD 720P, and AHD 1080P video options, allowing buyers to select a version compatible with their vehicle monitor or video system. The standard viewing angle is 140 degrees, with a 170-degree option available for applications requiring a wider field of view. With automatic day and night switching through an IR-cut function, a specified low-light sensitivity of 0.5 lux with 5 LEDs, and an IP69K waterproof rating, the camera is designed for demanding vehicle environments. A built-in microphone is available as an option, while mirror and non-mirror image configurations provide additional installation flexibility.

Product Features

1. Rotatable Lens: Allows adjustment of the lens orientation to suit different mounting positions.

2. Wide Viewing Angle: Standard 140-degree viewing angle, with a 170-degree option available.

3. Multiple Video Formats: CVBS, AHD 720P, and AHD 1080P options for compatible monitoring systems.

4. IP69K Waterproof Protection: Designed for demanding vehicle environments requiring a high level of water and dust protection.

5. Low-Light Sensitivity: Specified illumination level of 0.5 lux with 5 LEDs.

6. Selectable Image Orientation: Mirror and non-mirror image options.

7. Optional Built-in Microphone: Audio pickup can be specified for compatible configurations.

8. Automatic White Balance: Helps maintain appropriate image color balance under varying lighting conditions.

9. PAL/NTSC Options: Supports different video system configurations.

Application Scenarios

• Commercial Trucks

Suitable for side-view monitoring installations on compatible commercial vehicles.

• Heavy Duty Vehicles

Can be considered for selected heavy-duty vehicle camera systems where adjustable camera positioning is required.

• Buses and Coaches

Suitable for compatible vehicle monitoring systems that require side-view camera coverage.

• Fleet Monitoring Systems

Can be integrated into fleet camera solutions, subject to video format and system compatibility.

• Vehicle Equipment Manufacturers

Suitable for OEMs and vehicle equipment suppliers seeking side-view cameras with selectable video and voltage configurations.

• Vehicle Camera Distributors and Installers

A potential option for distributors and installers serving commercial vehicle camera markets.

Product Parameters

Product Name: Side Camera

Image Sensor Options: 1/2.7 Inch / 1/1.9 Inch

Video Output Options: CVBS / AHD 720P / AHD 1080P

Standard Power Supply: DC 12V

Optional Power Supply: 24V

Image Mode: Mirror / Non-Mirror Optional

Lens: Rotatable

Standard Viewing Angle: 140°

Optional Viewing Angle: 170°

Minimum Illumination: 0.5 Lux (with 5 LEDs, as specified)

Day/Night Function: Automatic IR-Cut Switching

Signal-to-Noise Ratio: ≥48 dB

White Balance: Automatic

Video System: PAL / NTSC Optional

Built-in Microphone: Optional

Waterproof Rating: IP69K

Operating Temperature: -20°C to +75°C

Maximum Relative Humidity During Operation: 95%

Storage Temperature: -30°C to +85°C

Maximum Relative Humidity During Storage: 95%

Quality Control and Testing

1. Appearance Inspection

Inspect the camera housing, lens, connectors, and external finish.

2. Video Output Testing

Verify the selected CVBS or AHD video configuration.

3. Image Orientation Testing

Check the selected mirror or non-mirror image setting.

4. Lens Adjustment Inspection

Check the rotatable lens mechanism and its adjustment function.

5. Day and Night Function Testing

Verify the automatic IR-cut switching function.

6. Power Supply Testing

Check operation according to the specified voltage configuration.

7. Waterproof Specification Verification

Confirm compliance with the specified IP69K rating under the applicable testing procedure.

8. Microphone Function Testing

For microphone-equipped versions, check the optional audio function.

Questions and Answers

1. What is a side view camera for vehicles?

A side view camera is installed on a vehicle to provide images of the side area to a compatible monitoring display.

2. What is the advantage of a rotatable lens?

A rotatable lens allows the installer to adjust the camera orientation to suit the installation position.

3. Can a side camera support AHD video?

Yes. AHD 720P and AHD 1080P versions are available, alongside a CVBS option.

4. What is the difference between a 140-degree and a 170-degree camera?

The 170-degree option provides a wider specified viewing angle than the standard 140-degree version. The actual visible coverage depends on lens design and installation.

5. Is an IP69K side camera suitable for commercial vehicles?

It may be suitable for commercial vehicle applications where the required environmental protection and system compatibility are met.
