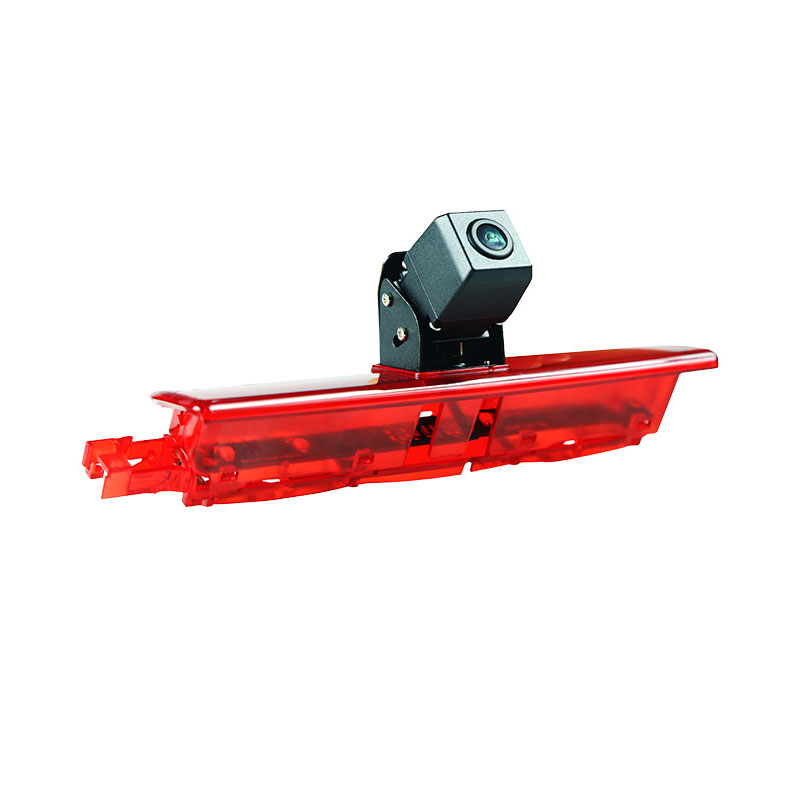

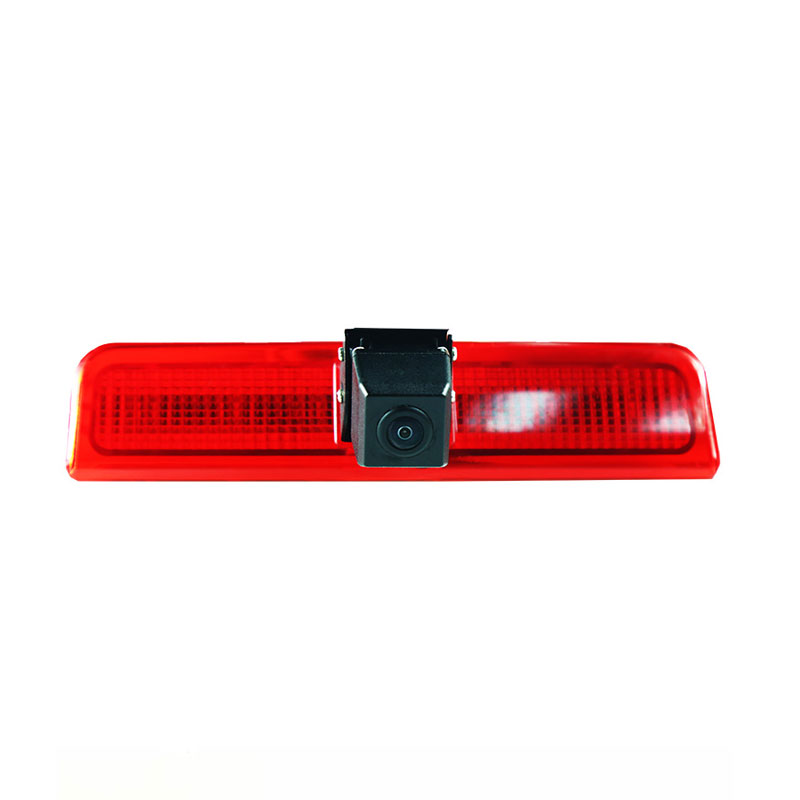

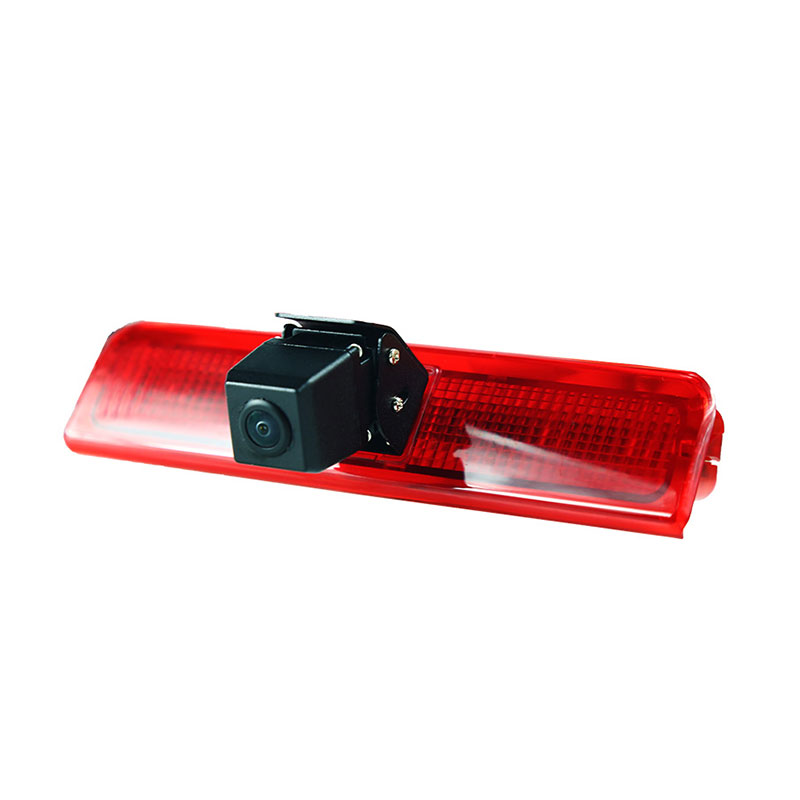

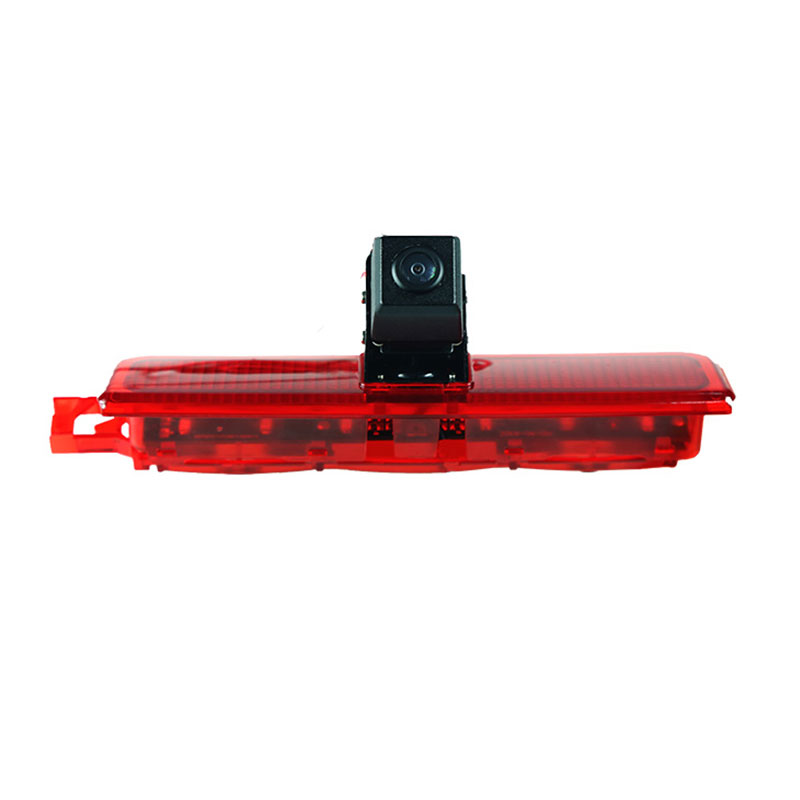

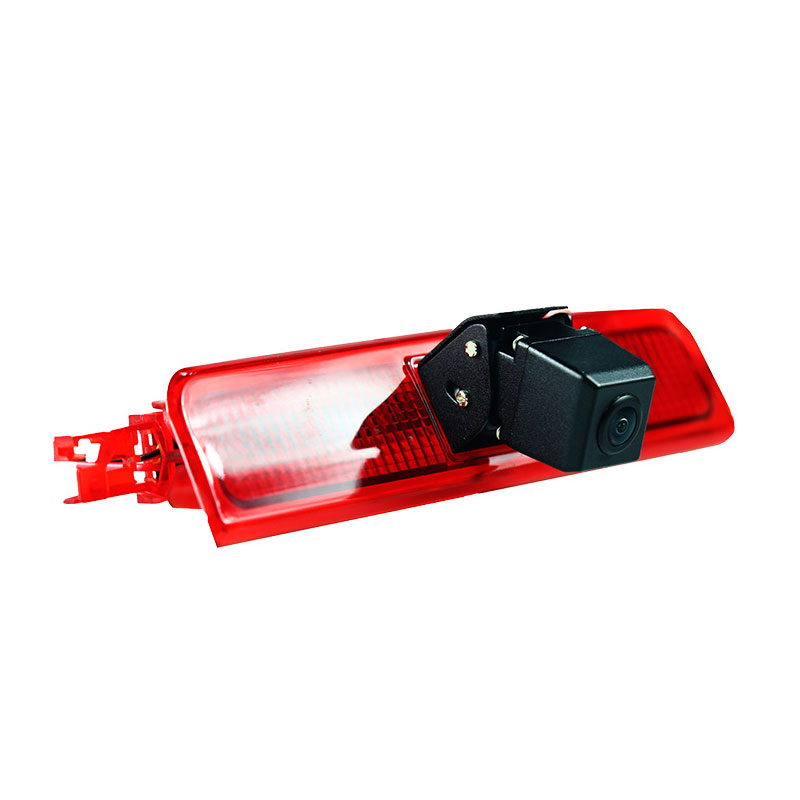

VW Caddy Brake Light Camera Replacement Rear View Backup Camera 2003-2014

Carleader VW Caddy Brake Light Camera Replacement Rear View Backup Camera 2003-2014, which is a professional rear view camera solution designed for commercial vehicles. This Brake Light Camera integrates the third brake light and rear view camera into one unit, providing a practical Brake Light Replacement solution for VW Caddy vans. This AHD Rear View Camera provides a wide 120°-140° viewing angle for better rear monitoring coverage, supporting CVBS/720P/1080P optional video output, and with 0Lux low illumination performance

Features:

1. AHD Brake Light Camera designed for VW Caddy vans combines LED brake light and rear view camera functions.

2. AHD Rear View Camera supports CVBS/720P/1080P optional resolution for clear rear monitoring.

3. VW Caddy Backup Camera provides 120°-140° wide viewing angle to reduce rear blind spots.

4. 0Lux low illumination performance supports reliable image display in low-light environments.

5. 4PIN Aviation Connector with RCA Adapter ensures easy installation and compatibility with vehicle monitor systems.

6. IP69K waterproof Commercial Vehicle Camera provides stable operation in outdoor conditions.

Parameter:

Suitable Model: VW Caddy (2003-2014)

Effective Pixels: CVBS / 720P / 1080P Optional

Lens: 1.7mm

Video Input Format: CVBS / 720P / 1080P HD25/30fps PAL/NTSC

View Angle: 120°-140°

Connector: 4PIN Aviation Connector

Power Supply: DC12V (Standard), 24V (Optional)

Minimum Illumination: 0Lux

White Balance: Auto

IR LED: N/A

Audio: N/A

Bracket: With LED Light

IP Rating: IP69K

AHD/CVBS Switch Cutting Line: Optional

PAL/NTSC Switch Cutting Line: Optional

Frequently Asked Questions (FAQ)

Q1: Is this Brake Light Camera compatible with my VW Caddy?

A: This model is designed for VW Caddy 2003-2014. Please confirm your vehicle model and year before ordering.

Q2: Does it support 1080P resolution?

A: Yes. The camera supports CVBS/720P/1080P optional video output.

Q3: Can it work in low-light conditions?

A: Yes. The camera supports 0Lux low illumination performance for different lighting environments.

Q4: Is installation complicated?

A: No. The 4PIN Aviation Connector with RCA Adapter simplifies wiring connection and installation.

Q5: Can you provide customized camera solutions?

A: Yes. Carleader provides OEM/ODM services for different vehicle models and camera requirements.
