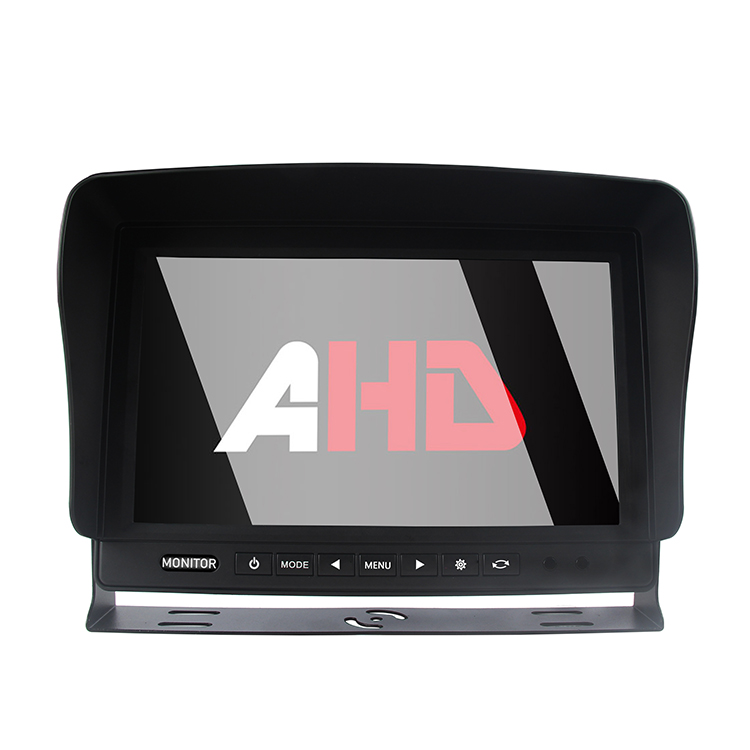

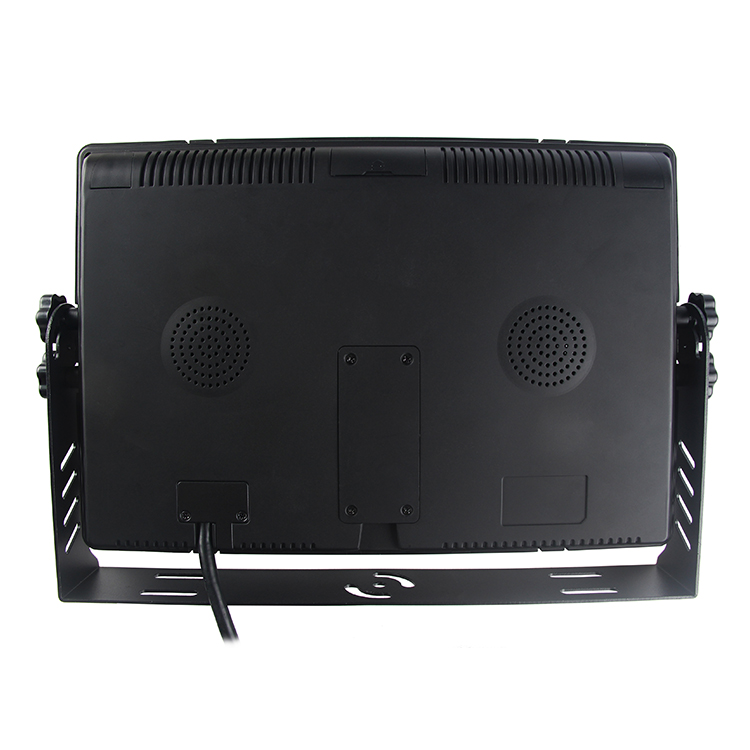

10.1 Inch Heavy Duty Truck AHD Monitor

10.1 Inch Heavy Duty Truck AHD Monitor is a 10.1 inch Car HD Digital Surveillance Display, which can be combined with our AHD camera to form a perfect AHD digital monitoring system, especially suitable for trucks, forklifts, excavators...

Model:CL-S1019AHD

Send Inquiry

Product Description

Carleader as a professional 10.1 Inch Heavy Duty Truck AHD Monitor manufacturer, you can rest assured to buy 10.1 Inch Heavy Duty Truck AHD Monitor from our factory and we will offer you the best after-sale service and timely delivery.

Parameter:

10.1 Inch Heavy Duty Truck AHD Monitor
Model	CL-S1019AHD
Screen Type	10.1 inch IPS LCD panel
Aspect Ratio	16 : 9
Resolution	1024 x 600 (RGB)
Brightness	550 cd/m2
Contrast	500 : 1
Video Input	Support 2CH / 3CH AHD 1080P/720P/CVBS Mixed Video Signal Input available With 2 / 3 x trigger wires, CH2 has trigger priority
Speaker	Optional (Without as default)
Audio Mode (If with speaker)	CH1 with audio function
Auto Dimming	Optional (Without as default)
Remote Control	Yes, Package include 1x remote
OSD Menu	Image Setting, Image mirrored, Blue/Black Screen (No Signal), Multi-Language Setting, Parking Guide Line On/Off, Reset
Parking Guide Line	Each channel can be adjusted separately, activated when trigger the trigger wire (Off as default)
Mirror / Normal Image	Each channel can be adjusted separately (Mirror image as default)
Button Type	Click buttons
Power Supply	DC 9~32V
Connection Plug (Connector)	4PIN aviation connector as default, customized to RCA connector available
Operating Temperature	-20°C~+70°C (RH0%-RH90%)
Storage Temperature	-30°C~+80°C (RH0%-RH90%)
Warranty	2 Years
Dimension	25.5 x 15.5 x 3.0 cm (without shade) 27.5 x 18.5 x 7.6 cm (with shade)
