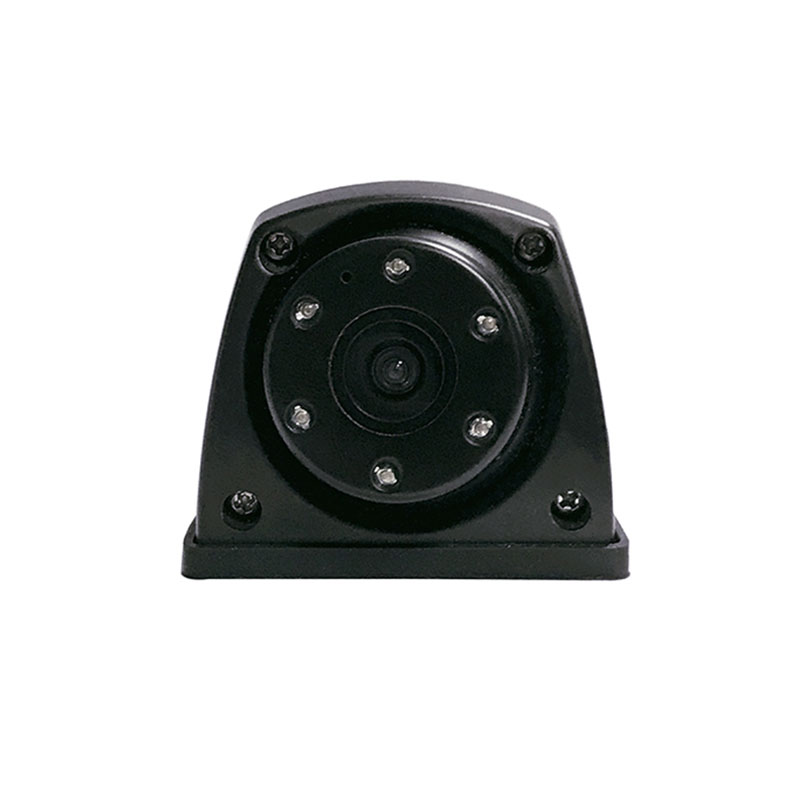

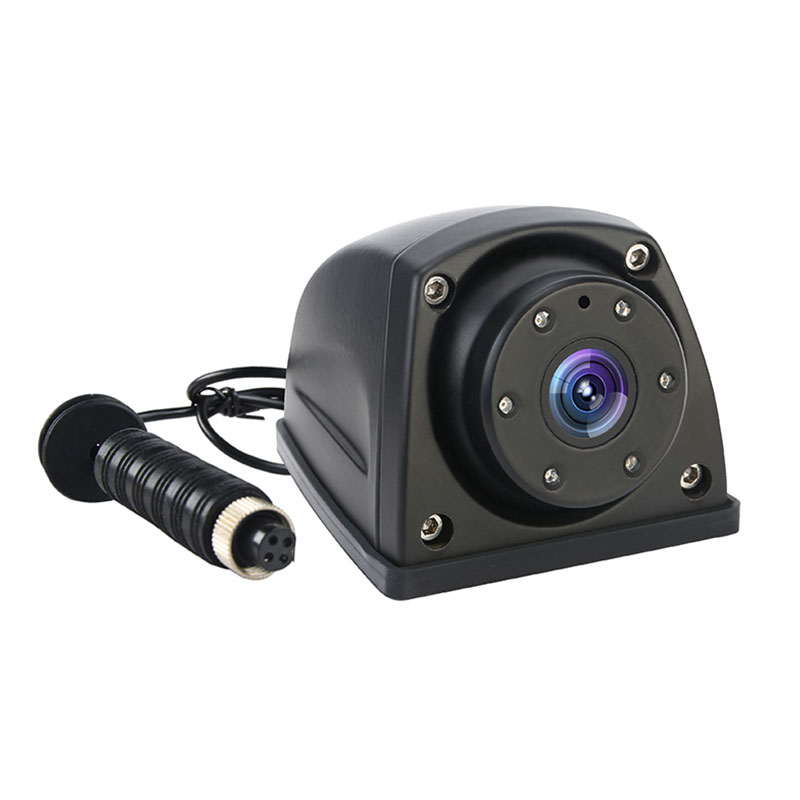

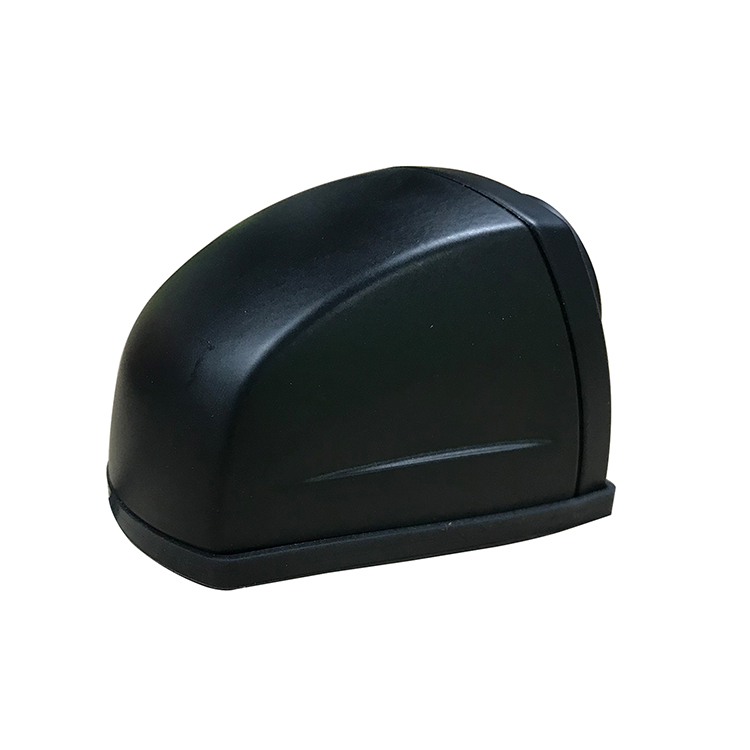

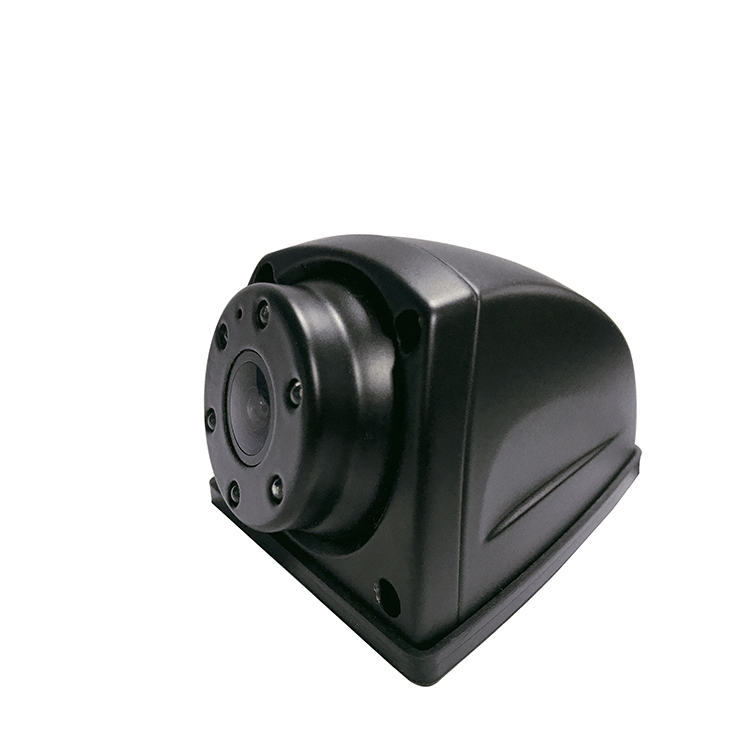

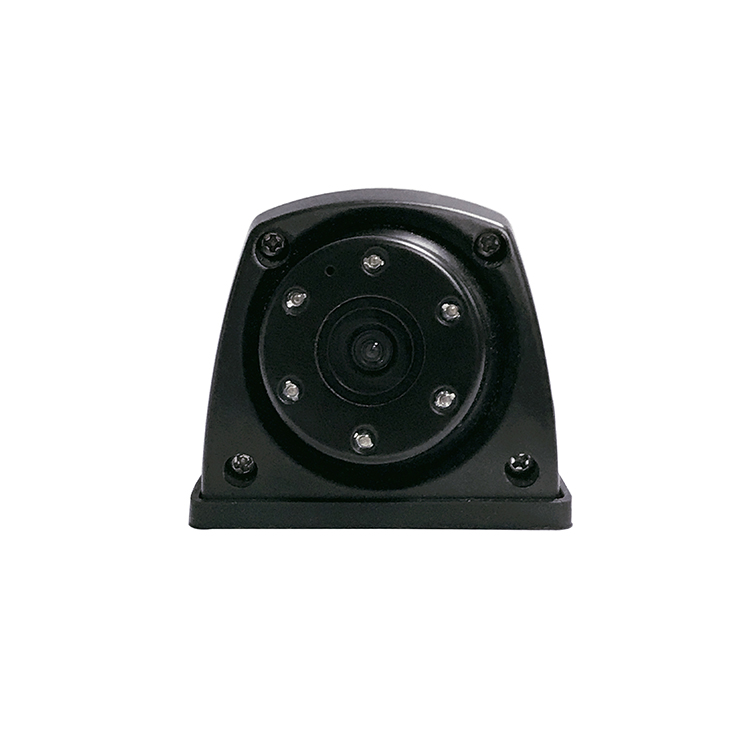

1080P AHD Side View Camera for Trucks with 140 degree Wide Angle and IP69K

For low-light environments, the camera provides 0.01 LUX minimum illumination with 5 LEDs and automatic IR-cut day/night switching. With IP69K waterproof protection, this side camera is designed for demanding exterior vehicle applications.

Parameters

Product Type: Side View Camera

Image Sensor: 1/2.7" & 1/3"

Video Input: CVBS / AHD720P / AHD1080P Optional

Power Supply: DC12V (Standard), 24V (Optional)

Image: Mirror Image & Non-Mirrored Image Optional

Electronic Shutter: 1/65 (NTSC) / 1/60 (PAL) - 1/10,000

Minimum Illumination: 0.01 LUX (5 LED)

Lens: 2.8mm

S/N Ratio: ≥50dB

System: PAL/NTSC Optional

View Angle: 140°

Video Output: 1.0Vp-p, 75Ω

Waterproof Rating: IP69K

Built-in Microphone: Optional

Operating Temperature: -20℃~+75℃ (RH95% Max.)

Storage Temperature: -30℃~+85℃ (RH95% Max.)

Why This Side Camera?

1. 140° Wide-Angle Side View

The 140° viewing angle provides broad coverage along the side of the vehicle, making it suitable for truck side monitoring and blind spot applications.

2. 1080P AHD Available

The camera supports AHD1080P, together with AHD720P and CVBS options, allowing it to work with different vehicle camera systems.

3. 0.01 LUX + 5 LED

Low-light performance down to 0.01 LUX and 5 LED illumination support side monitoring in darker environments.

4. Automatic Day/Night Switching

The built-in IR-cut system automatically switches between day and night modes according to lighting conditions.

5. IP69K for Exterior Vehicle Installation

The IP69K rating makes the camera suitable for outdoor vehicle environments exposed to water, dust and vehicle washing.

Designed for More Than Trucks

• Trucks & HGVs

Side visibility and blind spot monitoring for heavy-duty trucks and HGVs.

• Vans & Light Commercial Vehicles

Additional side-view coverage for delivery vans and logistics vehicles.

• Buses & Coaches

Suitable for side monitoring in passenger transportation applications.

• Construction Vehicles

Can be integrated into vehicle camera systems used on construction and work vehicles.

• Fleet Vehicles

Works with multi-camera systems for fleet monitoring and vehicle video surveillance.

FAQ

Q1: Is this camera suitable for trucks?

Yes. The camera is designed for side-view monitoring on trucks, HGVs, vans, buses and other commercial vehicles.

Q2: Does it support 1080P?

Yes. An AHD1080P version is available, together with CVBS and AHD720P options.

Q3: What is the viewing angle?

The viewing angle is 140°.

Q4: Can it be used as a blind spot camera?

Yes. Its wide-angle side view makes it suitable for truck blind spot monitoring and commercial vehicle side monitoring.

Q5: Does it support night monitoring?

Yes. It provides 0.01 LUX minimum illumination, 5 LED illumination and automatic IR-cut day/night switching.

Q6: Can I choose mirror or normal image?

Yes. Mirror image and non-mirrored image are both optional.

Q7: Can it connect to an MDVR?

Yes. The camera can be used as part of a vehicle camera system together with compatible vehicle monitors and MDVRs.
