1080P WiFi Wireless Rear View Camera for Android iOS with Solar Charging and Magnetic Mount

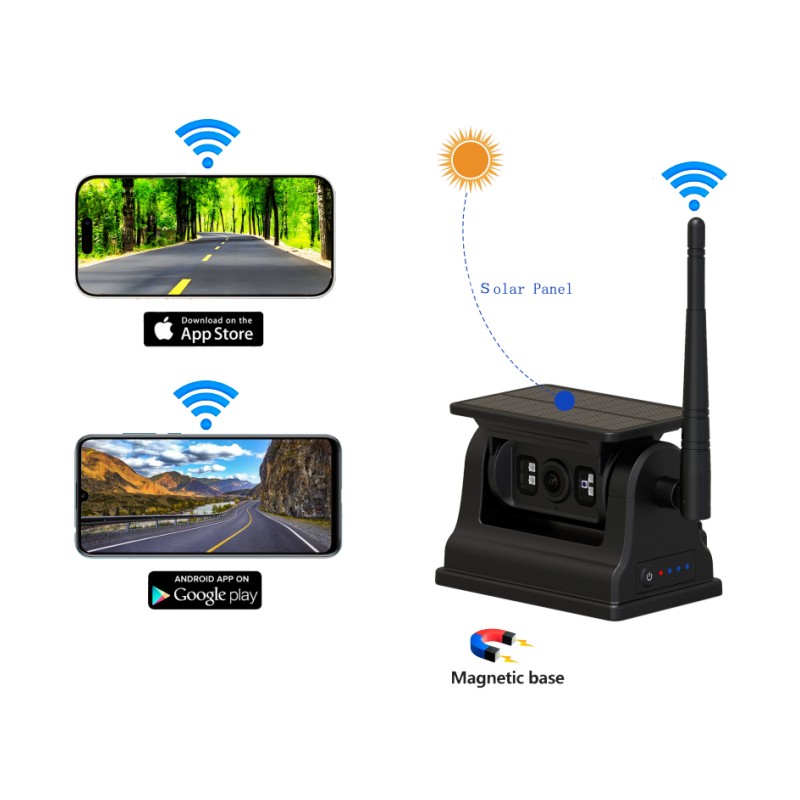

Carleader 1080P WiFi Wireless Rear View Camera for Android iOS with Solar Charging and Magnetic Mount. Unlike conventional wired truck backup cameras that require video cables to connect the camera with an in-vehicle monitor, this WiFi Wireless Car Rear View Camera is designed around a completely different installation concept. The camera combines wireless video transmission, rechargeable battery power, solar charging and magnetic installation into one compact solution. It is particularly suitable for vehicles where cable routing is difficult, installation time needs to be reduced, or the camera needs to be moved between different vehicles or positions. With Android and iOS compatibility, the camera can provide a convenient wireless viewing solution for commercial vehicle operators, fleet users and vehicle equipment installers.

Product Advantages

Wireless Alternative to Traditional Backup Cameras — Eliminates the need for long video cables between the camera and viewing device, making it suitable for retrofit and difficult-to-wire vehicles.

1080P High-Definition Video — Provides detailed image output for rear-view and vehicle monitoring applications.

Android & iOS Compatibility — Designed for convenient wireless viewing through compatible Android and iOS devices.

60m 2.4G Wireless Transmission — Supports up to 60m transmission distance in open areas, providing greater installation flexibility for long vehicles and equipment.

10500mAh Rechargeable Battery — Large battery capacity supports extended operation without requiring a permanent wired power connection.

Solar Power Supported — Solar charging can help extend operating availability and reduce the need for frequent manual charging in outdoor applications.

Magnetic Mounting Base — Enables fast installation on suitable metal surfaces without complicated drilling or permanent mounting.

Product Parameters

Product Type: WiFi Wireless Rear View Camera

Image Sensor: 1/2.9" AHD

Resolution: 1080P

Lens Angle: 120°

Night Vision: Infrared Night Vision

IR LEDs: 4 LEDs

Night Vision Distance: 8–10m

Waterproof Rating: IP68

Wireless Frequency: 2.4GHz

Emission Power: 20dBm

Wireless Transmission Distance: Up to 60m in Open Area

Installation: Magnetic Base Adsorption

Battery Type: Rechargeable Lithium Battery

Battery Capacity: 3.7V / 10500mAh

Power Consumption: <5W

Charging Interface: Type-C

Charging Input: 5V / 2A

Charging Time: Approximately 6 Hours

Working Time: Up to 20 Hours in Daytime

Solar Power Supply: Supported

Built-in Microphone: Yes

Mobile Platform: Android / iOS

Working Temperature: -20~+80°C

Storage Temperature: -30~+80°C

Product Size: 115 × 76 × 76mm

Application: Bus, Truck, Trailer, Crane and Other Commercial Vehicles

Application Scenarios

1. Wireless Trailer Backup Camera

Ideal for trailers and semi-trailers where running a long cable from the rear camera to the towing vehicle is inconvenient.

2. Truck Wireless Rear View Camera

Can provide an additional rear monitoring solution for trucks without extensive modification to the vehicle wiring.

3. Crane Monitoring Camera

The wireless design is suitable for cranes and mobile equipment where the camera position may need to change according to the working environment.

4. Temporary Vehicle Monitoring

The magnetic mounting system makes the camera suitable for temporary monitoring projects, equipment rental and short-term vehicle applications.

5. Commercial Vehicle Retrofit

Suitable for upgrading existing vehicles where users want to add a rear-view camera without replacing or modifying the existing wiring system.

6. Construction Equipment

The wireless and battery-powered design can be considered for construction machinery and outdoor equipment where conventional cable installation is difficult.

Quality Control

Depending on the final product configuration and project requirements, relevant inspections can include:

• 1080P image quality inspection
• Wireless transmission function testing
• 2.4G communication testing
• Battery charging and discharge testing
• Type-C charging function inspection
• Solar power supply function inspection
• Infrared night vision testing
• Wireless transmission distance verification
• Magnetic mounting inspection
• Waterproof and sealing inspection
• Power consumption testing
• Working temperature verification
• Final appearance and assembly inspection

FAQ

Q1. What is a wireless vehicle rear view camera?

A1. It is a vehicle camera that transmits video wirelessly instead of using a conventional long video cable between the camera and viewing device.

Q2. Can this camera work with Android and iOS devices?

A2. Yes. It is designed for wireless viewing with compatible Android and iOS devices.

Q3. What is the wireless transmission distance?

A3. The 2.4G transmission distance can reach up to 60 meters in an open area. Actual range depends on obstacles, vehicle structure and interference.

Q4. How long can the battery operate?

A4. The specified continuous working time is up to 20 hours during daytime. Actual runtime depends on operating conditions.

Q5. Does the camera support solar charging?

A5. Yes. Solar power supply is supported to help supplement the battery power during outdoor use.

Q6. What is the battery capacity?

A6. The camera uses a 3.7V/10500mAh battery.

Q7. How is the camera installed?

A7. It uses a magnetic base adsorption installation method for quick positioning on suitable metal surfaces.

Q8. Does the camera support night vision?

A8. Yes. It has 4 infrared LEDs and a specified night vision distance of approximately 8–10 meters.

Q9. Is the wireless camera waterproof?

A9. Yes. The camera has an IP68 waterproof rating for outdoor vehicle applications.

Q10. Does the camera support 1080P resolution?

A10. Yes. The camera provides 1080P video resolution.

Q11. Can this camera be used on trailers?

A11. Yes. Trailer applications are one of the suitable use cases, especially when installing a traditional wired rear camera is inconvenient.

Q12. Can it be used on cranes or construction equipment?

A12. Yes. The wireless, battery-powered and magnetic installation design is suitable for cranes and other commercial equipment.

Q13. How is the camera charged?

A13. It supports Type-C charging at 5V/2A, with a specified charging time of approximately 6 hours.

Q14. Does the camera have audio?

A14. Yes. A built-in microphone is included.
