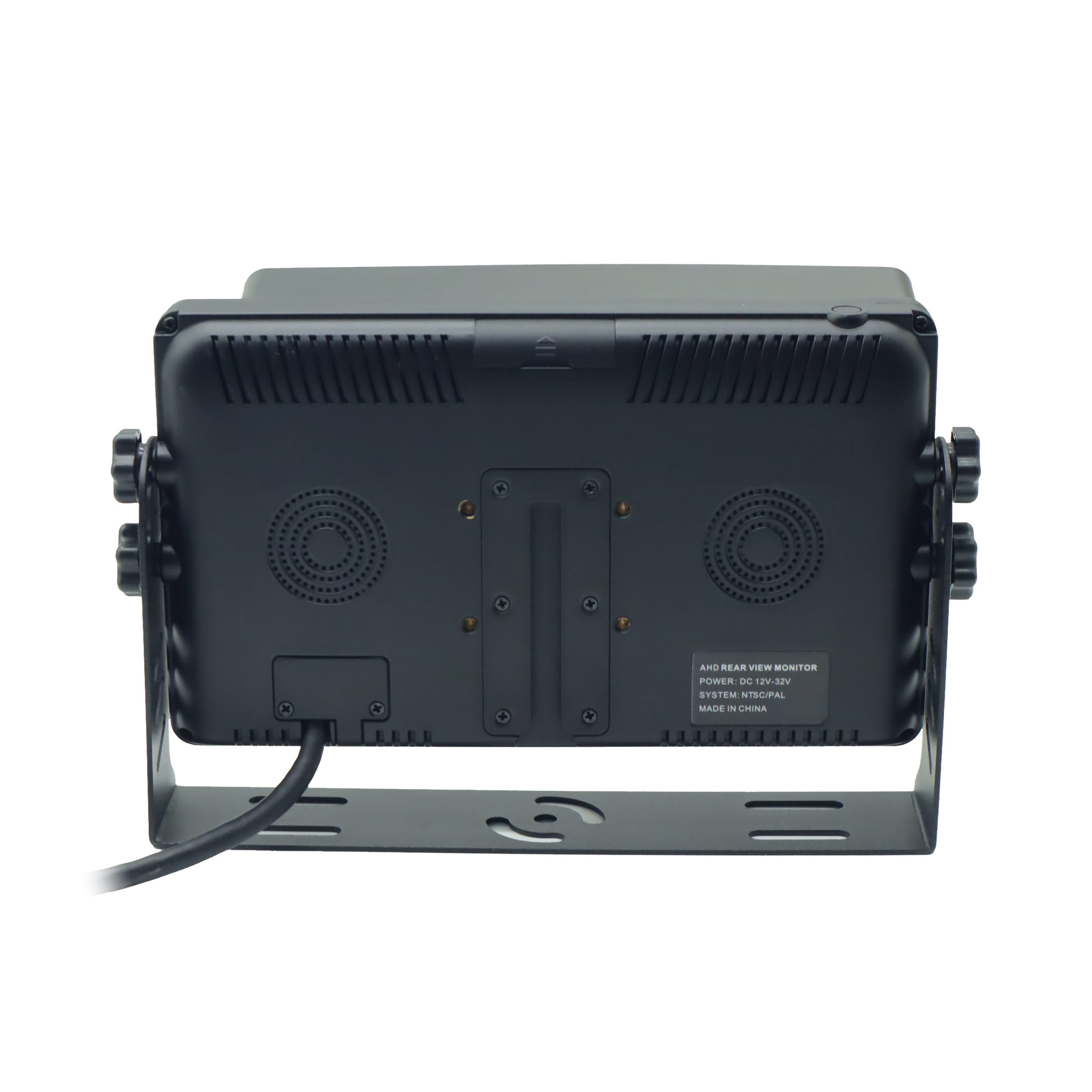

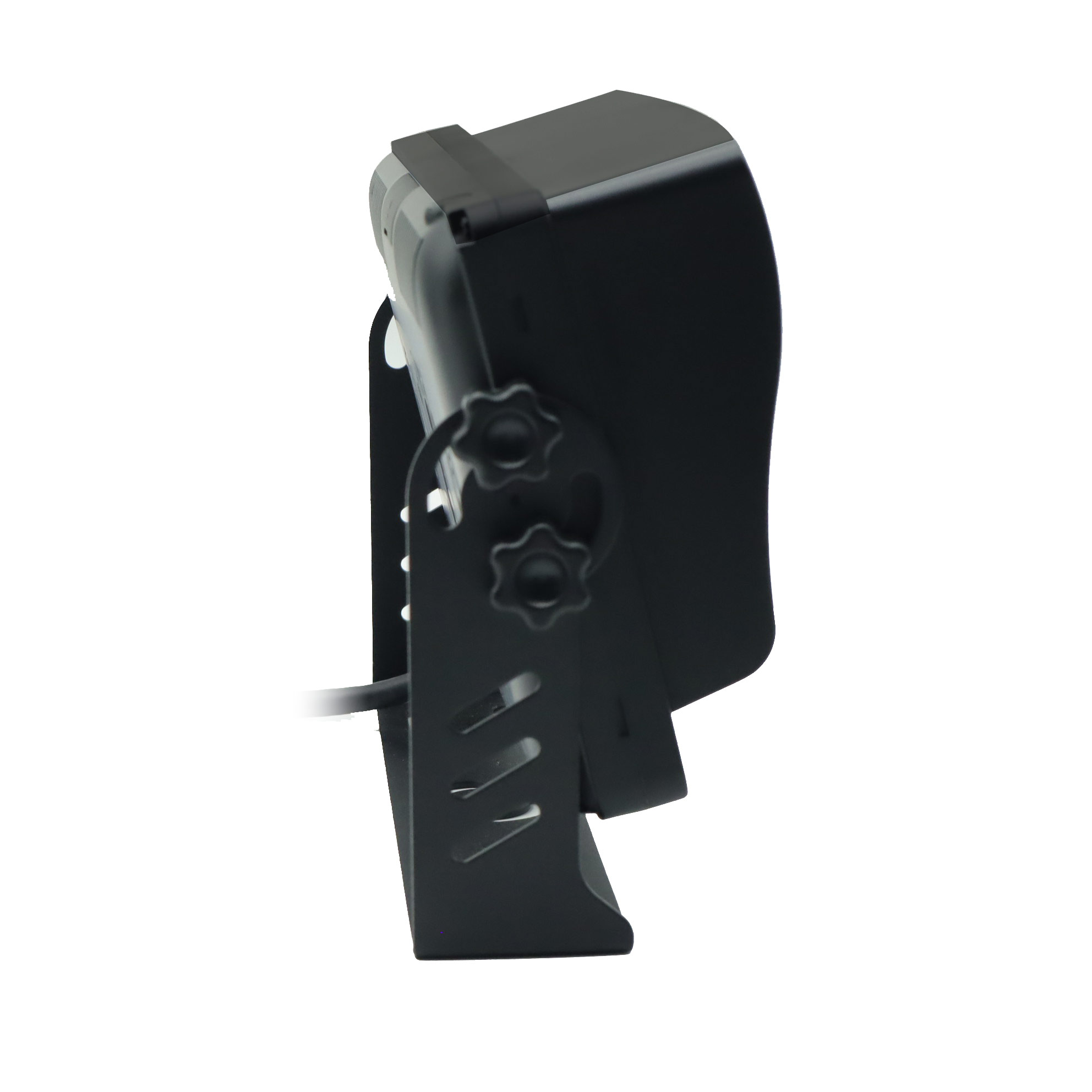

4 split HD LCD monitor

CL-S711AHD-Q is 4 split HD LCD monitor. Supports simultaneous display of four HD/SD cameras. Support infrared remote control, the image supports upside-down, original mirror, brightness, contrast and color saturation adjustable. support multi-languauge. 360° monitoring without dead angle!

Model:CL-S711AHD-Q

Send Inquiry

Product Description

The following is an introduction to 4 split HD LCD monitor, we hope to help you better understand 4 split HD LCD monitor. Welcome new and old customers to continue to cooperate with us to create a better future together!

 4 split HD LCD monitor Main features

AHD quad monitor system

NEW TFT 7" panel , 16 : 9 image

Resolution : 1024x RGB x 600

Brightness : 400 cd/m2
4 video inputs ( 4 PIN aviation connector)

Single /Split /Quad view selectable

Auto-compatible with CVBS/AHD camera(108OP/7 20P/D1)

PAL/NTSC adjustable

Each channel has trigger wire

Trigger priority: CAM 2>CAM 1>CAM 3>CAM4
High-low voltage protection & short circuit protection

view angle:L/R:70,UP:50,down:70 degree
Built-in speaker (optional)
Power requirement: DC 9~32 v

Detachable sunshade
Metal U type bracket




Screen size
7''
Resolution
1024*RGB*600
Input interface
4HAD(pin)
AHD camera
Max 1080P
Trigger wire
4
Trigger priority
AHD2
Touch button
NO
Button with lamp
YES
PAL/NTSC system
YES
Compatible camera
AHD/CMOS/CCD
Screen ratio 16:9
Power Volt. DC 9V-32V
