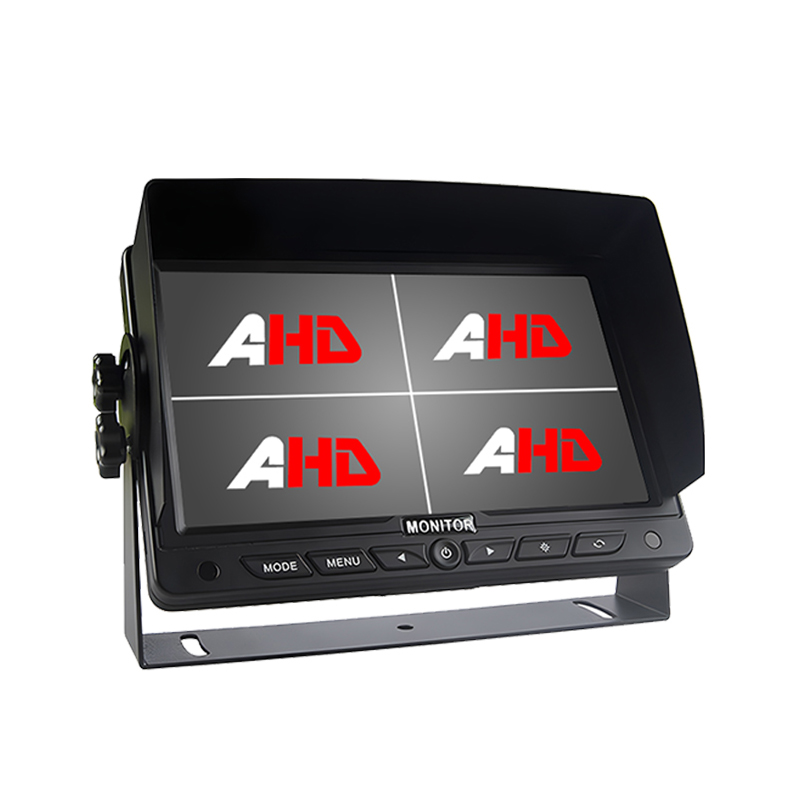

7 Inch 4CH AHD Inputs Quad Display Heavy Duty Vehicle Monitor

Carleader 7 Inch 4CH AHD Inputs Quad Display Heavy Duty Vehicle Monitor, a high performance AHD Quad View Monitor which is designed for commercial vehicle and heavy duty vehicle, like truck, bus, RV, trailer, forklift, agricultural machinery, construction machinery, etc. Monitor features with 4CH AHD signal inputs which are compatible with CVBS / AHD 720P / AHD 1080P. PAL / NTSC system auto switch

Parameter:

7 inch digital Innolux TFT panel,16 : 9 image

Resolution: 1024 x RGB x 600

4 AHD video input( AHD1/AHD2/AHD3/AHD4)

Each channel has trigger wire. AHD2 has priority

Auto switchable AHD2 when trigger reverse cable

Video input format: D1/720P/1080P HD25/30fps PAL/NTSC

Compatible with AHD/CVBS camera

AHD1 has audio function(default)

4 channel with Audio (optional)

Auto dimming function optional

All buttons with backlight.

Each channel has audio function, audio can be  selected by setting

Each channel has bule screen, bule screen can be selected by setting

Brightness: 450 cd/m2

Contrast: 500 : 1

12 languages multi-function OSD setting, remote control

Power supply: DC9-32V

Supply removable sun visor, bracket is optional

Dimension: 17.8x12x2.4cm( without shade)

                 17.8x12x5.5cm (with shade)
