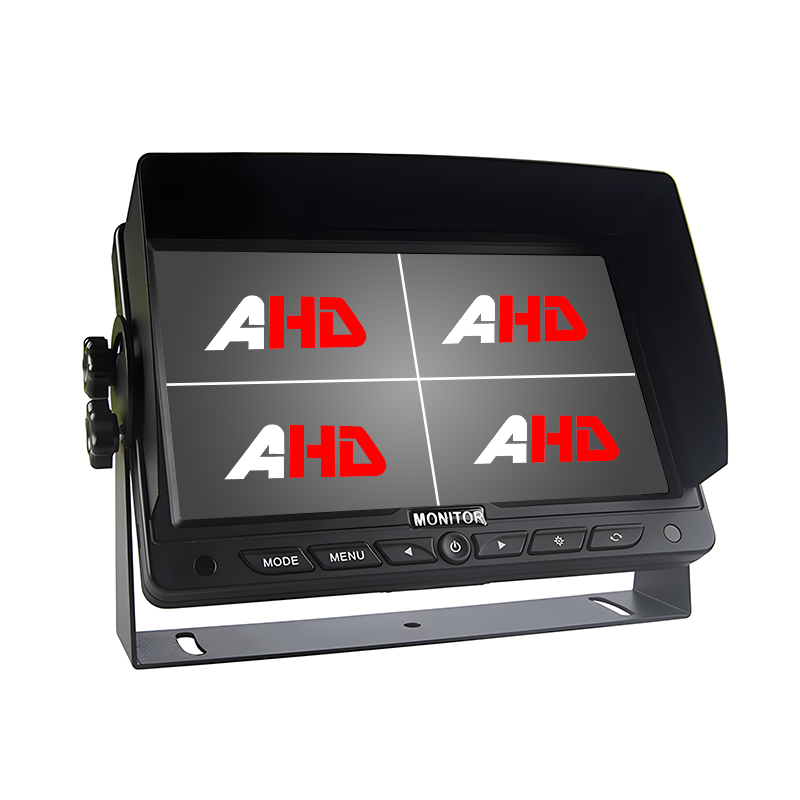

7 Inch Car Quad AHD Monitor with 4 Camera Inputs and SD Card Recording

Carleader 7 Inch Car Quad AHD Monitor with 4 Camera Inputs and SD Card Recording is designed for vehicle camera monitoring and onboard video recording. With four AHD video inputs, this quad monitor allows drivers to view camera feeds from different positions around the vehicle using selectable screen layouts. The built-in SD card recording function supports 720P recording in AVI format, providing a convenient way to store vehicle camera footage. With individual trigger wires, AHD2 trigger priority, optional audio selection and a DC 9–32V power supply, this monitor is suitable for commercial vehicle camera systems, fleet monitoring projects and professional vehicle electronics installations.

Key Features

1. Four-Channel AHD Camera Inputs

Supports four camera connections, allowing drivers to monitor front, rear and side views through one vehicle display.

2. Multiple Screen Display Modes

Switch between available display layouts to suit different camera monitoring requirements.

3. Built-In SD Card Video Recording

Records video in AVI format at 720P resolution and supports SD cards up to 256GB. SD card is not assumed to be included.

4. Individual Trigger Wires with AHD2 Priority

Each channel has its own trigger wire. AHD2 has priority for trigger-based screen switching.

5. High-Definition 7-Inch Display

The 1024 × RGB × 600 display, 450 cd/m² brightness and 500:1 contrast ratio provide a dedicated screen for vehicle camera images.

6. Flexible Audio Settings

AHD1 audio is standard. Audio functionality for each channel can be selected through the settings as an optional configuration.

7. Wide Voltage Input and Flexible Mounting

DC 9–32V power input, a detachable sunshade and a metal U-type bracket support different vehicle installation needs. A stand bracket is optional.

Product Parameters

Product Name: 7 Inch Car Quad AHD Monitor with 4 Camera Inputs and SD Card Recording

Screen Size: 7 inch

Screen Type: High-definition digital panel

Aspect Ratio: 16:9

Resolution: 1024 x RGB x 600

Video Inputs: 4 AHD video inputs (AHD1/AHD2/AHD3/AHD4)

Supported Video Formats: D1/720P/1080P HD, 25/30fps, PAL/NTSC

Trigger Wires: Individual trigger wire for each channel

Trigger Priority: AHD2

Display Modes: Multiple screen modes

Recording Format: AVI

Recording Resolution: 720P

Recording Storage: SD card, up to 256GB

Audio Function: AHD1 audio function by default

Optional Audio: Audio function selectable for each channel via settings

Blue Screen: Selectable for each channel

Brightness: 450 cd/m²

Contrast Ratio: 500:1

Viewing Angle: Left/Right 70°, Up 50°, Down 70°

OSD Languages: 8 languages

Remote Control: Supported

Auto Dimming: Supported

Power Supply: DC 9–32V

Sunshade: Detachable

Mounting Bracket: Metal U-type bracket; stand bracket optional

Dimensions Without Sunshade: 17.8 x 12 x 2.4 cm

Dimensions With Sunshade: 17.8 x 12 x 5.5 cm

Frequently Asked Questions

Q1: How many cameras can this monitor connect?

A1: It supports four AHD video inputs: AHD1, AHD2, AHD3 and AHD4.

Q2: Does the monitor support video recording?

A2: Yes. It supports SD card recording in AVI format at 720P resolution, with SD card capacity up to 256GB.

Q3: Can I view all four cameras at the same time?

A3: The monitor supports multiple screen modes. The available layouts can be selected according to the monitor's supported display settings.

Q4: Does every camera channel support audio?

A4: AHD1 has audio functionality by default. Audio functionality for each channel is an optional configuration selectable through the settings.

Q5: What is the trigger priority?

A5: Each channel has an individual trigger wire, and AHD2 has priority.

Q6: What is the monitor's operating voltage?

A6: The specified power supply range is DC 9–32V.

Q7: Is a stand bracket available?

A7: A metal U-type bracket is standard, while a stand bracket is optional.

Q8: Can this monitor be customized for wholesale or OEM orders?

A8: Please confirm the required configuration, bracket type, audio options and any customization requirements with Carleader before placing an order.
