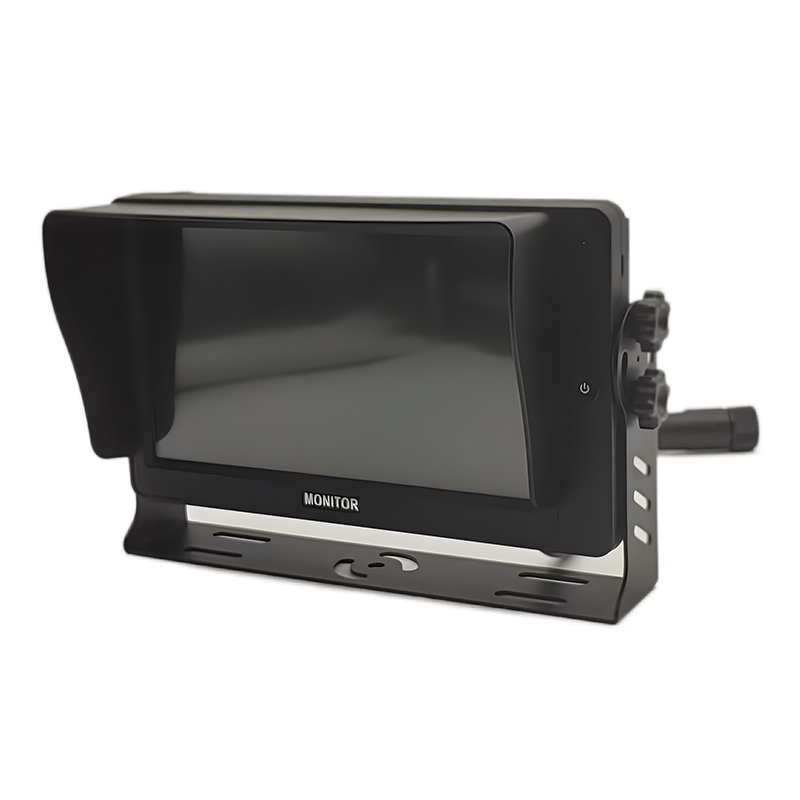

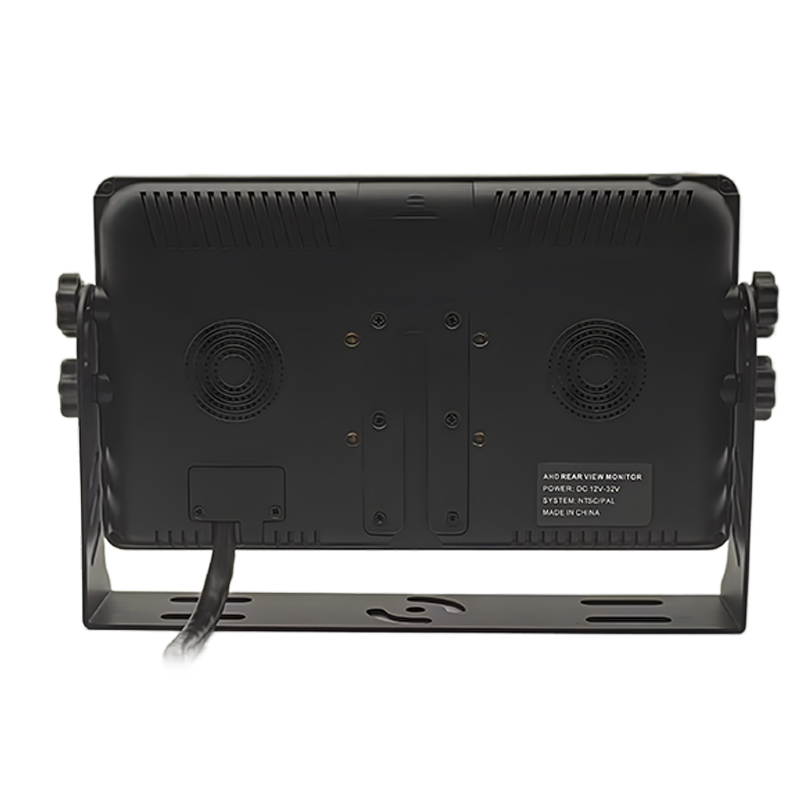

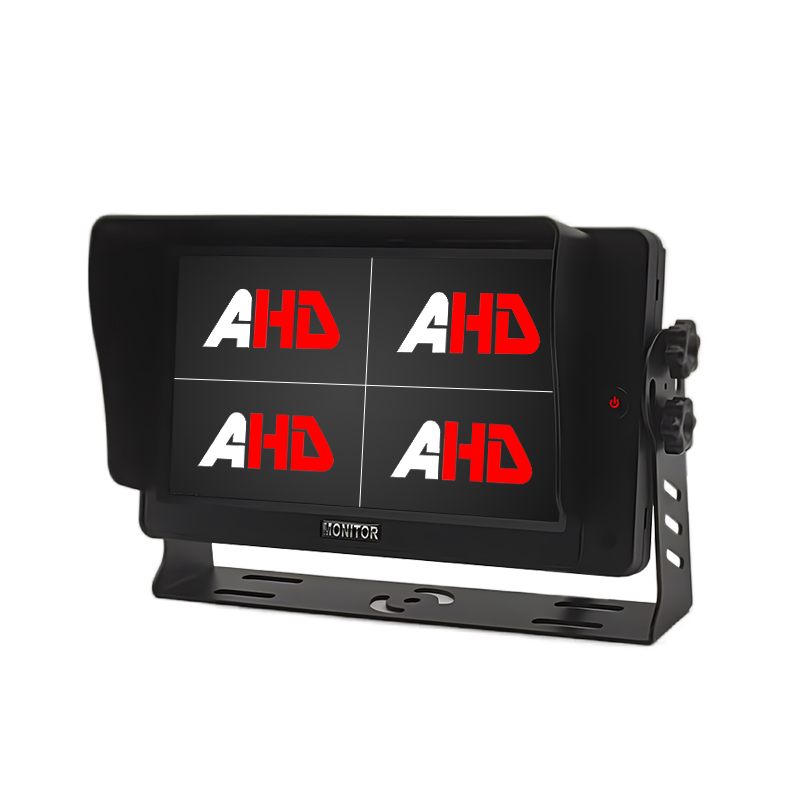

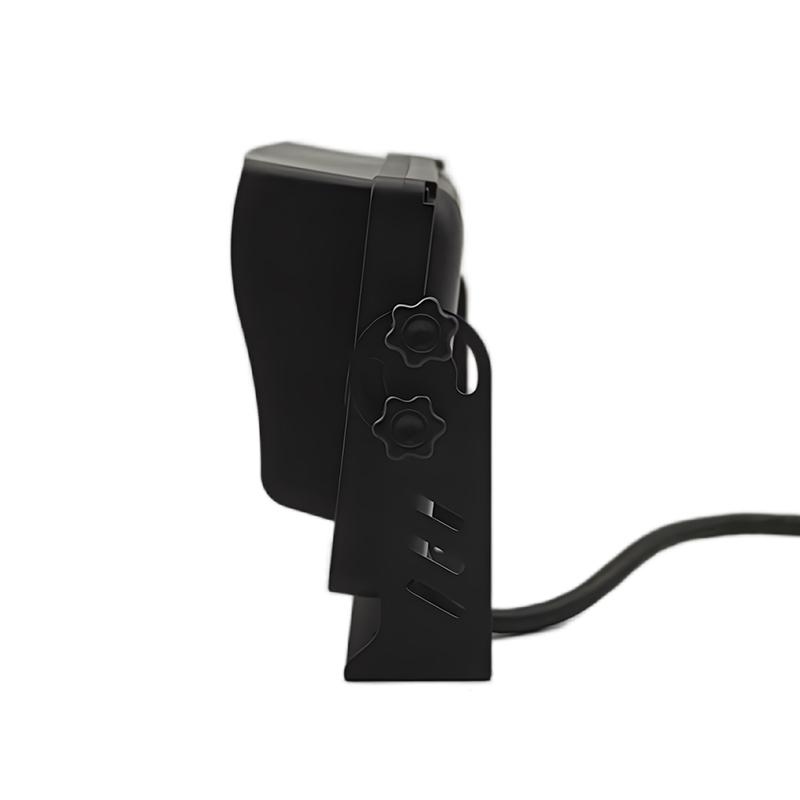

7 Inch High Brightness AHD Quad View Heavy Duty Vehicle Bus Truck Monitor

Carleader 7 Inch High Brightness AHD Quad View Heavy Duty Vehicle Bus Truck Monitor, a high-definition AHD monitor featuring a 7inch touch screen display. It supports multiple video inputs, allowing users to view up to four cameras simultaneously. The monitor can be used for a variety of applications including security, surveillance.

Parameter:

7" high digital new HD panel,16 : 9 image

Video input format: D1/720P/1080P HD25/30fps PAL/NTSC

Compatible with AHD/CVBS camera

Resolution :1024 x RGB x 600

4 AHD video input( AHD1/AHD2/AHD3/AHD4)

Each channel has trigger wire.AHD2 has priority

Multiple screen modes switch

Auto dimming function optional

Built-in speaker optional

Each channel has audio function, audio can be selected by setting

Each channel has bule screen, bule screen can be selected by setting

Brightness :450 cd/m2

Contrast : 500 : 1

View Angle: L/R:70,UP:50,down:70 degree

8 languages OSD, remote control

Power Supply : DC 9~32 V

Detachable sunshade

Metal U type bracket (stand bracket optional)

Dimension: 19.4 x 11.5 x 2.65cm( without shade)

                19.4 x 11.5 x 6.64cm (with shade)
