AHD 1080P Front and Rear View Camera with IP69K Waterproof Rating

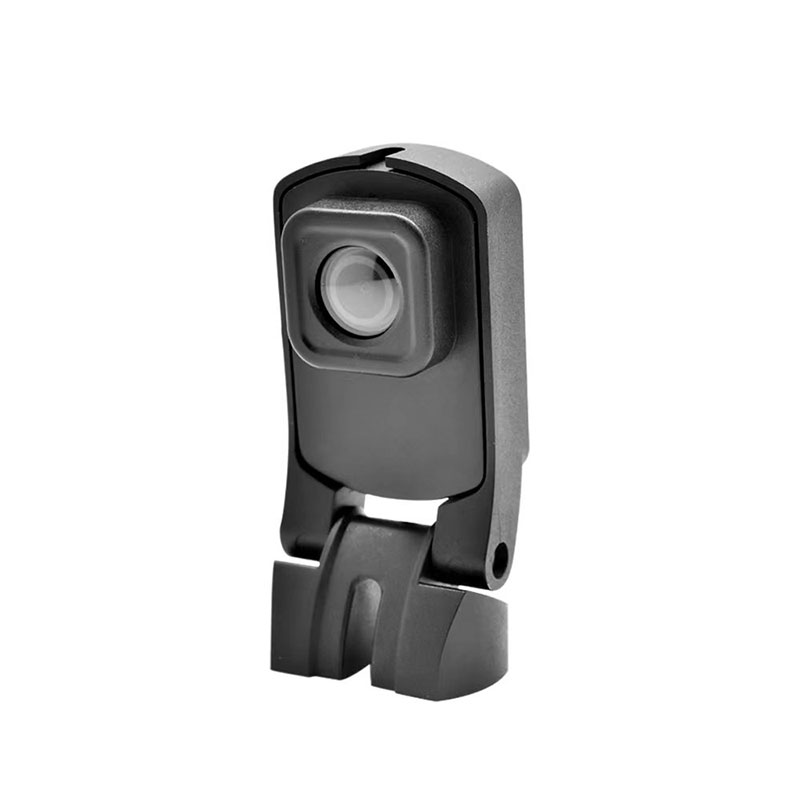

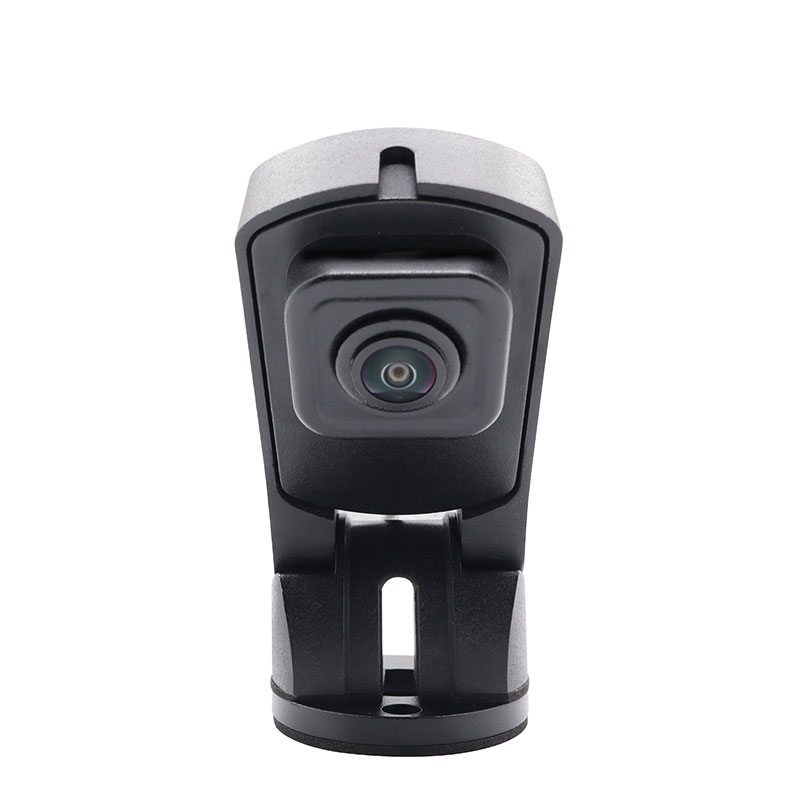

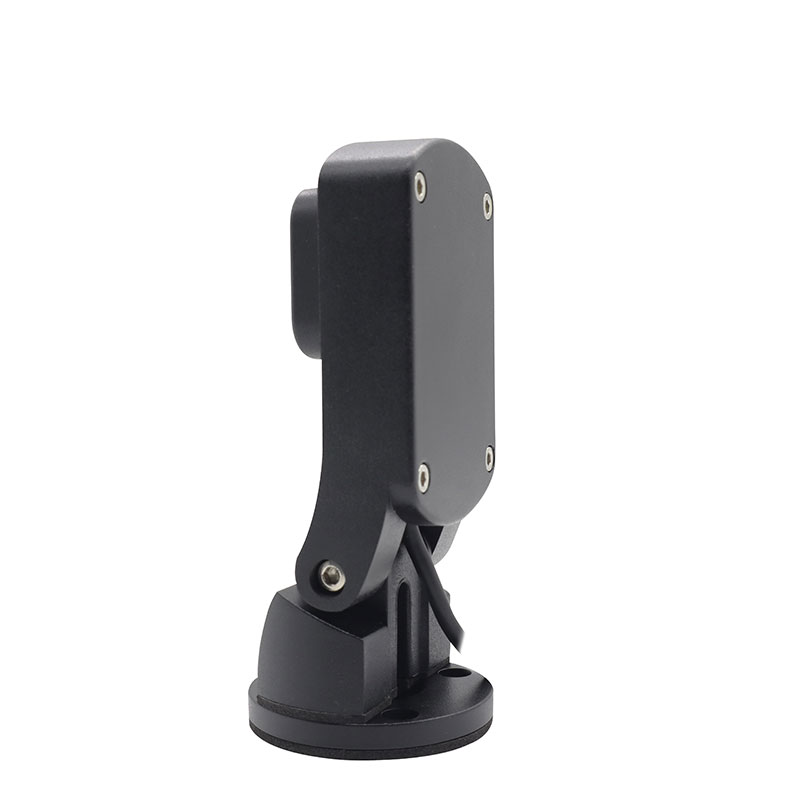

The Carleader Front & Rear View Camera is a versatile vehicle camera solution designed for automotive and commercial vehicle monitoring systems. With CVBS, AHD 720P and AHD 1080P video options, it can be configured to meet different system requirements. The camera features starlight night vision for color imaging in low-light conditions, automatic white balance and automatic backlight compensation to help maintain clear images under changing lighting conditions. Its viewing angle reaches up to 130°, while the 180° tilt adjustment allows flexible positioning during installation. Built with an IP69K waterproof rating, this camera is designed for demanding vehicle environments. Mirror and non-mirrored image versions are available, along with standard 12V power and an optional 24V version.

Product Parameters

Product Name: Front & Rear View Camera

Image Sensor: 1/2.9 inch

Video Input Format: CVBS / AHD 720P / AHD 1080P optional

Power Supply: DC 12V standard

Optional Power Supply: DC 24V

Image Mode: Mirror / Non-mirrored optional

Video System: PAL / NTSC optional

Viewing Angle: Up to 130°

Signal-to-Noise Ratio: More than 50dB (AEC off)

Night Vision: Starlight night vision with color imaging

White Balance: Automatic

Electronic Shutter: Auto / 1/150 (1/60)–1/100,000 sec

Backlight Compensation: Automatic

Tilt Adjustment: 180°

Video Output: 1Vp-p, 75Ω composite

Connector: 4-way DIN jack × 1

Built-in Microphone: No

Power Consumption: 60mA

Waterproof Rating: IP69K

Operating Temperature: -20°C to +75°C (RH 95% maximum)

Storage Temperature: -30°C to +85°C (RH 95% maximum)

Key Features

1. Multiple Video Options: Supports CVBS, AHD 720P and AHD 1080P configurations.

2. Starlight Color Night Vision: Supports color imaging in low-light conditions.

3. Wide Viewing Angle: Viewing angle of up to 130° for broader visual coverage.

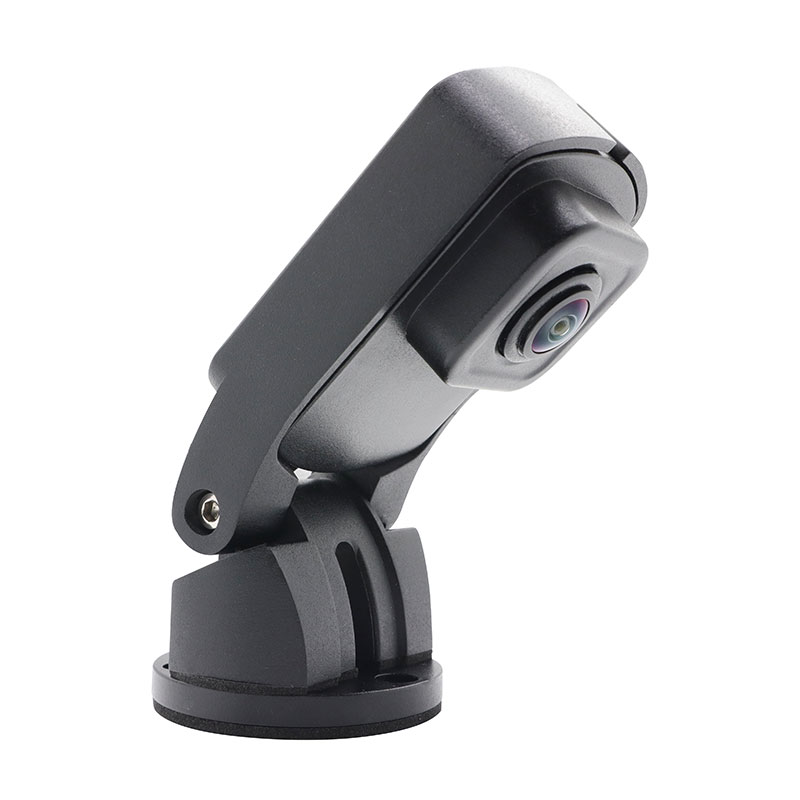

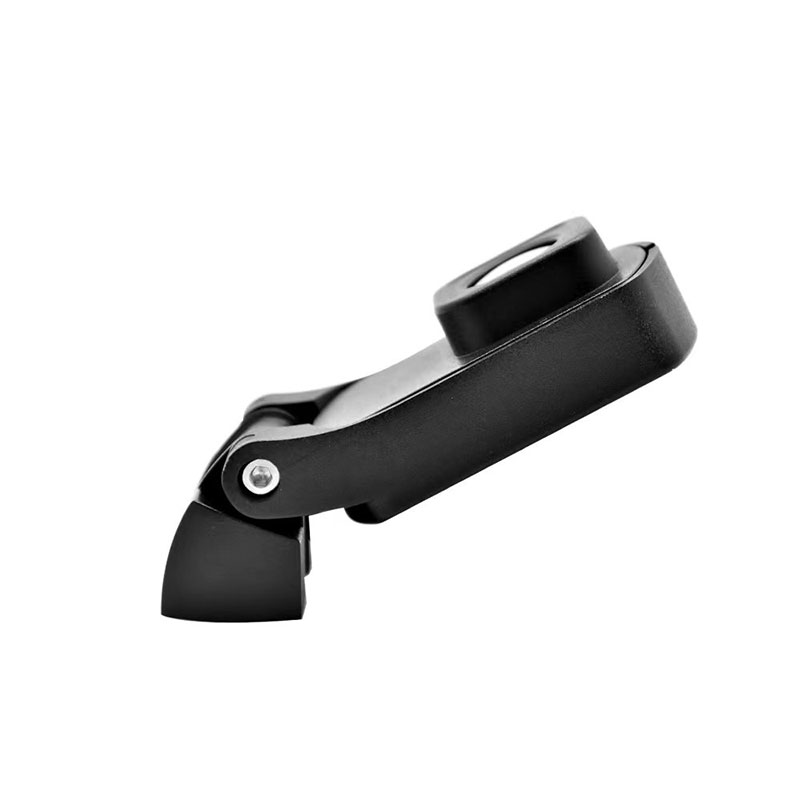

4. 180° Tilt Adjustment: Allows flexible camera positioning during installation.

5. IP69K Waterproof Rating: Designed for demanding vehicle environments.

6. Flexible Power Options: DC 12V standard, with a 24V option available.

7. Mirror and Non-Mirrored Images: Image orientation options for different installation requirements.

Applications

• Front View Vehicle Monitoring
• Rear View Vehicle Monitoring
• Commercial Vehicle Camera Systems
• Truck and Bus Camera Systems
• Heavy-Duty Vehicle Monitoring
• Automotive Video Monitoring Systems
• AHD Vehicle Camera Systems
• Fleet Vehicle Camera Installations
• Vehicle Equipment Integration Projects

Quality Control and Testing

• Appearance and Housing Inspection
• Power Supply Function Test
• Video Output Verification
• Image Quality Inspection
• Mirror and Non-Mirrored Image Verification
• Night Vision Function Test
• Tilt Adjustment Inspection
• Waterproof Specification Verification
• Operating Temperature Specification Review

FAQ

Q1: Does this camera support 1080P video?

A1: Yes. AHD 1080P is available as an optional video configuration. CVBS and AHD 720P options are also available.

Q2: Can this camera provide color night vision?

A2: Yes. It features starlight night vision with color imaging for low-light conditions.

Q3: What is the maximum viewing angle?

A3: The maximum specified viewing angle is 130°.

Q4: Can the camera angle be adjusted?

A4: Yes. The camera supports 180° tilt adjustment for flexible positioning.

Q5: Is this camera suitable for 24V vehicles?

A5: The standard version uses DC 12V, and a DC 24V version is available as an option.

Q6: Does the camera support mirror image switching?

A6: Mirror and non-mirrored image versions are optional. Please confirm the required image orientation when ordering.

Q7: Is this camera waterproof?

A7: The camera has an IP69K waterproof rating for demanding vehicle applications.

Q8: Does the camera have a built-in microphone?

A8: No. This model does not include a built-in microphone.
