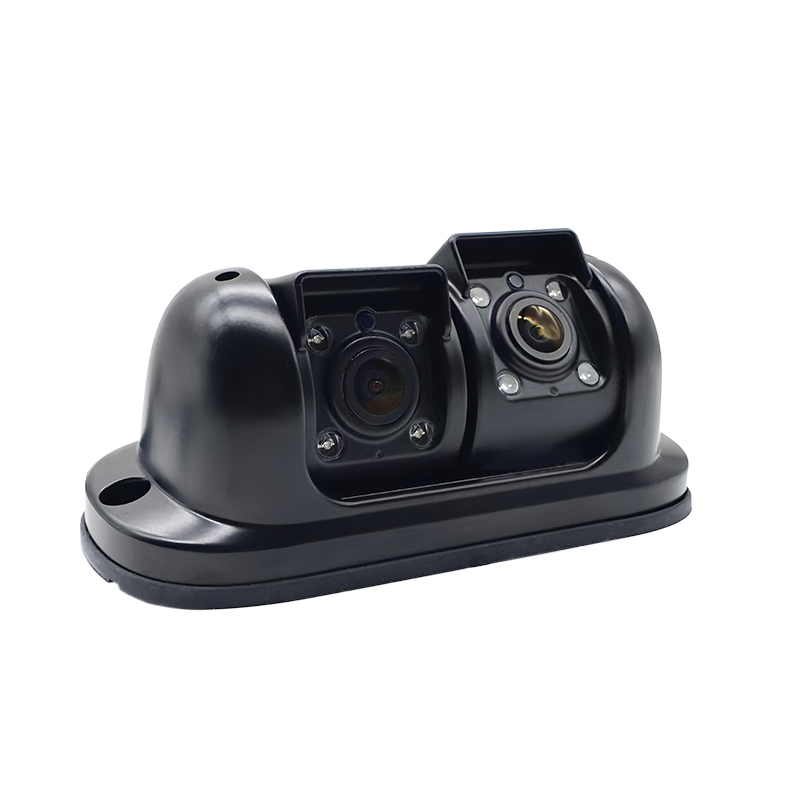

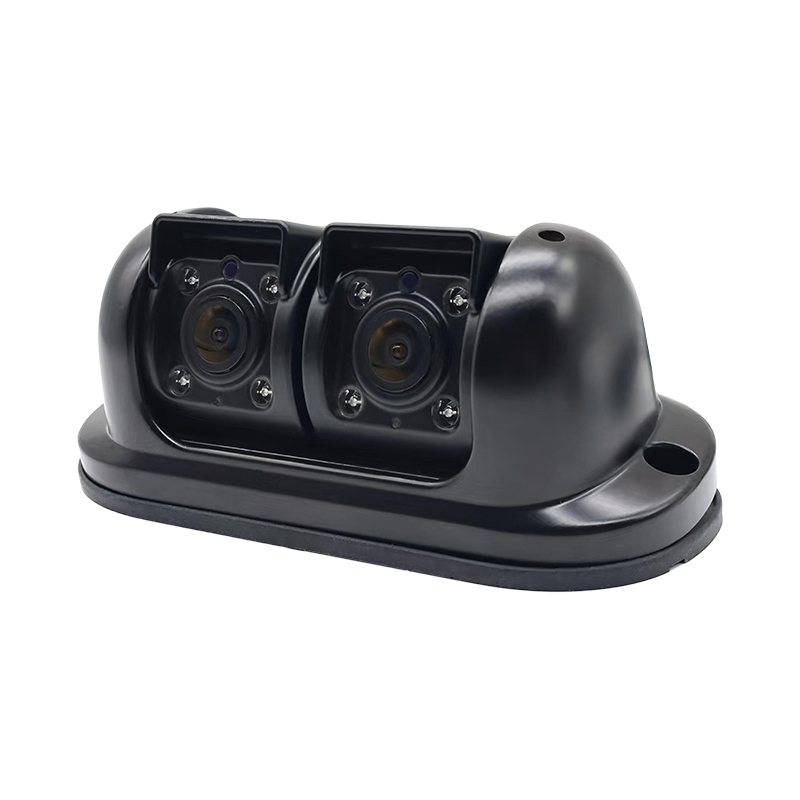

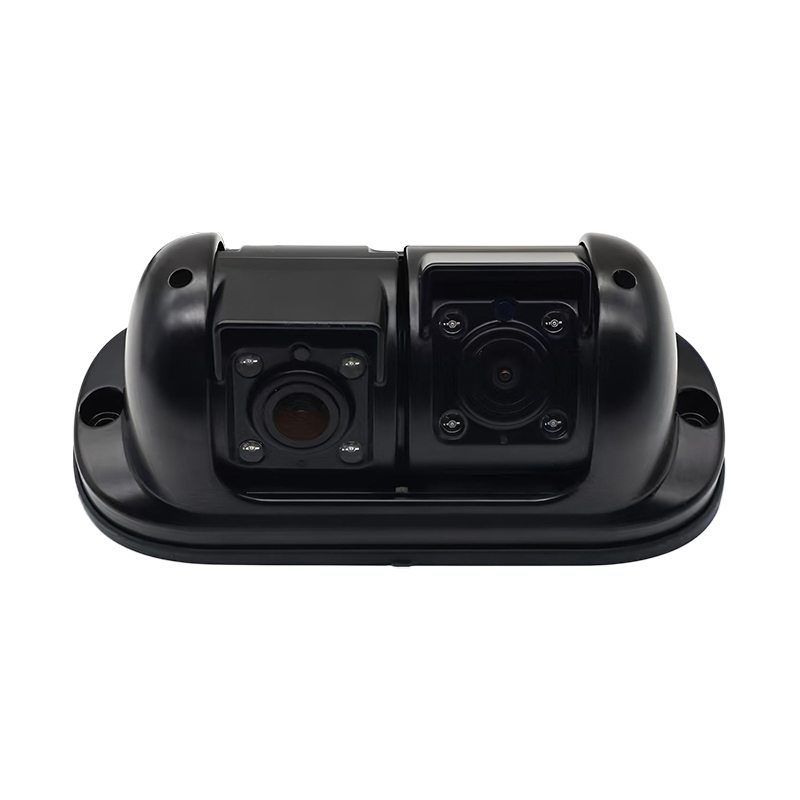

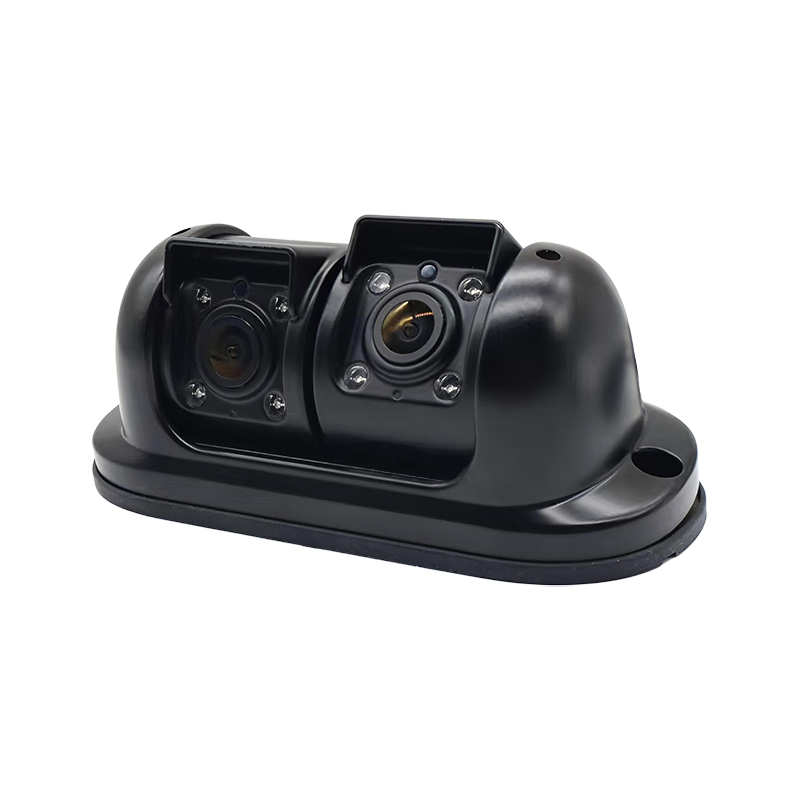

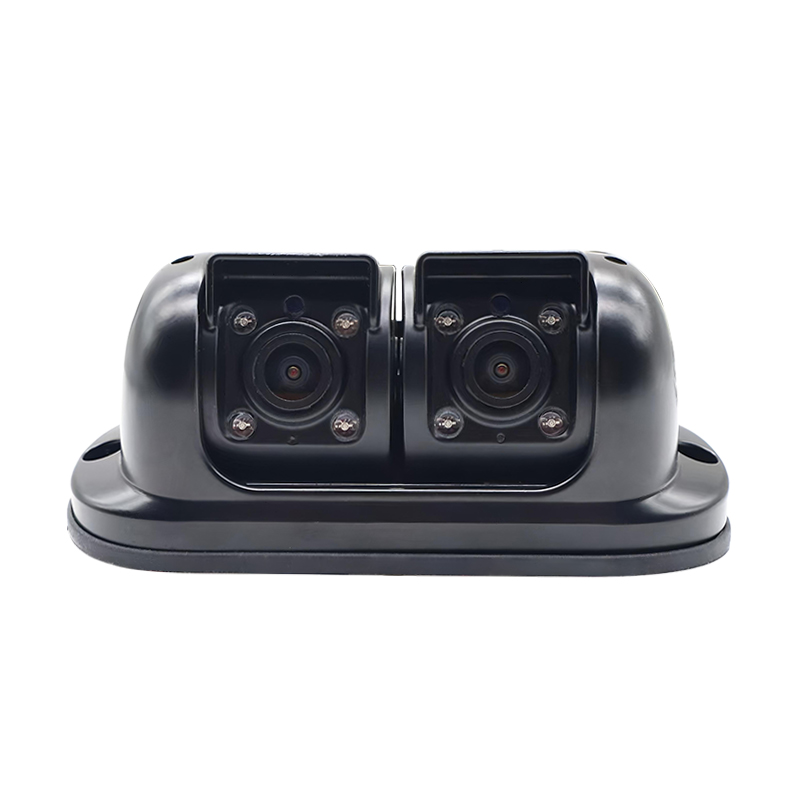

AHD Heavy Duty Infrared Night Vision Reverse Camera

Carleader AHD Heavy Duty Infrared Night Vision Reverse Camera is a high-performance dual lens rear view camera designed for reliable vehicle monitoring for various commercial and recreational vehicle. Combining advanced imaging technology with rugged construction, this camera provides clear visibility and enhanced safety for commercial and industrial vehicles.

Parameter:

Images Sensors: 1/2.1

Power supply: DC12V(standard). 24V (optional)

Video Input: CVBS/AHD720P/AHD1080P optional

Mirror image & non-mirrored image (optional)

Electronic Shutter: 1/65(NTSC)/1/60(PAL)-1/10,000

Lux:0.1 LUX (4 IR LED for each Lens)

Support Infrared Night Vision Function

Lens:2.1mm

Only Support One of Lens with audio function

S/N ratio: ≥50dB

System: PAL/NTSC optional

View Angle: 90° & 135° (Default)

Lens angle can be adjusted separately

Video Output: 1.0vp-p,750hm

Housing Material: Aluminum Alloy

Camera Connector: 4Pin Aviation Connector

IP Rating: IP69K

Operating Temperature(Deg. C): -20~+75(RH95% Max.)

Storage Temperature(Deg. C): -30~+85(RH95% Max.)
