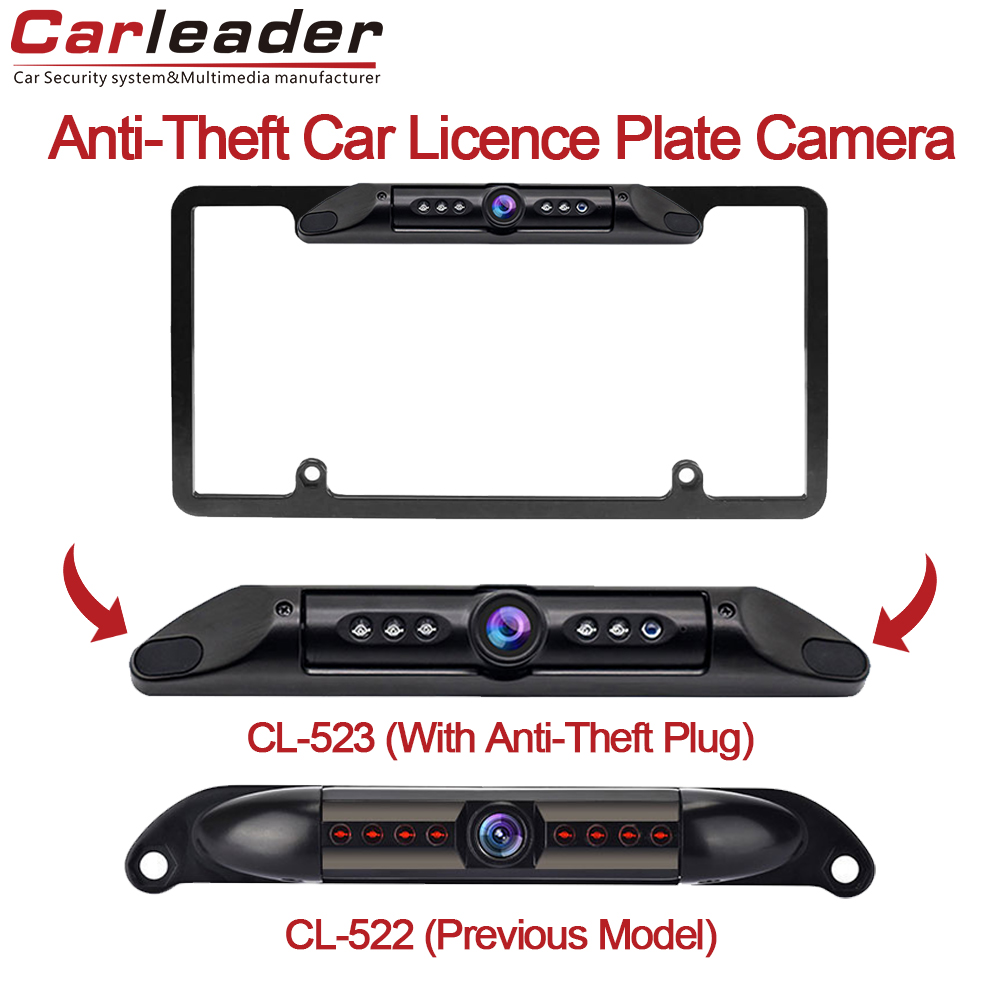

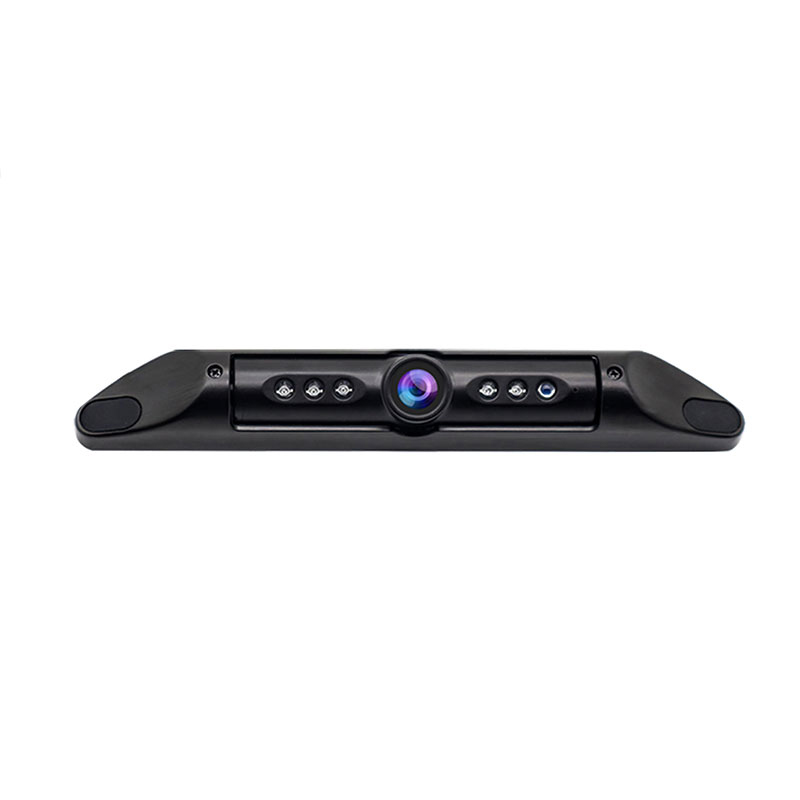

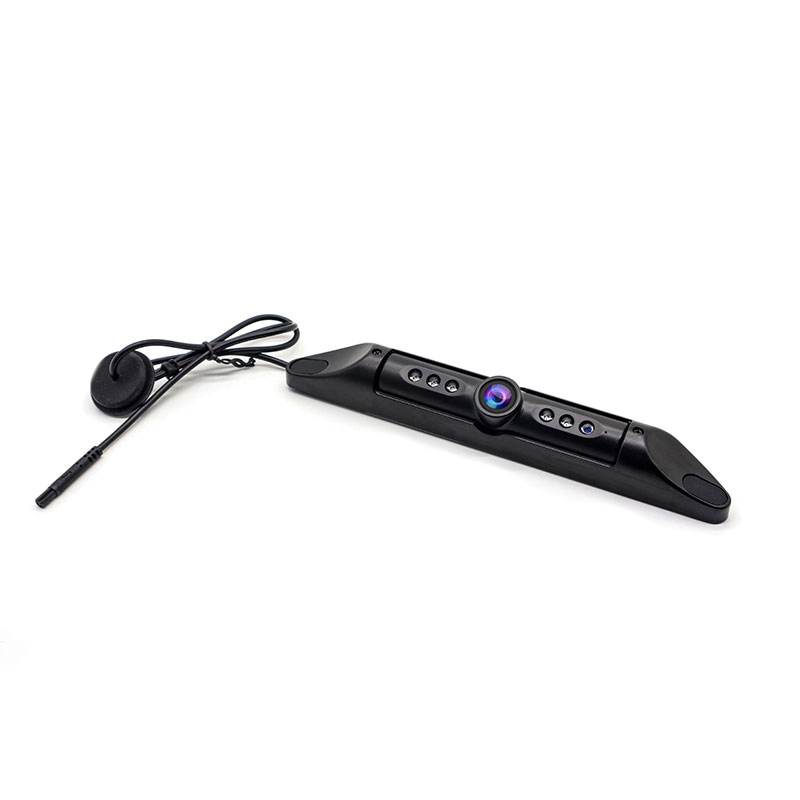

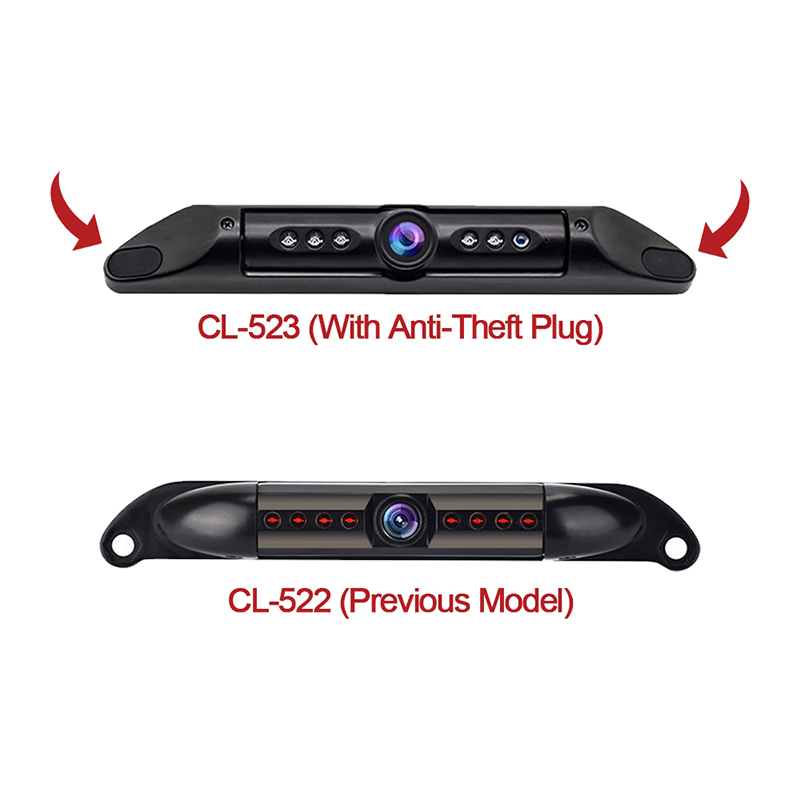

Car License Plate Camera with Mini BMW & 4Pin Connector for Vehicle Rear View

Carleader Car License Plate Camera with Mini BMW & 4Pin Connector for Vehicle Rear View. This Car License Plate Camera combines a compact license plate installation design with Mini BMW and 4Pin connector options, making it suitable for different vehicle camera configurations. It supports CVBS, AHD720P and AHD1080P video formats, with a 120°-130° wide viewing angle for rear-area monitoring. The 0.5 Lux low-light specification with 5 LED illumination, anti-rust metal housing and IP69K protection make it suitable for car rear view, reversing, parking and commercial vehicle camera systems.

Model:CL-523

Send Inquiry

Product Description

Carleader Car License Plate Camera with Mini BMW & 4Pin Connector for Vehicle Rear View. Designed for vehicle rear monitoring, this license plate camera provides a practical way to add a wide-angle camera around the license plate area. It can be used with different vehicle displays and recording systems through CVBS, AHD720P or AHD1080P video options. The camera provides a 120°-130° viewing angle for broad rear-area coverage and supports both mirror and non-mirrored images. With Mini BMW and 4Pin connector options, it can be configured for different vehicle camera installations. The anti-rust metal housing and IP69K protection are suitable for exterior applications, while 5 LED illumination supports visibility in low-light environments.

Product Advantages

1. Designed for License Plate Installation

A compact license plate camera solution for adding rear visibility while maintaining a clean vehicle installation.

2. Mini BMW & 4Pin Connector

Two connector options provide greater flexibility for different vehicle wiring and camera system configurations.

3. Wide Rear View

The 120°-130° viewing angle provides broad coverage behind the vehicle for reversing and rear monitoring.

4. Low-Light Illumination

0.5 Lux performance with 5 LED illumination provides additional visibility in darker environments.

5. IP69K Exterior Protection

The rugged anti-rust metal housing and IP69K rating are suitable for demanding outdoor vehicle applications.

Parameters

Product Type: Car License Plate Camera

Image Sensor: 1/2.7″ & 1/1.7″

Video Input: CVBS / AHD720P / AHD1080P Optional

Power Supply: DC12V Standard, 24V Optional

Connector: Mini BMW and 4Pin Connector

View Angle: 120°-130°

Minimum Illumination: 0.5 Lux (5 LED ON)

Mirror Image: Optional

Non-Mirrored Image: Optional

S/N Ratio: ≥48dB

System: PAL / NTSC Optional

Waterproof Rating: IP69K

Housing: Anti-Rust Metal

Built-in Microphone: Optional

Operating Temperature: -20℃~+75℃ (RH95% Max.)

Storage Temperature: -30℃~+85℃ (RH95% Max.)

FAQ

Q: What connectors are available?

A: The camera supports Mini BMW and 4Pin connector options.

Q: Does it support AHD1080P?

A: Yes. CVBS, AHD720P and AHD1080P are optional.

Q: What is the camera viewing angle?

A: The viewing angle is 120°-130°.

Q: Can it be used as a rear view camera?

A: Yes. It is suitable for rear view, reversing, parking and vehicle surveillance applications.

Q: Does it support mirror image?

A: Yes. Mirror and non-mirrored image configurations are available.

Q: Is it suitable for exterior installation?

A: Yes. The camera has an IP69K waterproof rating and anti-rust metal housing.

Quality Control

Relevant inspections can include:

Waterproof protection inspection
Video signal and image output testing
Viewing angle verification
LED illumination testing
Connector connection inspection
Power supply testing
Operating temperature testing
Mirror/non-mirrored image inspection
Housing quality inspection
