Heavy Duty Vehicle Camera with Starlight Color Night Vision and AHD 1080P

The camera uses a 2.1mm lens and the viewing angle is available in 140° or 170° configurations, allowing customers to select the appropriate coverage according to different vehicle applications. With Starlight Color Night Vision, the camera provides clear color images in low-light environments, helping improve visibility during nighttime driving and vehicle maneuvering. The camera supports CVBS, AHD 720P and AHD 1080P video options, making it suitable for different vehicle monitors, DVRs and surveillance systems. Designed for demanding outdoor environments, the camera features an IP69K waterproof rating, making it suitable for trucks, buses, construction machinery and other heavy-duty vehicles.

Features

1. The Starlight Night Vision vehicle camera uses a high-performance 1/2.1" image sensor to capture clear color images in low-light environments, providing better visibility for nighttime vehicle monitoring.

2. With a 2.1mm lens and up to 140° viewing angle, the camera provides broad coverage for front, side or rear vehicle monitoring and helps reduce blind spots. A 170° viewing angle is also available as an optional configuration.

3. The camera supports CVBS, AHD 720P and AHD 1080P, allowing flexible integration with different vehicle monitors, mobile DVRs and surveillance systems.

4. The IP69K vehicle camera is designed to withstand water, dust and high-pressure cleaning environments, making it suitable for demanding commercial and heavy-duty vehicle applications.

5. The standard power supply is DC12V, while 24V is available as an optional configuration for vehicles requiring higher-voltage power systems.

Parameter

Product Type: Front / Side / Rear View Vehicle Camera

Image Sensor: 1/2.1"

Lens: 2.1mm

Viewing Angle: 140° / 170° Optional

Night Vision: Starlight Night Vision (Color Image)

Video: CVBS / AHD 720P / AHD 1080P Optional

Video Output: 1.0Vp-p, 75Ω

Power Supply: DC12V Standard, 24V Optional

Image: Mirror / Non-Mirrored Optional

Electronic Shutter: 1/65(NTSC) / 1/60(PAL) – 1/10,000

S/N Ratio: ≥50dB

System: PAL / NTSC Optional

Built-in Microphone: Optional

Waterproof Rating: IP69K

Operating Temperature: -20°C~+75°C (RH95% Max.)

Storage Temperature: -30°C~+85°C (RH95% Max.)

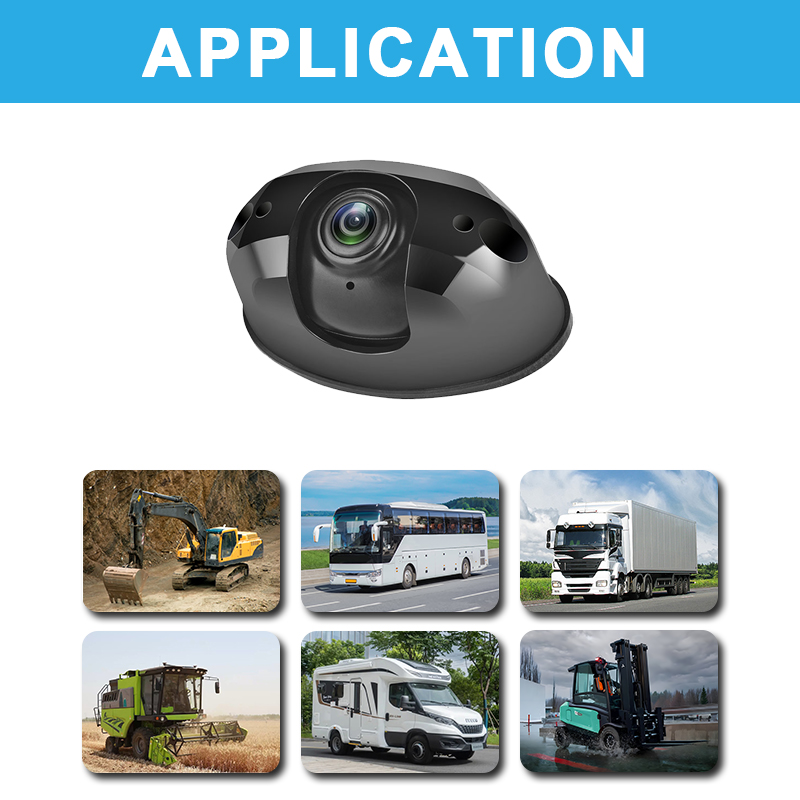

 Application Scenarios

• Truck Front / Side / Rear Monitoring

Suitable for trucks and heavy-duty commercial vehicles requiring multiple camera positions for comprehensive vehicle monitoring.

• Bus Surveillance

Can be installed on buses for front, side and rear-view monitoring and integrated with onboard video surveillance systems.

• Construction Vehicles

The rugged IP69K vehicle camera is suitable for construction machinery and vehicles operating in dusty, wet or demanding environments.

• Fleet Monitoring

Suitable for fleet surveillance systems used by logistics, transportation and commercial vehicle operators.

• Special-Purpose Vehicles

Can be used on garbage trucks, engineering vehicles, mining vehicles and other special-purpose vehicles.

• Mobile DVR Systems

The camera can be integrated with mobile DVR / vehicle DVR systems for continuous vehicle video recording.

FAQ

Q1: Is this camera suitable for front, side and rear vehicle monitoring?

Yes. The camera can be configured for front, side or rear view applications, with mirror and non-mirrored image options available.

Q2: Does the camera support Starlight Night Vision?

Yes. The camera features Starlight Color Night Vision, which helps capture color images in low-light environments.

Q3: What viewing angles are available?

The standard viewing angle is 140°, while 170° is available as an optional configuration.

Q4: Does the camera support AHD 1080P?

Yes. AHD 1080P, AHD 720P and CVBS video configurations are available.

Q5: Is the camera waterproof?

Yes. The camera features an IP69K waterproof rating, making it suitable for demanding outdoor and heavy-duty vehicle applications.

Q6: Is a microphone available?

Yes. A built-in microphone is available as an optional feature.

Q7: What vehicles can use this camera?

It can be used for trucks, buses, construction vehicles, fleet vehicles, engineering vehicles, special-purpose vehicles and other commercial vehicles.
