Infrared Night Vision IP Camera for Trucks and Heavy-Duty Vehicles

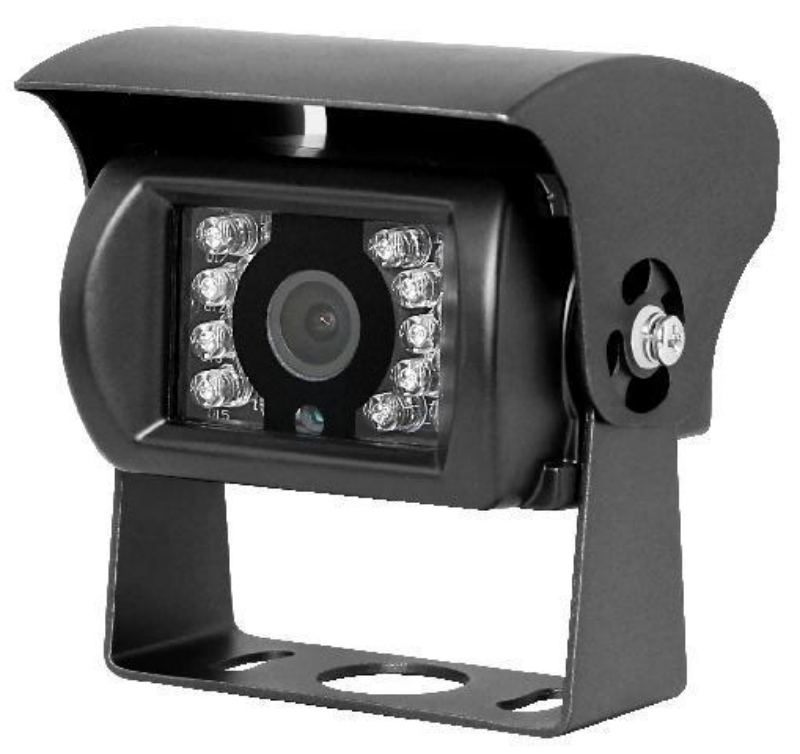

The Carleader 1080P IP Rear View Camera is a network-based vehicle camera designed for integration into compatible IP vehicle monitoring systems. It supports 1080P IP video at 25 or 30 FPS and offers H.264/H.265 video compression for supported network recording configurations. Equipped with 18 infrared LEDs, the camera provides infrared night vision for monitoring in low-light environments. Its 130° viewing angle helps cover a broad area, while the IP69K waterproof rating supports use in demanding vehicle environments. The camera supports network functionality and offers optional mirror or non-mirrored images. Customers can choose an RJ45 or 6PIN aviation connector according to their system requirements. A built-in microphone is optional, and a 24V version is available for compatible vehicle electrical systems.

Product Advantages

1. High-Definition IP Video

The 1080P IP video output supports high-definition monitoring in compatible vehicle surveillance systems.

2. Infrared Night Vision

The integrated 18 IR LEDs provide infrared night vision for low-light vehicle monitoring.

3. Efficient Video Compression Options

H.264 and H.265 compression options support integration with compatible network recording equipment.

4. Flexible Network Integration

Network functionality and connector options provide flexibility for suitable IP-based vehicle camera installations.

5. Designed for Challenging Vehicle Environments

The IP69K-rated housing is designed for demanding vehicle applications. Connectors, cable connections and mounting should also be suitable for the intended installation environment.

6. Flexible Configuration

Optional microphone, image orientation and power supply configurations help accommodate different project requirements.

Product Parameters

Product Name: 1080P IP Rear View Camera

Camera Type: IP Rear View Camera

Image Sensor: 1/2.7 inch or 1/3 inch

Video Resolution: 1080P IP

Frame Rate: 25/30 FPS

Video System: PAL/NTSC optional

Video Compression: H.264 / H.265

Network Function: Supported

Power Supply: DC 12V standard

Optional Power Supply: DC 24V

Image Mode: Mirror / Non-mirrored optional

Minimum Illumination: 0.1 Lux (specified condition)

Infrared Night Vision: Supported

Infrared LEDs: 18 IR LEDs

Lens: 2.5 mm

Viewing Angle: 130°

Built-In Microphone: Optional

Maximum Power Consumption: 3W

Connector Options: RJ45 / 6PIN aviation connector

Waterproof Rating: IP69K

Operating Temperature: -20°C to +50°C (RH 20%–80%)

Storage Temperature: -20°C to +65°C (RH 20%–90%)

ApplicationsCommercial

• Vehicle IP Camera Systems
• Truck Rear View Monitoring
• Bus and Coach Camera Systems
• Heavy-Duty Vehicle Monitoring
• Fleet Video Surveillance Systems
• Network-Based Vehicle Monitoring Systems
• IP Camera and Mobile DVR Integration Projects
• Vehicle Camera Systems Requiring Infrared Night Vision
• Commercial Vehicle Safety and Monitoring Installations

FAQ

Q1: What resolution does this IP rear view camera support?

A1: The camera supports 1080P IP video at 25 or 30 FPS.

Q2: Does this camera support night vision?

A2: Yes. It features infrared night vision with 18 IR LEDs for low-light monitoring.

Q3: Does the camera support H.265 compression?

A3: Yes. Both H.264 and H.265 video compression formats are supported. Compatibility with the connected recorder or network system should be confirmed.

Q4: Can this camera connect to an IP recording system?

A4: It supports network functionality and is designed for compatible IP-based vehicle monitoring systems. Please confirm protocol and recorder compatibility before ordering.

Q5: Which connectors are available?

A5: RJ45 and 6PIN aviation connectors are optional. The appropriate version depends on the installation and connected equipment.

Q6: Is a built-in microphone available?

A6: Yes. A built-in microphone is optional.

Q7: Can this camera be used with a 24V vehicle?

A7: The standard version uses DC 12V, while a 24V version is available as an option.

Q8: Is this camera waterproof?

A8: It has an IP69K waterproof rating. The complete installation should also use appropriately protected connectors and cable connections.

Q9: Can I choose between mirror and non-mirrored images?

A9: Yes. Both image orientations are available as options.
