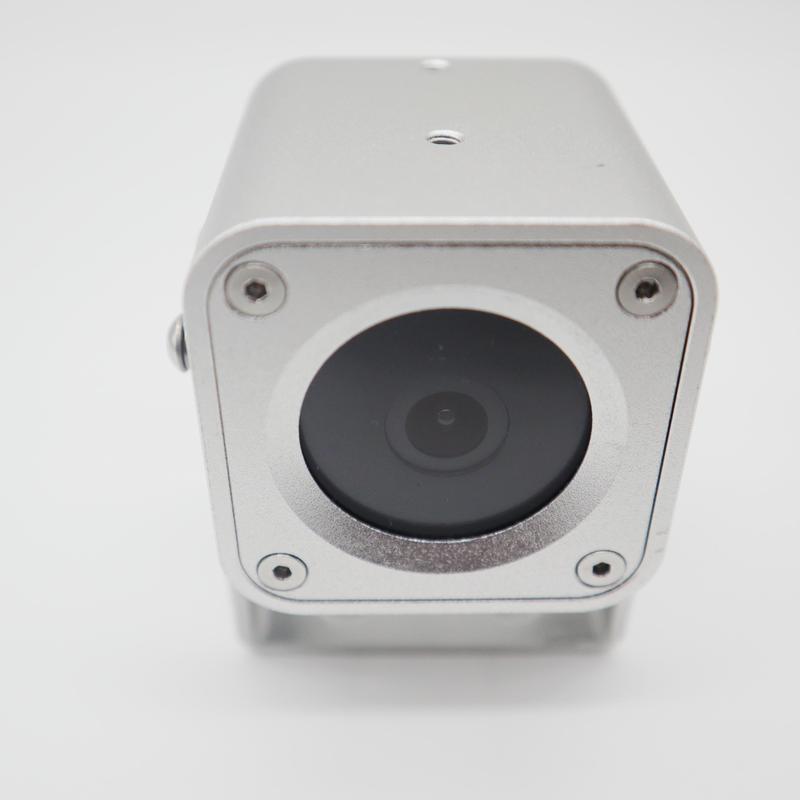

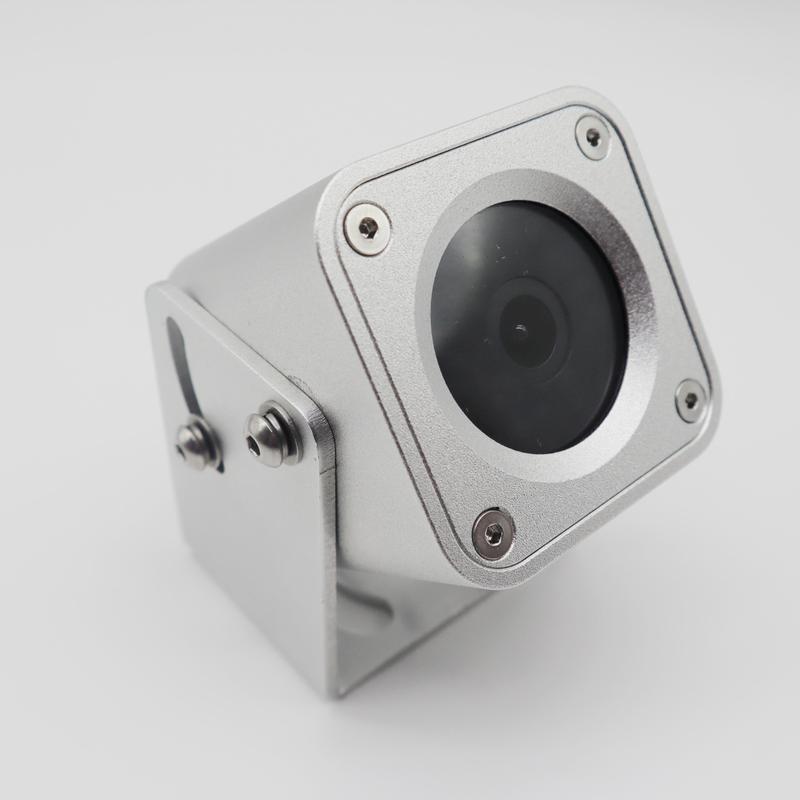

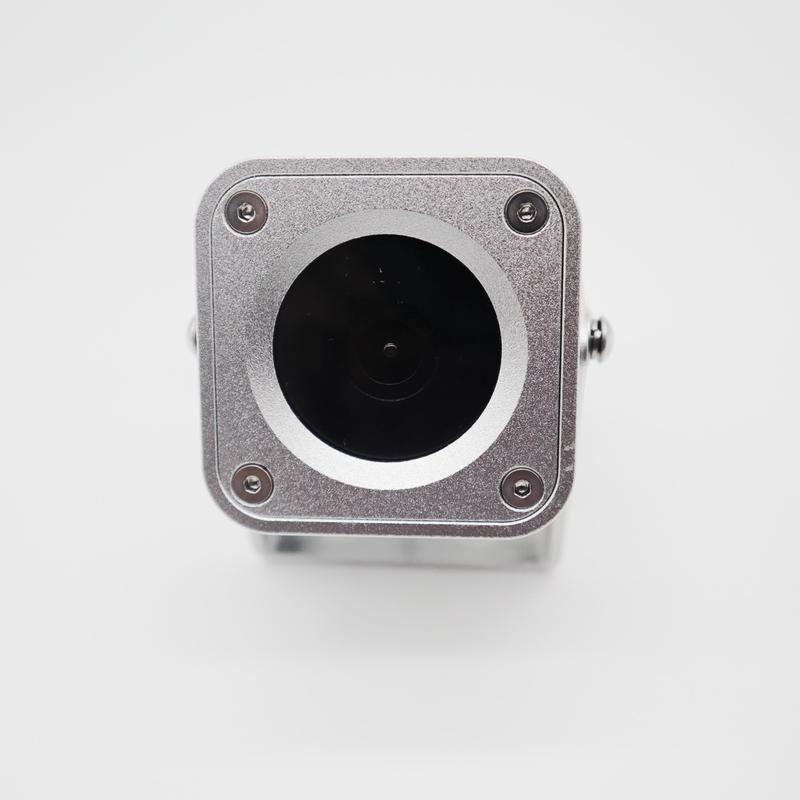

IP69K Heavy Duty Vehicle Camera with Starlight Night Vision – AHD 1080P Commercial Vehicle Camera

The camera is available with AHD 720P or AHD 1080P video output, with PAL/NTSC and mirrored/non-mirrored image options for different vehicle camera systems. It can be used as a Commercial Vehicle Camera, truck camera, bus camera, construction vehicle camera, agricultural machinery camera or general-purpose AHD backup/side/rear monitoring camera.

Key Features

1. Starlight Night Vision – provides color images in low-light environments.

2. AHD 1080P Option – supports high-definition video for professional vehicle monitoring.

3. IP69K Waterproof Housing – designed for heavy-duty outdoor vehicle applications.

4. Aluminum Alloy Construction – rugged housing for demanding commercial vehicle installations.

5. Mirror & Non-Mirror Image – supports different installation positions and viewing requirements.

6. PAL / NTSC Optional – compatible with different video systems and markets.

Parameters

Product: Type Heavy Duty Vehicle Camera

Video Resolution:  AHD 720P / AHD 1080P

Lens: 2.8mm

Horizontal Viewing Angle: 102°

Vertical Viewing Angle: 55°

Video Output: 1.0Vp-p, 75Ω

Night Vision Starlight: Color Night Vision

Image Mirror / Non-Mirror Optional

Video System PAL / NTSC Optional

Power Supply DC12V Standard / 24V Optional

Waterproof Rating: IP69K

S/N Ratio ≥50dB

Electronic Shutter 1/65 (NTSC), 1/60 (PAL) – 1/10,000

Built-in Microphone No

Operating Temperature -20°C to +75°C, RH95% Max.

Storage Temperature -30°C to +85°C, RH95% Max.

Applications

This IP69K Heavy Duty Vehicle Camera can be used for:

• Commercial trucks
• Buses and coaches
• Construction vehicles
• Agricultural machinery
• Mining and industrial vehicles
• Trailers and special-purpose vehicles
• Fleet monitoring systems
• Rear-view camera systems
• Side-view camera systems
• AHD DVR vehicle surveillance systems

For vehicles requiring continuous operation in outdoor environments, the combination of AHD video, starlight night vision and IP69K protection makes the camera suitable for professional vehicle monitoring applications.

FAQ

Q: Is this camera suitable for trucks and buses?

A: Yes. The rugged aluminum alloy housing, IP69K protection and AHD video output make it suitable for commercial trucks, buses, coaches and other heavy-duty vehicles.

Q: Does the camera support 1080P?

A: Yes. AHD 1080P is available, while AHD 720P is also optional.

Q: Does it support 24V vehicles?

A: Yes. DC12V is the standard power supply, and a 24V option is available for commercial and heavy-duty vehicles.

Q: Does it provide color night vision?

A: Yes. The camera uses starlight night vision technology to provide color images in low-light conditions.

Q: Can the image be mirrored?

A: Yes. Mirror and non-mirrored image versions are available depending on the installation position.

Q: Can it work with an AHD DVR?

A: Yes. The camera is designed for AHD vehicle video systems and can be configured with compatible AHD DVR/MDVR equipment.
