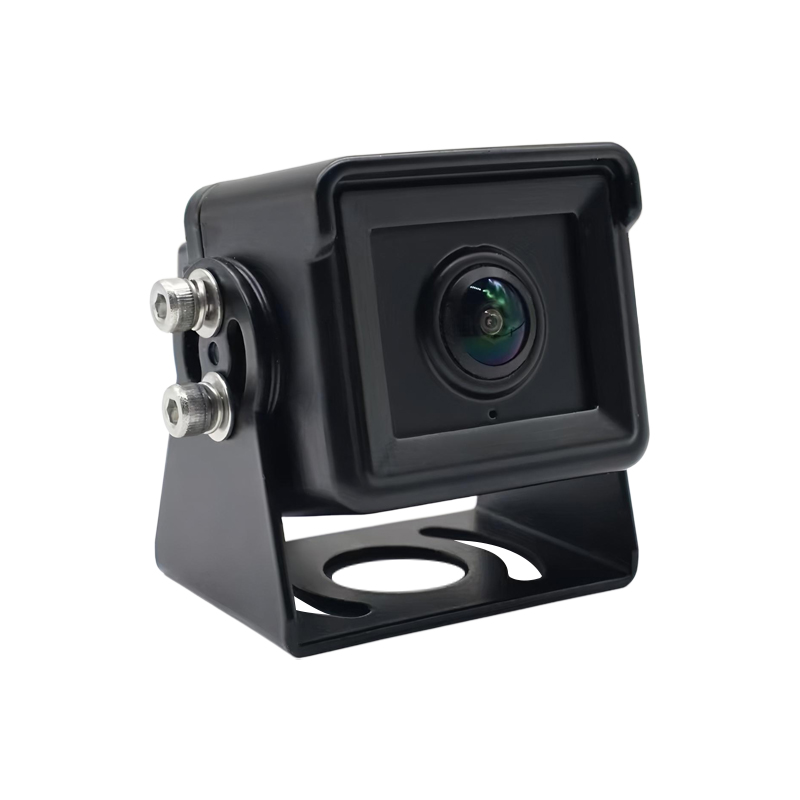

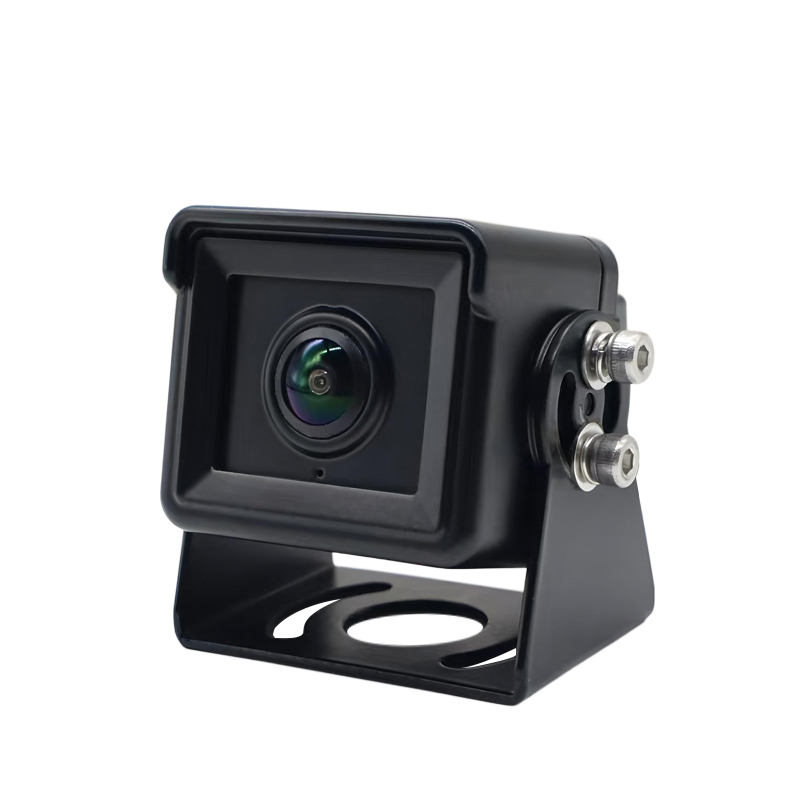

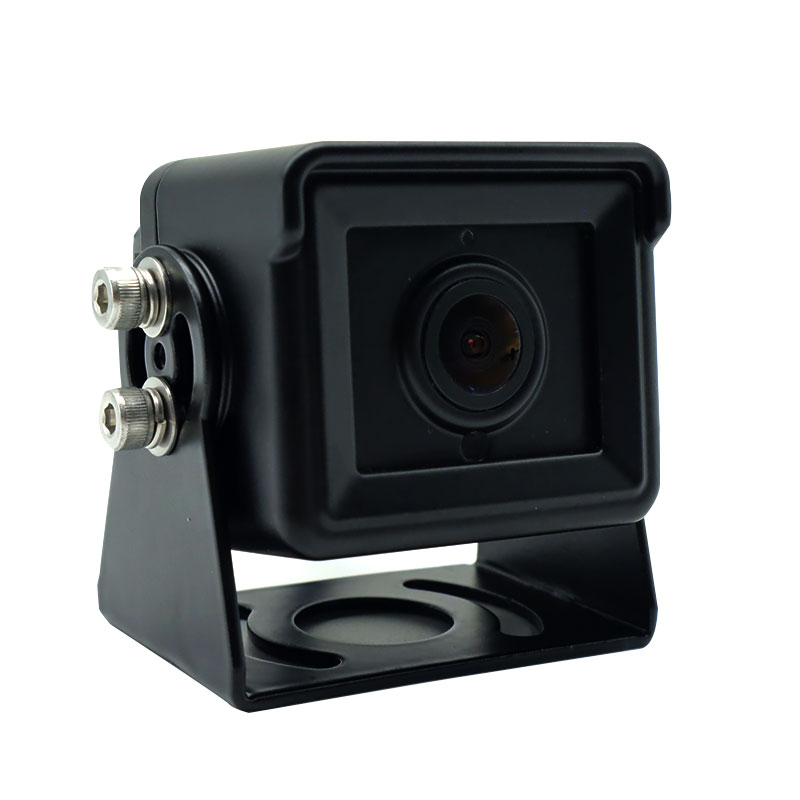

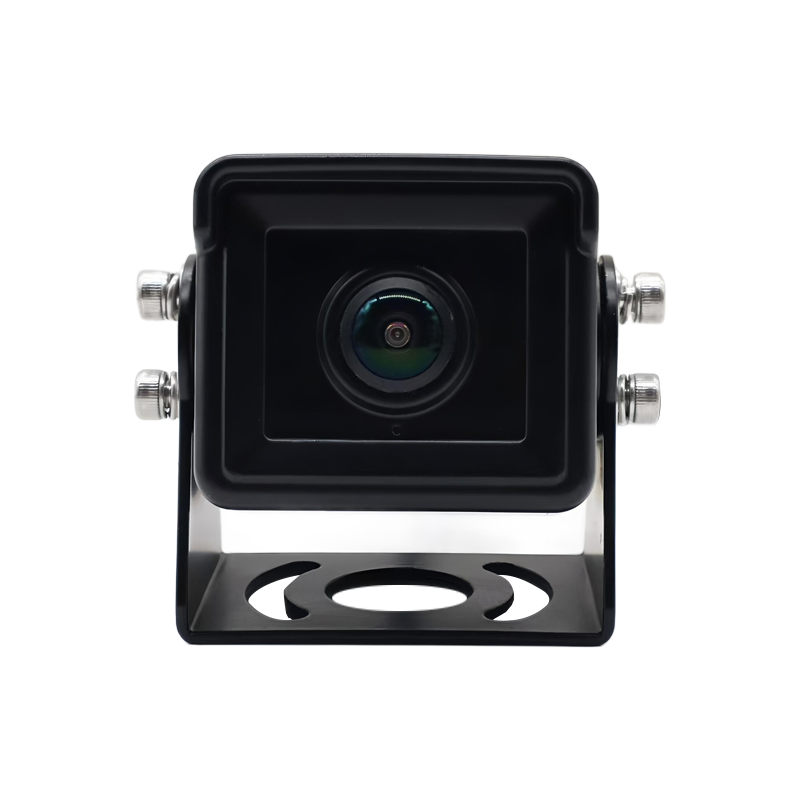

IP69K Starlight Backup Camera with 160° Viewing Angle for Commercial Vehicle Monitoring

Carleader IP69K Starlight Backup Camera with 160° Viewing Angle for Commercial Vehicle Monitoring is designed with wide-angle coverage and Starlight Color Night Vision. Supporting CVBS, AHD720P and AHD1080P video formats, this truck rear view camera can be used with different vehicle monitors and surveillance systems. The adjustable bracket and IP69K waterproof construction make it suitable for trucks, buses, vans and other commercial vehicles.

Model:CL-8088

Send Inquiry

Product Description

Carleader IP69K Starlight Backup Camera with 160° Viewing Angle for Commercial Vehicle Monitoring. For commercial vehicles, rear visibility can be affected by vehicle size, cargo areas and blind spots. This Starlight rear view camera is designed to provide a wide monitoring view behind the vehicle. The camera supports multiple video configurations including CVBS, AHD720P and AHD1080P, allowing system integrators and vehicle equipment suppliers to select the appropriate video solution. With 140° or 160° viewing angle options and Starlight function supports color imaging in low-light conditions, making it suitable for nighttime vehicle operation and reversing. Its IP69K waterproof rating also allows it to be used in demanding outdoor vehicle environments.

Features

1. This vehicle rear camera is suitable for reversing assistance and monitoring the area behind commercial vehicles.

2. Customers can select 140° / 160° Wide-Angle according to vehicle size and rear monitoring requirements.

3. The Starlight backup camera supports color image monitoring in low-light conditions.

4. Supports CVBS, AHD720P and AHD1080P options for different vehicle camera systems.

5. The IP69K rear view camera is suitable for exterior installation on trucks, buses, vans and other working vehicles.

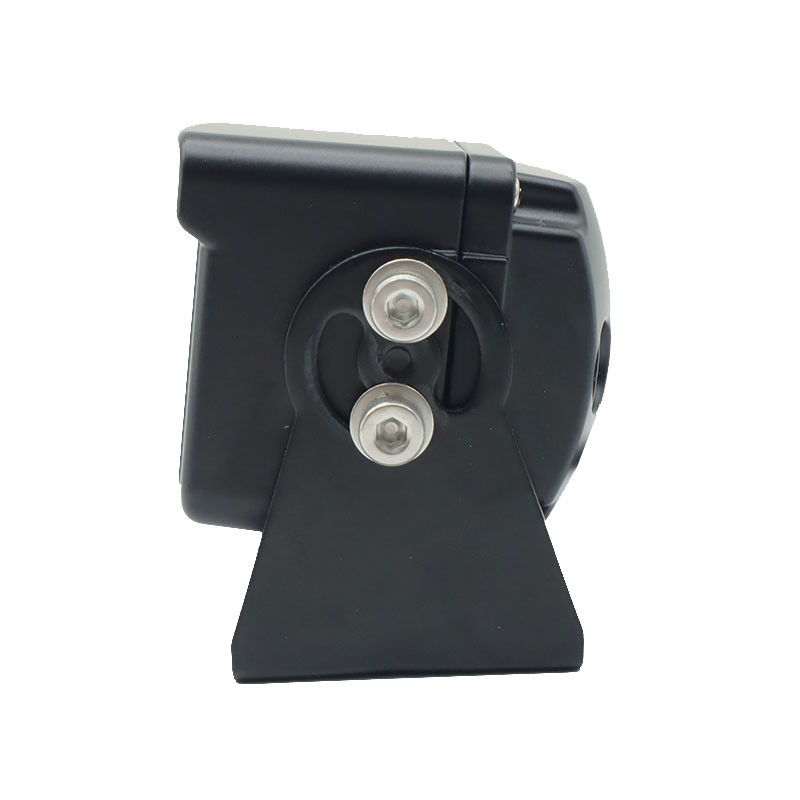

6. The mounting bracket allows the camera to be positioned according to different vehicle installation requirements.

Parameters

Product Type: Starlight Rear View Camera

Video Input: CVBS / AHD720P / AHD1080P Optional

Power Supply: DC12V (Standard), 24V (Optional)

Mirror Image: Optional

Non-Mirrored Image: Optional

Lens: 2.1mm

Night Vision: Starlight Night Vision (Color Image)

View Angle: 140° / 160° Optional

System: PAL/NTSC Optional

Built-in Mic: Optional

Waterproof Rating: IP69K

Operating Temperature: -20℃~+75℃ (RH95% Max.)

Storage Temperature: -30℃~+85℃ (RH95% Max.)

Quality Control

This Starlight truck rear camera can undergo the following inspections:

CVBS/AHD video output testing
Starlight low-light image testing
Wide-angle coverage inspection
Mirror image testing
Non-mirror image testing
Bracket installation inspection
Waterproof testing
Power consumption testing
High and low temperature testing
Final product inspection

FAQ

Q1: Is this camera mainly designed as a backup camera?

Yes. It is suitable for vehicle rear monitoring, reversing assistance and backup camera applications.

Q2: What viewing angles are available?

The camera is available with 140° and 160° viewing angle options.

Q3: Can it be used on trucks and commercial vehicles?

Yes. This truck rear view camera is suitable for trucks, vans, buses and other commercial vehicles.

Q4: Does it support 1080P?

Yes. CVBS, AHD720P and AHD1080P configurations are available as options.

Q5: Can the camera work in low-light conditions?

Yes. It features Starlight Night Vision with color image.

Q6: Is it waterproof for exterior installation?

Yes. The camera has an IP69K waterproof rating.
