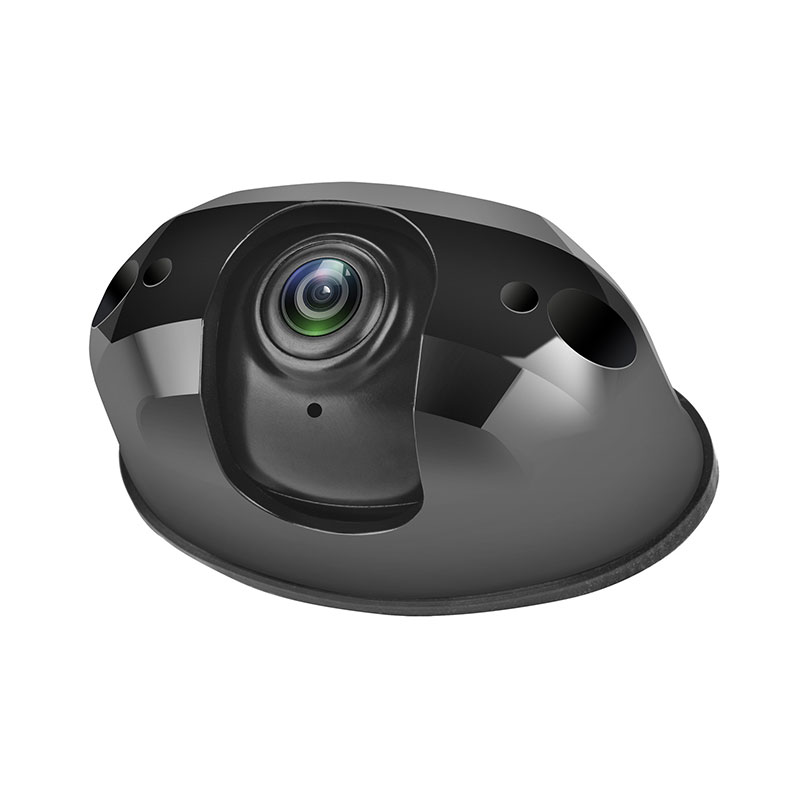

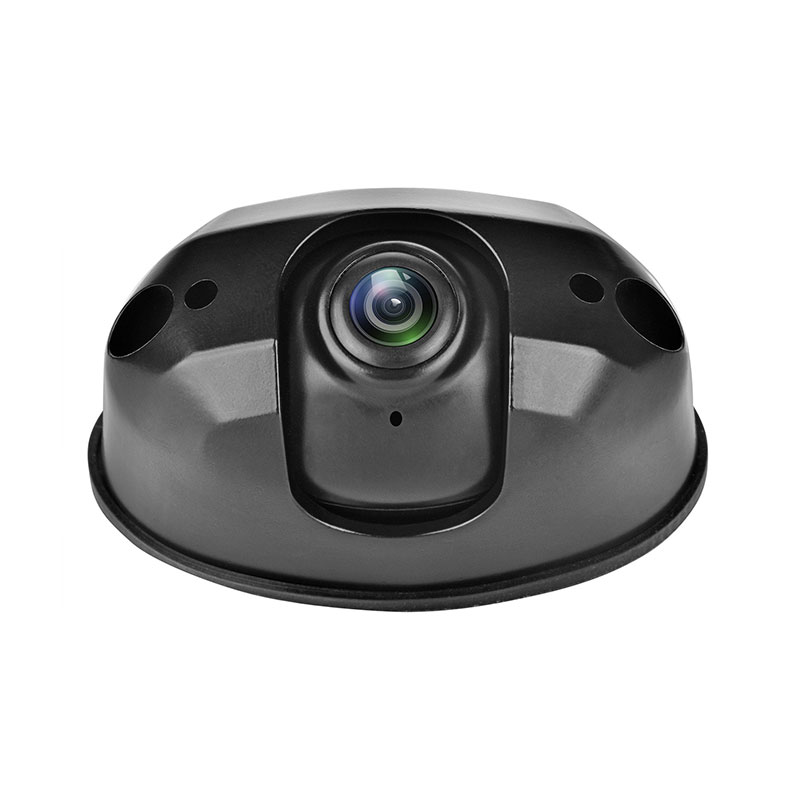

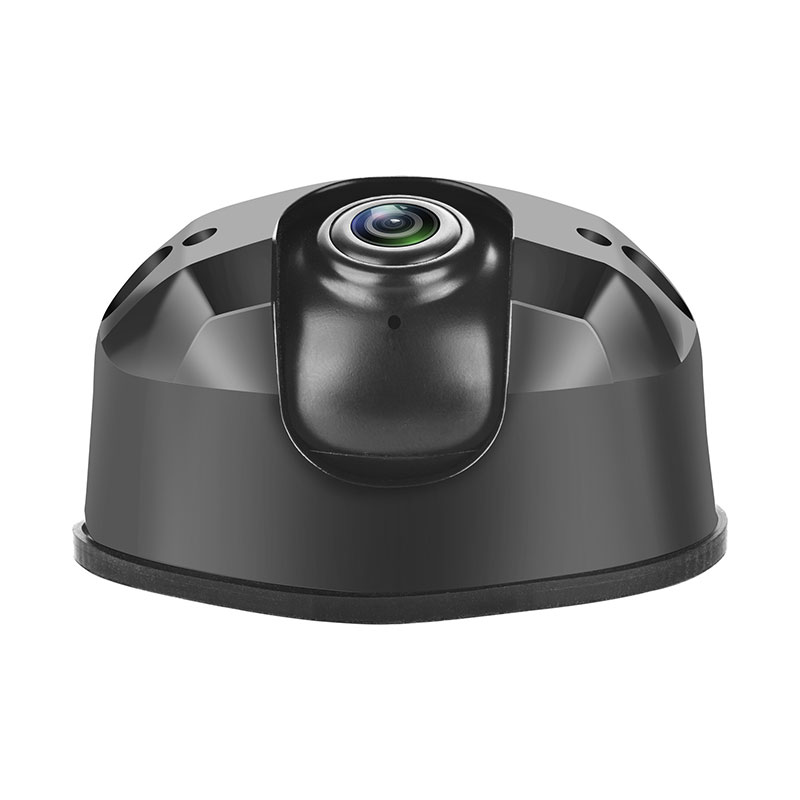

Multi-Position Vehicle Camera with Starlight Color Night Vision with 170 degree Wide Angle

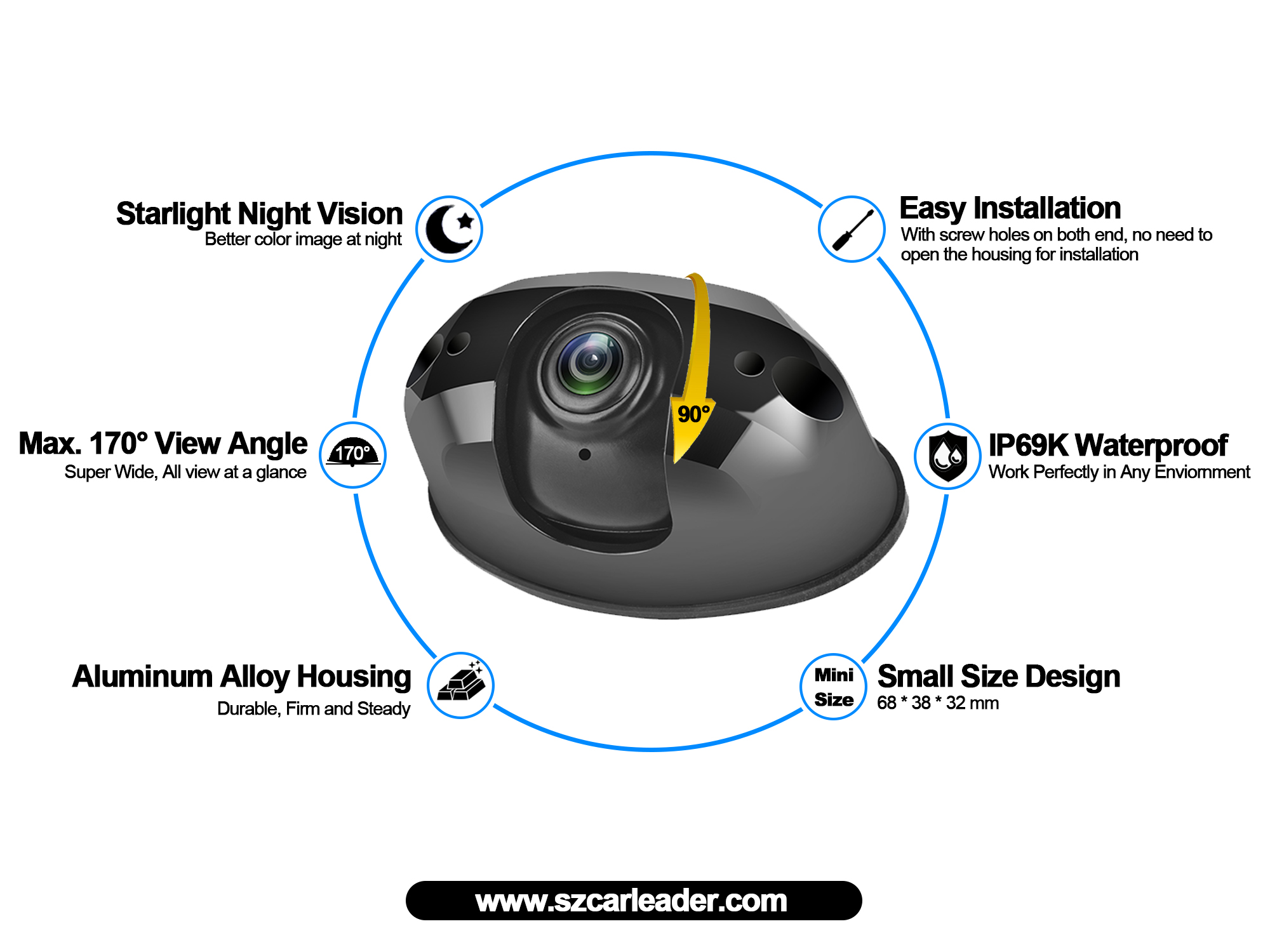

Why This Camera?

1. One Camera for Multiple Positions

The same camera platform can be used for front view, side view or rear view applications, giving installers greater flexibility when designing a vehicle camera system.

2. 170° Wide-Angle Coverage

The optional 170° viewing angle provides a broad monitoring area, making the camera suitable for applications where wider vehicle coverage is required.

3. Starlight Color Night Vision

Unlike conventional cameras that may produce a black-and-white image at night, the Starlight vehicle camera is designed to maintain color imaging in low-light conditions.

4. Multiple HD Video Options

The camera supports CVBS, AHD720P and AHD1080P, allowing customers to select a suitable version for their existing vehicle monitoring equipment.

5. Mirror / Non-Mirrored Image

The image configuration can be selected according to whether the camera is used at the front, side or rear of the vehicle.

6. IP69K Waterproof Protection

The IP69K vehicle camera is designed for exterior installation and demanding commercial vehicle environments.

Product Parameters

Product Type:Front/Side/Rear View Camera

Power Supply:DC12V (Standard), 24V (Optional)

Video Input:CVBS / AHD720P / AHD1080P Optional

Mirror Image:Optional

Non-Mirrored Image:Optional

Electronic Shutter:1/65 (NTSC) / 1/60 (PAL) - 1/10,000

Lens:2.1mm

Night Vision:Starlight Night Vision (Color Image)

S/N Ratio:≥50dB

System:PAL/NTSC Optional

View Angle:140° / 170° Optional

Video Output:1.0Vp-p, 75Ω

Built-in Mic:Optional

Waterproof Rating:IP69K

Operating Temperature:-20℃~+75℃ (RH95% Max.)

Storage Temperature:-30℃~+85℃ (RH95% Max.)

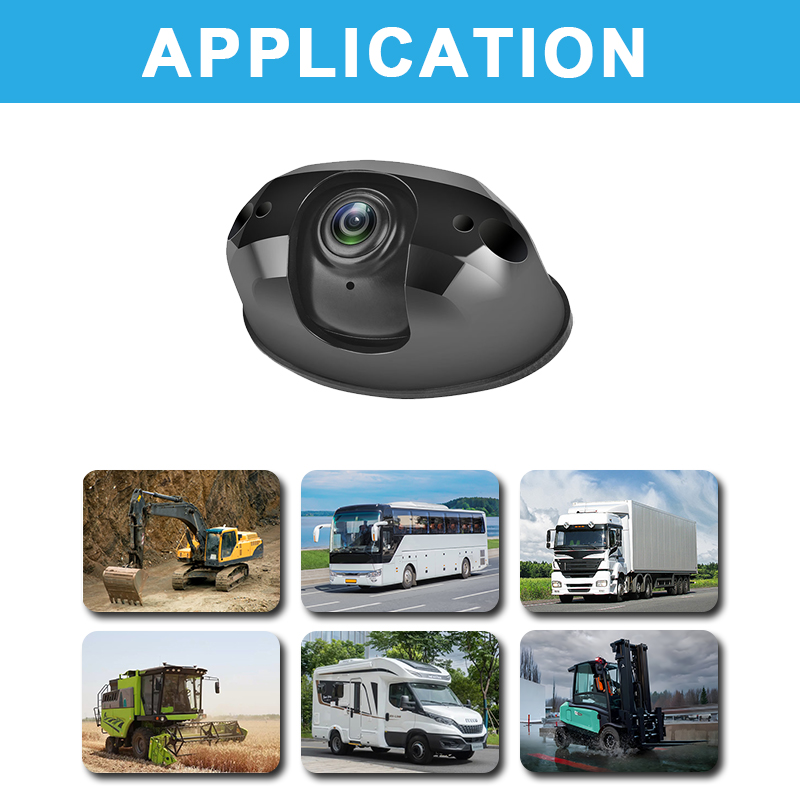

Vehicle Applications

This wide angle vehicle camera can be configured for different monitoring purposes:

• Front View

Used for monitoring the road and area directly in front of the vehicle.

• Side View

Suitable for additional visibility around vehicle sides and blind-spot areas.

• Rear View

Can be used as a rear view camera or backup camera for reversing and rear monitoring.

Commercial Vehicle Monitoring

Suitable for:

• Trucks
• Vans
• Buses
• Delivery vehicles
• Logistics vehicles
• Fleet vehicles
• Construction vehicles
• Commercial transportation vehicles

Quality Control

Each vehicle camera is inspected during production and before shipment. Relevant tests include:

• Image Quality Test
• AHD/CVBS Video Output Test
• 1080P Video Test
• Starlight Night Vision Test
• 140°/170° Viewing Angle Inspection
• Mirror/Non-Mirrored Image Test
• Electronic Shutter Test
• Audio Function Test (Optional Version)
• Power Supply Test
• Waterproof Test
• High/Low Temperature Test
• Final Appearance Inspection

FAQ

Q1: Can this camera be used for front, side and rear monitoring?

Yes. It is designed as a flexible front/side/rear view camera and can be configured according to the installation position.

Q2: What is the maximum viewing angle?

The camera supports 140° and 170° viewing angle options.

Q3: Does it provide color night vision?

Yes. The camera features Starlight Night Vision with color image for low-light applications.

Q4: Can it be used as a truck camera?

Yes. It is suitable for trucks, vans, buses and other commercial vehicles.

Q5: Does it support 1080P?

Yes. AHD1080P is available, as well as CVBS and AHD720P.

Q6: Can the image be changed for different installation positions?

Yes. Mirror and non-mirrored image options are available.

Q7: Is the camera suitable for outdoor installation?

Yes. The camera has an IP69K waterproof rating and is suitable for exterior vehicle applications.
