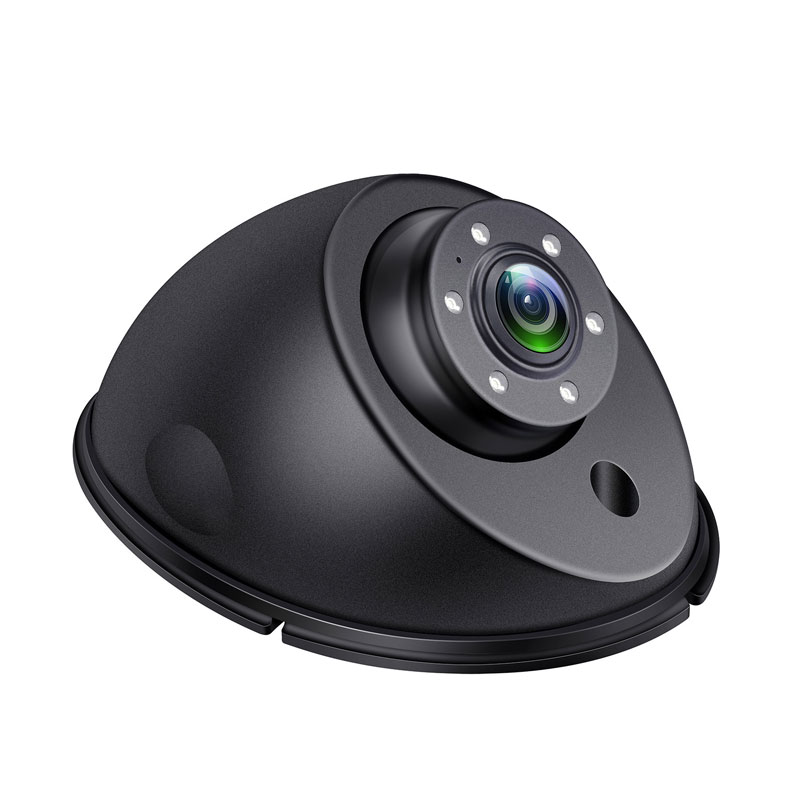

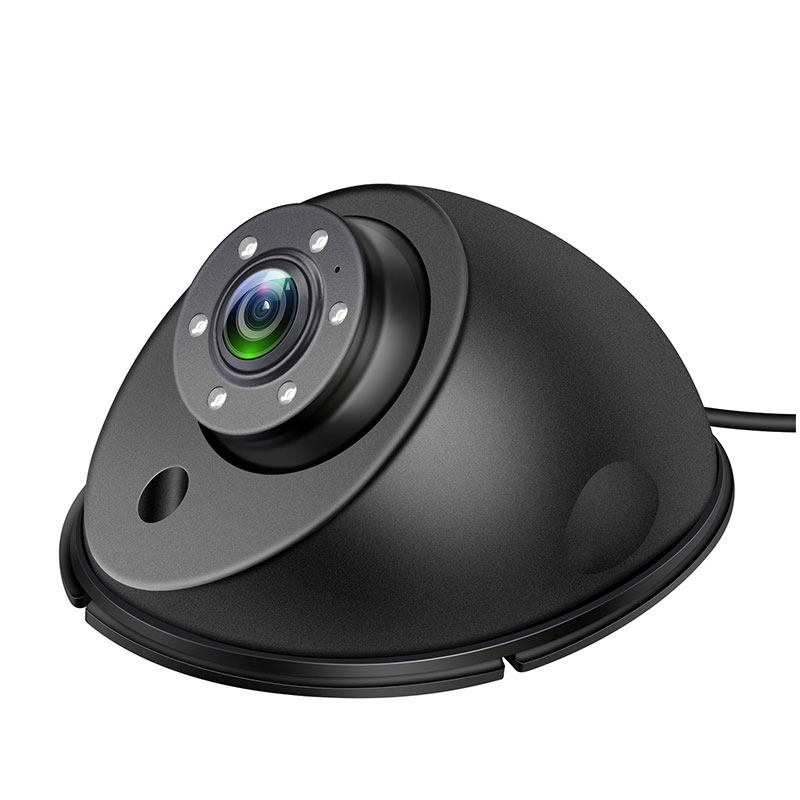

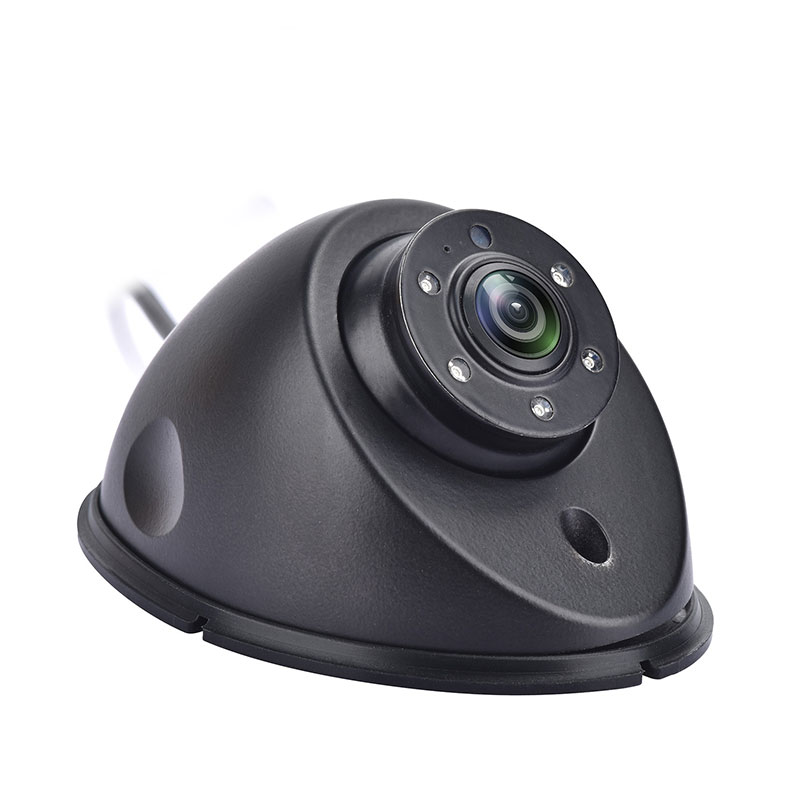

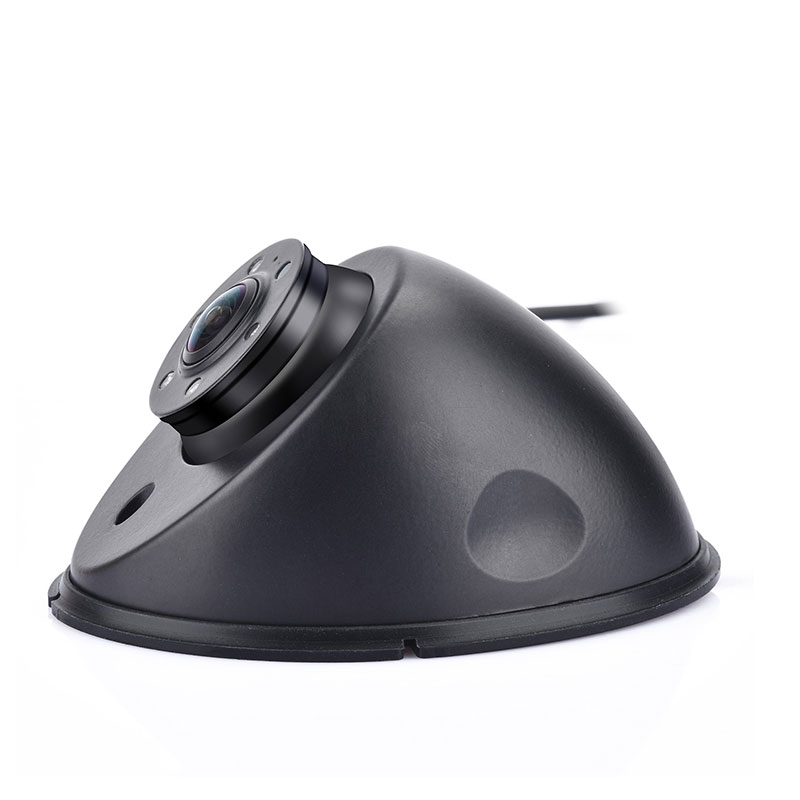

Rotatable Side View Camera with 170 degree Wide Angle for Commercial Vehicles

Advantages

01. Rotatable Lens for Flexible Installation

The lens can be rotated to help adjust the viewing direction after installation, making the camera suitable for different side mounting positions.

02. Wide-Angle Side Coverage

The standard viewing angle is 140°, with 170° optional, helping cover a wider area beside the vehicle.

03. Designed for Blind Spot Monitoring

The wide-angle view helps drivers monitor areas that may not be clearly visible through conventional mirrors.

04. Day & Night Switching

The camera automatically switches between day and night modes through the IR-cut function.

05. Multiple HD Video Formats

Supports CVBS, AHD720P and AHD1080P, making it suitable for different vehicle monitor and DVR systems.

06. IP69K Waterproof Protection

The IP69K housing is suitable for demanding outdoor vehicle applications exposed to rain, dust and vehicle washing.

Parameters

Product Type: Side Camera

Image Sensor: 1/2.7" & 1/1.9"

Video Input: CVBS / AHD720P / AHD1080P Optional

Power Supply: DC12V (Standard), 24V (Optional)

Image: Mirror Image & Non-Mirrored Image Optional

Lens: Rotatable

View Angle: 140° Standard, 170° Optional

Minimum Illumination: 0.5 LUX (5 LED)

Day/Night Function: IR Cut Day and Night Switch Automatically

S/N Ratio: ≥48dB

White Balance: Auto

System: PAL/NTSC Optional

Built-in Microphone: Optional

Waterproof Rating: IP69K

Operating Temperature: -20℃~+75℃ (RH95% Max.)

Storage Temperature: -30℃~+85℃ (RH95% Max.)

Application Scenarios

• Truck Side Monitoring

Monitor the areas beside heavy-duty trucks and improve side visibility.

• Commercial Vehicle Blind Spot Monitoring

Suitable for commercial vehicles that require additional side-view coverage.

• Van & Delivery Vehicle Monitoring

Useful for monitoring the side area of vans and logistics vehicles.

• Bus & Coach Side View

Can be integrated into multi-camera systems for wider vehicle coverage.

• Fleet Camera Systems

Can be connected with vehicle monitors, MDVRs and multi-camera fleet monitoring systems.

FAQ

Q1: Can the lens direction be adjusted?

A: Yes. This Side Camera features a rotatable lens for flexible installation and viewing direction adjustment.

Q2: What is the standard viewing angle?

A: The standard viewing angle is 140°, with 170° available as an optional configuration.

Q3: Does the camera support AHD1080P?

A: Yes. CVBS, AHD720P and AHD1080P are optional.

Q4: Can it provide a mirrored image?

A: Yes. Mirror image and non-mirrored image are both optional.

Q5: Can it work during both daytime and nighttime?

A: Yes. The camera supports automatic IR-cut day and night switching.

Q6: Is the camera waterproof?

A: Yes. It features an IP69K waterproof rating for outdoor vehicle applications.

Q7: Which vehicles can use this side camera?

A: It can be used for trucks, vans, buses, coaches and other commercial vehicles where additional side visibility is required.
