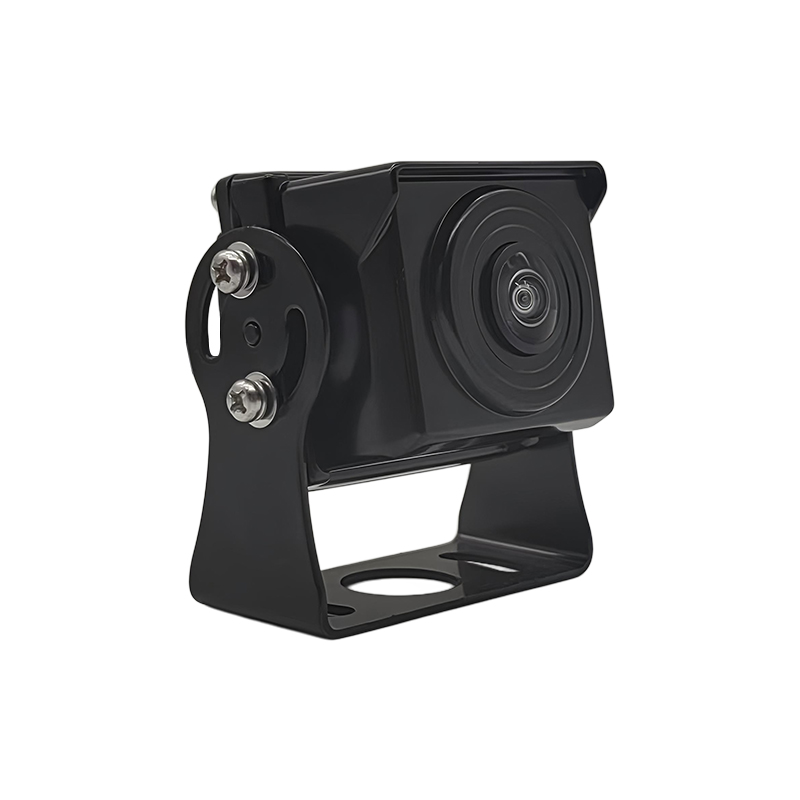

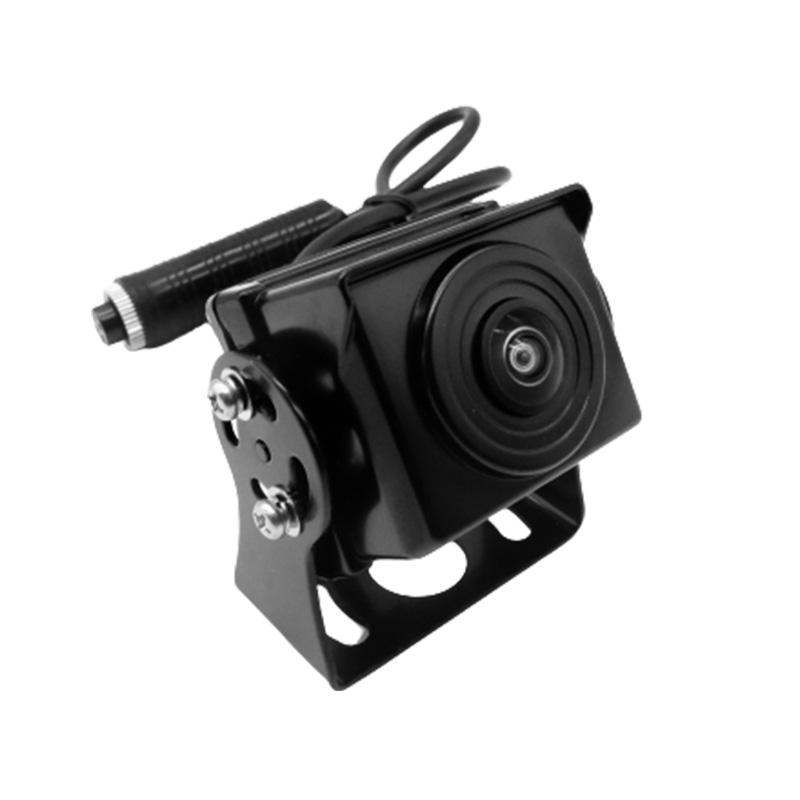

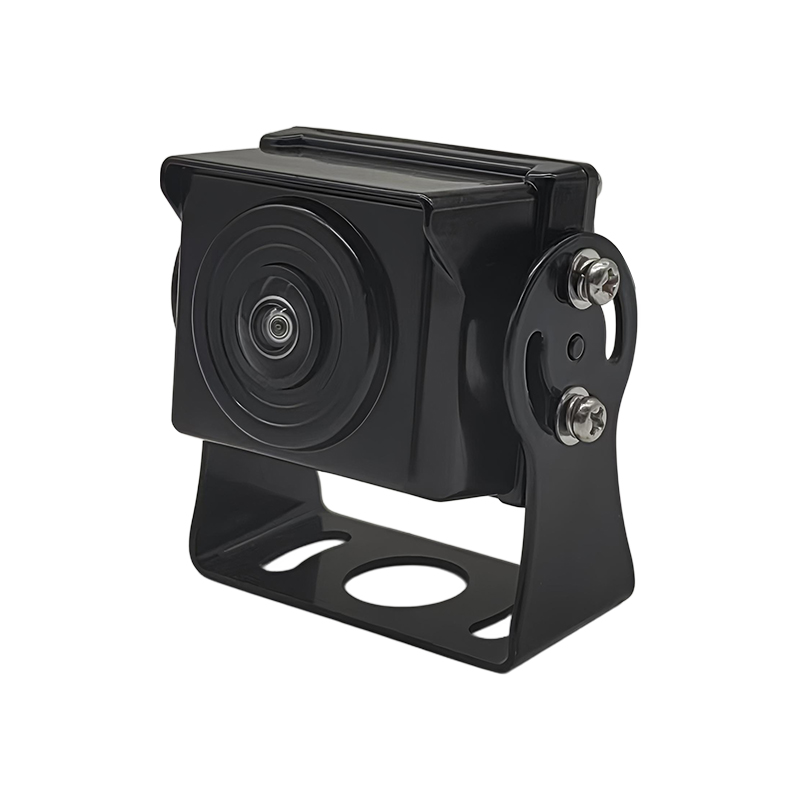

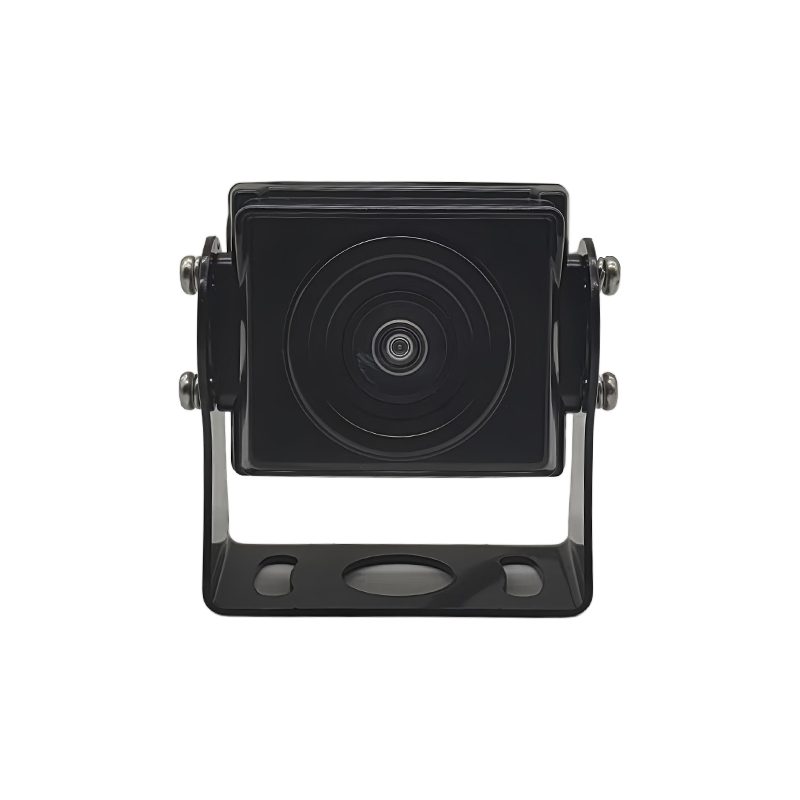

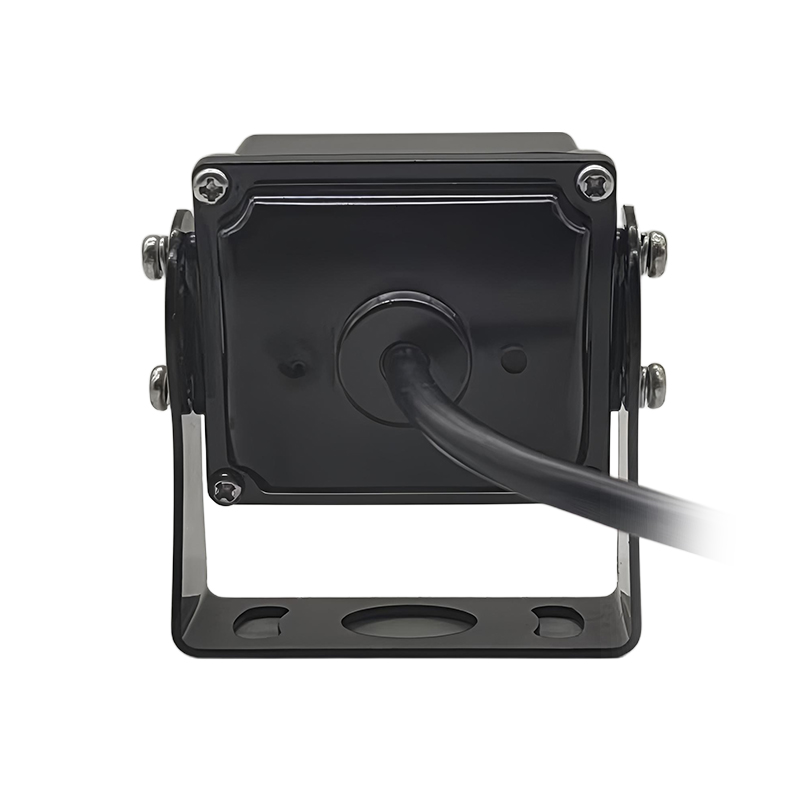

Starlight Rear View Camera for Truck Bus Commercial Vehicle with IP69K Waterproof

Features

1. The Starlight Rear View Camera is designed for low-light vehicle monitoring and can provide color images under illumination as low as 0.01 LUX, helping improve rear visibility during nighttime operation.

2. The camera supports CVBS, AHD 720P and AHD 1080P, allowing flexible integration with different vehicle monitors, DVRs, MDVR systems and rear view camera systems.

3. A 140° viewing angle is provided as standard, with 160° optional, helping cover a wider area behind trucks, buses, vans and other large vehicles.

4. The rugged IP69K vehicle camera design is suitable for outdoor installation and commercial vehicle applications exposed to rain, dust, water spray and demanding road conditions.

5. PAL and NTSC systems are available for different regional vehicle video system requirements.

Parameters

Product Name: Starlight Rear View Camera

Image Sensor: 1/3" CMOS

Video Input: CVBS / AHD 720P / AHD 1080P Optional

Power Supply: DC12V Standard / 24V Optional

Lens: 2.8mm

Viewing Angle: 140° Standard / 160° Optional

Night Vision: Starlight Night Vision, Color Image

Minimum Illumination: 0.01 LUX

Image Mode: Mirror Image / Non-Mirrored Image Optional

Video Output: 1.0Vp-p, 75 Ohm

S/N Ratio: ≥48dB

White Balance: Auto

System: PAL / NTSC Optional

Built-in Microphone: No

Waterproof Rating: IP69K

Operating Temperature: -20°C ~ +75°C, RH95% Max.

Storage Temperature: -30°C ~ +85°C, RH95% Max.

Compatible Vehicle Applications

• Truck
• Bus
• Coach
• Trailer
• Semi-Trailer
• Van
• Cargo Van
• RV
• Caravan
• Logistics Vehicle
• Commercial Vehicle
• Fleet Vehicle
• Heavy-Duty Vehicle
• Agricultural Vehicle

FAQ

Q1: What video formats does this Starlight Rear View Camera support?

It supports CVBS, AHD 720P and AHD 1080P, which can be selected according to the customer's vehicle monitoring system.

Q2: Can this rear view camera work with a 24V truck?

Yes. DC12V is standard and 24V is optional, making it suitable for many truck, bus and commercial vehicle applications.

Q3: What is the viewing angle?

The standard viewing angle is 140°, and a 160° option is available.

Q4: Does the camera provide color night vision?

Yes. It uses Starlight Night Vision and supports color imaging in low-light conditions down to 0.01 LUX.

Q5: Is this camera waterproof?

Yes. The camera has an IP69K waterproof rating, making it suitable for demanding outdoor vehicle applications.

Q6: Can the image be changed to mirror image?

Yes. Mirror image and non-mirrored image are optional.

Q7: Can this camera be connected to an MDVR?

Yes. Depending on the selected video configuration, the camera can be integrated with compatible MDVR, mobile DVR, vehicle monitor and fleet video surveillance systems.
