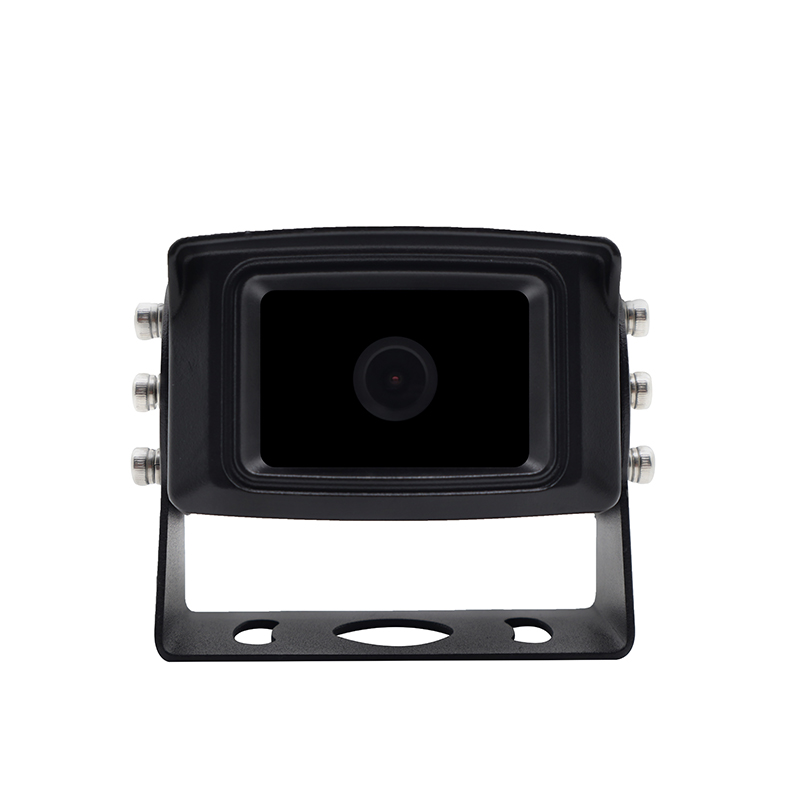

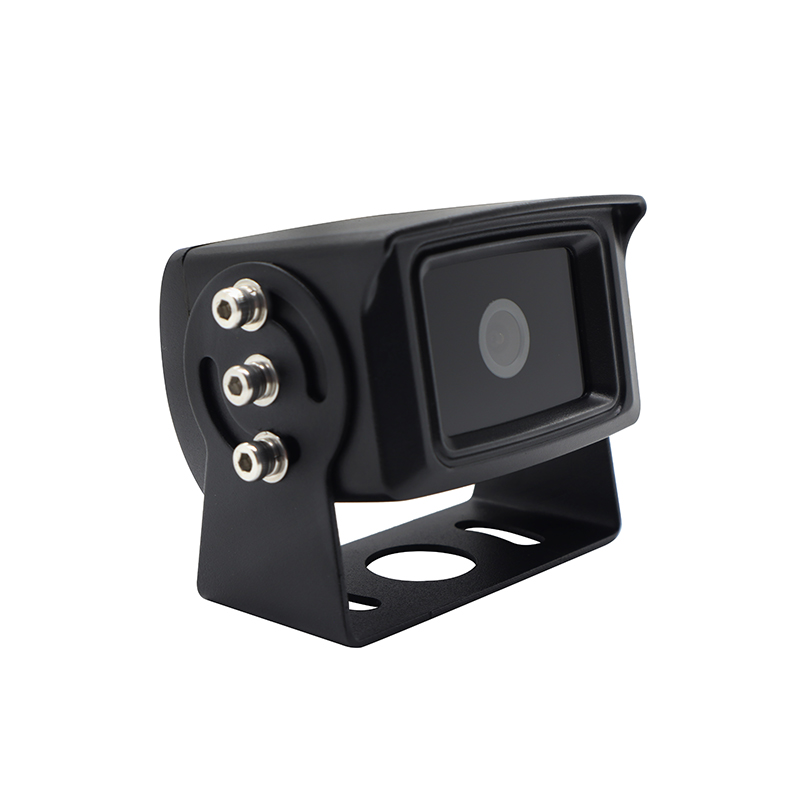

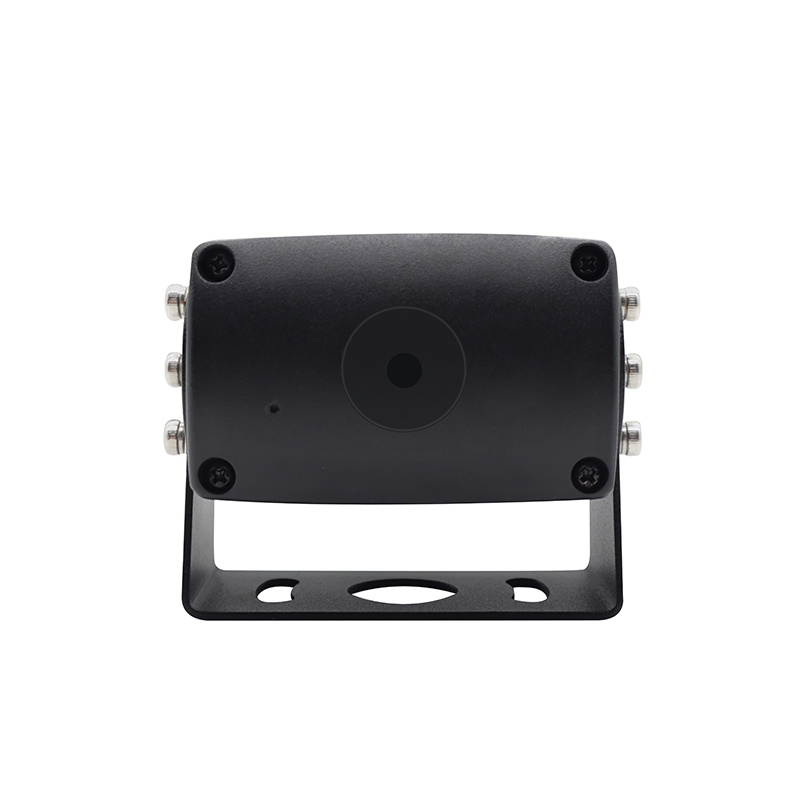

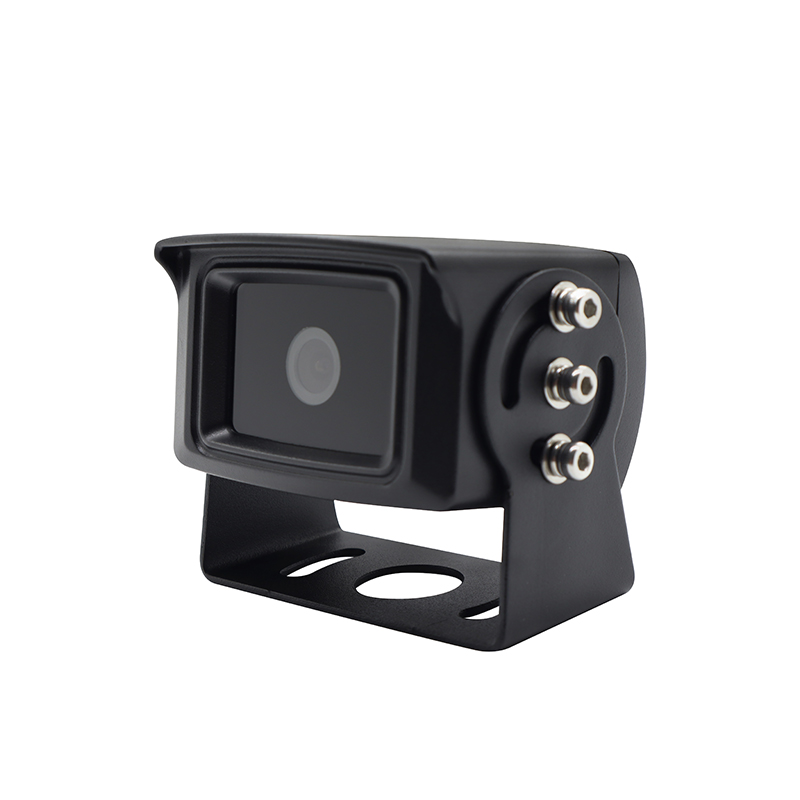

Starlight Rear View Camera with IP69K Protection for Vehicles

Carleader Starlight Rear View Camera is a vehicle monitoring camera designed to deliver color imaging in low-light environments. With a specified minimum illumination of 0.01 Lux, it uses starlight night vision technology to help drivers monitor vehicle surroundings without relying solely on conventional infrared night vision. The camera features a 1/3-inch image sensor and a 2.8mm lens, providing a 130° viewing angle for broad visual coverage. It supports multiple video configurations, including CVBS, AHD 720P and AHD 1080P, allowing integration with different compatible vehicle monitoring systems. Designed for demanding vehicle applications, the camera features an IP69K waterproof rating and supports both mirror and non-mirrored image options. A built-in microphone is available as an optional configuration, while DC 12V is standard and DC 24V is optional.

Key Features

1. Starlight Night Vision: Supports color imaging in low-light environments.

2. 0.01 Lux Minimum Illumination: Designed for image capture under very low-light conditions.

3. Multiple Video Options: Supports CVBS, AHD 720P and AHD 1080P configurations.

4. 130° Wide Viewing Angle: Provides a broad viewing area for vehicle monitoring.

5. IP69K Waterproof Rating: Designed for demanding outdoor vehicle environments.

6. Mirror and Non-Mirrored Images: Available for different installation requirements.

7. Optional Built-In Microphone: Audio pickup is available as an optional configuration.

8. PAL/NTSC Options: Supports different video system requirements.

Product Parameters

Product Name: Starlight Rear View Camera

Camera Type: Starlight Vehicle Camera

Image Sensor: 1/3 inch

Video Format: CVBS / AHD 720P / AHD 1080P optional

Power Supply: DC 12V standard

Optional Power Supply: DC 24V

Minimum Illumination: 0.01 Lux

Night Vision: Starlight Night Vision with Color Imaging

Lens: 2.8mm

Viewing Angle: 130°

Video System: PAL/NTSC optional

Video Output: 1.0Vp-p, 75Ω

Signal-to-Noise Ratio: ≥48dB

Image Mode: Mirror / Non-mirrored optional

Built-In Microphone: Optional

Waterproof Rating: IP69K

Operating Temperature: -20°C to +75°C (RH 95% maximum)

Storage Temperature: -30°C to +85°C (RH 95% maximum)

ApplicationsCommercial

• Truck Rear View Monitoring
• Bus and Coach Camera Systems
• Heavy-Duty Vehicle Monitoring
• Commercial Vehicle Camera Systems
• Vehicle Rear View Monitoring
• Fleet Camera Monitoring Solutions
• Automotive Video Monitoring Systems
• AHD Vehicle Camera Installations
• Low-Light Vehicle Monitoring Applications

FAQ

Q: What are the advantages of a starlight rear view camera?

A: A starlight camera is designed to capture color images in low-light environments, helping drivers maintain visual awareness when ambient lighting is limited.

Q: Can a 0.01 Lux camera provide color images at night?

A: This camera supports starlight color imaging with a specified minimum illumination of 0.01 Lux. Actual image performance depends on ambient lighting and installation conditions.

Q: What is the difference between a starlight camera and an infrared night vision camera?

A: A starlight camera is designed to capture color images under very low ambient light, while a conventional infrared camera uses infrared illumination to provide night-time images, which are often monochrome.

Q: Is a starlight vehicle camera suitable for trucks?

A: Yes. This model is designed for vehicle monitoring applications and can be integrated into compatible truck, bus and commercial vehicle camera systems.

Q: What should buyers consider when selecting a starlight rear view camera?

A: Buyers should consider minimum illumination, image resolution, viewing angle, video output format, power supply, waterproof rating and compatibility with the connected monitor or recording system.
