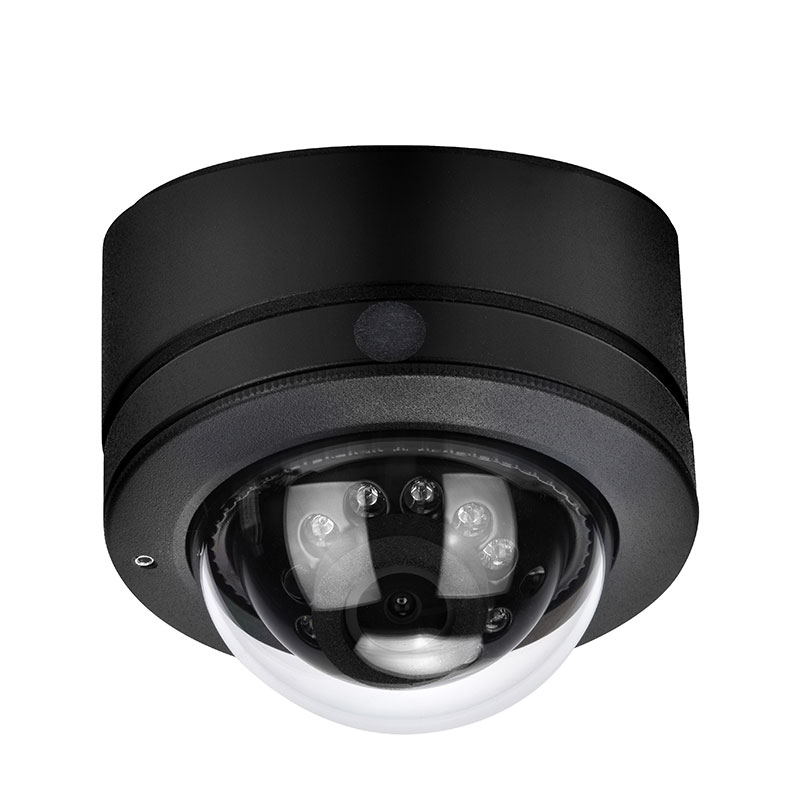

Vehicle Dome Camera with Adjustable Bracket for Commercial Vehicles

The Carleader Dome Camera with 15°/25° Bracket is a compact vehicle camera designed for automotive and commercial vehicle monitoring systems. It supports multiple video configurations, including CVBS, AHD 720P and AHD 1080P, allowing buyers to select a suitable version for their existing monitoring equipment. Equipped with 10 infrared LEDs, the camera supports night vision in low-light environments. Its automatic IR-cut day and night switching helps adapt image processing to changing lighting conditions. The 120° viewing angle provides a broad monitoring area, while the included 15° mounting bracket and optional 25° bracket offer flexibility for different installation positions. With an IP69K waterproof rating, optional built-in microphone and support for mirror or non-mirrored images, this dome camera is designed for a variety of vehicle monitoring requirements. The standard power supply is DC 12V, with a DC 24V version available as an option.

Key Features

1. Compact Dome Design: Suitable for vehicle camera installations requiring a dome-style housing.

2. Multiple Video Options: Supports CVBS, AHD 720P and AHD 1080P configurations.

3. 120° Viewing Angle: Provides a wide viewing area for vehicle monitoring.

4. Automatic Day and Night Switching: Features an automatic IR-cut filter switching function.

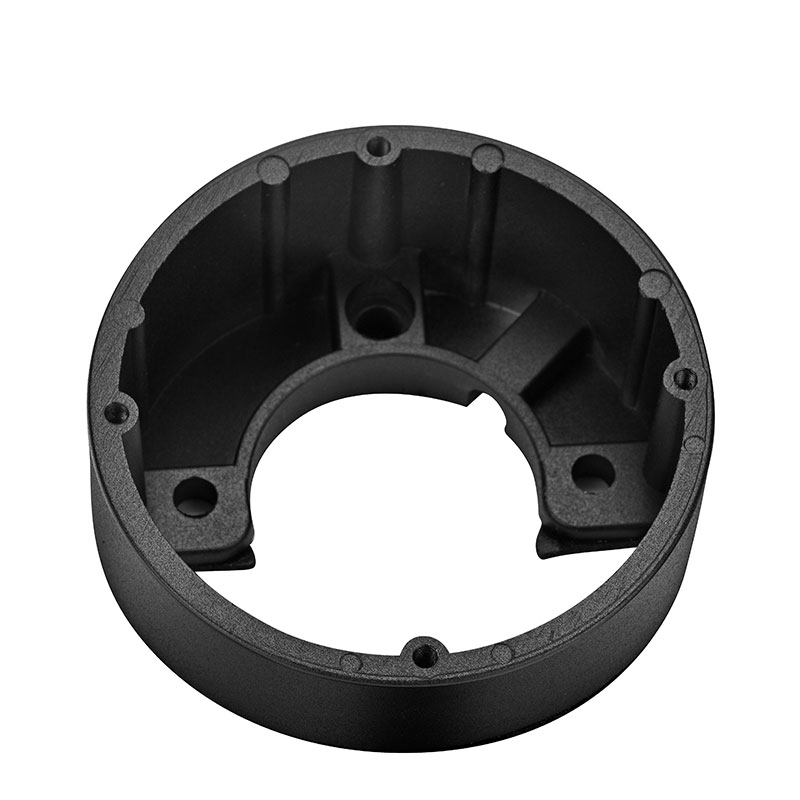

5. Flexible Mounting Brackets: Supplied with a 15° bracket as standard, with a 25° bracket available as an option.

6. IP69K Waterproof Rating: Designed for demanding vehicle environments.

7. Mirror and Non-Mirrored Images: Optional image orientation to suit different installation requirements.

8. PAL/NTSC Options: Supports different video system requirements.

Product Parameters

Product Name: Dome Camera with 15°/25° Bracket

Camera Type: Vehicle Dome Camera

Image Sensor: 1/3 inch

Video Format: CVBS / AHD 720P / AHD 1080P optional

Power Supply: DC 12V standard

Optional Power Supply: DC 24V

Minimum Illumination: 0 Lux (10 IR LEDs)

Lens: 2.8 mm

Viewing Angle: 120°

Video System: PAL/NTSC optional

Mounting Bracket: 15° bracket standard

Optional Mounting Bracket: 25° bracket

Day and Night Function: Automatic IR-cut switching

Image Mode: Mirror / Non-mirrored optional

Video Output: 1.0 Vp-p, 75Ω, AHD

Waterproof Rating: IP69K

Signal-to-Noise Ratio: More than 44 dB

Built-In Microphone: Optional

Operating Temperature: -20°C to +75°C (RH 95% maximum)

Storage Temperature: -30°C to +85°C (RH 95% maximum)

Applications

• Commercial Vehicle Camera Systems
• Truck Camera Monitoring Systems
• Bus and Coach Monitoring
• Heavy-Duty Vehicle Camera Installations
• Vehicle Interior Monitoring, Subject to Installation Requirements
• Automotive Video Monitoring Systems
• AHD Vehicle Camera Systems
• Fleet Monitoring Solutions
• Vehicle Equipment Integration Projects

FAQ

Q1: What video formats does this dome camera support?

A1: The camera is available in CVBS, AHD 720P and AHD 1080P configurations. The selected version must match the connected monitor or recording system.

Q2: Does this dome camera support night vision?

A2: Yes. It has 10 IR LEDs and supports infrared night vision.

Q3: What is the difference between the 15° and 25° brackets?

A3: The 15° bracket is standard, while the 25° bracket is optional. The appropriate bracket can be selected according to the required mounting angle.

Q4: What is the viewing angle of the camera?

A4: The specified viewing angle is 120°.

Q5: Can this camera be used with a 24V vehicle?

A5: The standard version uses DC 12V, and a DC 24V version is available as an option.

Q6: Does the camera support mirror image adjustment?

A6: Mirror and non-mirrored image versions are optional. Please confirm the required image orientation when ordering.

Q7: Is a built-in microphone available?

A7: Yes. A built-in microphone is optional.

Q8: Is this dome camera waterproof?

A8: The camera has an IP69K waterproof rating. The complete installation, including connectors and cable connections, should also be suitable for the intended environment.

Q9: Can this camera work with an AHD monitor?

A9: Yes, when the selected camera video format and resolution are compatible with the monitor's input specifications.
